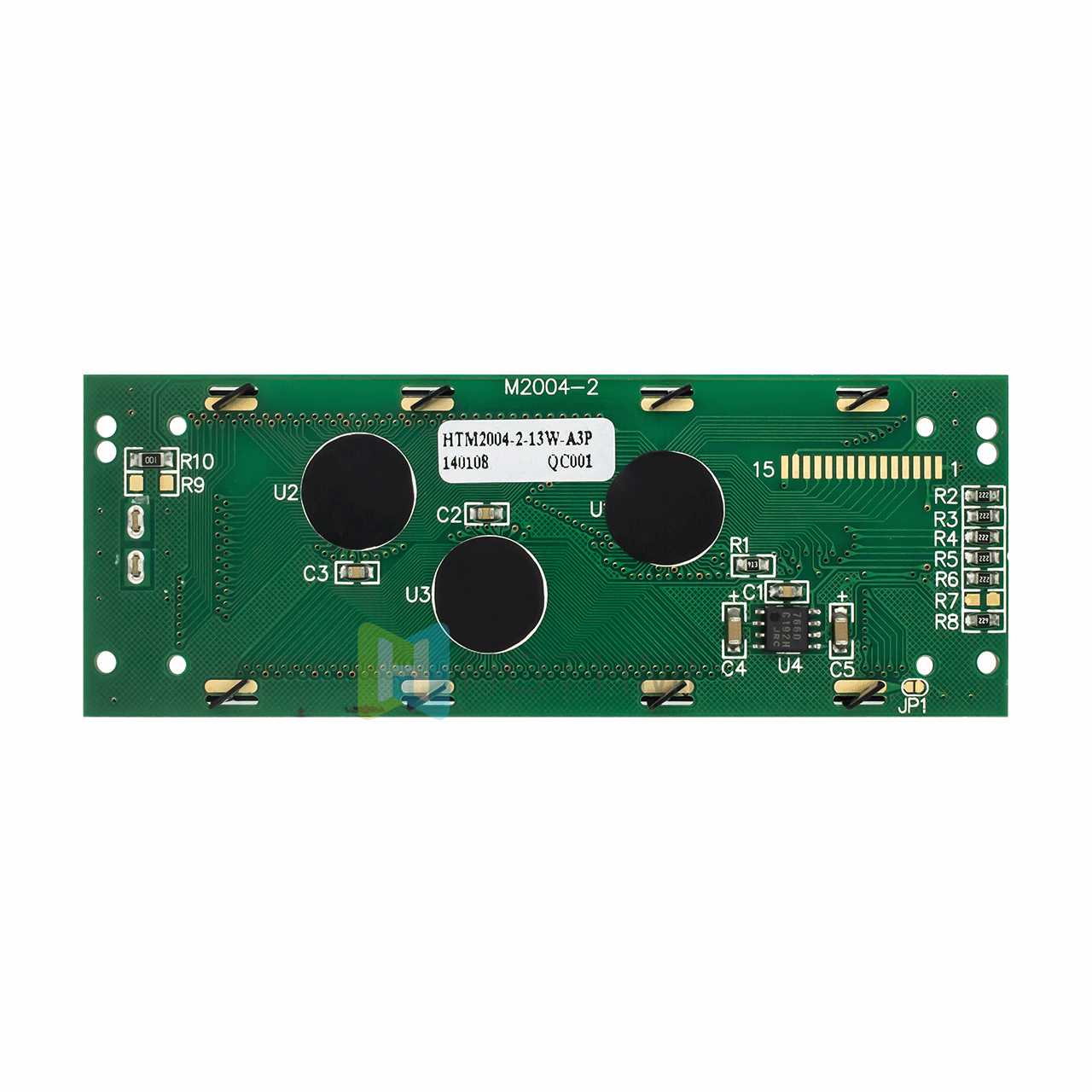

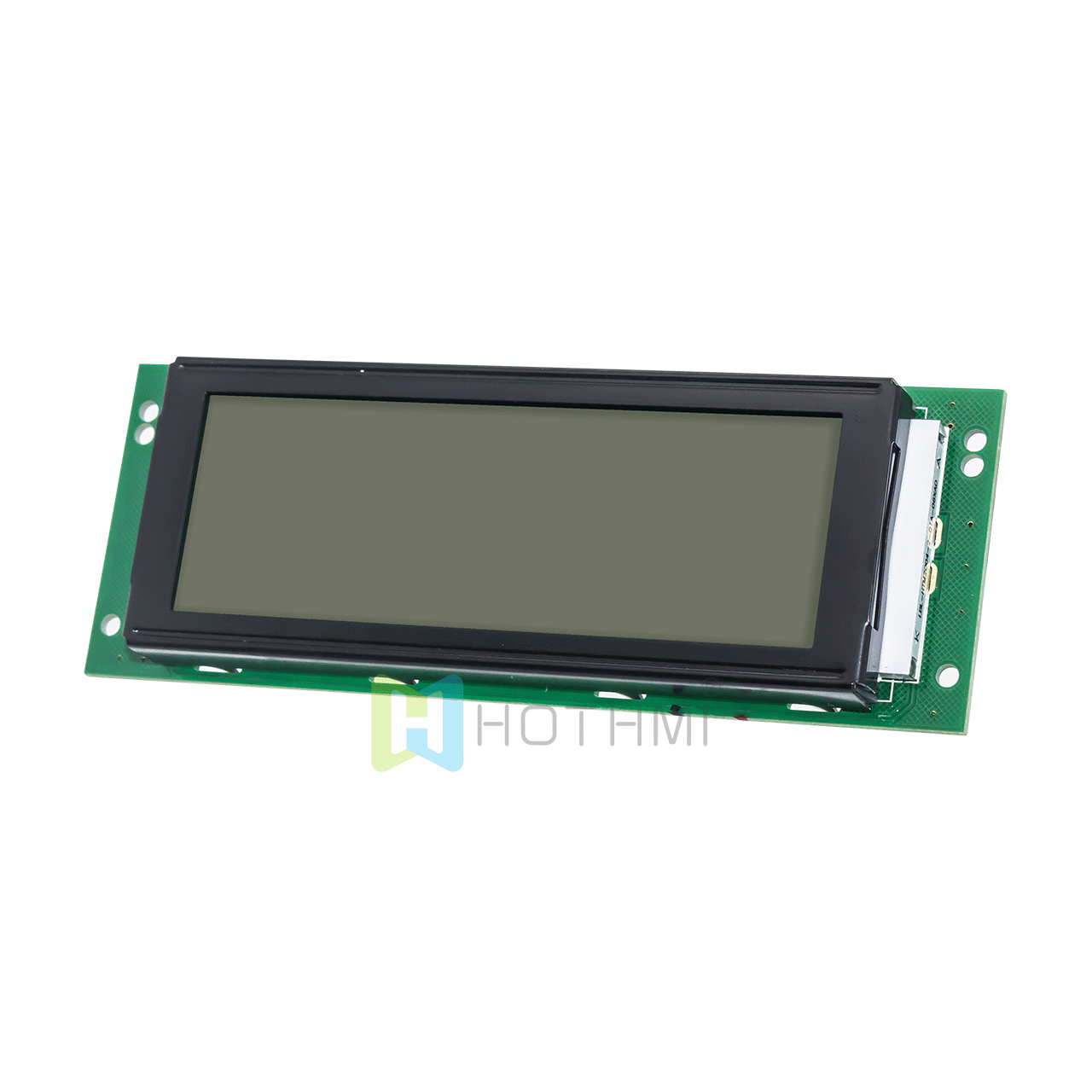

4X20 character LCD module/5.0V/STN+ display monochrome/with white backlight/white background gray text display/Arduino display

4X20 character LCD module/5.0V/STN+ display monochrome/with white backlight/white background gray text display/Arduino display

▶ Model: HTM-2004-2-31W-A5P

▶ Type: 4X20 character LCD module
▶ Display content: 20x4 characters
▶ Overall dimensions (mm): 105.0x38.0x10.2
▶ VA size (mm): 76.0x25.8
▶ AA size (mm): 70.4x20.8
▶ Point spacing mm: 0.60x0.60
▶ Product application: industrial control
▶ Viewing angle: 6H
▶ Backlight type: white light
▶ Number of PINs: 15PIN
▶ Interface mode: MCU
▶ Special instructions: Anti-static ESD 8KV
▶ Working temperature: -20~70℃
▶ Power supply voltage: 5.0V
▶ Driver chip:ST7066U

Product Consultation Datasheets Download Demo Code
- Transportation
- Payment
- Taxes
- Ensure
- Return
- Discontinued
Transportation

Our company cooperates with SF Express for domestic express delivery, and DHL for overseas express delivery. You can contact us to inquire about freight and weight to get the latest quotation.

Payment

Online payment is not supported. Transfers can be made through corporate accounts. If a VAT invoice is issued, please contact our sales staff to obtain a corporate account.

Taxes

All products sold on this website do not include tax. If you need a VAT invoice, please contact our sales staff to purchase offline.

Ensure

All products sold on this website have a one-year warranty. If the product is damaged due to improper use by the customer, it will be repaired free of charge. Material cost will be charged.

Return

Products within the warranty period can be returned for repair or replacement. Before returning, please contact our sales staff to confirm the reason for return.

Discontinued

We are committed to long-term production of all products sold on this website. If the IC or panel is discontinued, we will try our best to replace it with compatible materials.

Prev Back Next

Related Accessories

Arduino adapter board/suitable for Arduino development board COB/character/graphic dot matrix
Single Row Pin Header Connector
COB 20-pin cable base/character/graphic dot matrix

Product Description
Specification
Attributes

4X20 character LCD module/5.0V/STN+ display monochrome/with white backlight/white background gray text display/Arduino display
This 4X20 character LCD module high-quality monochrome LCD display displays characters with dark pixels on a bright white background, making it clearly visible under natural light or on a dark white background when using a building. It has an optimal field of view of 6:00, parallel communication, an operating temperature range from -20 to 70°C, adjustable contrast, and is RoHS compliant. This type of LCD display can be used seamlessly with Arduino and other development boards.

parameter	Parameter Description	Unit
name	HTM-2004-2-31W-A5P
Character display line	20 words × 4rows	dots

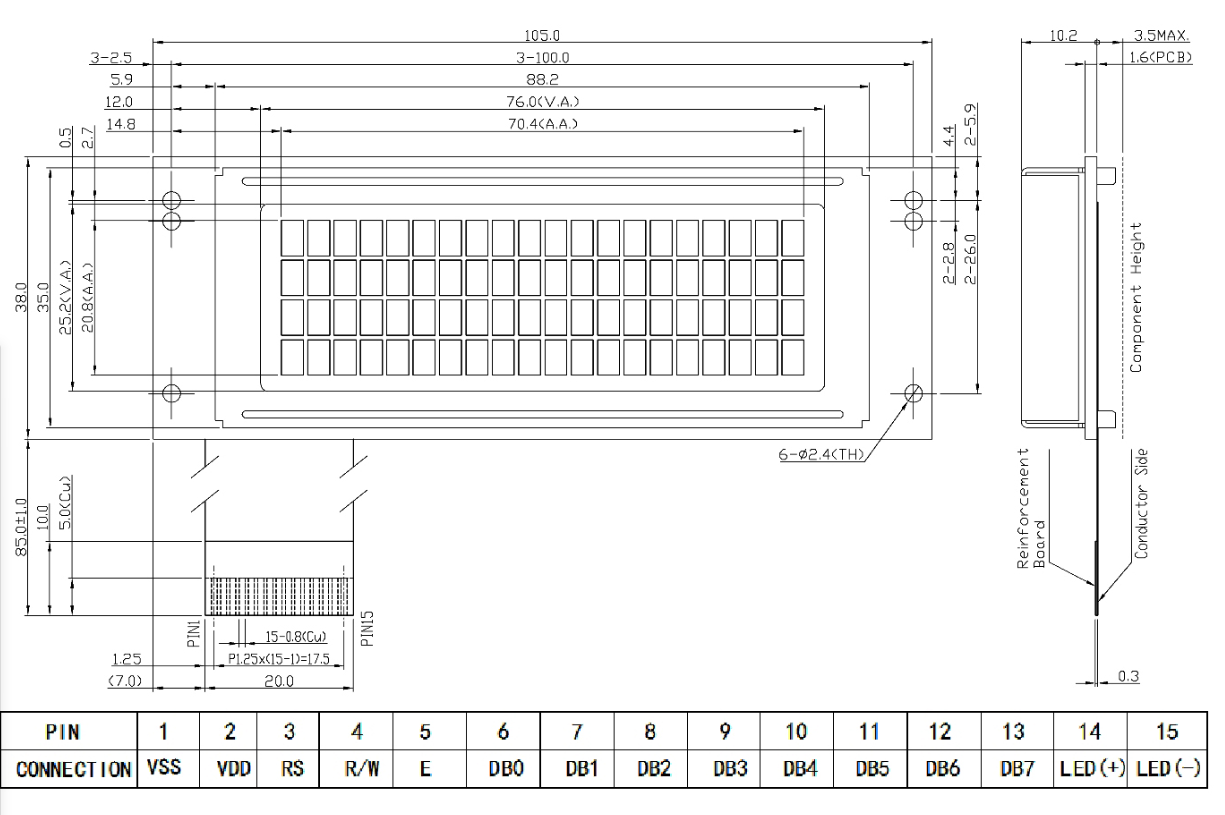

External dimensions	105.0x38x10.2 (MAX)	mm
VA size	76.0x25.8	mm
AA size	70.4x20.8	mm
Pixel spacing	0.6x0.6	mm
Driver chip	ST7066U
Application voltage	5V	V
Back lighting	White
display mode	FSTN(+)
Drive mode	1/16 duty cycle
product type	Character lcd module
Polarizer Type	Total transparent reflection polarizer
