HTM12864C02-31W-A5P | 1.7 inches | 128 x 64 low cost graphic LCD module | Gray text on white 128x64 graphic LCD module | ST7565R | Microcontroller Interface | Arduino

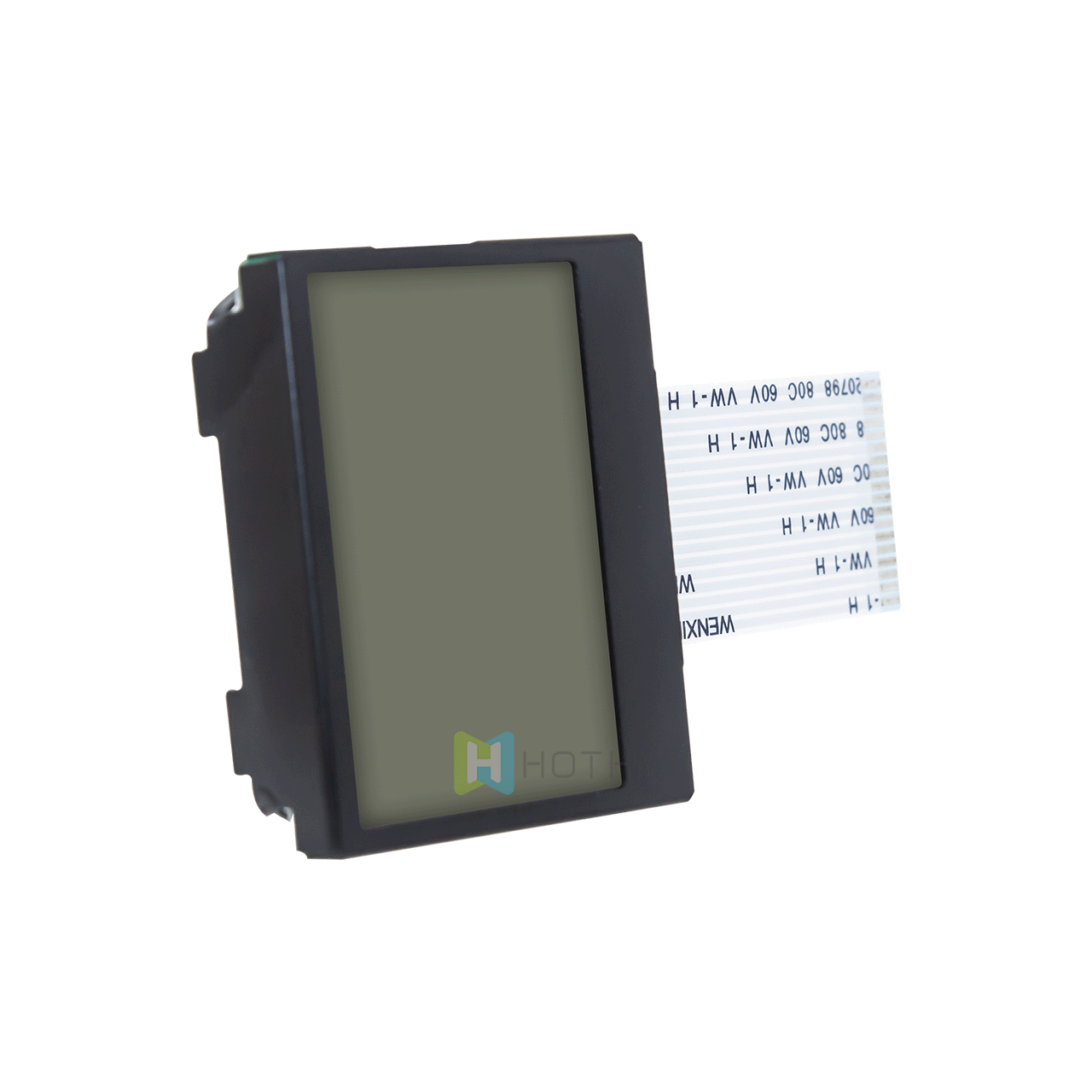

This Hot Display 128x64 graphics LCD module displays illuminated deep black pixels on a bright white background. This monitor comes with customized FFC pins for user convenience. This transflective LCD monitor is engineered to provide optimal visibility in a variety of lighting conditions in a variety of environments. In bright sunlight, the display uses its reflective layer to reflect ambient light back to the viewer, making the screen easy to read. In darker environments, the LCD has a strong built-in backlight that provides high contrast and displays clear graphics to the viewer. This advanced display technology ensures that the display is always easy to read, regardless of lighting conditions.

This graphic LCD display module has built-in negative voltage. It is also fully compatible with Arduino and can be seamlessly connected with other electronic systems for a variety of applications. The HTM12864C02-31W-A5P model is designed to withstand harsh operating conditions and will perform abnormally when used in temperatures ranging from -20 to 70 degrees Celsius. The LCD has an optimal viewing angle of 6:00, operates on 5V, and is RoHS compliant.

• Connector Customization: Easily modify any connectors on your display to meet your application’s requirements. Our engineers are able to perform soldering for pin headers, boxed headers, right angle headers, and any other connectors your display may require.

  PCB Modifications:  Choose from a variety of changes to the PCB's shape, size, pinout, and component layout to make it perfect for your application.

  Backlight color customization: The module backlight has a variety of combinations to choose from, without backlight or with yellow-green/blue/white/amber/red/RGB backlight options. There are 48 effects. You can click on the customization page for reference.

  Font library customization: Provides a variety of font libraries, including English/Japanese, Western Europe, Eastern Europe, Scandinavian Europe, Cyrillic (Russian), Hebrew/Arabic, etc.

  Cable Customization: Adjust the length, position, and pinout of your cables or add additional connectors. Get a cable solution that’s precisely designed to make your connections streamlined and secure.

Search keywords: 128 x 64 graphic LCD display, 128 x 64 graphic LCD module, FSTN positive display, Arduino, 1.7-inch graphic LCD module
