Character LCD Modules STN+ Yellow/Green Display with Yellow/Green Backlight Arduino display 2x16 Character

Character LCD Modules STN+ Yellow/Green Display with Yellow/Green Backlight Arduino display 2x16 Character

▶ Model: HTM1602A-01Y-A5P

▶ Type: Character LCD Modules
▶ Display content: 16x2 characters

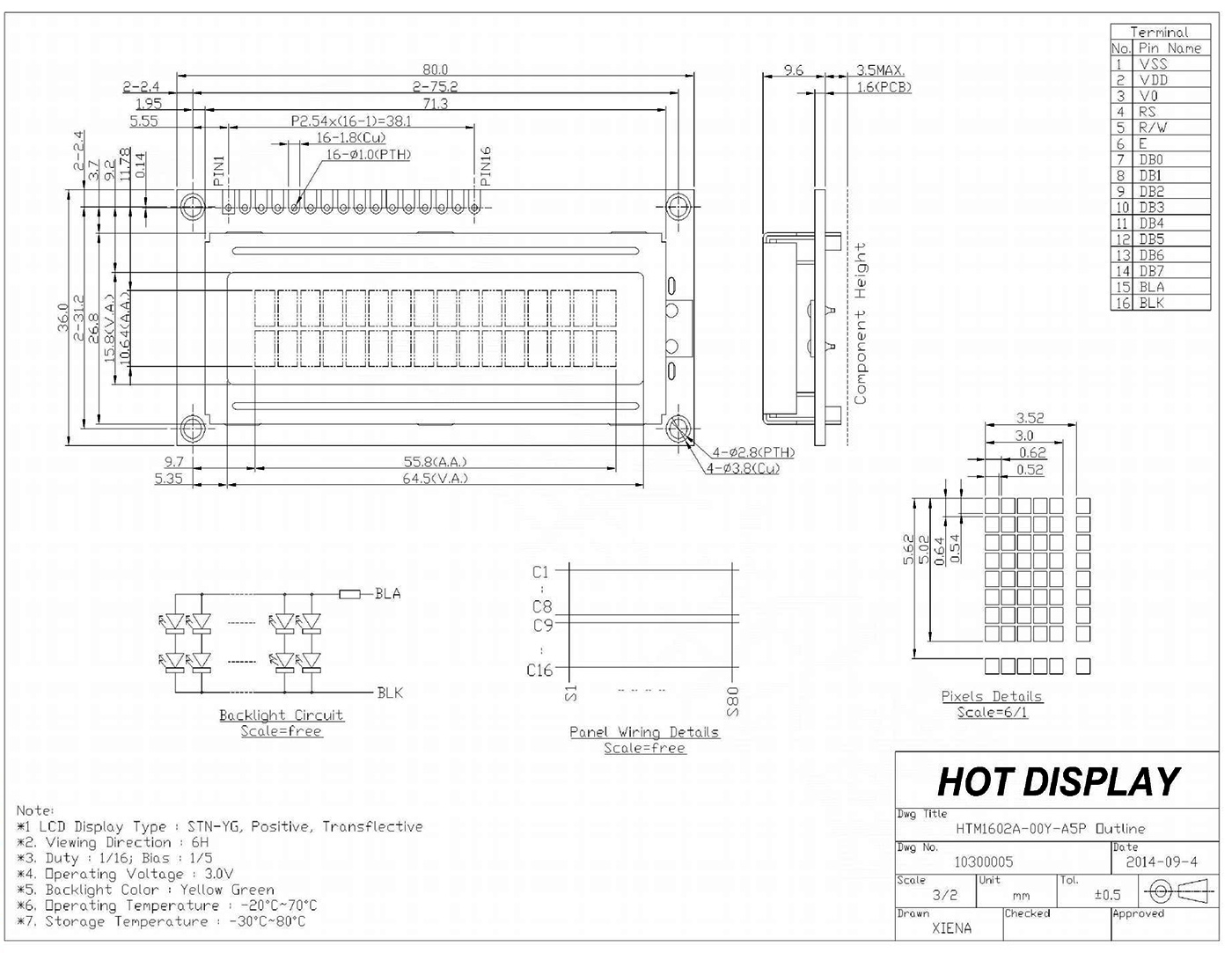

▶ Overall dimensions (mm): 80.0x36.0x13.1
▶ VA size (mm): 64.5x15.8
▶ AA size (mm): 55.8x10.64
▶ Point spacing mm: 0.62x0.64
▶ Product application: industrial control
▶ Viewing angle: 6H
▶ Backlight type or: yellow-green
▶ Number of PINs: 16PIN
▶ Interface mode: MCU/8bit
▶ Special instructions: Anti-static ESD 8KV
▶ Working temperature: -20~70℃
▶ Power supply voltage: 5.0V
▶ Driver chip:ST7066U

Product Consultation Datasheets Download Demo Code
- Transportation
- Payment
- Taxes
- Ensure
- Return
- Discontinued
Transportation

Our company cooperates with SF Express for domestic express delivery, and DHL for overseas express delivery. You can contact us to inquire about freight and weight to get the latest quotation.

Payment

Online payment is not supported. Transfers can be made through corporate accounts. If a VAT invoice is issued, please contact our sales staff to obtain a corporate account.

Taxes

All products sold on this website do not include tax. If you need a VAT invoice, please contact our sales staff to purchase offline.

Ensure

All products sold on this website have a one-year warranty. If the product is damaged due to improper use by the customer, it will be repaired free of charge. Material cost will be charged.

Return

Products within the warranty period can be returned for repair or replacement. Before returning, please contact our sales staff to confirm the reason for return.

Discontinued

We are committed to long-term production of all products sold on this website. If the IC or panel is discontinued, we will try our best to replace it with compatible materials.

Prev Back Next

Related Accessories

Monochrome COG/Graphic COB/Character COB/OLED module/E-paper module/Segment screen 8051 test board
Monochrome COG/Graphic COB/Character COB/OLED module/E-paper module/Segment screen STM32 test board
Character graphic dot matrix module dedicated adapter board
Single Row Pin Header Connector
COB 20-pin cable base/character/graphic dot matrix

Product Description
Specification
Attributes

Character LCD Modules STN+ Yellow/Green Display with Yellow/Green Backlight Arduino display 2x16 Character
The Character LCD Modules is a 2 x 16 character LCD display with a unique yellow-green backlight and front-facing STN display. When turned on, the LCD screen displays black pixels that stand out against a bright yellow-green background. Designed as a trans screen, which guarantees optimal visibility in different lighting conditions.

In direct sunlight, the reflective layer reflects ambient light back to the viewer, ensuring readability. In low-light environments, the backlight is activated, providing additional illumination to maintain screen clarity. The LCD display has a wide operating temperature range of -20 to 70 degrees Celsius, making it ideal for use in harsh environments. Offers excellent visibility from the 6 o'clock position and is capable of trouble-free operation on a 5.0v supply voltage. Compatible with arduino/c8051 and other development boards, it complies with RoHS standards and has undergone strict quality testing to meet or exceed industry standards.

Item	Specification content	Unit
Model	HTM1602A-01Y-A5P
words × lines	16words × 2lines	dots
Module size	80.0x36.0x13.1 (MAX)	mm
VA size	64.5（W） × 15.8（H）	mm
AA size	55.8x10.64	mm
Point (pixel) spacing	0.62（W） × 0.64（H）mm	mm
IC	ST7066U
Application voltage	5V	V
backlight	Yellow/green
model	STN+
Drive mode	1/16 duty cycle
type	Charcter Module
Polarizer type	Transflective Polarizer
