4X20 Character LCD Module// Monochrome Transflective/STN+ Yellow-Green Display/With Yellow-Green Backlight/Arduino Display/ST7066U Controller/5.0V

4X20 Character LCD Module// Monochrome Transflective/STN+ Yellow-Green Display/With Yellow-Green Backlight/Arduino Display/ST7066U Controller/5.0V

▶ Model: HTM-2004-2-01Y-A5P

▶ Type: 4X20 Character LCD Module
▶ Display content: 20x4 characters

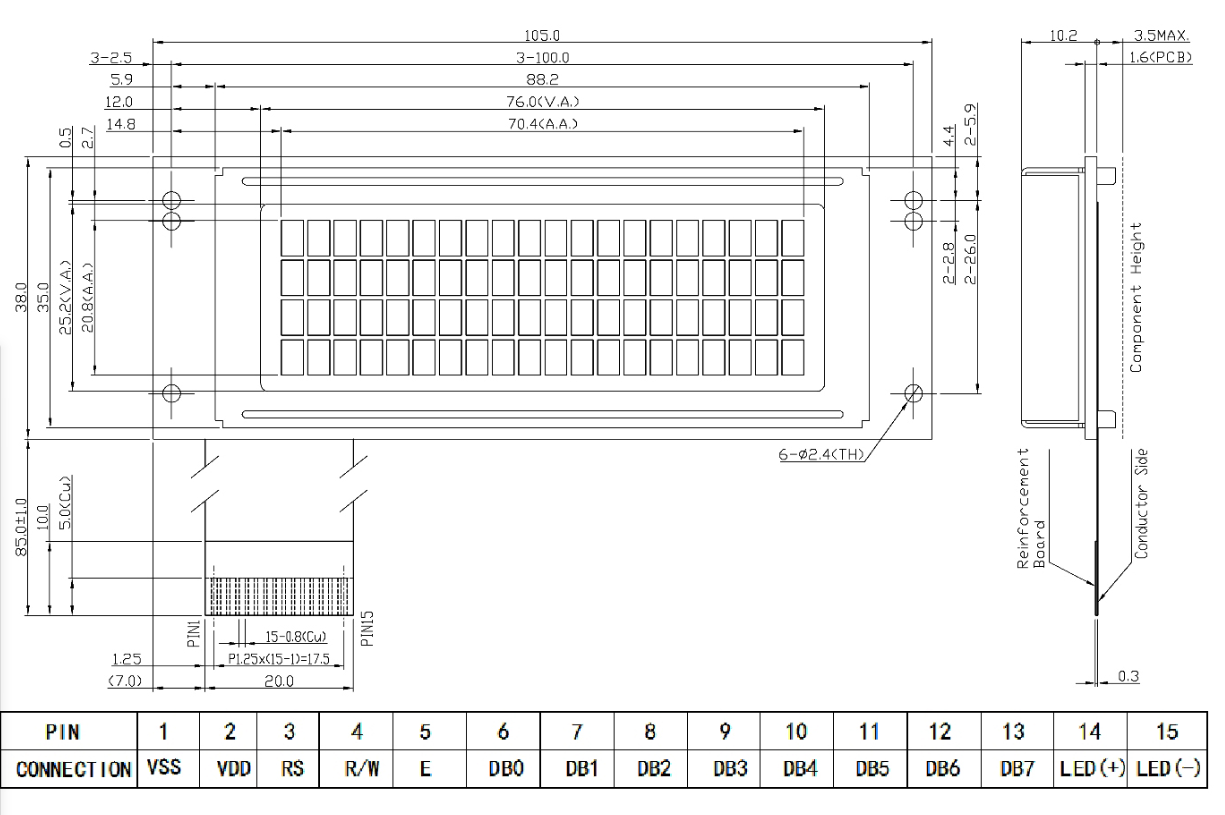

▶ Overall dimensions (mm): 105.0x38.0x10.2
▶ VA size (mm): 76.0x25.8
▶ AA size (mm): 70.4x20.8
▶ Point spacing mm: 0.60x0.60
▶ Product application: industrial control
▶ Viewing angle: 6H
▶ Backlight type: yellow/green light
▶ Number of PINs: 15PIN
▶ Interface mode: MCU
▶ Special instructions: Anti-static ESD 8KV
▶ Working temperature: -20~70℃
▶ Power supply voltage: 5.0V
▶ Driver chip:ST7066U

Product Consultation Datasheets Download Demo Code
- Transportation
- Payment
- Taxes
- Ensure
- Return
- Discontinued
Transportation

Our company cooperates with SF Express for domestic express delivery, and DHL for overseas express delivery. You can contact us to inquire about freight and weight to get the latest quotation.

Payment

Online payment is not supported. Transfers can be made through corporate accounts. If a VAT invoice is issued, please contact our sales staff to obtain a corporate account.

Taxes

All products sold on this website do not include tax. If you need a VAT invoice, please contact our sales staff to purchase offline.

Ensure

All products sold on this website have a one-year warranty. If the product is damaged due to improper use by the customer, it will be repaired free of charge. Material cost will be charged.

Return

Products within the warranty period can be returned for repair or replacement. Before returning, please contact our sales staff to confirm the reason for return.

Discontinued

We are committed to long-term production of all products sold on this website. If the IC or panel is discontinued, we will try our best to replace it with compatible materials.

Prev Back Next

Related Accessories

Arduino adapter board/suitable for Arduino development board COB/character/graphic dot matrix
Single Row Pin Header Connector
COB 20-pin cable base/character/graphic dot matrix

Product Description
Specification
Attributes

4X20 Character LCD Module// Monochrome Transflective/STN+ Yellow-Green Display/With Yellow-Green Backlight/Arduino Display/ST7066U Controller/5.0V

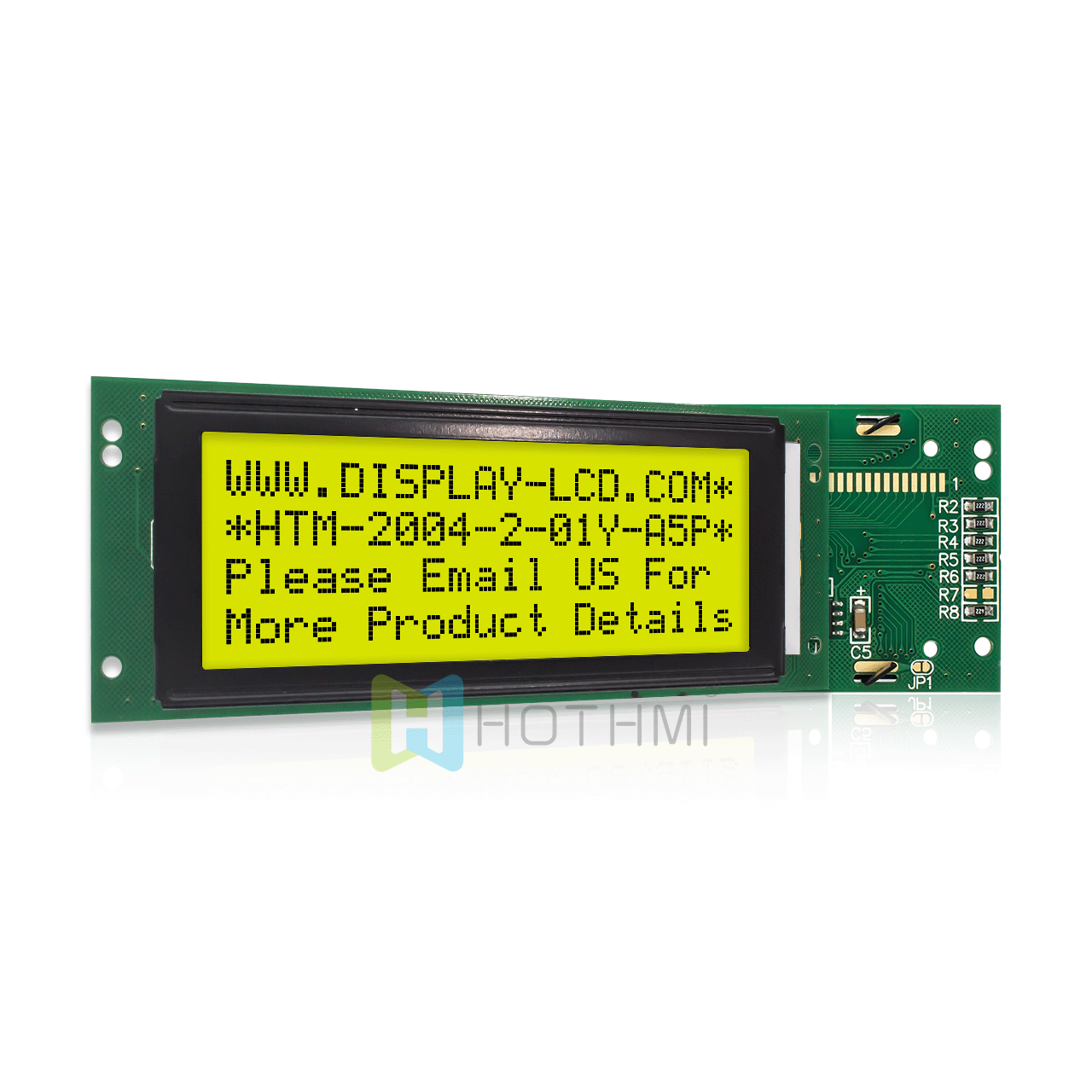

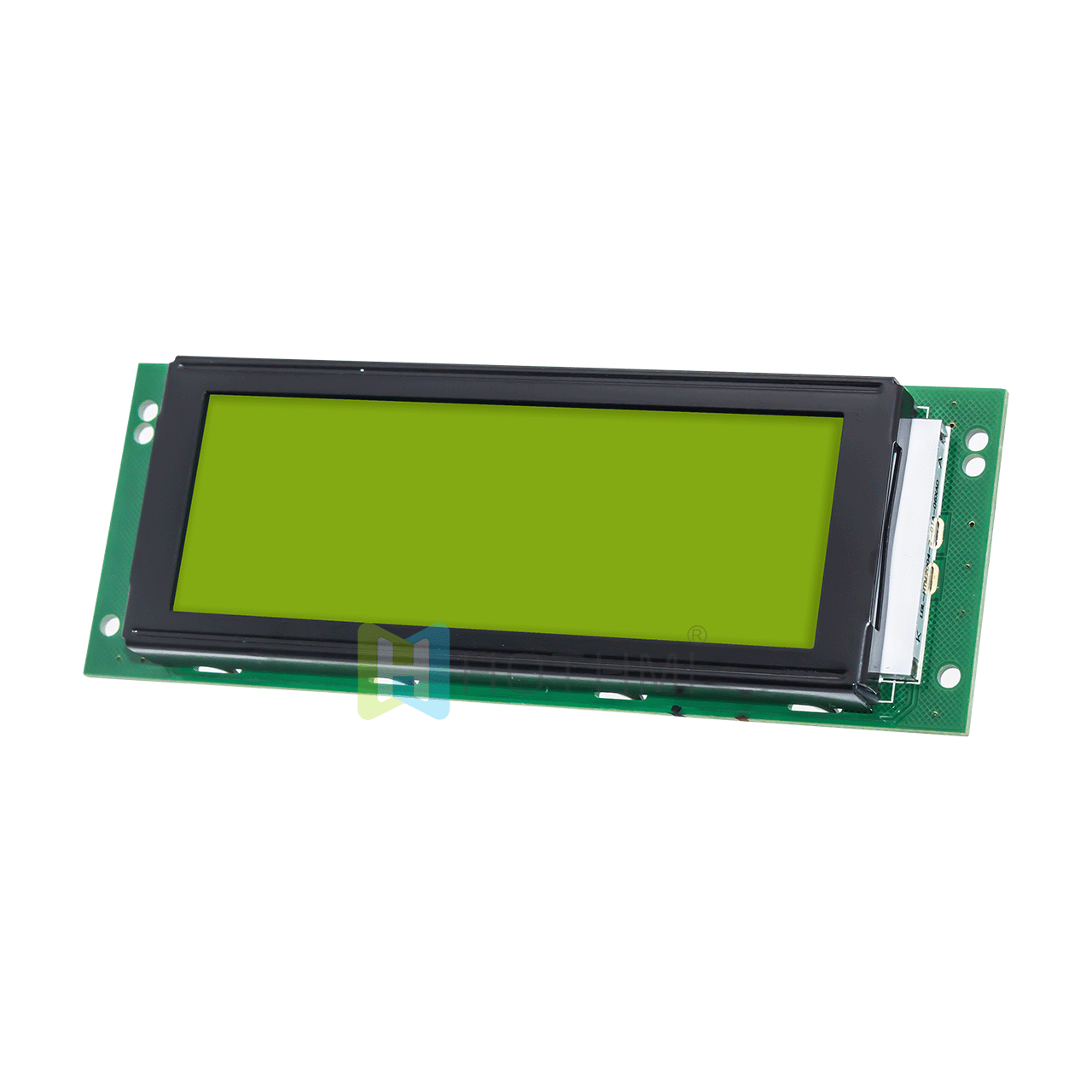

The 4X20 Character LCD Module screen displays black pixel characters on a bright yellow/green background. This transflective screen is visible in natural light environments or when backlit in low light conditions. The screen is solid color and the fonts are clearly visible. The amber back screen offers a wide operating temperature range of -20 to 70 degrees Celsius. This HTM-2004-2-01Y-A5P screen has an ideal viewing angle of 6:00 and operates at 5.0 V. This advanced LCD screen is also compatible with Arduino and other development boards, making it a great choice for hobbyists and developers.

Item	Specifications	Unit
Model	HTM-2004-2-a5p
Word × Line	20words × 4rows	dots
Module Size	105.0x38x10.2 (MAX)	mm
Visual (VA) Area	76.0x25.8	mm
Active (AA) Area	70.4x20.8	mm
Pixel (Pixel) Pitch	0.6x0.6	mm
IC	ST7066U
Power Supply Voltage	5V	V
Backlight	Yellow green light
Mode	STN(+)
Drive Mode (Duty)	1/16 duty cycle
Type	Character LCD Module
Features	Transflectvie Polarizer
