4.3-inch 480x272 resolution color high brightness IPS TFT LCD/full viewing angle sunlight visible TFT display/RGB interface/STM32/RK series

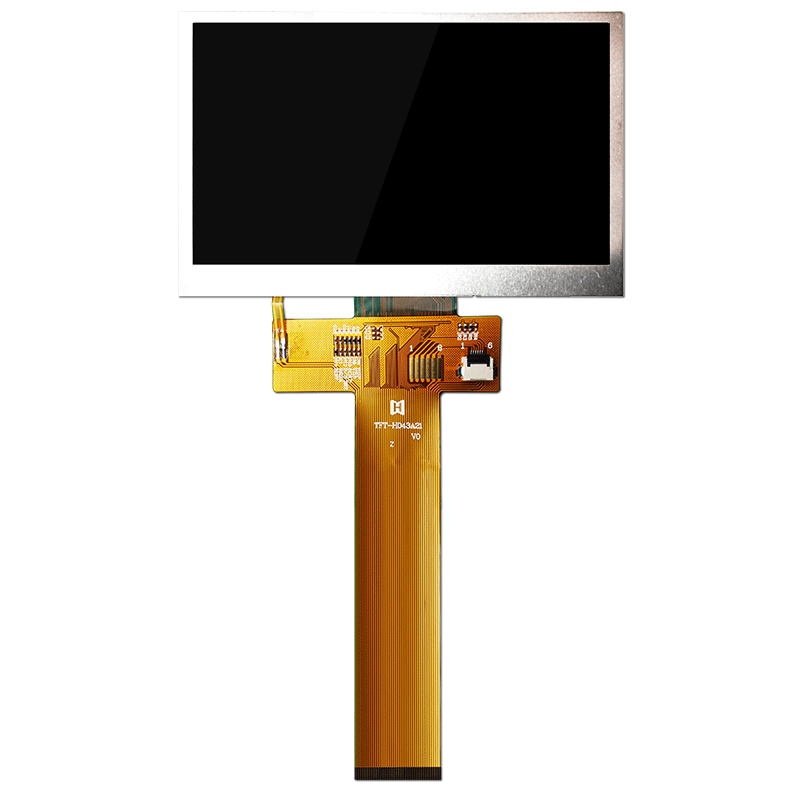

This standard 4.3 display TFT-H043A21WQISTKN40 has a resolution of 480x272 pixels, an IPS full viewing angle display, and has a high-quality effect no matter from which direction it is viewed, with a brightness of 1000cd/m2. The compact size, 3.3V low voltage power supply and impressive display quality make this display an excellent choice for projects without capacitive touch function.
This 4.3-inch LCD display uses a 40PIN FPC soft cable connection to provide a safe and reliable electrical connection. The connection method of the FPC soft cable makes disassembly easier and easier to operate. This TFT LCD display is powered by the SC7283 controller. The controller optimizes the function of the display to ensure smooth operation and accurate presentation of images and graphics. Popular industries for this TFT size include the Internet of Things, industrial automation, consumer electronics, test and measurement, and handheld devices. Due to their compatibility with STM32/RK, they are also very suitable for DIY or prototype projects. The RGB interface enables fast and efficient communication between the STM32/rk series, ensuring smooth data transmission and real-time updates. Our displays are all RoHS compliant and adhere to strict environmental and safety standards.
