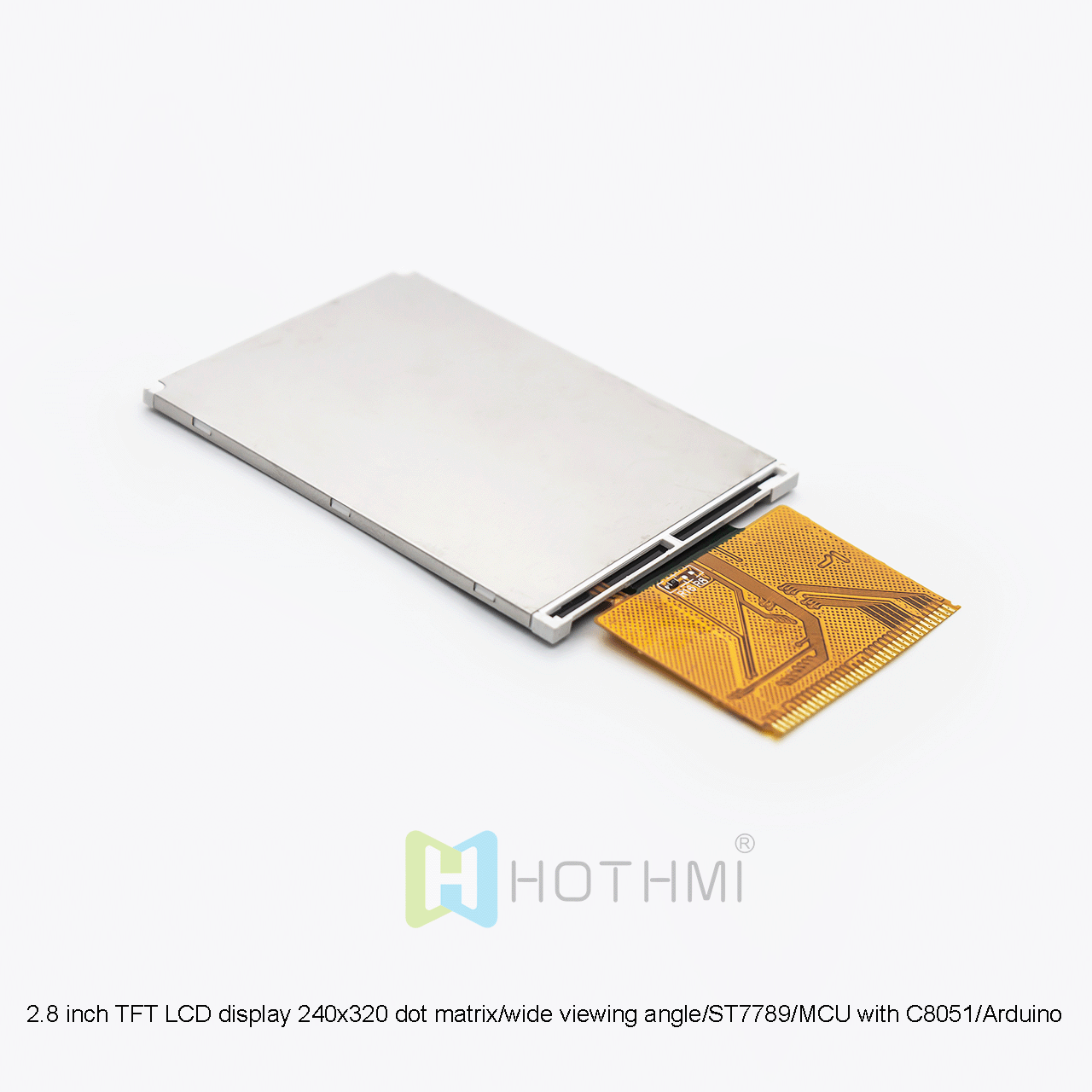

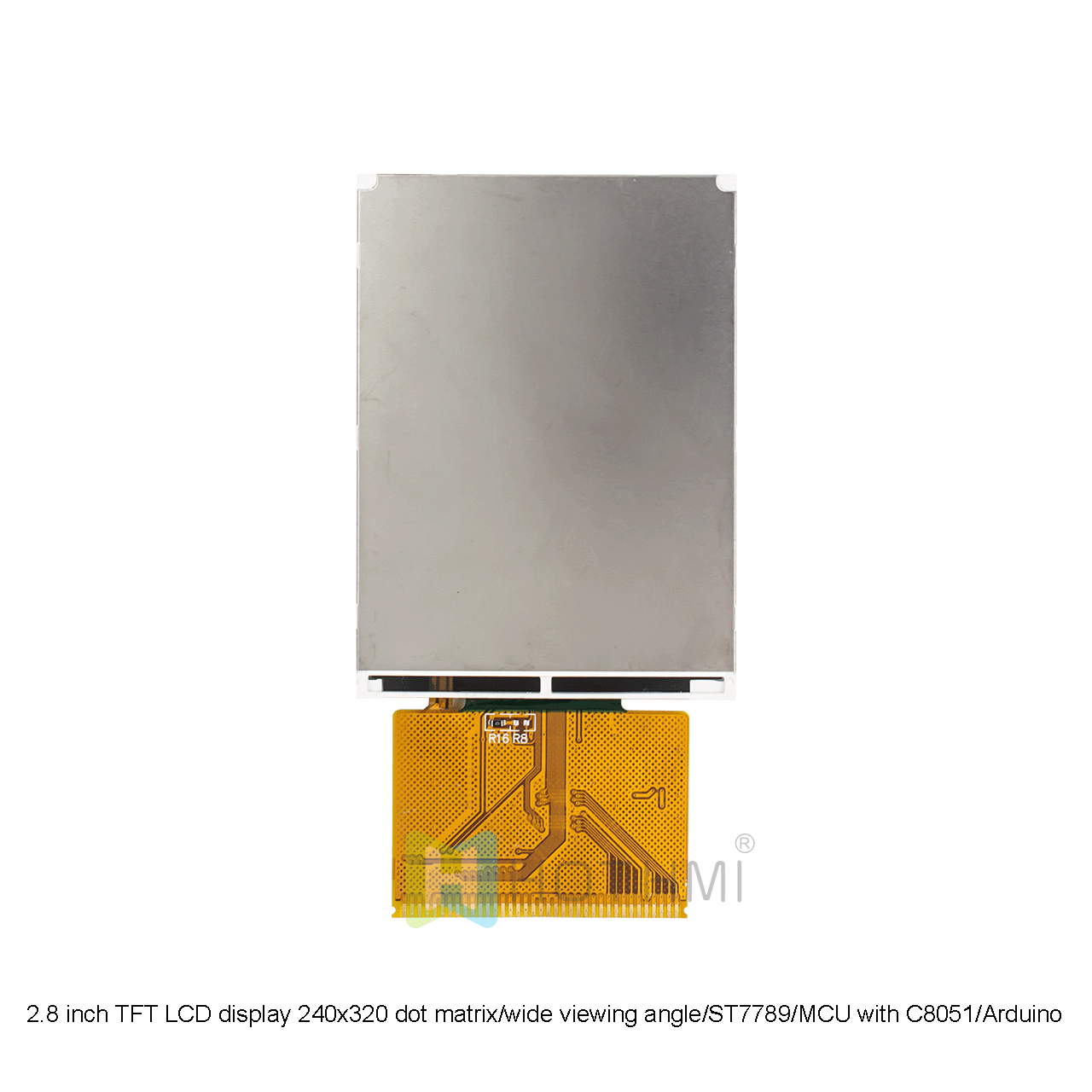

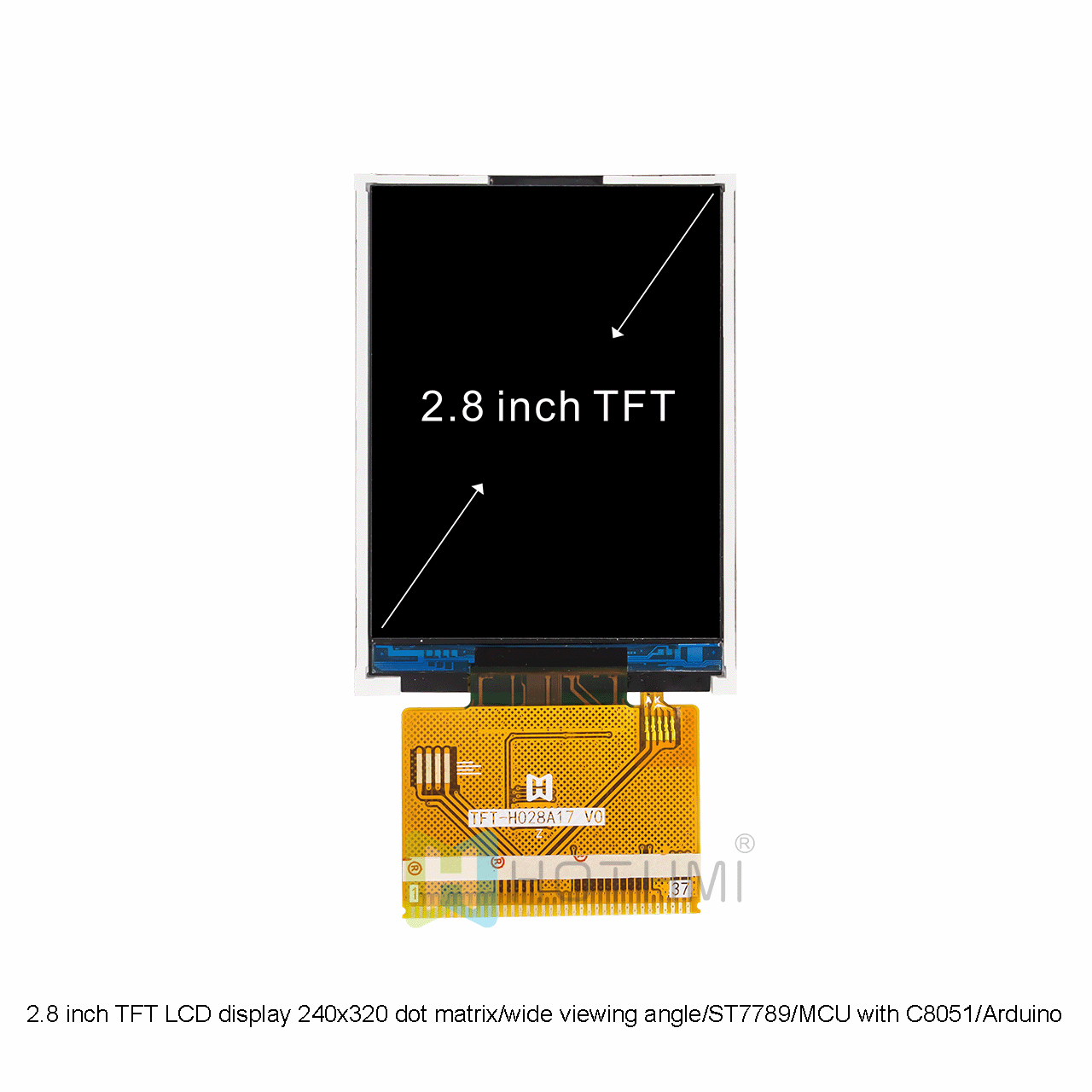

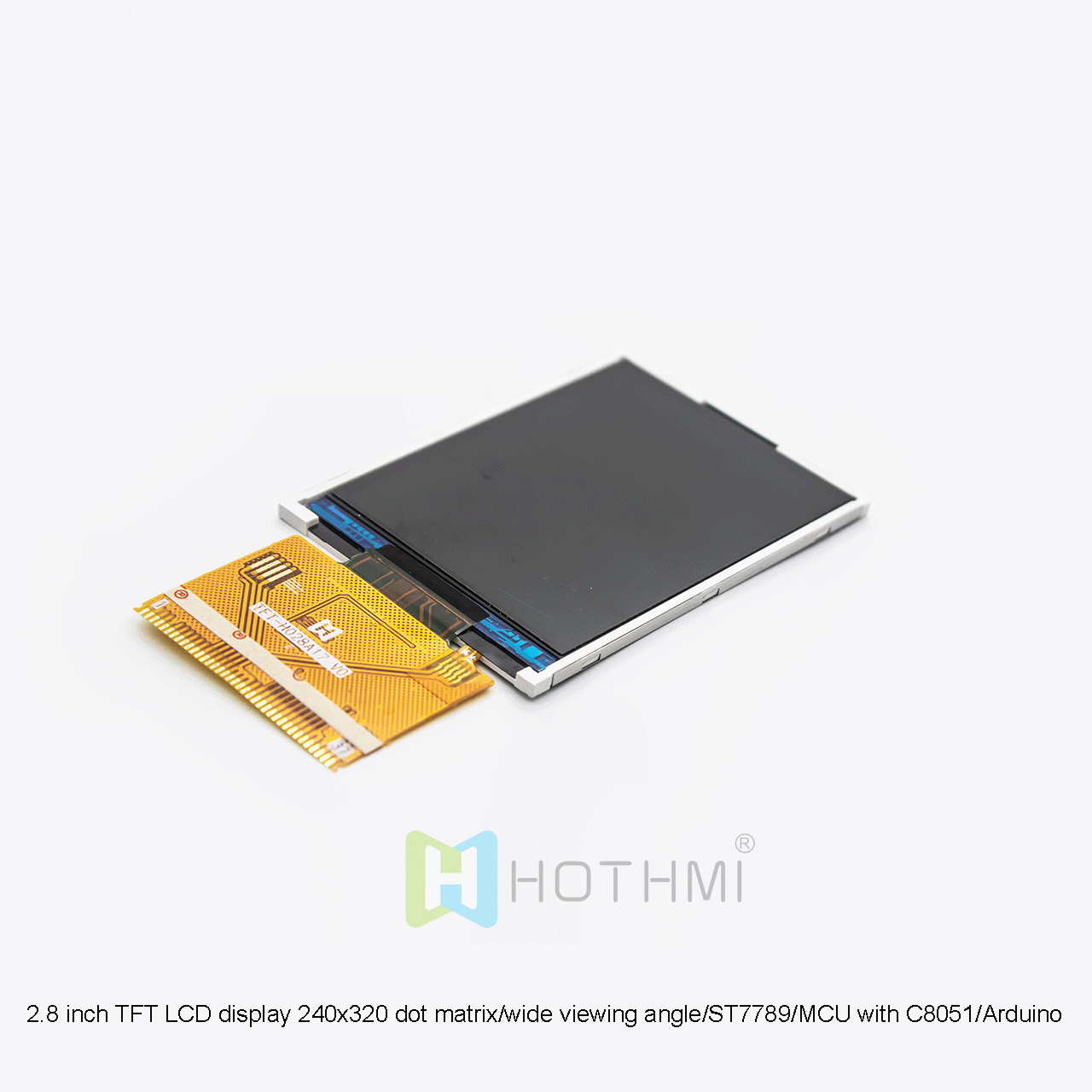

2.8-inch TFT LCD color display / 240X320 dot matrix color screen / 8080MCU interface / wide temperature / C8051 / Arduino / STM32 / plug-in FPC

2.8-inch TFT LCD color display / 240X320 dot matrix color screen / 8080MCU interface / wide temperature / C8051 / Arduino / STM32 / plug-in FPC

▶ Model: TFT-H028A17QVTST2N37

▶ Type: TFT LCD display
▶ Display content: 240X320
▶ Display inches: 2.8"
▶ Dimensions (mm): 50.0*69.2*2.3
▶ AA size (mm): 43.2*57.6
▶ Product application: medical monitors, handheld devices
▶ Viewing angle: 12:00 (U70/D40/L70/R70)
▶ Backlight type or brightness: white backlight 250cd/M2
▶ Connection method PIN number: 37pin
▶ Interface method: MCU
▶ Special instructions: without touch screen
▶ Operating temperature: -20~70℃
▶ Supply voltage: +2.8 V
▶ Driver chip: ST7789

Product Consultation Datasheets Download Demo Code
- Transportation
- Payment
- Taxes
- Ensure
- Return
- Discontinued
Transportation

Our company cooperates with SF Express for domestic express delivery, and DHL for overseas express delivery. You can contact us to inquire about freight and weight to get the latest quotation.

Payment

Online payment is not supported. Transfers can be made through corporate accounts. If a VAT invoice is issued, please contact our sales staff to obtain a corporate account.

Taxes

All products sold on this website do not include tax. If you need a VAT invoice, please contact our sales staff to purchase offline.

Ensure

All products sold on this website have a one-year warranty. If the product is damaged due to improper use by the customer, it will be repaired free of charge. Material cost will be charged.

Return

Products within the warranty period can be returned for repair or replacement. Before returning, please contact our sales staff to confirm the reason for return.

Discontinued

We are committed to long-term production of all products sold on this website. If the IC or panel is discontinued, we will try our best to replace it with compatible materials.

Prev Back Next

Related Accessories

USB data cable T-port charging data cable/serial screen/adapter board
TFT to HI adapter board

Product Description
Specification
Attributes

TFT-H028A17QVTST2N37/2.8-inch TFT LCD color display / 240X320 dot matrix color screen / 8080MCU interface / wide temperature / C8051 / Arduino / STM32 / plug-in FPC
TFT-H028A17QVTST2N37 is a rectangular 2.8-inch IPS TFT display with a clear resolution of 240x320 pixels. It has an impressive 3:4 contrast ratio and excels in rendering deep blacks and bright colors, ensuring a stunning visual experience. Its 250cd/m2 brightness ensures normal colors without excessive power consumption.
IPS technology enables full viewing angles. ZIF connector is optional, and this version comes with a flexible FPC as a connector. Configurations with glass cover or touch function are also available. TFTH028A17QVTST2N37 has a built-in ST7789 controller, which uses a 38080 MCU 8-Bit Or 16-Bit interface to transfer data to the display. This display is suitable for digital signage, automotive displays, industrial displays, medical displays, gaming consoles, control panels.

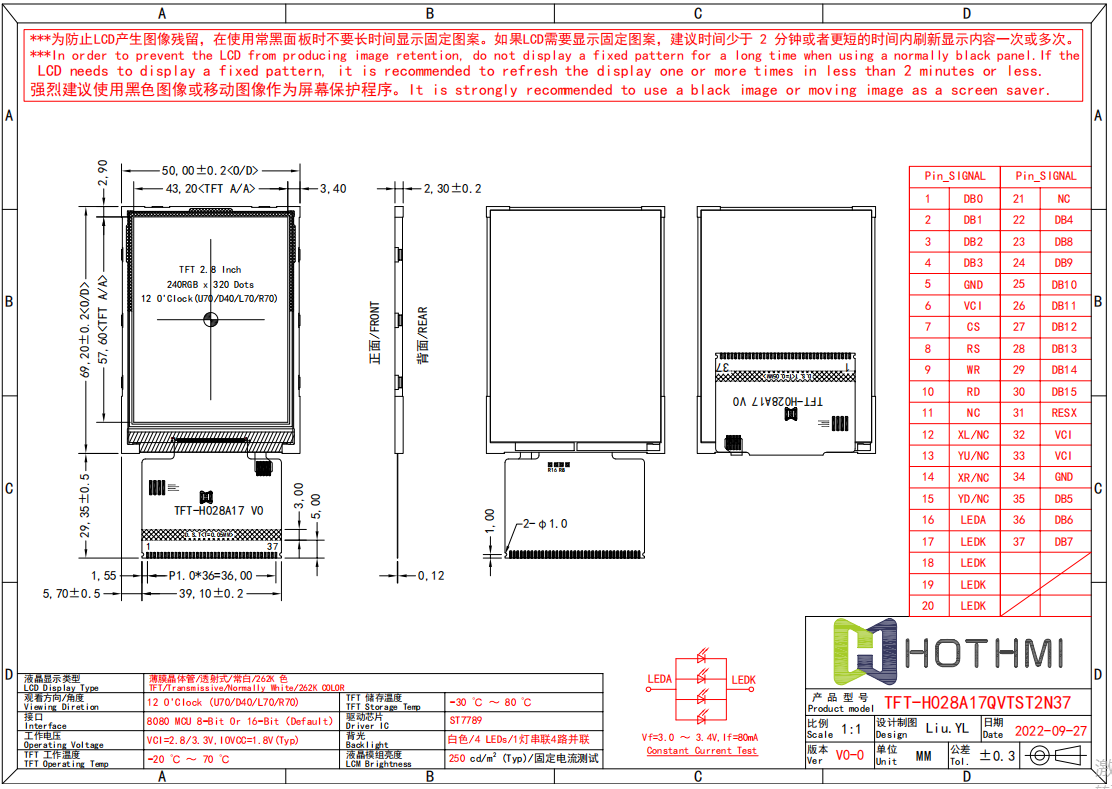

ITEM	PARAMETER DESCRIPTION	UNIT
TFT series	TFT-H028A17QVTST2N37
Diagonal size	2.8”	Inch
Resolution	240X320	Dot
Dimensions	50.069.22.3	mm
Active area (AA)	43.2*57.6	mm
LCD type	TFT LCD Display	mm
Display viewing angle	U70/D40/R70/L70
Aspect ratio	3:4
Backlight type	LED white
TFT driver IC	ST7789
Brightness	250	cd/m2
Operating temperature	-20~70℃	℃
Storage temperature	-30~80℃	℃
