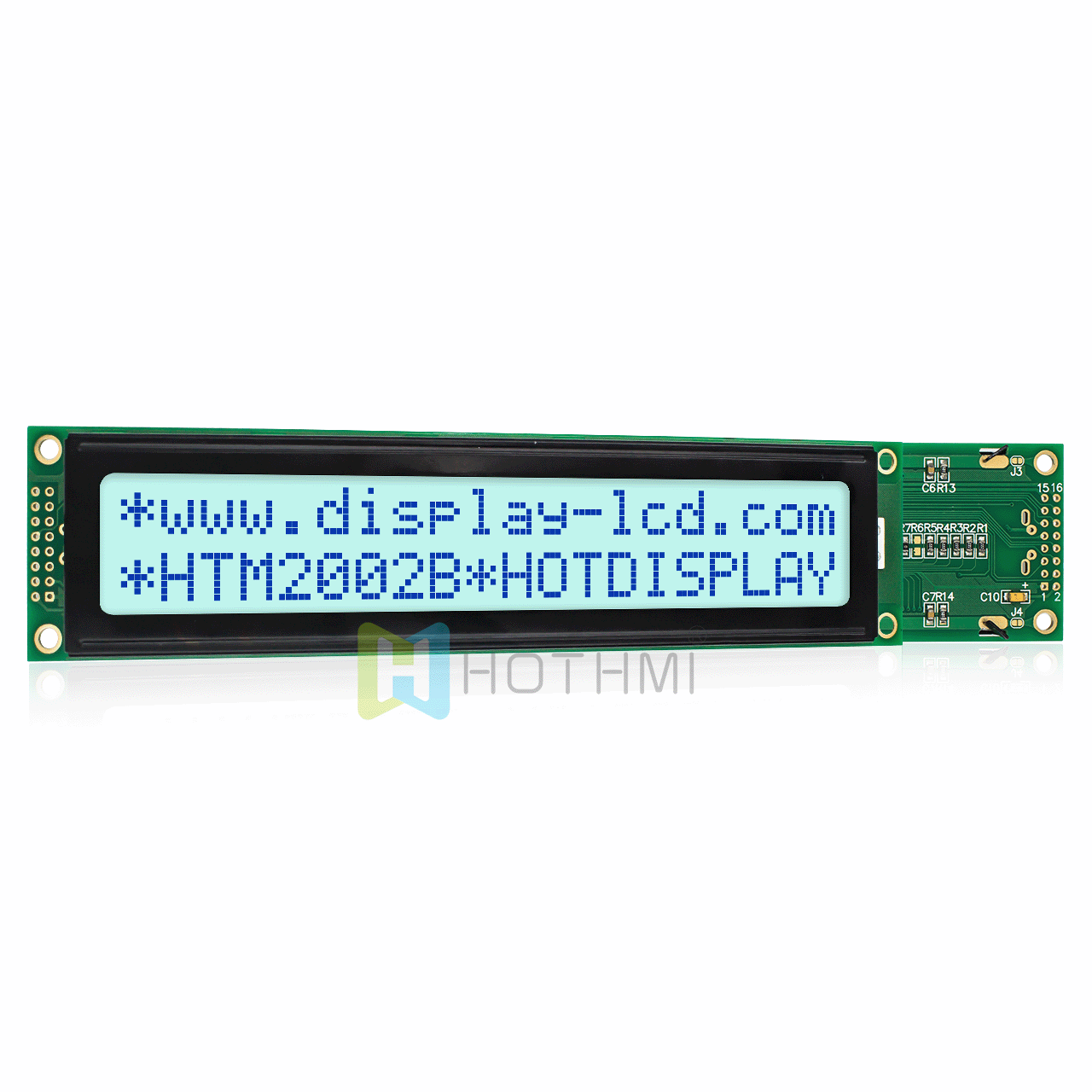

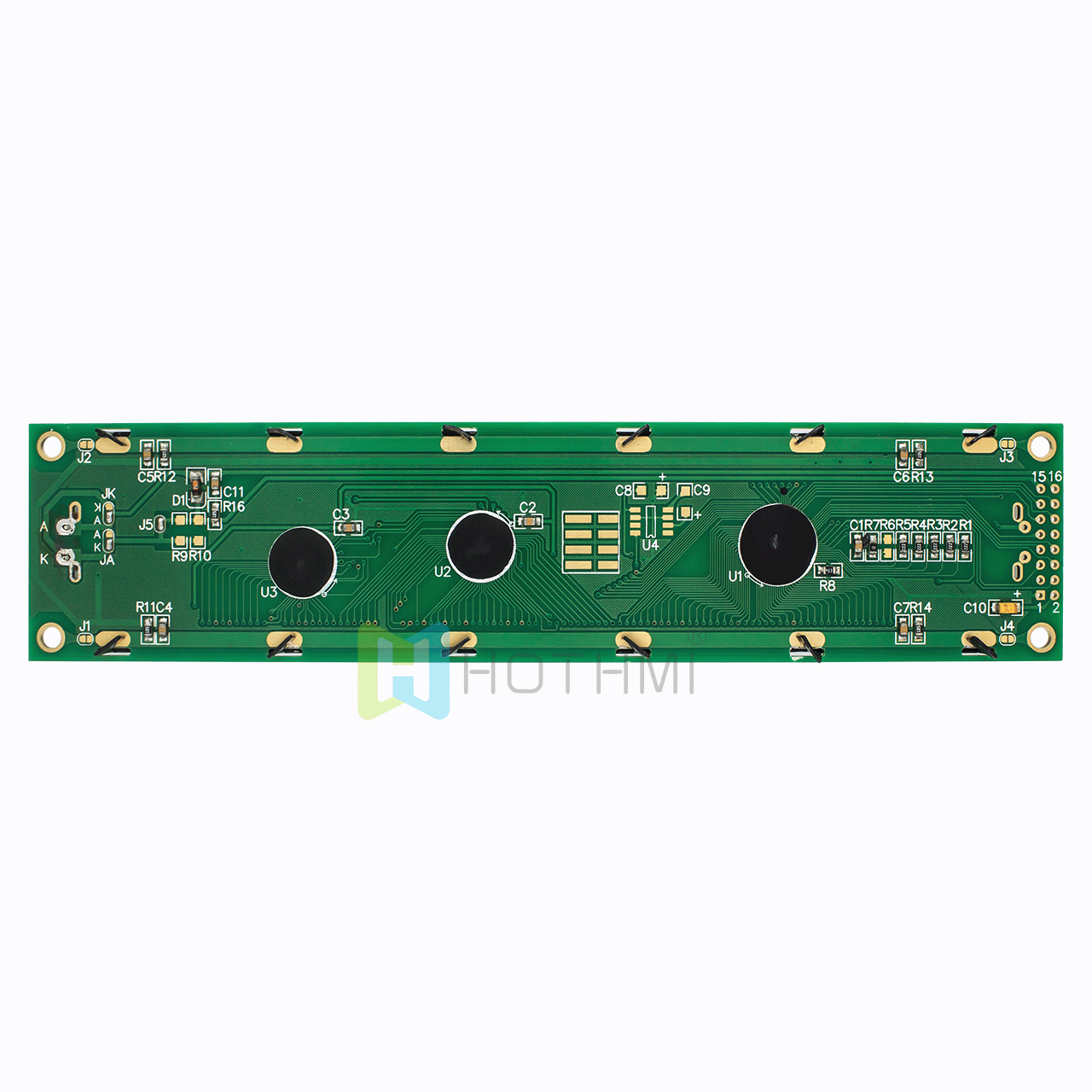

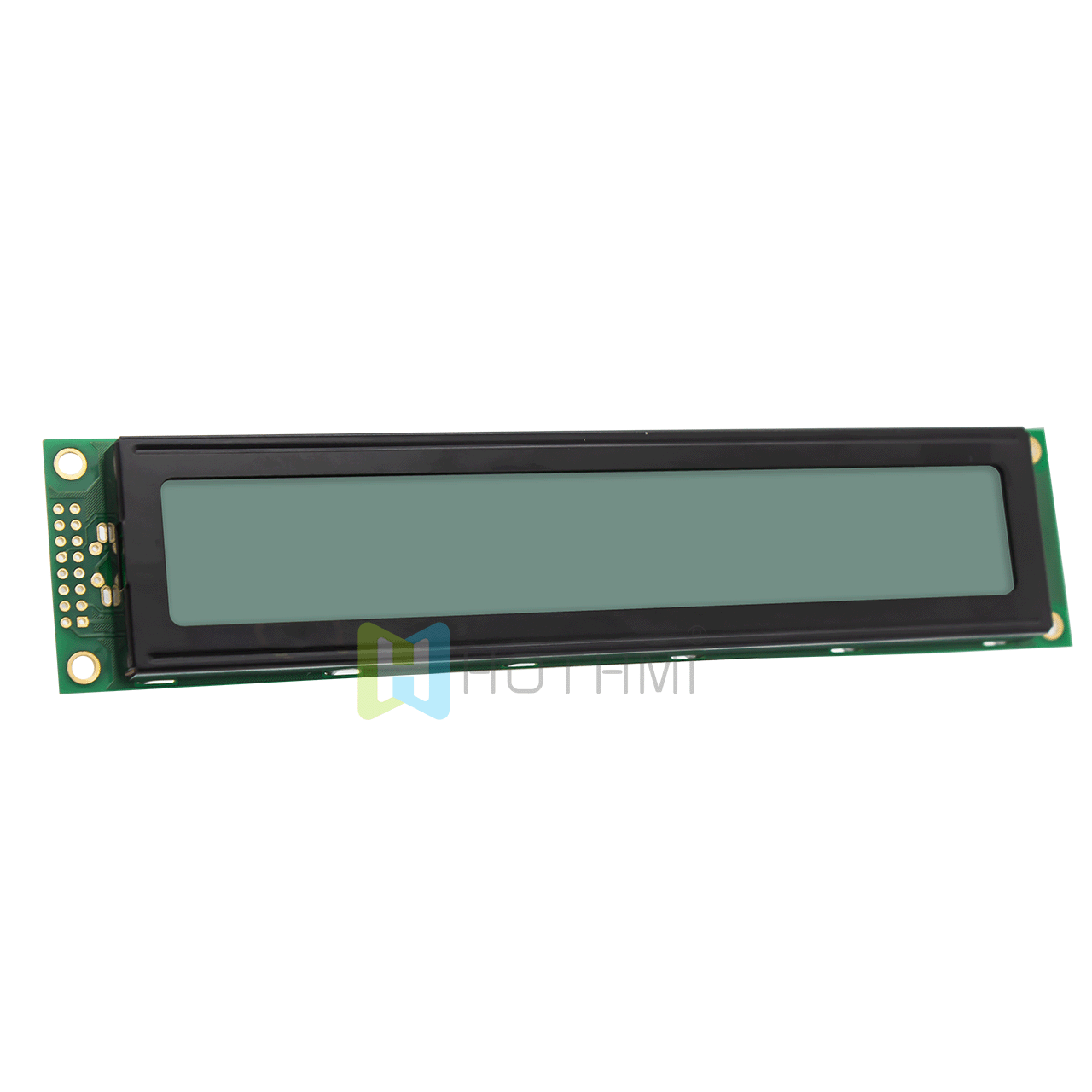

character LCD module |20X2 STN display | monochrome white backlight | blue characters on gray background | ST7066U control | transflective

character LCD module |20X2 STN display | monochrome white backlight | blue characters on gray background | ST7066U control | transflective | Arduino

▶ Model: HTM-2002B-11W-A5P

▶ Type: character LCD module
▶ Display content: 20x2 characters
▶ Overall dimensions (mm): 180.0x40.0x11.0
▶ VA size (mm): 149.0x23.0
▶ AA size (mm): 142.8x20.64
▶ Point spacing mm: 1.22x1.22
▶ Product application: industrial control
▶ Viewing angle: 6H
▶ Backlight type: white backlight
▶ Number of PINs: 16PIN
▶ Interface mode: MCU
▶ Special instructions: Anti-static ESD 8KV
▶ Working temperature: -10~60℃
▶ Supply voltage: 5.0V
▶ Driver chip:ST7066U

Product Consultation Datasheets Download Demo Code
- Transportation
- Payment
- Taxes
- Ensure
- Return
- Discontinued
Transportation

Our company cooperates with SF Express for domestic express delivery, and DHL for overseas express delivery. You can contact us to inquire about freight and weight to get the latest quotation.

Payment

Online payment is not supported. Transfers can be made through corporate accounts. If a VAT invoice is issued, please contact our sales staff to obtain a corporate account.

Taxes

All products sold on this website do not include tax. If you need a VAT invoice, please contact our sales staff to purchase offline.

Ensure

All products sold on this website have a one-year warranty. If the product is damaged due to improper use by the customer, it will be repaired free of charge. Material cost will be charged.

Return

Products within the warranty period can be returned for repair or replacement. Before returning, please contact our sales staff to confirm the reason for return.

Discontinued

We are committed to long-term production of all products sold on this website. If the IC or panel is discontinued, we will try our best to replace it with compatible materials.

Prev Back Next

Related Accessories

Arduino adapter board/suitable for Arduino development board COB/character/graphic dot matrix
Single Row Pin Header Connector
COB 20-pin cable base/character/graphic dot matrix

Product Description
Specification
Attributes

character LCD module |20X2 STN display | monochrome white backlight | blue characters on gray background | ST7066U control | transflective | Arduino
The character LCD module RoHS Compliant Hot Display 20x2 Character LCD has a built-in ST7066U controller, which is compatible with Arduino and other similar boards. This reflective single-line LCD displays text with blue pixels on a gray background, which can be seen in surrounding lights. The wide working temperature range is -20 to 70 degrees Celsius, with an ideal viewing angle of 6:00, and English/Japanese/Russian text can be used. This monitor is powered by a 5V power supply that does not require backlighting, and its energy efficiency is very high.
If you are looking for a cost-effective backlit single-line text LCD screen, you can save power through parallel communication.

parameter	Specification conntent	Unit
model	HTM2002B-11W-A5P
resolution	20words × 2lines	dots

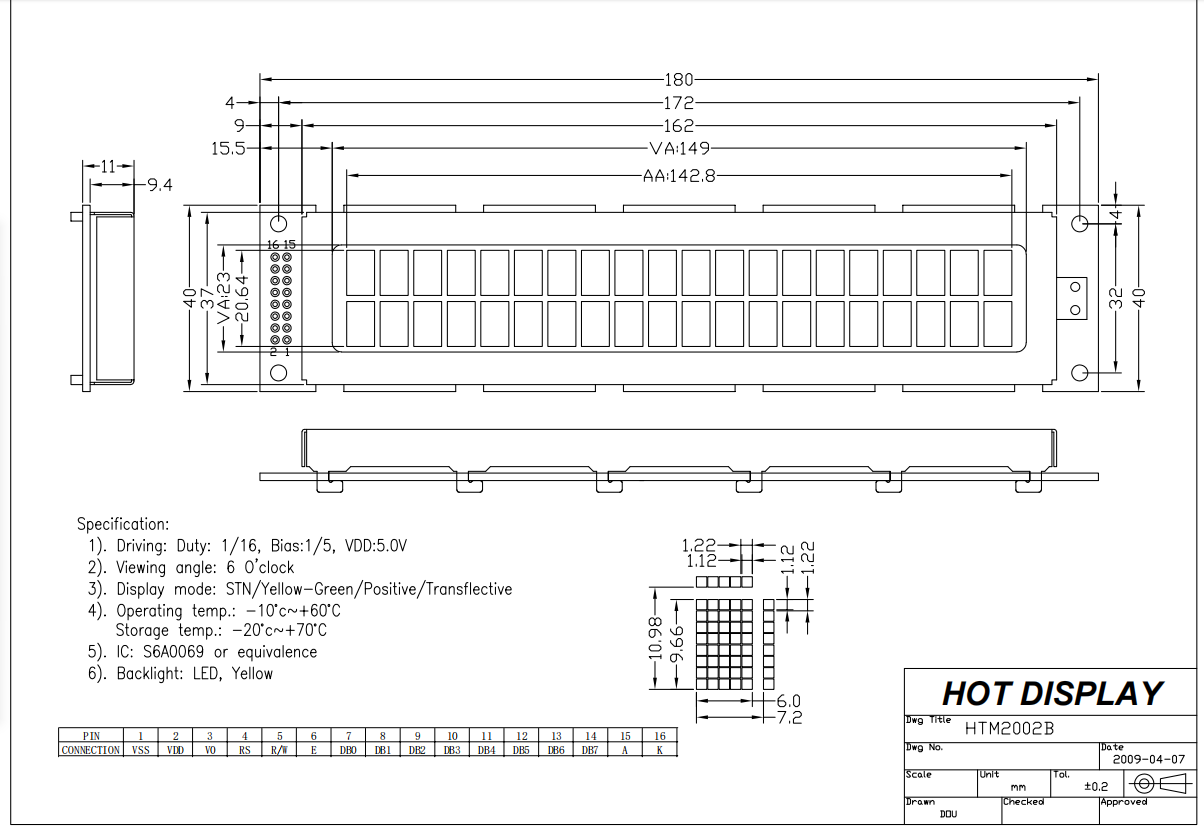

Module size	180.0（W） × 40.0（H） × 11.0 （D）mm	mm
