20X2 character monochrome LCD screen module/DSTN (-) negative display/white backlight/white characters on black background/5.0V/ST7066U control/Arduino/wide temperature display/wide viewing angle display

20X2 character monochrome LCD screen module/DSTN (-) negative display/white backlight/white characters on black background/5.0V/ST7066U control/Arduino/wide temperature display/wide viewing angle display

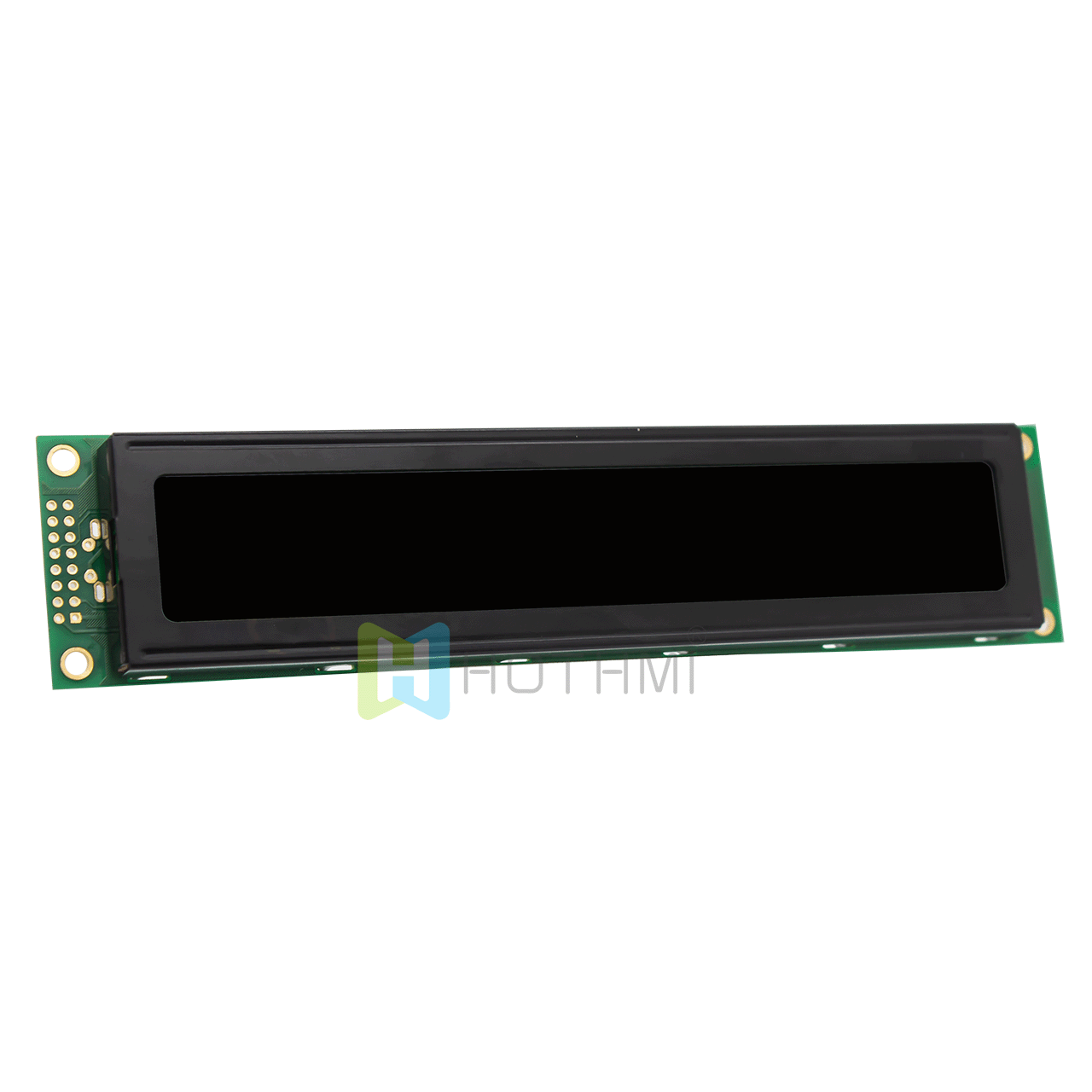

▶ Model: HTM2002B-41W-A5P

▶ Type: Standard COB character LCD module
▶ Display content: 20x2 characters

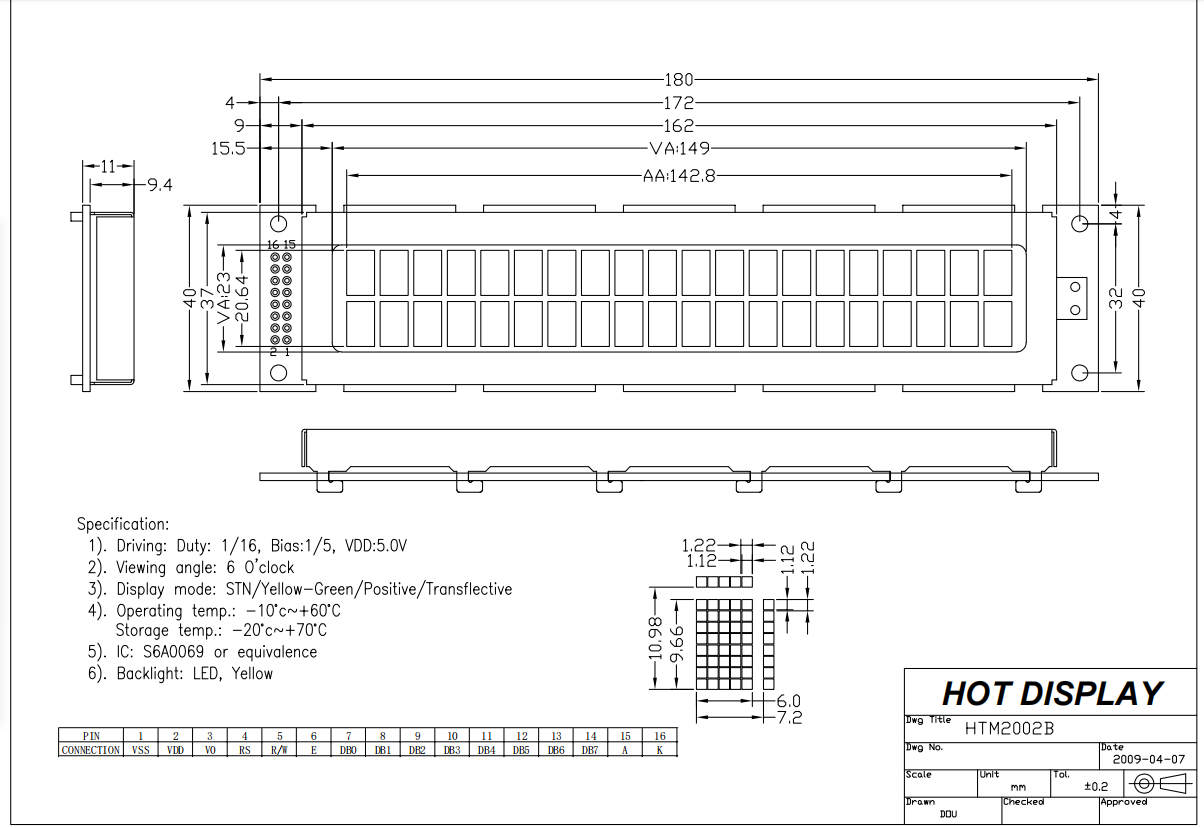

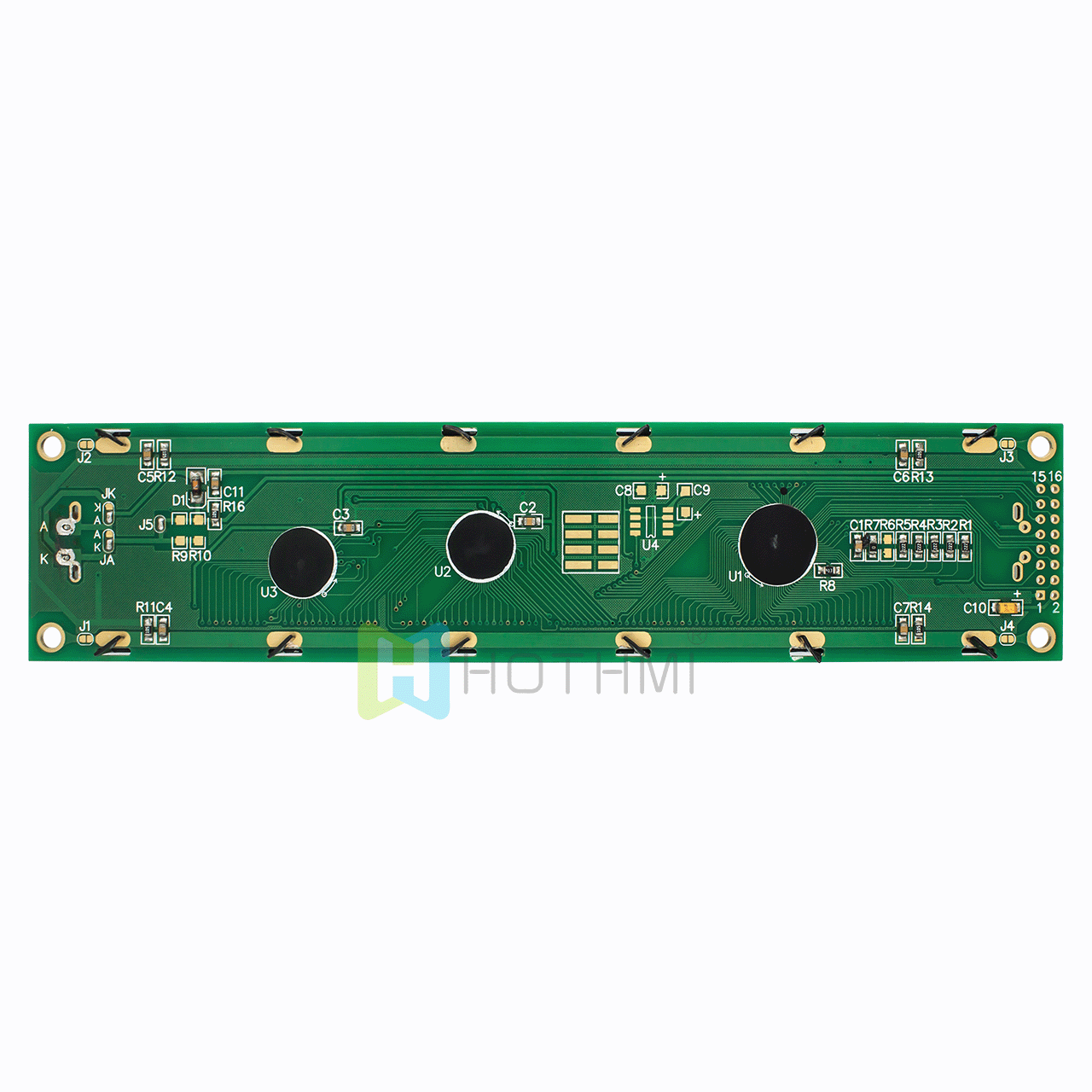

▶ Overall dimensions (mm): 180.0x40.0x11.0
▶ VA size (mm): 149.0x23.0
▶ AA size (mm): 142.8x20.64
▶ Point spacing mm: 1.22x1.22
▶ Product application: industrial control
▶ Viewing angle: 6H
▶ Backlight type: white backlight
▶ Number of PINs: 16PIN
▶ Interface mode: MCU
▶ Special instructions: Anti-static ESD 8KV
▶ Working temperature: -10~60℃
▶ Supply voltage: 5.0V
▶ Driver chip:ST7066U

Product Consultation Datasheets Download Demo Code
- Transportation
- Payment
- Taxes
- Ensure
- Return
- Discontinued
Transportation

Our company cooperates with SF Express for domestic express delivery, and DHL for overseas express delivery. You can contact us to inquire about freight and weight to get the latest quotation.

Payment

Online payment is not supported. Transfers can be made through corporate accounts. If a VAT invoice is issued, please contact our sales staff to obtain a corporate account.

Taxes

All products sold on this website do not include tax. If you need a VAT invoice, please contact our sales staff to purchase offline.

Ensure

All products sold on this website have a one-year warranty. If the product is damaged due to improper use by the customer, it will be repaired free of charge. Material cost will be charged.

Return

Products within the warranty period can be returned for repair or replacement. Before returning, please contact our sales staff to confirm the reason for return.

Discontinued

We are committed to long-term production of all products sold on this website. If the IC or panel is discontinued, we will try our best to replace it with compatible materials.

Prev Back Next

Related Accessories

Arduino adapter board/suitable for Arduino development board COB/character/graphic dot matrix
Single Row Pin Header Connector
COB 20-pin cable base/character/graphic dot matrix

Product Description
Specification
Attributes

HTM2002B-41W-A5P 20X2 character monochrome LCD module/DSTN (-) negative display/white backlight/white text on black background/5.0V/ST7066U control/Arduino/wide temperature display/wide viewing angle display

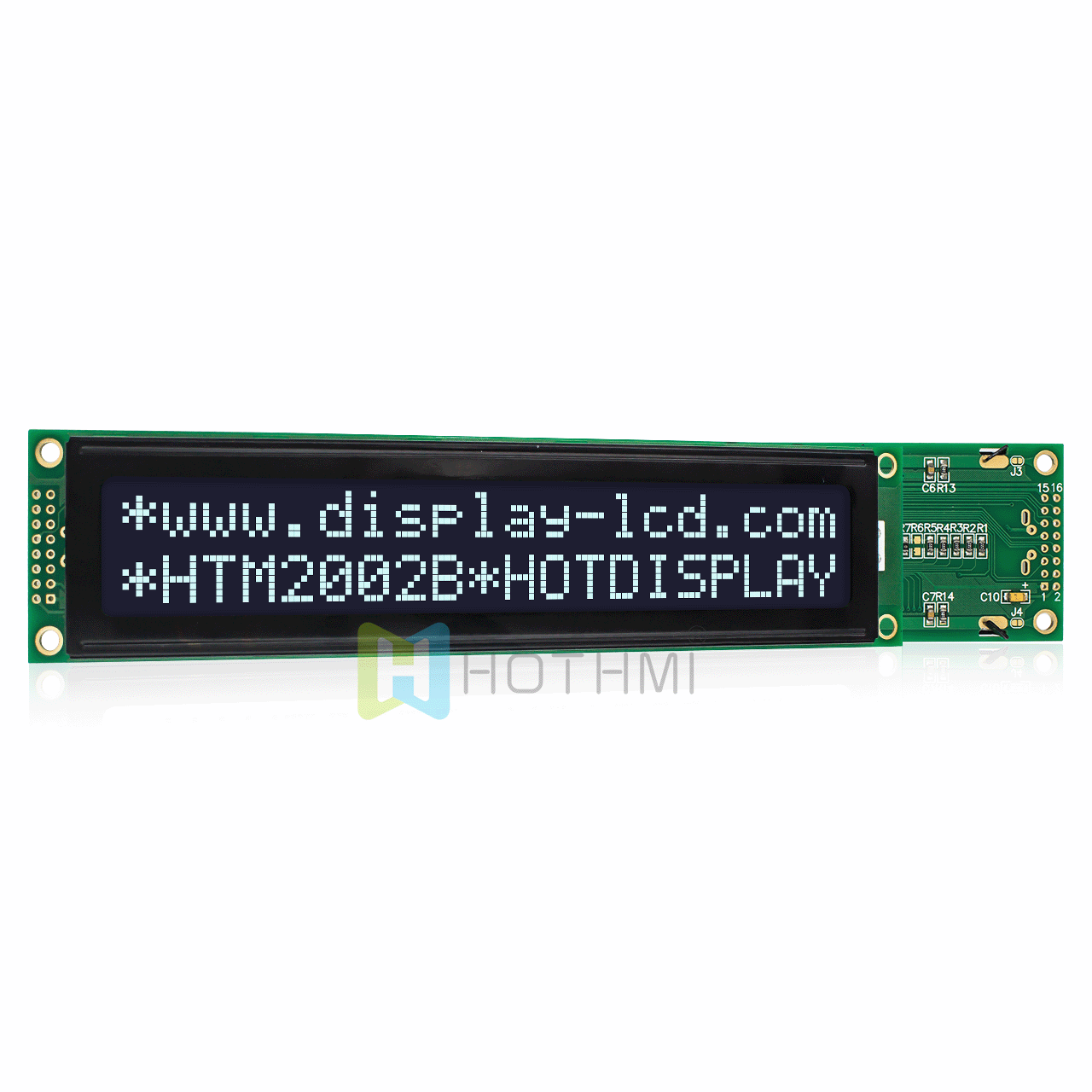

HOT Display HTM2002B-41W-A5P is a 20 character wide, 2 line character LCD module, ST7066U controller, contains white single LED backlight, easily dimmable by resistor or PWM, DFSTN negative display, white characters on black background, high contrast, working Wide temperature range, wide viewing angle, RoHS compliant, built-in character set supports English/Japanese/Russian text, and for the complete character set, please refer to the "Product Introduction" ST7066U linked data sheet. Choice of pin header connections, 5V or 5.0V power supply, and I2C adapter board for arduino.

It can be easily controlled through 8051, ARDUINO, and other MCUs. It can be used in any embedded system, industrial equipment, security, medical and handheld devices.

We support customization and flexible customization content

Connector Customization:

Easily modify any connectors on your display to meet your application’s requirements. Our engineers are able to perform soldering for pin headers, boxed headers, right angle headers, and any other connectors your display may require.

PCB Modifications:

Choose from a variety of changes to the PCB's shape, size, pinout, and component layout to make it perfect for your application.

Backlight color customization:

The module backlight has a variety of combinations to choose from, without backlight or with yellow-green/blue/white/amber/red/RGB backlight options. There are 48 effects. You can click on the customization page for reference.

Font library customization:

Provides a variety of font libraries, including English/Japanese, Western Europe, Eastern Europe, Scandinavian Europe, Cyrillic (Russian), Hebrew/Arabic, etc.

Cable Customization:

Adjust the length, position, and pinout of your cables or add additional connectors. Get a cable solution that’s precisely designed to make your connections streamlined and secure.

Item	Specification content	Unit
name	HTM2002B-41W-A5P
Number of dots	20 x 2	dots
Module size	180.0（W） × 40.0（H） × 11.0 （T）	mm
Visual (VA) area	149.0 × 23.0	mm
AA size	142.8（W） × 20.64（H）	mm
Point (pixel) spacing	1.22（W） × 1.22（H）mm	mm
IC	ST7066U driver
Applied voltage	5.00V	V
back light	White
model	DFSTN(-)
Drive mode (Duty)	1/16 duty cycle
type	Character LCD
Polarizer type	Transflective polarizer
