8x2 Character mono LCD | STN+ Yellow/Green Display with Yellow/Green Side Backlight Arduino

8x2 Character mono LCD | STN+ Yellow/Green Display with Yellow/Green Side Backlight Arduino

▶ Model: HTM-0802B-01Y-A5P

▶ Product type：Character LCM
▶ Show contents：8x2Character

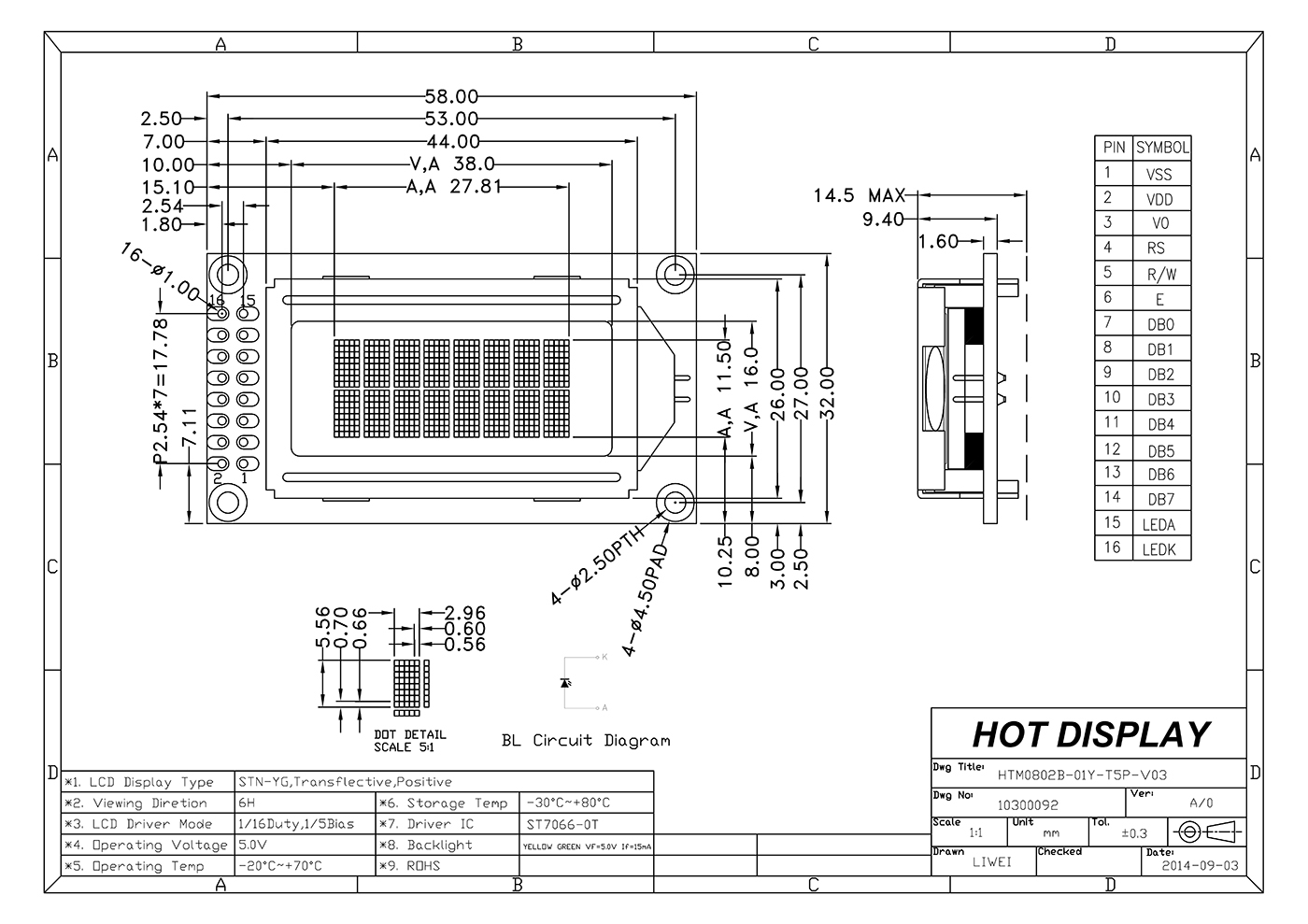

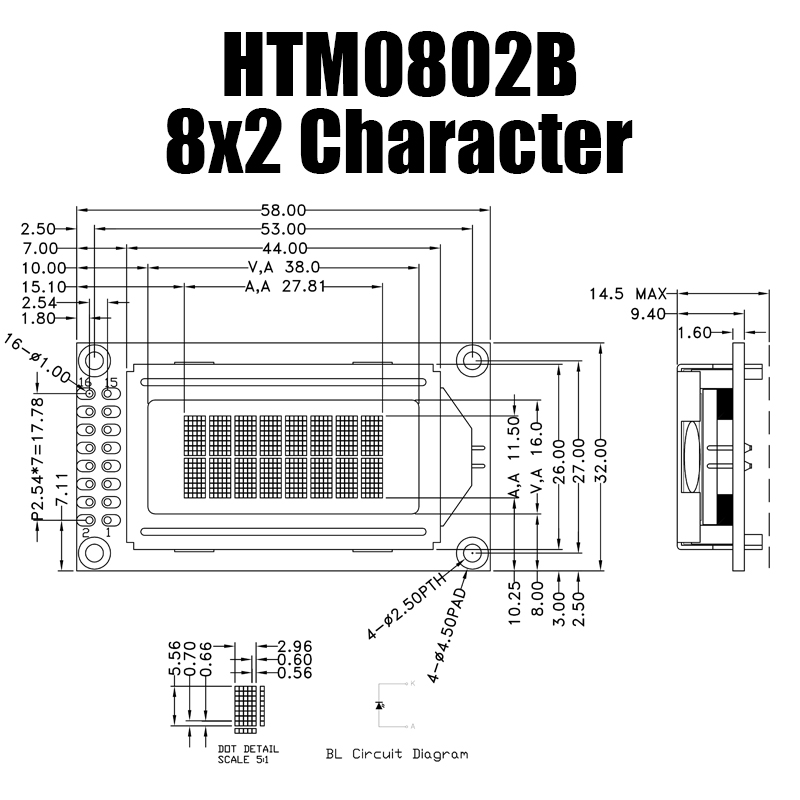

▶ Outline size(mm) ：58.0x32.0x10.3
▶ Size of View Window(mm)：38.0x16.0
▶ Display size(mm) ：27.81x11.5
▶ Point spacing(mm)：0.6x0.7
▶ Product application：Instrumentation
▶ Visual angle：6H
▶ Backlight type or brightness：YG
▶ Connection PIN Number：16PIN
▶ Interface mode：MCU/8bit
▶ Special instructions：Anti-static ESD 8KV
▶ Working temperature：-20~70℃
▶ Power supply voltage：5.0v
▶ Driver chip: ST7066U

Product Consultation Datasheets Download Demo Code
- Transportation
- Payment
- Taxes
- Ensure
- Return
- Discontinued
Transportation

Our company cooperates with SF Express for domestic express delivery, and DHL for overseas express delivery. You can contact us to inquire about freight and weight to get the latest quotation.

Payment

Online payment is not supported. Transfers can be made through corporate accounts. If a VAT invoice is issued, please contact our sales staff to obtain a corporate account.

Taxes

All products sold on this website do not include tax. If you need a VAT invoice, please contact our sales staff to purchase offline.

Ensure

All products sold on this website have a one-year warranty. If the product is damaged due to improper use by the customer, it will be repaired free of charge. Material cost will be charged.

Return

Products within the warranty period can be returned for repair or replacement. Before returning, please contact our sales staff to confirm the reason for return.

Discontinued

We are committed to long-term production of all products sold on this website. If the IC or panel is discontinued, we will try our best to replace it with compatible materials.

Prev Back No

Related Accessories

Arduino adapter board/suitable for Arduino development board COB/character/graphic dot matrix
Single Row Pin Header Connector
COB 20-pin cable base/character/graphic dot matrix

Product Description
Specification
Attributes

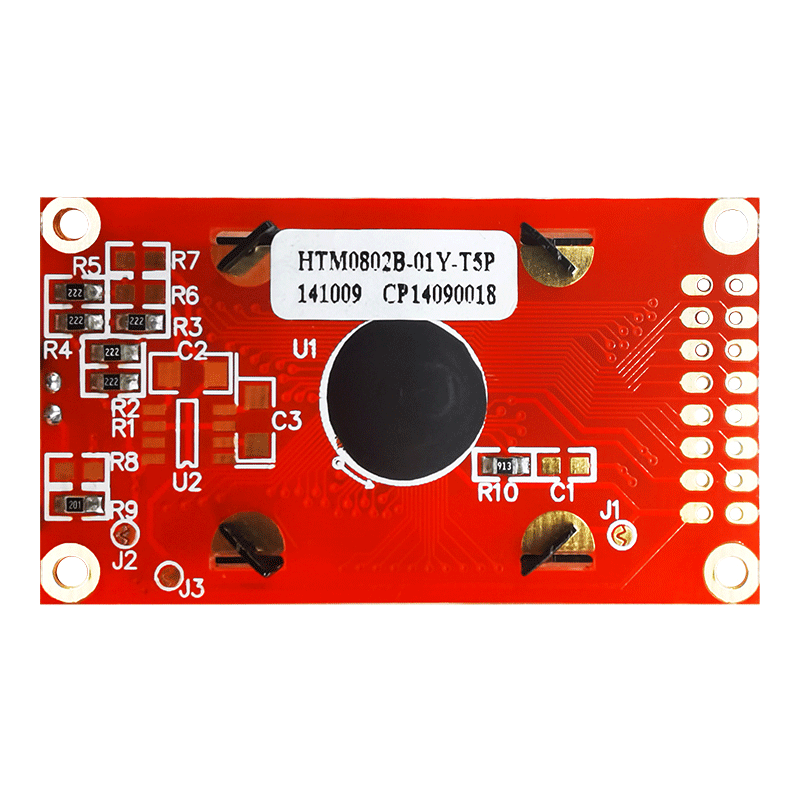

HTM-0802B-01Y-T5P-V03 | 8X2 character display | Transmissive LCD display | Side yellow-green backlight | STN (+) yellow-green LCD display Arduino display

HTM-0802B-01Y-A5P is an 8x2 character LCD liquid crystal display module, the voltage is preset to 5V, when using 3V, the negative voltage can only be powered by 3V. LCD module 8x2 HTM-0802B-01Y-A5P is pre-set for the 6800 interface supported by the integrated st7066u IC; Arduino display module backlight is available in several combinations, no backlight or chartreuse/blue/white/amber/red /RGB backlight. There are several libraries available, including English/Japanese, Western European, Eastern European, Scandinavian European, Cyrillic (Russian), Hebrew/Arabic, etc.

Connector Customization:

Easily modify any connectors on your display to meet your application’s requirements. Our engineers are able to perform soldering for pin headers, boxed headers, right angle headers, and any other connectors your display may require.

PCB Modifications:

Choose from a variety of changes to the PCB's shape, size, pinout, and component layout to make it perfect for your application.

Backlight color customization:

The module backlight has a variety of combinations to choose from, without backlight or with yellow-green/blue/white/amber/red/RGB backlight options. There are 48 effects. You can click on the customization page for reference.

Font library customization:

Provides a variety of font libraries, including English/Japanese, Western Europe, Eastern Europe, Scandinavian Europe, Cyrillic (Russian), Hebrew/Arabic, etc.

Cable Customization:

Adjust the length, position, and pinout of your cables or add additional connectors. Get a cable solution that’s precisely designed to make your connections streamlined and secure.

Projets	Specification content	unit
name	HTM-0802B-01Y-T5P-V03
Number of matrix points	8word × 2lines	dots
Module size	58.0 × 32.0 × 10.1mm	mm
Visible Area (VA)	38.0（W） × 16.0（H）	mm
Effective Area (AA)	27.81 × 11.5	mm
Point (Pixel) Size	0.56 × 0.66mm	mm
Point spacing (pixels)	0.60 × 0.70	mm
IC	ST7066U driver
supply voltage	5V	V
Backlight	Y/G LED
mode	STN(+)
Driving (Responsibilities)	1/16 duty cycle
type	Character LCD module
characteristic	Semi transparent reflective polarizer
