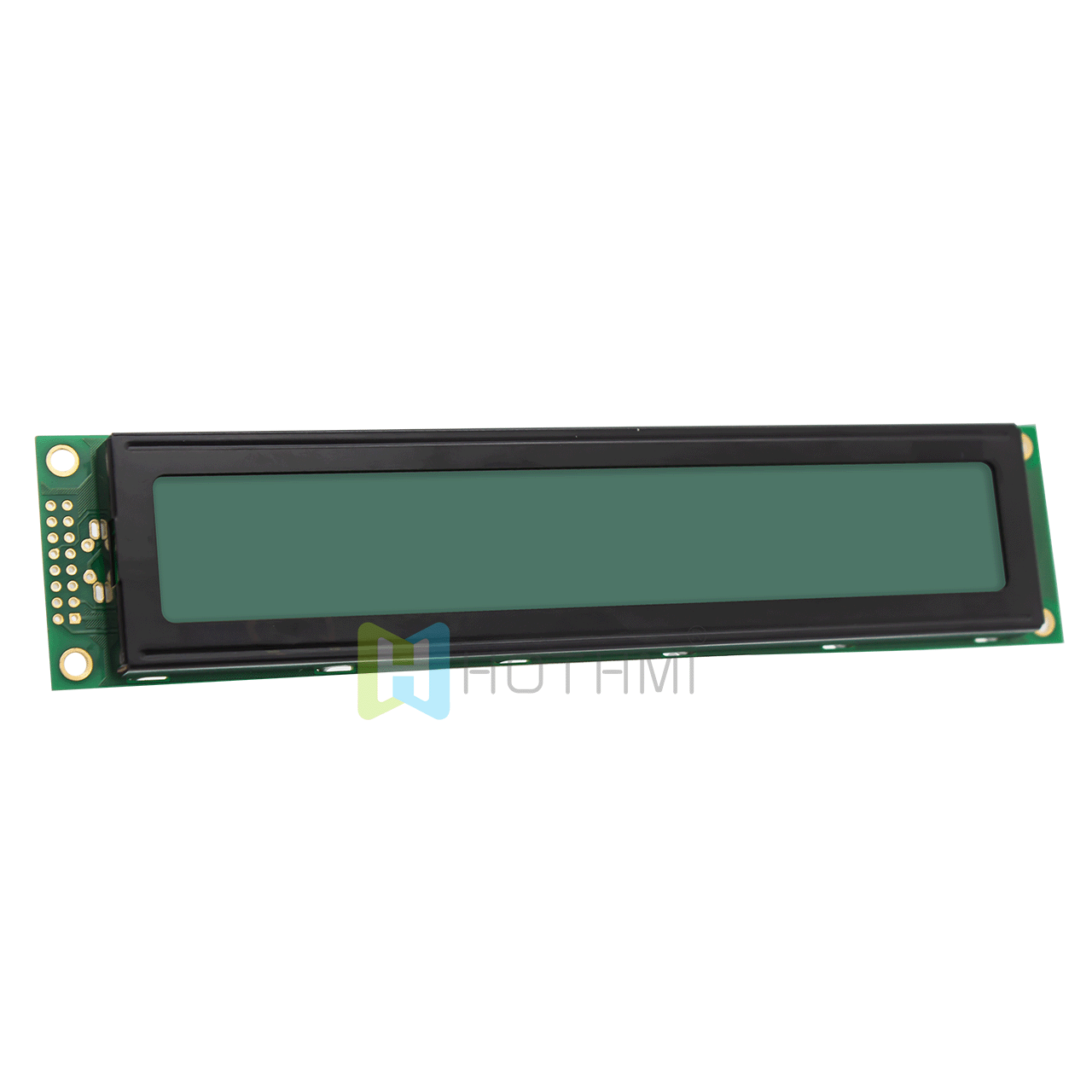

20X2 character monochrome LCD screen module/STN front display/yellow-green backlight/5.0V/ST7066U control/Arduino/transflective display/wide temperatur

20X2 character monochrome LCD screen module/STN front display/yellow-green backlight/5.0V/ST7066U control/Arduino/transflective display/wide temperatur

▶ Model: HTM2002B-11Y-A5P

▶ Type: Standard COB character LCD module
▶ Display content: 20x2 characters
▶ Overall dimensions (mm): 180.0x40.0x11.0
▶ VA size (mm): 149.0x23.0
▶ AA size (mm): 142.8x20.64
▶ Point spacing mm: 1.22x1.22
▶ Product application: industrial control
▶ Viewing angle: 6H
▶ Backlight type: yellow/green backlight
▶ Number of PINs: 16PIN
▶ Interface mode: MCU
▶ Special instructions: Anti-static ESD 8KV
▶ Working temperature: -10~60℃
▶ Supply voltage: 5.0V
▶ Driver chip:ST7066U

Product Consultation Datasheets Download Demo Code
- Transportation
- Payment
- Taxes
- Ensure
- Return
- Discontinued
Transportation

Our company cooperates with SF Express for domestic express delivery, and DHL for overseas express delivery. You can contact us to inquire about freight and weight to get the latest quotation.

Payment

Online payment is not supported. Transfers can be made through corporate accounts. If a VAT invoice is issued, please contact our sales staff to obtain a corporate account.

Taxes

All products sold on this website do not include tax. If you need a VAT invoice, please contact our sales staff to purchase offline.

Ensure

All products sold on this website have a one-year warranty. If the product is damaged due to improper use by the customer, it will be repaired free of charge. Material cost will be charged.

Return

Products within the warranty period can be returned for repair or replacement. Before returning, please contact our sales staff to confirm the reason for return.

Discontinued

We are committed to long-term production of all products sold on this website. If the IC or panel is discontinued, we will try our best to replace it with compatible materials.

Prev Back Next

Related Accessories

Arduino adapter board/suitable for Arduino development board COB/character/graphic dot matrix
Single Row Pin Header Connector
COB 20-pin cable base/character/graphic dot matrix

Product Description
Specification
Attributes

HTM2002B-11Y-A5P/20X2 character monochrome LCD screen module/STN front display/yellow-green backlight/5.0V/ST7066U control/Arduino/transflective display/wide temperatur

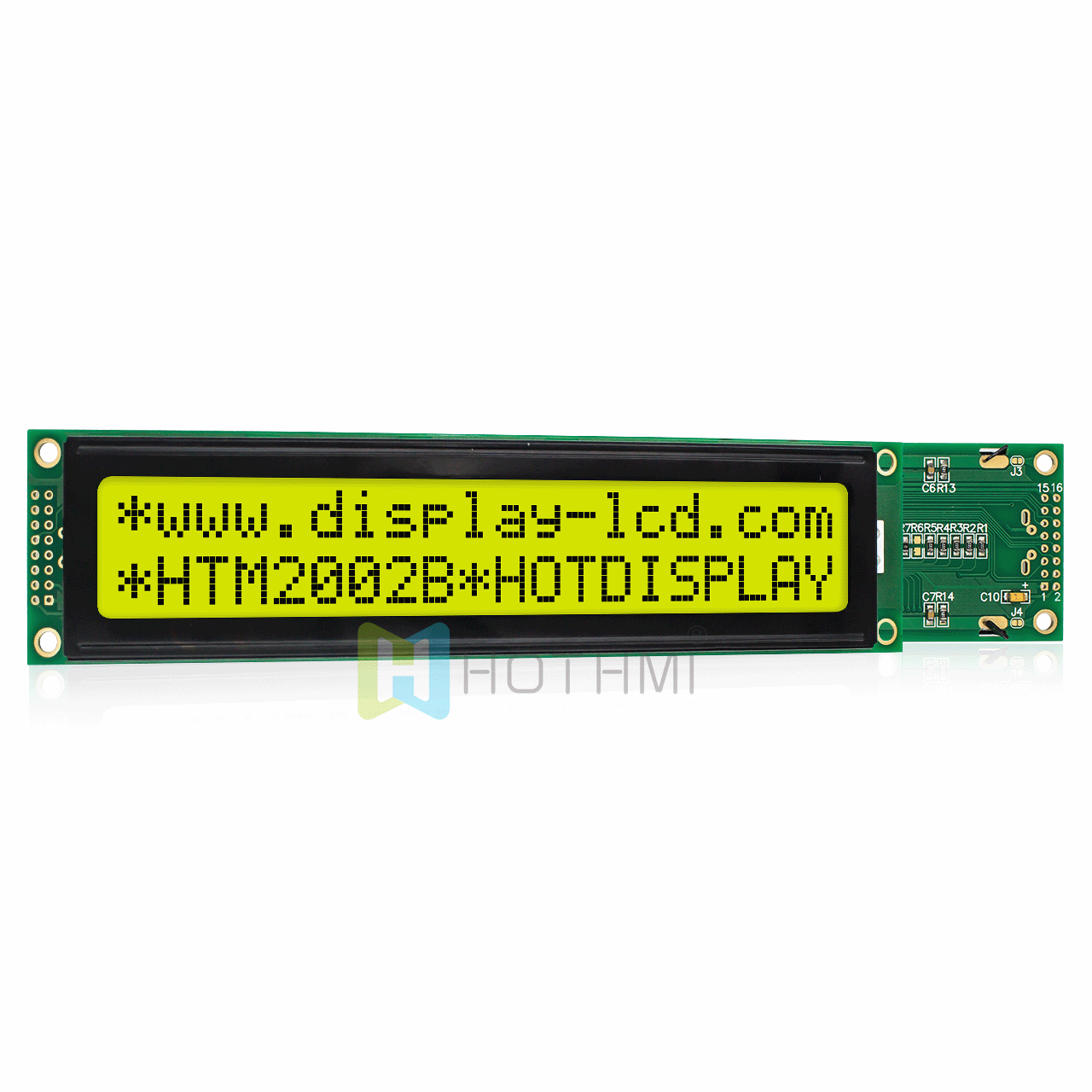

Experience the high-quality display performance of htm2002b - 11y - a5p. This compact, translucent LCD display has two lines, each with 20 characters. This single-line character LCD displays dark pixels on a vivid yellow/green background to ensure optimal readability in a variety of lighting conditions, making it ideal for use with ambient lighting or its own built-in backlight.

The htm2002b - 11y - a5p features a front-facing STN (super-distortion) display that outputs a bright yellow/green screen for improved visibility and user interaction. The ideal viewpoint of the LCD screen is 6 points, has a wide operating temperature range (cold water -20°C up to 70°C) and is suitable for a variety of environmental conditions.

This high-performance monitor is powered by a 5V supply voltage and is compatible with a variety of development boards, including Arduino. To strengthen its commitment to environmental responsibility, htm2002b-11y-a5p strictly complies with RoHS standards and emphasizes its environmental image.

Connector Customization:

Easily modify any connectors on your display to meet your application’s requirements. Our engineers are able to perform soldering for pin headers, boxed headers, right angle headers, and any other connectors your display may require.

PCB Modifications:

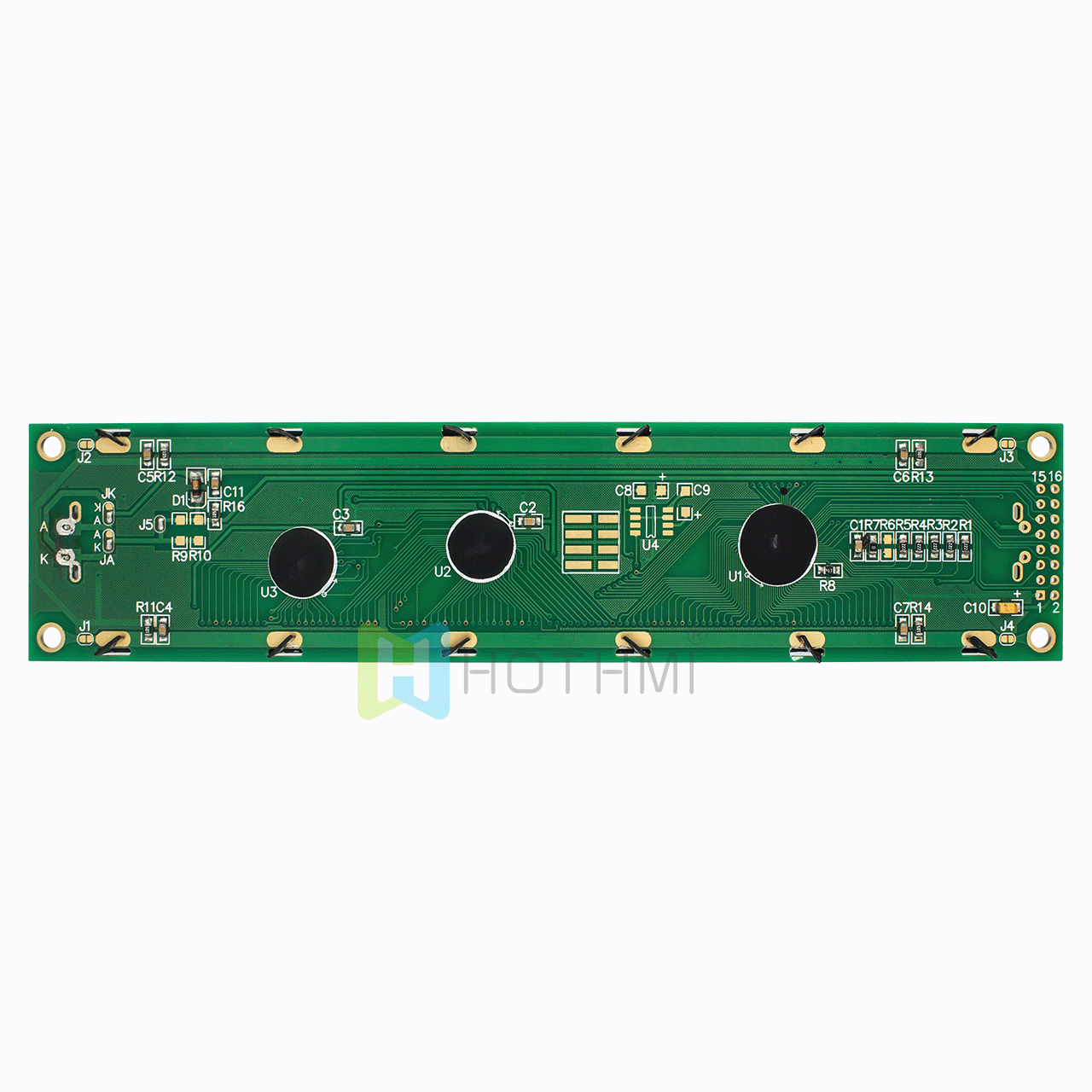

Choose from a variety of changes to the PCB's shape, size, pinout, and component layout to make it perfect for your application.

Backlight color customization:

The module backlight has a variety of combinations to choose from, without backlight or with yellow-green/blue/white/amber/red/RGB backlight options. There are 48 effects. You can click on the customization page for reference.

Font library customization:

Provides a variety of font libraries, including English/Japanese, Western Europe, Eastern Europe, Scandinavian Europe, Cyrillic (Russian), Hebrew/Arabic, etc.

Cable Customization:

Adjust the length, position, and pinout of your cables or add additional connectors. Get a cable solution that’s precisely designed to make your connections streamlined and secure.

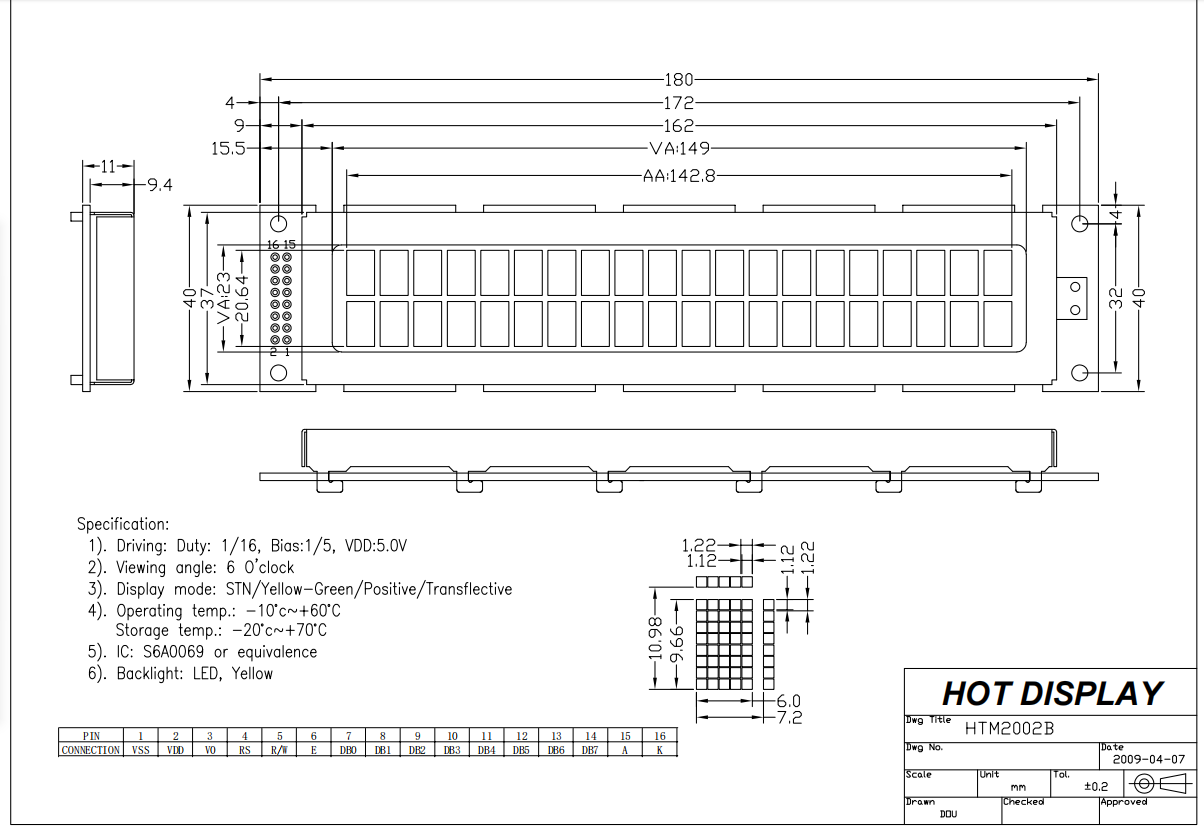

item	Specification content	unit
model	HTM2002B-11Y-A5P
words × lines	20words × 2lines	dots
Module size	180.0 × 40.0 × 11.0 (MAX)	mm
VA size	149.0（W） × 23.0（H）	mm
AA size	142.8 × 20.64	mm
Point (pixel) size	0.56 × 0.66mm	mm
Point (pixel) spacing	1.22（W） × 1.22（H）mm	mm
IC	ST7066U
Applied voltage	5V	V
backlight	Yellow/green backlight
model	STN+
Drive mode	1/16 duty cycle
type	Character LCD Module
Polarizer type	Trasflective
