character LCD Module |2X20 STN+monochrome gray background blue character display | 5.0V | transflective display | ST7066U controller

character LCD Module |2X20 STN+monochrome gray background blue character display | 5.0V | transflective display | ST7066U controller | Arduino

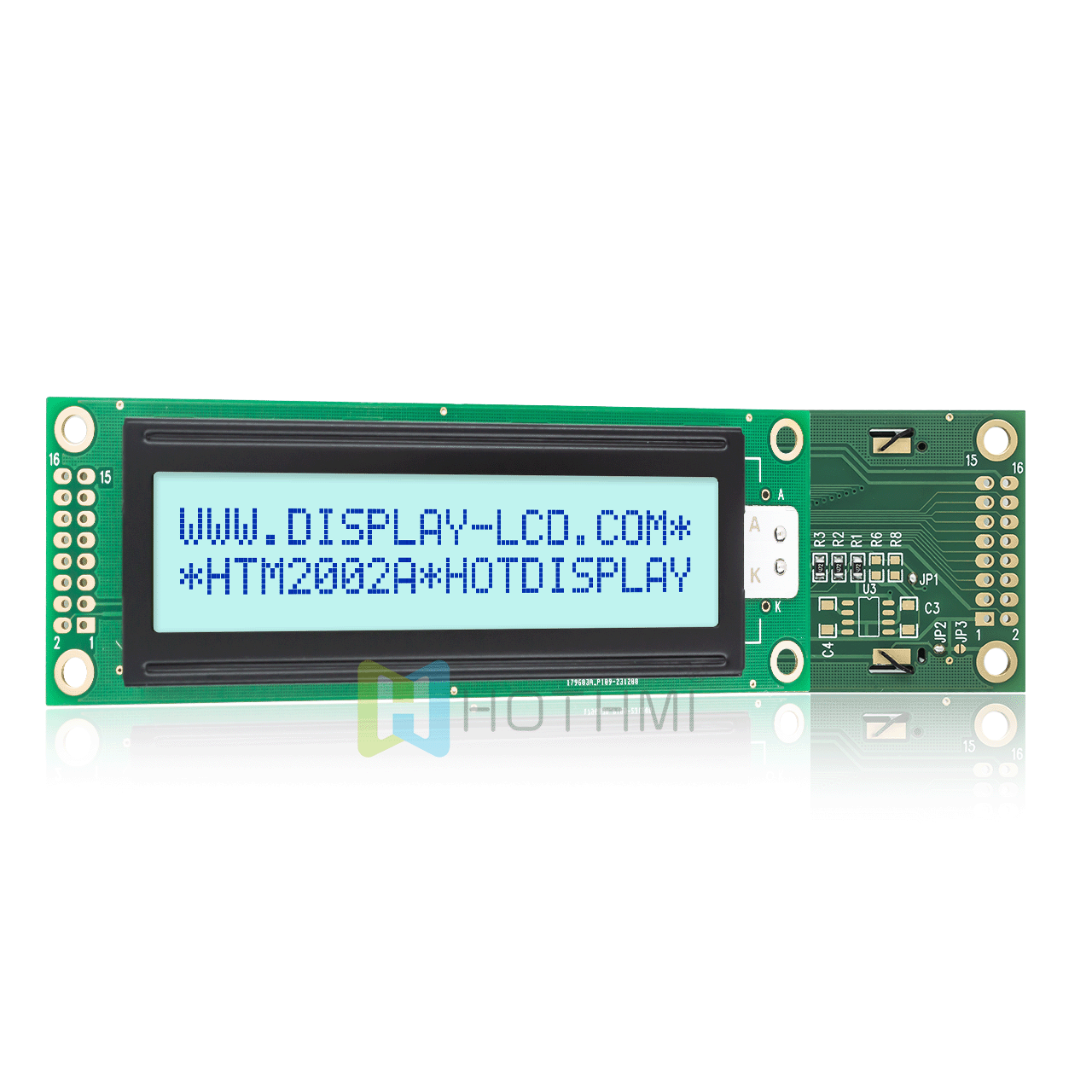

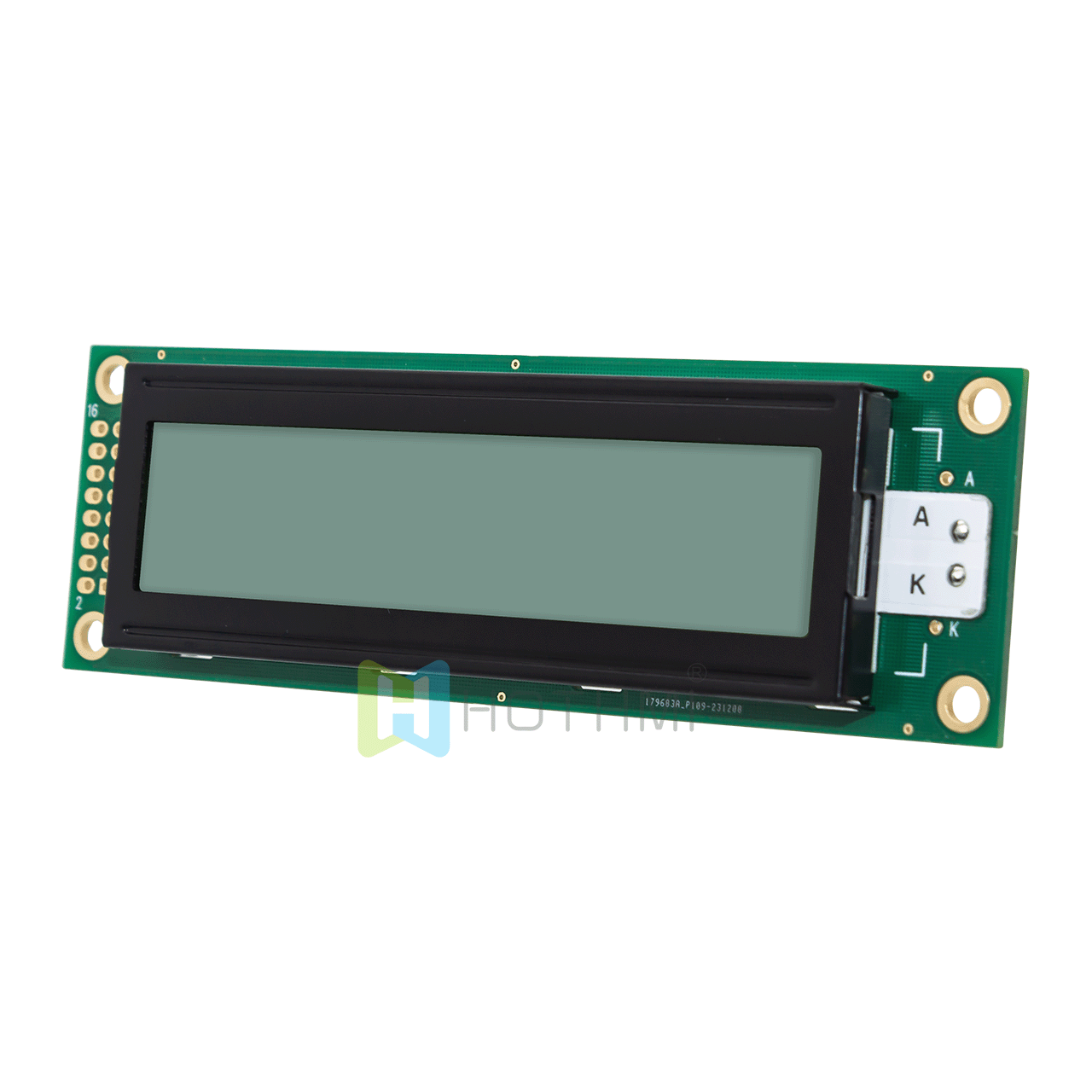

▶ Model: HTM2002A-11W-A5P

▶ Type: character LCD Module
▶ Display content: 20x2 characters

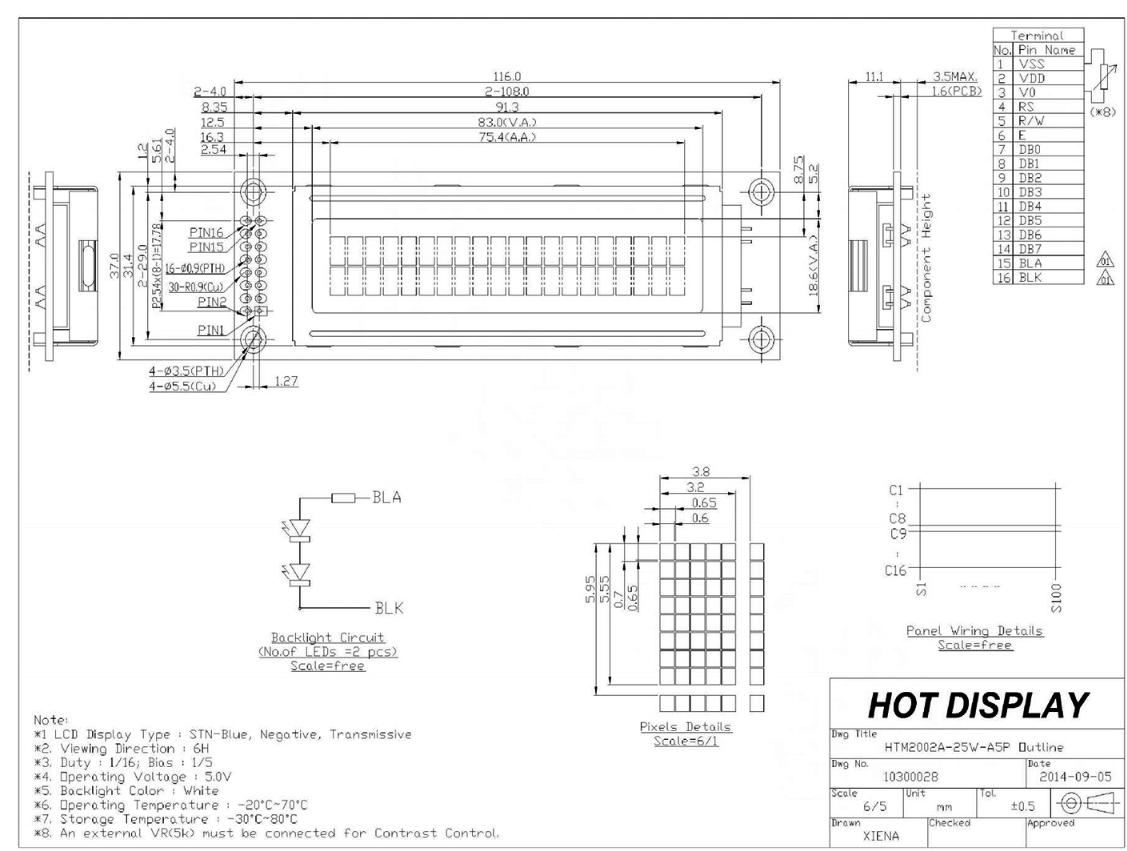

▶ Overall dimensions (mm): 116.0x37.0x14.6
▶ VA size (mm): 83.0x18.6
▶ AA size (mm): 75.4x11.5
▶ Point spacing mm: 0.65x0.7
▶ Product application: industrial control
▶ Viewing angle: 6H
▶ Backlight type: white
▶ Number of PINs: 16PIN
▶ Interface mode: MCU
▶ Special instructions: Anti-static ESD 8KV
▶ Working temperature: -20~70℃
▶ Power supply voltage: 5.0v
▶ Driver chip:ST7066U
