2.5"122X32 Graphic LCD | STN positive display with yellow-green side backlight | Arduino | Transflective display | ST7920 controller

2.5"122X32 Graphic LCD | STN positive display with yellow-green side backlight | Arduino | Transflective display | ST7920 controller | 5.0V

▶ Model: HTM12232Z-11Y-A5P

▶ Type: Chinese font COB dot matrix module
▶ Display content: 122x32
▶ Overall dimensions (mm): 84.0x44.0x13.9
▶ VA size (mm): 60.0x18.0
▶ AA size (mm): 48.76x14..36
▶ Point spacing mm: 0.41x0.36
▶ Product application: Instrumentation
▶Viewing angle: 6H
▶ Backlight type: white light
▶ Number of PINs: 24PIN
▶Interface mode: MCU
▶ Special instructions: Built-in Chinese font library
▶ Working temperature: -20~70℃
▶ Supply voltage: 5.0V
▶ Driver chip: ST7920

Product Consultation Datasheets Download Demo Code
- Transportation
- Payment
- Taxes
- Ensure
- Return
- Discontinued
Transportation

Our company cooperates with SF Express for domestic express delivery, and DHL for overseas express delivery. You can contact us to inquire about freight and weight to get the latest quotation.

Payment

Online payment is not supported. Transfers can be made through corporate accounts. If a VAT invoice is issued, please contact our sales staff to obtain a corporate account.

Taxes

All products sold on this website do not include tax. If you need a VAT invoice, please contact our sales staff to purchase offline.

Ensure

All products sold on this website have a one-year warranty. If the product is damaged due to improper use by the customer, it will be repaired free of charge. Material cost will be charged.

Return

Products within the warranty period can be returned for repair or replacement. Before returning, please contact our sales staff to confirm the reason for return.

Discontinued

We are committed to long-term production of all products sold on this website. If the IC or panel is discontinued, we will try our best to replace it with compatible materials.

Prev Back Next

Related Accessories

Arduino adapter board/suitable for Arduino development board COB/character/graphic dot matrix
Single Row Pin Header Connector
COB 20-pin cable base/character/graphic dot matrix

Product Description
Specification
Attributes

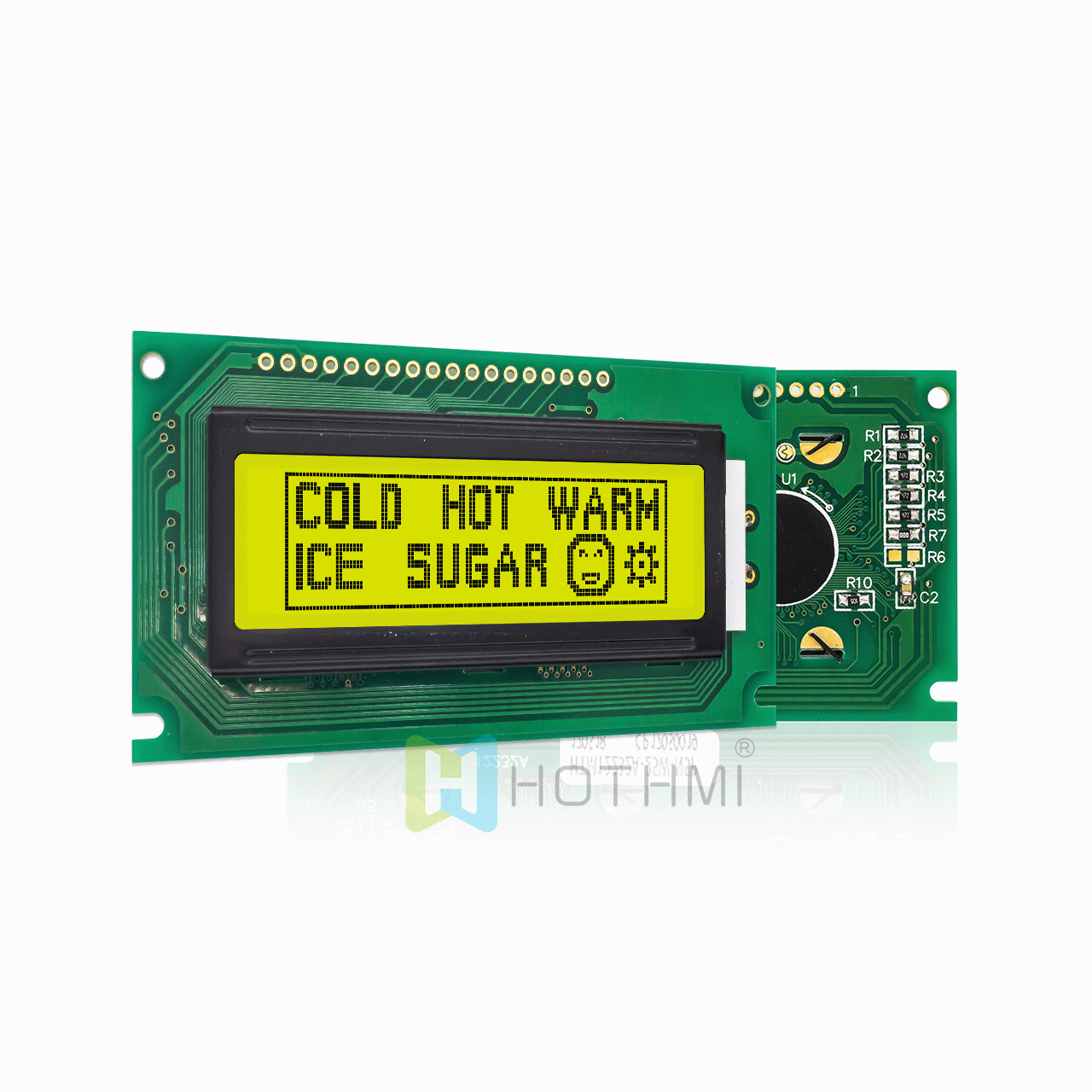

122X32 Graphic LCD | STN Positive Display with Yellow-Green Side Backlight | Arduino | Transflective Display | ST7920 Controller | 5.0V

This Hot Display 122x32 LCD Graphic displays a deep black affine image radiant with illumination on the h. This transflective LCD screen is designed to ensure optimal viewing in a variety of lighting conditions across a wide range of different environmental conditions. In full sunlight, the reflective layer of the screen reflects light towards the viewer, making the screen easy to read. In darker environments, a strong backlight is integrated into the LCD display to provide the viewer with high contrast and display clear graphics. This advanced display technology ensures that the display is always easy to read regardless of the lighting conditions.

This LCD Graphic Display Module is fully compatible with Arduino and can be seamlessly connected with other electronic systems for a variety of applications。

Connector Customization:

Easily modify any connectors on your display to meet your application’s requirements. Our engineers are able to perform soldering for pin headers, boxed headers, right angle headers, and any other connectors your display may require.

PCB Modifications:

Choose from a variety of changes to the PCB's shape, size, pinout, and component layout to make it perfect for your application.

Backlight color customization:

The module backlight has a variety of combinations to choose from, without backlight or with yellow-green/blue/white/amber/red/RGB backlight options. There are 48 effects. You can click on the customization page for reference.

Font library customization:

Provides a variety of font libraries, including English/Japanese, Western Europe, Eastern Europe, Scandinavian Europe, Cyrillic (Russian), Hebrew/Arabic, etc.

Cable Customization:

Adjust the length, position, and pinout of your cables or add additional connectors. Get a cable solution that’s precisely designed to make your connections streamlined and secure.

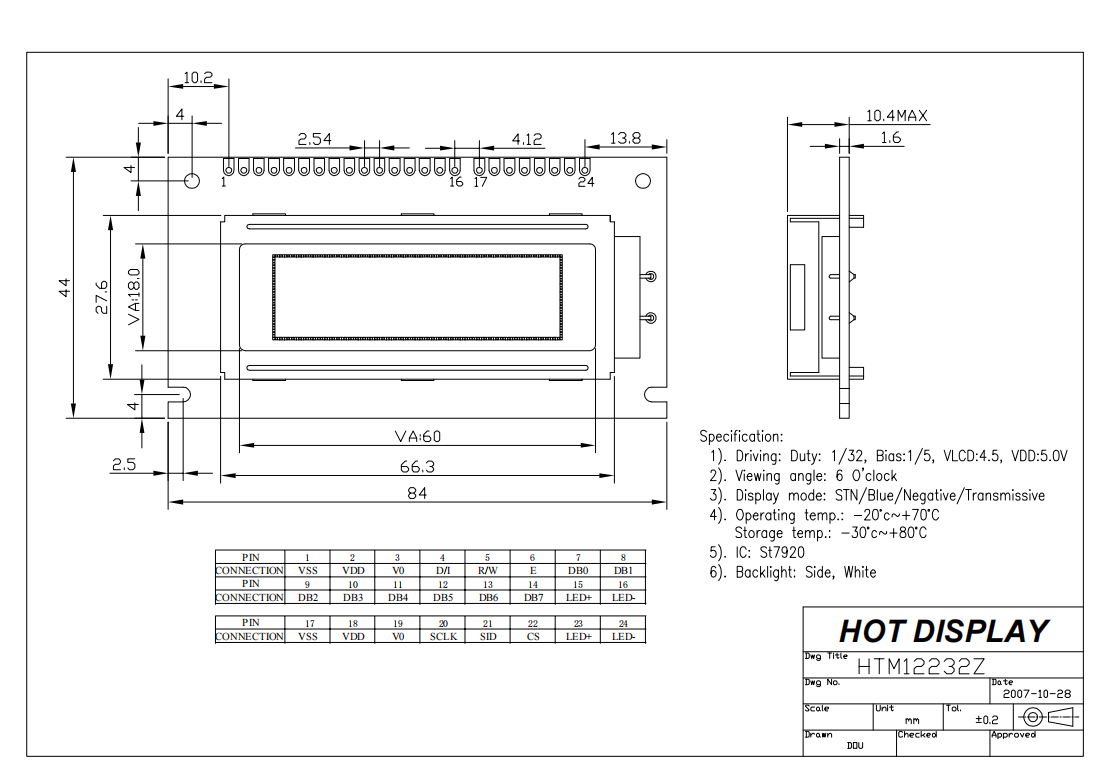

Item	Specifications	Unit
Model	HTM12232Z-11Y-A5P
column × Line	122× 4	dots
Module Size	84.0 x 44.0 x 13.9 (MAX)	mm
VA Size	60.0（W） × 18（H）	mm
AA Size	48.76 x 14.36	mm
Pixel Pitch	0.41（W） × 0.36（H）mm	mm
IC	ST7920
Applied Voltage	5V	V
Backlight	Yellow/green backlight
Mode	STN+
Drive Mode	1/32 duty cycle
Type	Graphic LCD Module
Polarizer Type	Transflective
