3.2"5.0V/low cost white background graphic display/128x64 graphic LCD module/FSTN forward/white gray image//KS0108/ks0107 or compatible

3.2"5.0V/low cost white background graphic display/128x64 graphic LCD module/FSTN forward/white gray image//KS0108/ks0107 or compatible

▶ Model: HTM12864B-31W-A5P

▶ Type: Standard COB LCD module
▶ Display pixels: 128x64
▶ Overall dimensions (mm): 93.0 (W) X 70.0 (H) X 14.0 (T)
▶ VA size (mm): 72.0 (W) X 39.0 (H)
▶ AA size (mm): 66.52 (W) X 33.24 (H)
▶ Point spacing (mm): 0.52 (W) X 0.52 (H)
▶ Application: Industrial Control
▶Viewing angle: 6H
▶ Backlight/Brightness: Yellow/Green light
▶ Pin: 20PIN
▶Interface mode: MCU
▶ Special instructions: Anti-static ESD 8KV
▶ Working temperature: -20~70℃
▶Power supply voltage: 5.0v
▶ Driver chip: KS0108 + KS0107

Product Consultation Datasheets Download Demo Code
- Transportation
- Payment
- Taxes
- Ensure
- Return
- Discontinued
Transportation

Our company cooperates with SF Express for domestic express delivery, and DHL for overseas express delivery. You can contact us to inquire about freight and weight to get the latest quotation.

Payment

Online payment is not supported. Transfers can be made through corporate accounts. If a VAT invoice is issued, please contact our sales staff to obtain a corporate account.

Taxes

All products sold on this website do not include tax. If you need a VAT invoice, please contact our sales staff to purchase offline.

Ensure

All products sold on this website have a one-year warranty. If the product is damaged due to improper use by the customer, it will be repaired free of charge. Material cost will be charged.

Return

Products within the warranty period can be returned for repair or replacement. Before returning, please contact our sales staff to confirm the reason for return.

Discontinued

We are committed to long-term production of all products sold on this website. If the IC or panel is discontinued, we will try our best to replace it with compatible materials.

Prev Back Next

Related Accessories

Arduino adapter board/suitable for Arduino development board COB/character/graphic dot matrix
Single Row Pin Header Connector
COB 20-pin cable base/character/graphic dot matrix

Product Description
Specification
Attributes

5.0V/low cost white background graphic display/128x64 graphic LCD module/FSTN forward/white gray image//KS0108/ks0107 or compatible

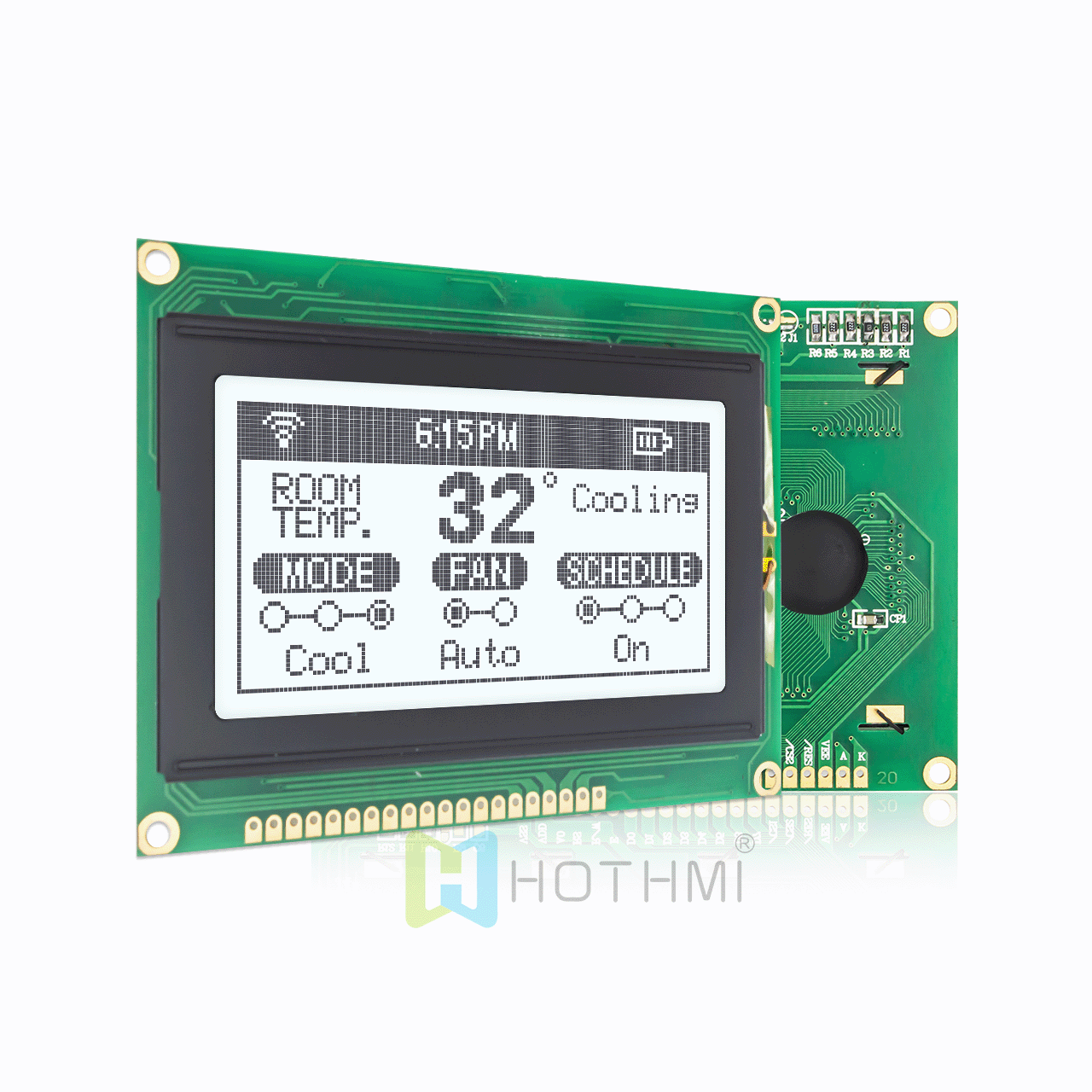

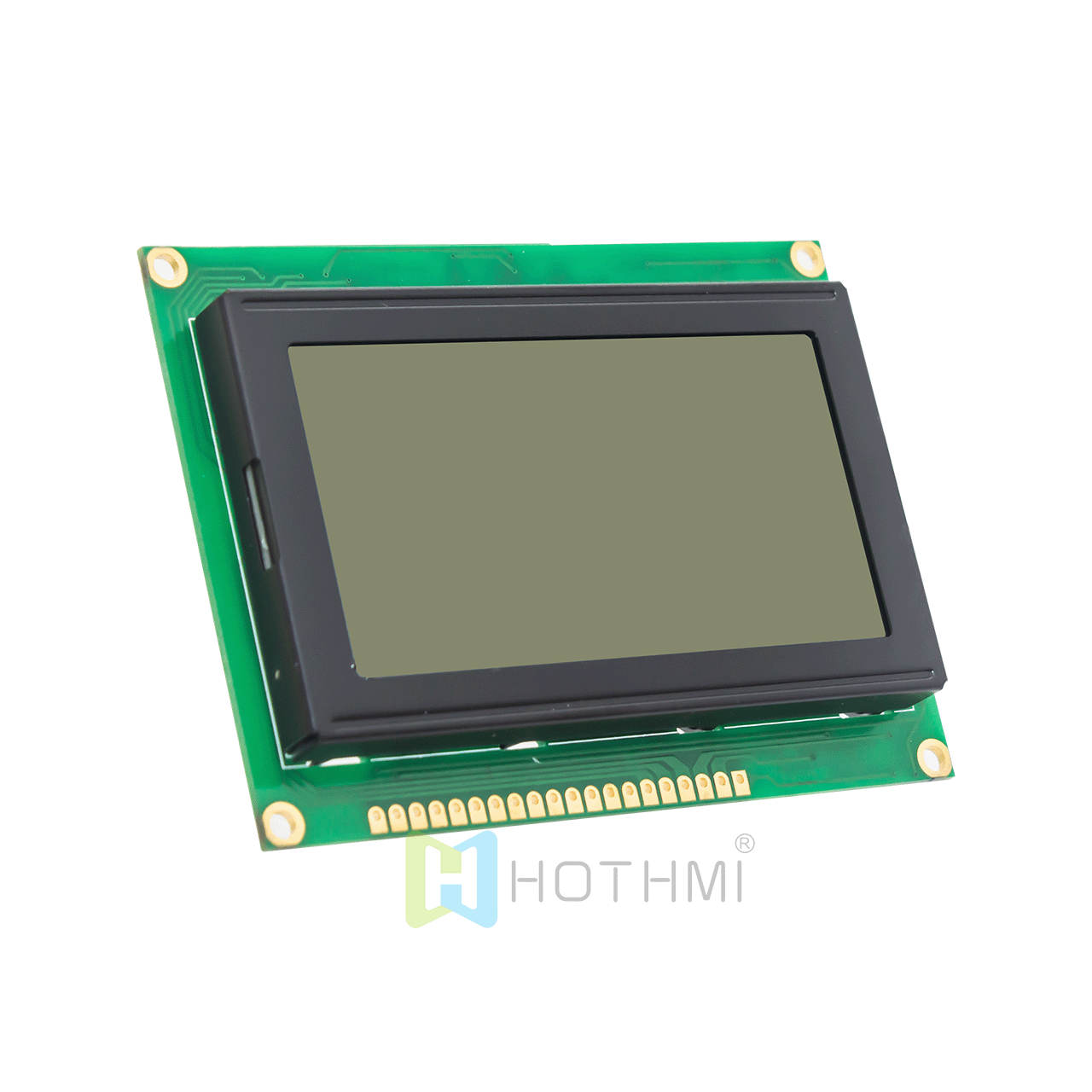

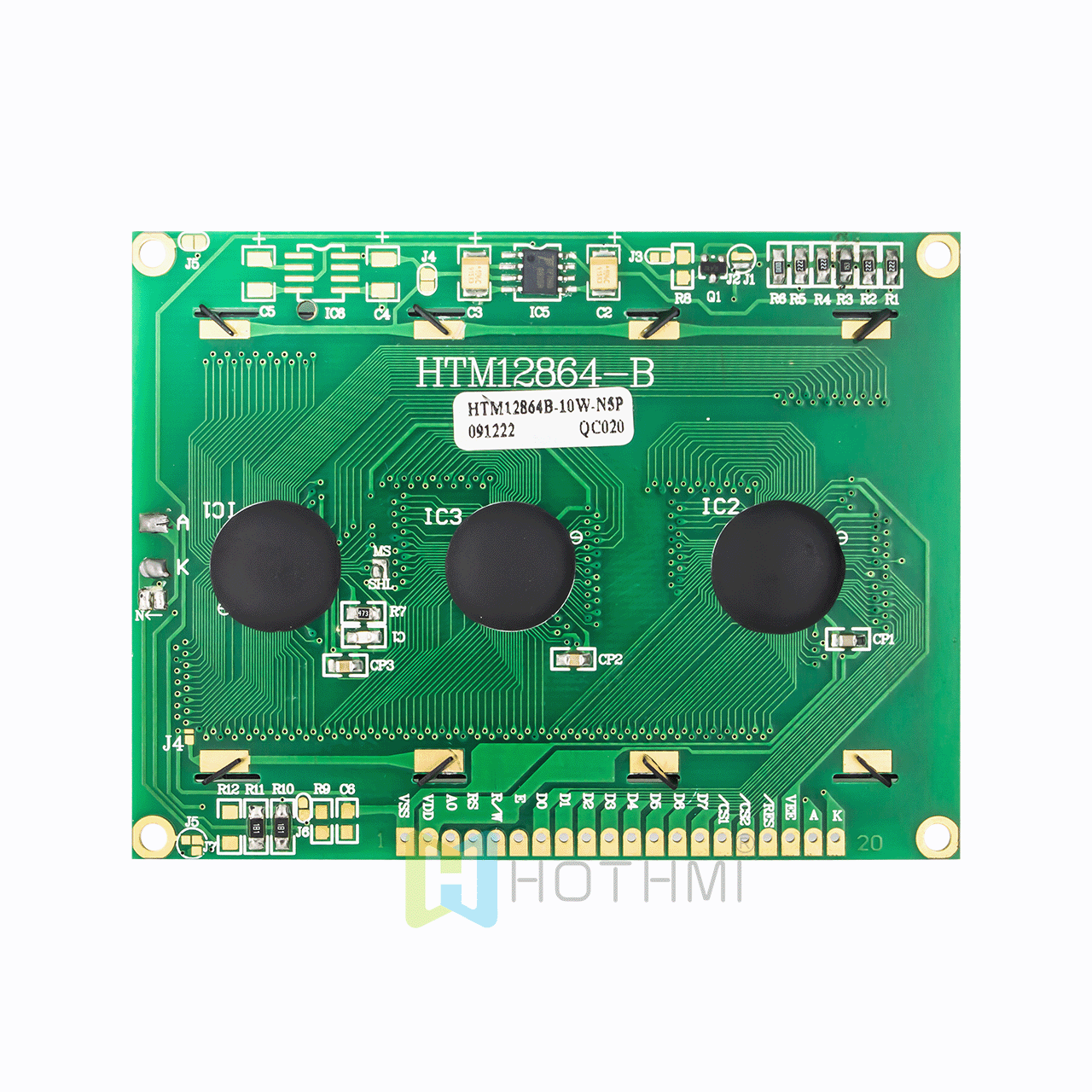

HTM12864A-31W-A5P is white background, has 128x64 monochrome pixels, KS0107/KS0108 controller or compatible, very common and well documented, MUC interface, contains single white LED backlight, can be easily dimmed via resistor or PWM, STN -LCD positive film, wide operating temperature range, RoHS compliant, compact size. Optional 3.3v or 5v power supply and optional pin header connections.

It can be easily controlled through 8051, PIC, AVR, ARDUINO, ARM, Raspberry Pi and other MCUs. It can be used in any embedded system, industrial equipment, security, medical and handheld devices.

Connector Customization:

Easily modify any connectors on your display to meet your application’s requirements. Our engineers are able to perform soldering for pin headers, boxed headers, right angle headers, and any other connectors your display may require.

PCB Modifications:

Choose from a variety of changes to the PCB's shape, size, pinout, and component layout to make it perfect for your application.

Backlight color customization:

The module backlight has a variety of combinations to choose from, without backlight or with yellow-green/blue/white/amber/red/RGB backlight options. There are 48 effects. You can click on the customization page for reference.

Font library customization:

Provides a variety of font libraries, including English/Japanese, Western Europe, Eastern Europe, Scandinavian Europe, Cyrillic (Russian), Hebrew/Arabic, etc.

Cable Customization:

Adjust the length, position, and pinout of your cables or add additional connectors. Get a cable solution that’s precisely designed to make your connections streamlined and secure.

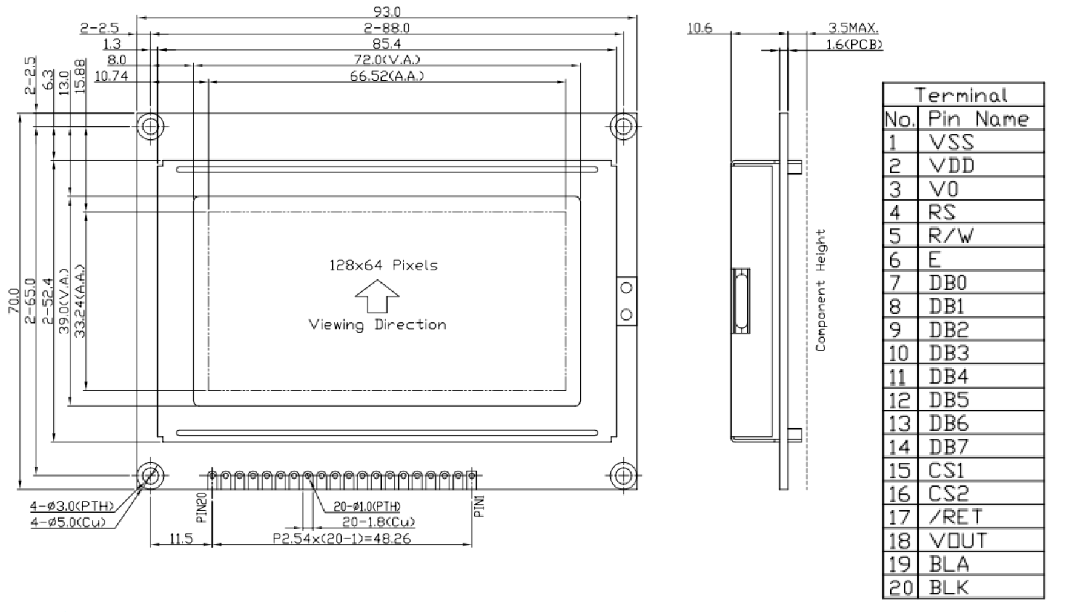

parameter	Specifications	Unit
name	HTM12864B-31W-A5P
graphic display	128 column × 64 lines	dots
Dimensions	93.0 x 70.0 x 14.0 (MAX)	mm
VA size	72.0 x 39.0	mm
AA size	66.52 x 33.24	mm
Pixel pitch	0.52 x 0.52	mm
driver chip	KS107+KS108or compatible
Application voltage	5V	V
Backlighting	White
display mode	FSTN(+)
Drive mode	1/64 duty cycle
product type	Graphic LCD module
Polarizer type	Semi-permeable
