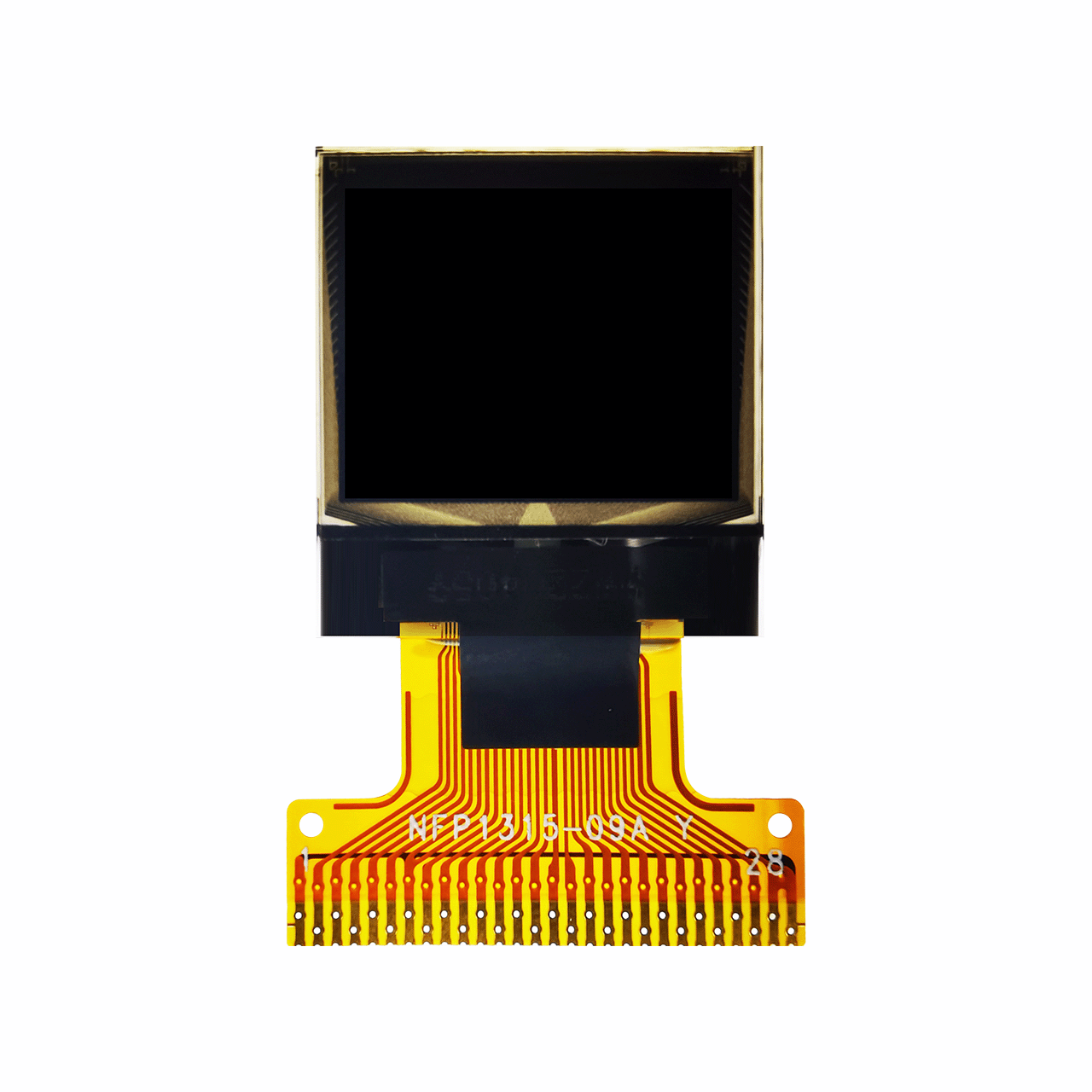

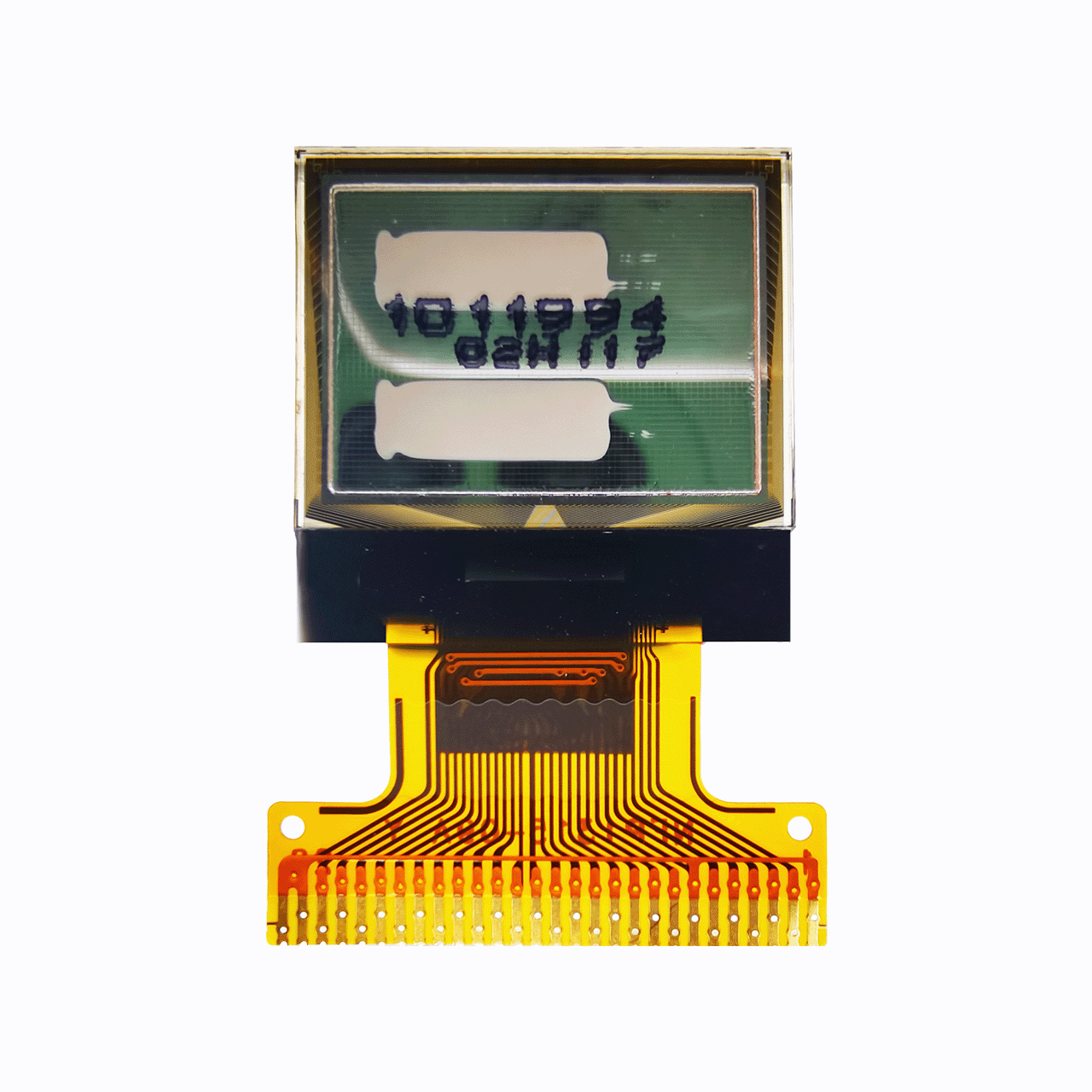

0.66 inch 64x48 White Graphic OLED MONO DISPLAY SSD1315

0.66 inch 64x48 White Graphic OLED MONO DISPLAY SSD1315

▶ Model: OLED-H066-SPI-W

▶ Size:0.66" diagonal
▶ Display Format:64x48 Pixels
▶ Display Type:Graphic OLED
▶ Display Color:Mono White

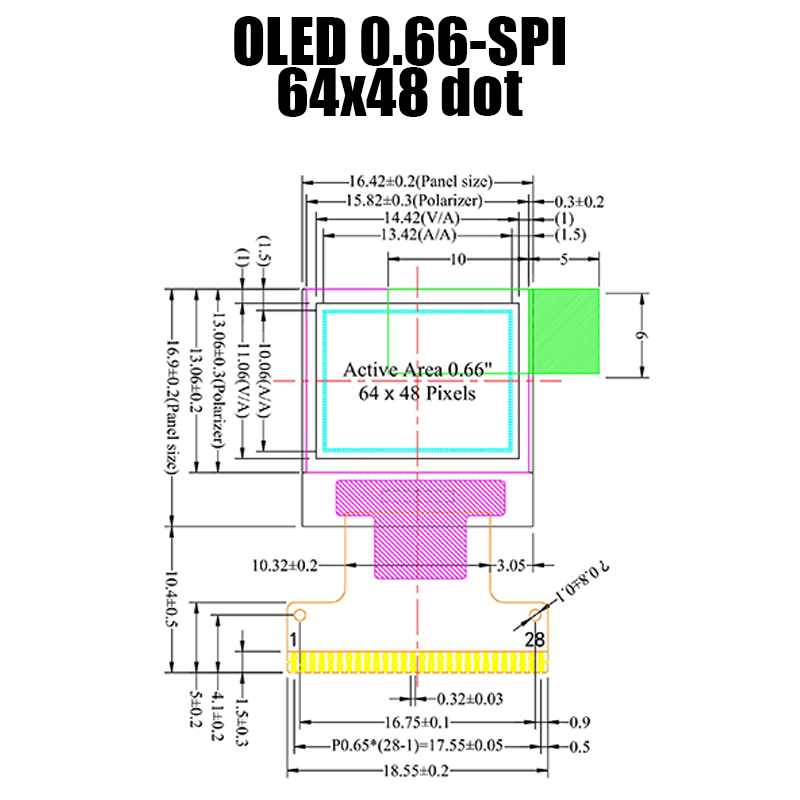

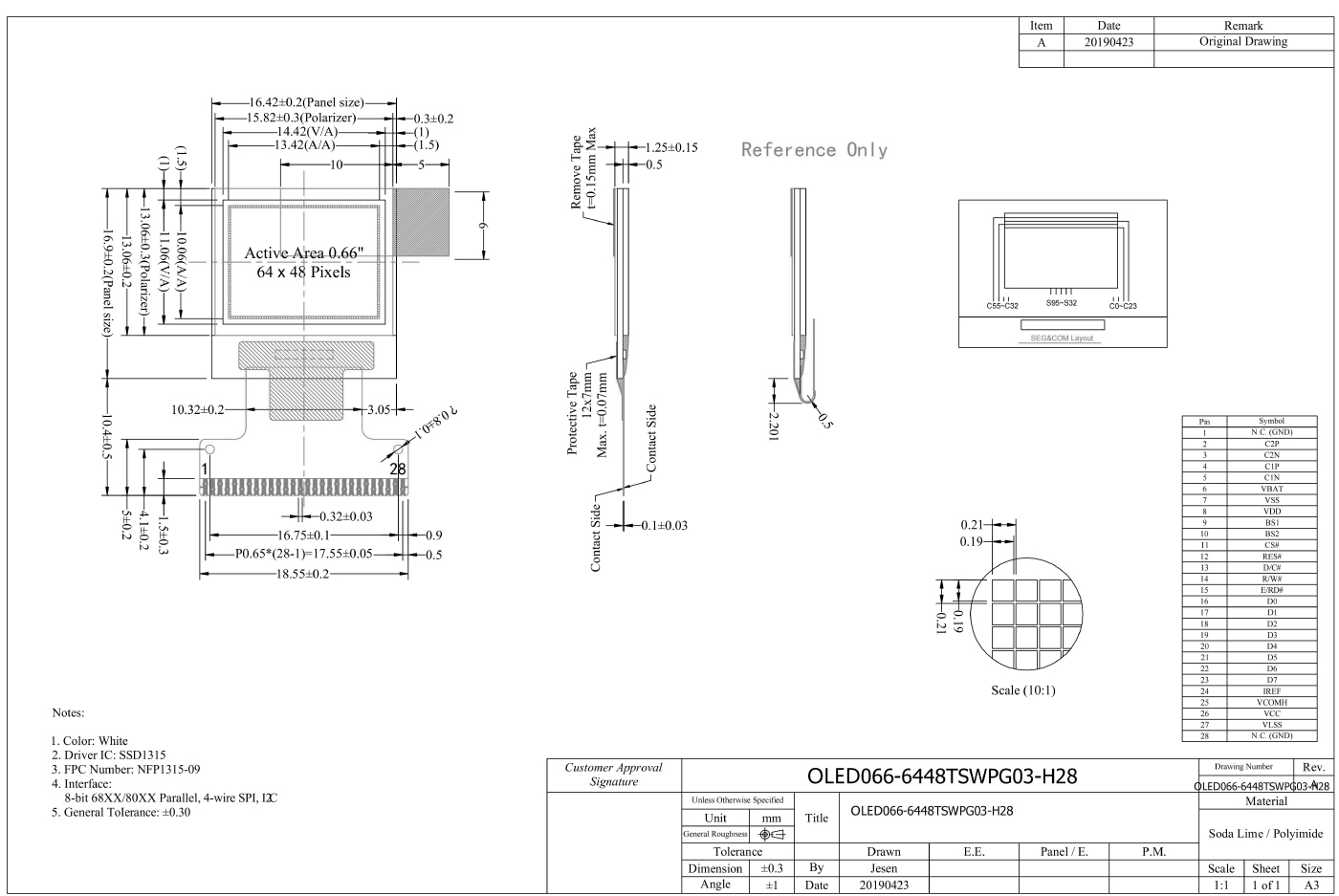

▶ Outline(mm):16.42x16.9x1.25
▶ AA(mm):13.42x10.06
▶ Supply Voltage:3.3V
▶ Backlight brightness: 190cd/m2
▶ Interface:8-bit 8080 Parallel, 4-wire SPI, I2C
▶ Compatibility:Arduino and similar development boards
▶ Controller Type:SSD1315
▶ Operating Temperature: -40°C ~ 85°C
▶ Storage Temperature: -40°C ~ 85°C
▶ Added Feature: EMI shielding

Product Consultation Datasheets Download Demo Code
- Transportation
- Payment
- Taxes
- Ensure
- Return
- Discontinued
Transportation

Our company cooperates with SF Express for domestic express delivery, and DHL for overseas express delivery. You can contact us to inquire about freight and weight to get the latest quotation.

Payment

Online payment is not supported. Transfers can be made through corporate accounts. If a VAT invoice is issued, please contact our sales staff to obtain a corporate account.

Taxes

All products sold on this website do not include tax. If you need a VAT invoice, please contact our sales staff to purchase offline.

Ensure

All products sold on this website have a one-year warranty. If the product is damaged due to improper use by the customer, it will be repaired free of charge. Material cost will be charged.

Return

Products within the warranty period can be returned for repair or replacement. Before returning, please contact our sales staff to confirm the reason for return.

Discontinued

We are committed to long-term production of all products sold on this website. If the IC or panel is discontinued, we will try our best to replace it with compatible materials.

Prev Back Next

Product Description
Specification
Attributes

OLED-H066-SPI-W | 64x48 Pixels | Graphic OLED Module | White Monochrome Color | Wide temperature | Thru-hole Connection | EMI Shielding | Arduino Display

This 0.66-inch white monochrome graphic OLED display features a built-in SSD1315 controller and requires a power supply of 3.3 V. It offers great viewing angles and crisp, vibrant graphics. The display module can be interfaced using either serial or parallel communication. It operates in a wide temperature range of -40 to 85 degrees Celsius, making it ideal for use in a variety of environments, including harsh ones. The display is compatible with Arduino and other popular development boards. It also comes with a touchscreen and EMI-shielded FPC.
