3.0 inch 128x64 LCD Graphic Dot Matrix Module | FSTN Positive Display RGB Red Green Blue Backlight | 3.3V | MCU | ST7565R

3.0 inch 128x64 LCD Graphic Dot Matrix Module | FSTN Positive Display RGB Red Green Blue Backlight | 3.3V | MCU | ST7565R | Arduino

▶ Model: HTM12864-8B-35S-A5P

▶ Type: COG LCD module with board
▶ Display content: 128x64
▶ Overall dimensions (mm): 72.0x59.0x8.6
▶ VA size (mm): 65.0x38.0
▶ AA size (mm): 60.7x32.93
▶ Point spacing (mm): 0.515x0.475
▶ Application: Industrial Control
▶ Viewing angle: 6H
▶ Backlight: red/green/blue
▶ PIN: 17PIN
▶ Interface mode: MCU
▶ Working temperature: -20~70℃
▶ Power supply voltage: 3.3v
▶ Driver chip: ST7565R

Product Consultation Datasheets Download Demo Code
- Transportation
- Payment
- Taxes
- Ensure
- Return
- Discontinued
Transportation

Our company cooperates with SF Express for domestic express delivery, and DHL for overseas express delivery. You can contact us to inquire about freight and weight to get the latest quotation.

Payment

Online payment is not supported. Transfers can be made through corporate accounts. If a VAT invoice is issued, please contact our sales staff to obtain a corporate account.

Taxes

All products sold on this website do not include tax. If you need a VAT invoice, please contact our sales staff to purchase offline.

Ensure

All products sold on this website have a one-year warranty. If the product is damaged due to improper use by the customer, it will be repaired free of charge. Material cost will be charged.

Return

Products within the warranty period can be returned for repair or replacement. Before returning, please contact our sales staff to confirm the reason for return.

Discontinued

We are committed to long-term production of all products sold on this website. If the IC or panel is discontinued, we will try our best to replace it with compatible materials.

Prev Back Next

Related Accessories

Arduino adapter board/suitable for Arduino development board COB/character/graphic dot matrix
Single Row Pin Header Connector
COB 20-pin cable base/character/graphic dot matrix

Product Description
Specification
Attributes

3.0 inch 128x64 LCD Graphic Dot Matrix Module | FSTN Positive Display RGB Red Green Blue Backlight | 3.3V | MCU | ST7565R | Arduino

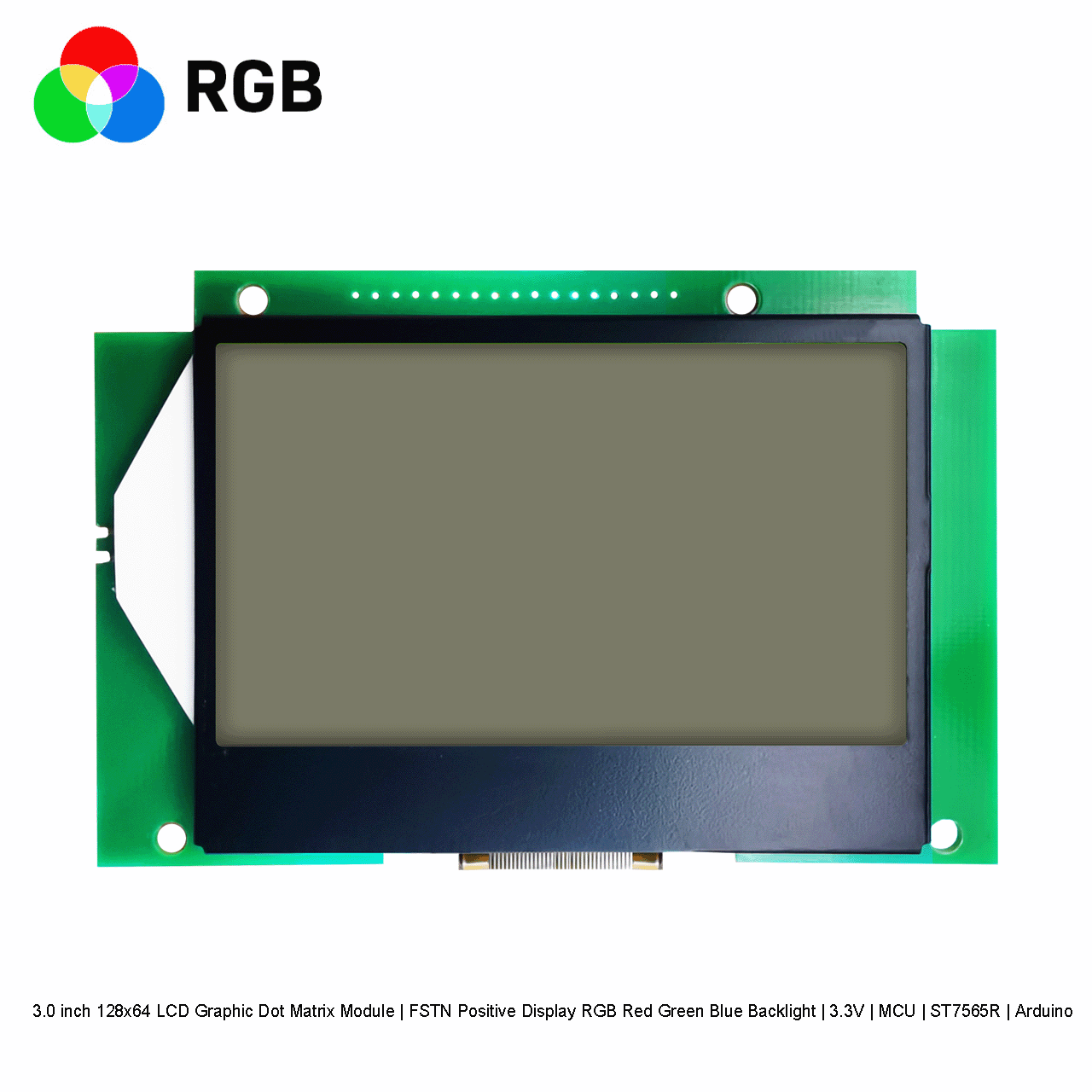

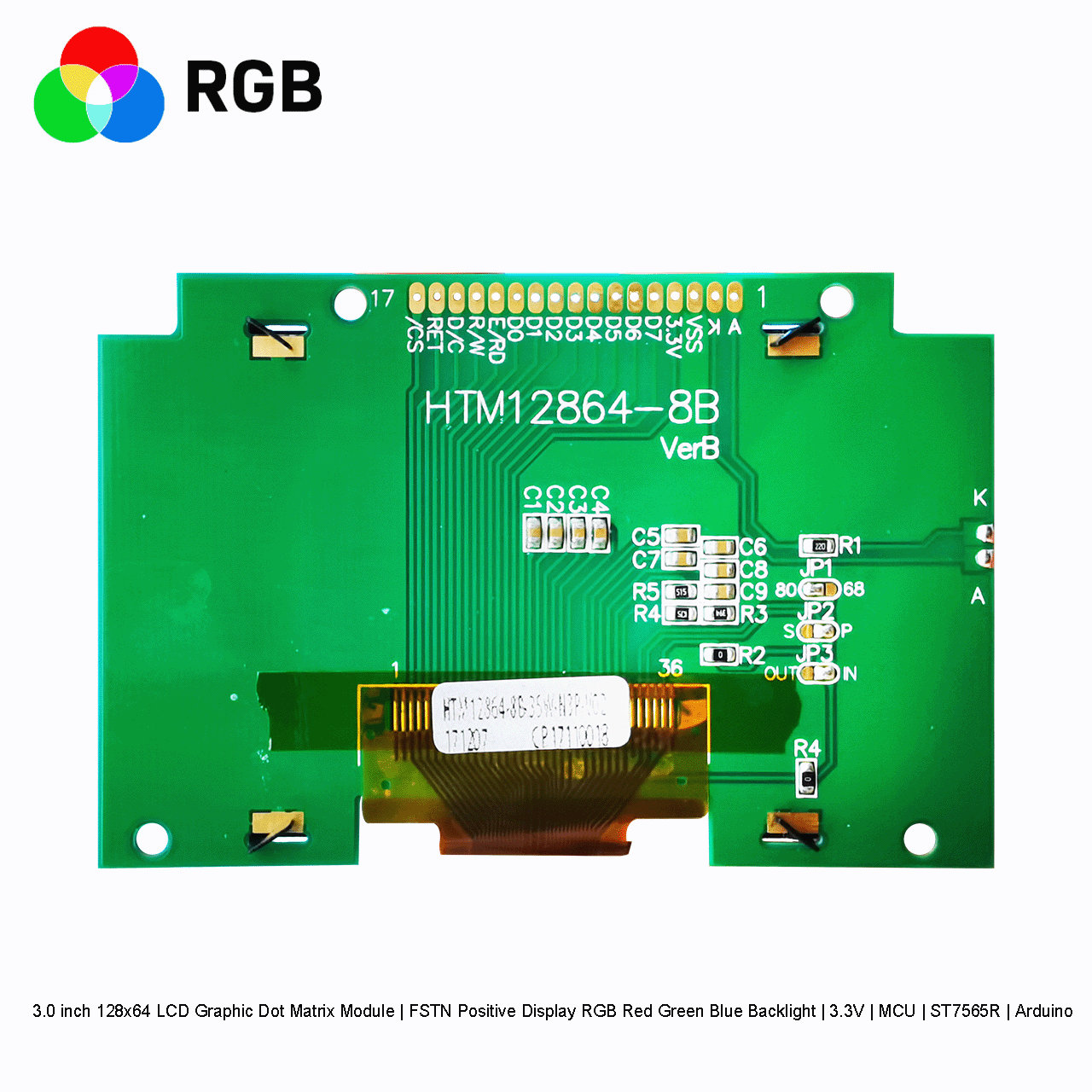

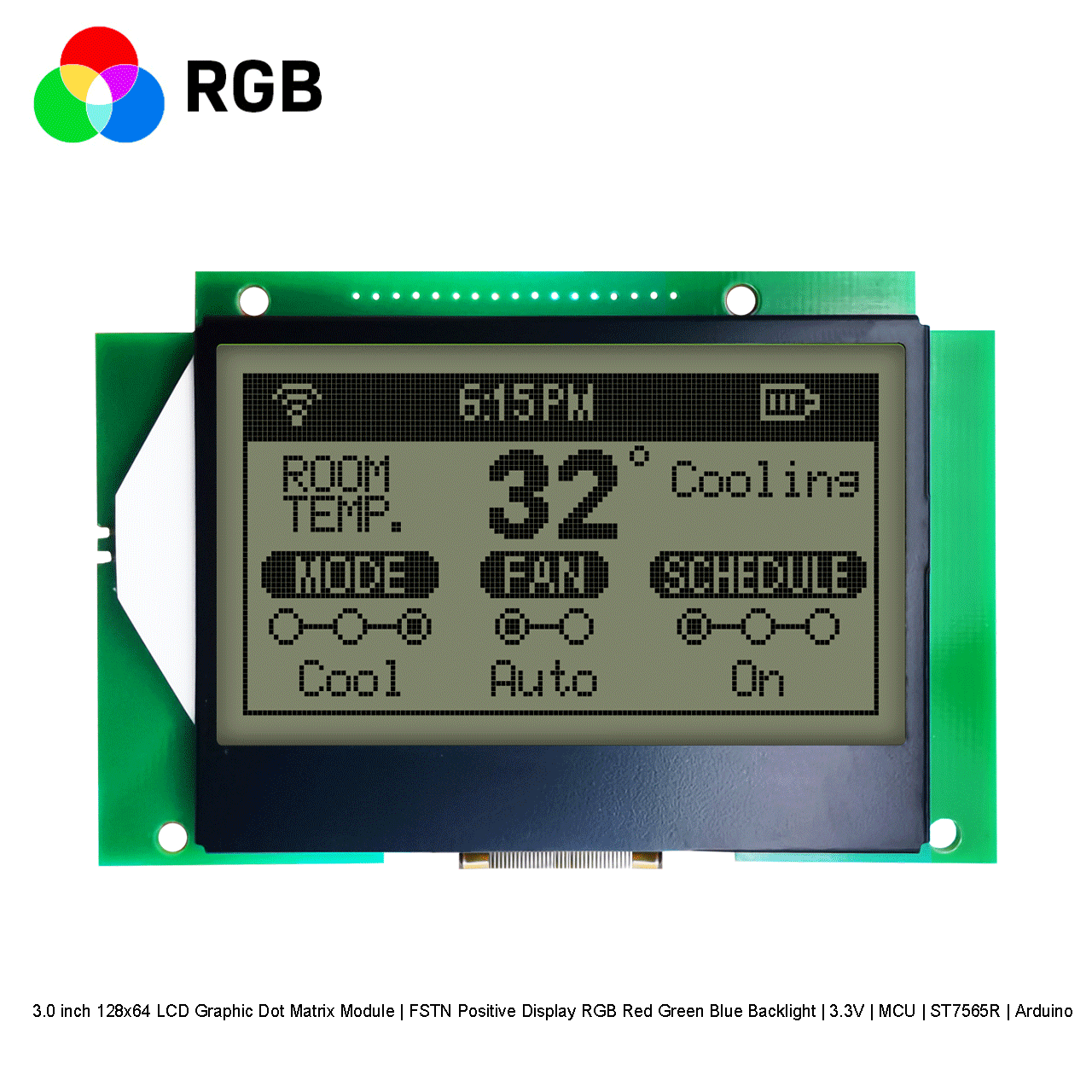

3.0 inch 128x64 RGB LCD Graphic Dot Matrix Module 128×64 dot matrix, COB (Chip on Board) Graphic LCD Module, This product is a FSTN positive gray LCD mode with red, green and blue LED backlight. It has a six o'clock viewing direction and a fully transparent polarizer, and is recommended for indoor applications. Of course, since the fully transparent polarizer is applied to make the backlight fully transparent, it is still readable outdoors when the LED backlight brightness is large enough. This product has a negative voltage and is assembled with a 1/64 Duty and controller ST7565R or equivalent chip on board. The interface type is parallel. This is a ROHS-compliant product manufactured in accordance with ISO standards and procedures.

Connector Customization:

Easily modify any connectors on your display to meet your application’s requirements. Our engineers are able to perform soldering for pin headers, boxed headers, right angle headers, and any other connectors your display may require.

PCB Modifications:

Choose from a variety of changes to the PCB's shape, size, pinout, and component layout to make it perfect for your application.

Backlight color customization:

The module backlight has a variety of combinations to choose from, without backlight or with yellow-green/blue/white/amber/red/RGB backlight options. There are 48 effects. You can click on the customization page for reference.

Font library customization:

Provides a variety of font libraries, including English/Japanese, Western Europe, Eastern Europe, Scandinavian Europe, Cyrillic (Russian), Hebrew/Arabic, etc.

Cable Customization:

Adjust the length, position, and pinout of your cables or add additional connectors. Get a cable solution that’s precisely designed to make your connections streamlined and secure.

Item	Specification	Unit
Model	HTM-12864-8B-35S-A5P
Resolution	128 × 64	dots

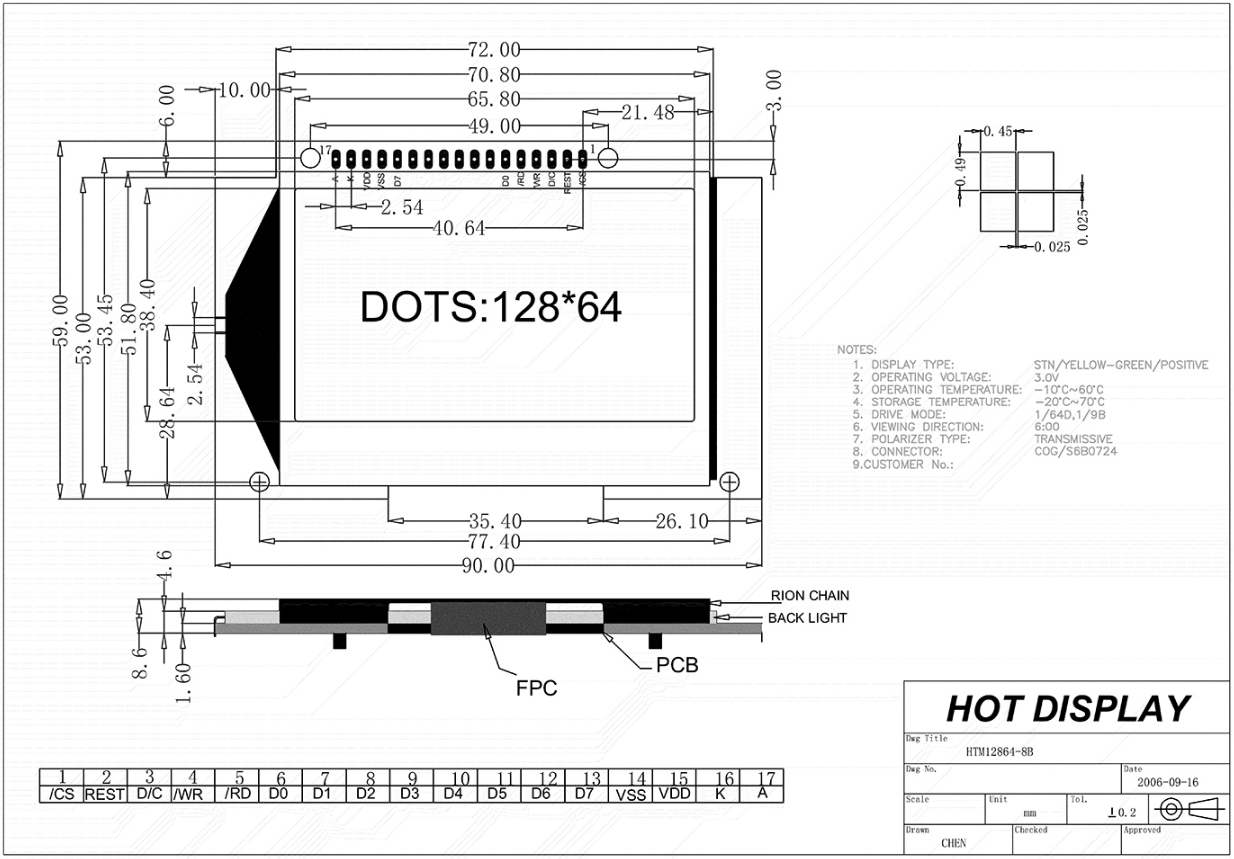

Module size	72.0 x 59.0 x 8.6 (MAX)	mm
Viewable (VA) area	65.0 x 38.0	mm
Active (AA) area	60.7 x 32.93	mm
Pixel pitch	0.515 x 0.475	mm
IC	ST7565R
Applied voltage	3.3V	V
Backlight	Red green blue
Display mode	FSTN(+)
Drive mode	1/64 duty cycle
Product type	图形LCD
Features	全透
