1.1 inch TFT LCD Display Screen | 135x240 SPI TFT Display | ST7789H2
1.1 inch TFT LCD Display Screen pursues high definition and reliability, the 1.1 inch TFT LCD Display Screen TFT-H011A1QCIST3N10 LCD display module stands out with its excellent performance and innovative design. This 1.1 inch TFT LCD Display Screen normally black TFT screen, equipped with a high resolution of 135×3RGB×240 pixels, brings users a delicate and vivid visual experience. Its core driver IC ST7789H2 and SPI-4L interface design ensure fast response and low power consumption, and it has wide compatibility and can be easily integrated into industrial control, portable devices, medical instruments and other scenarios.

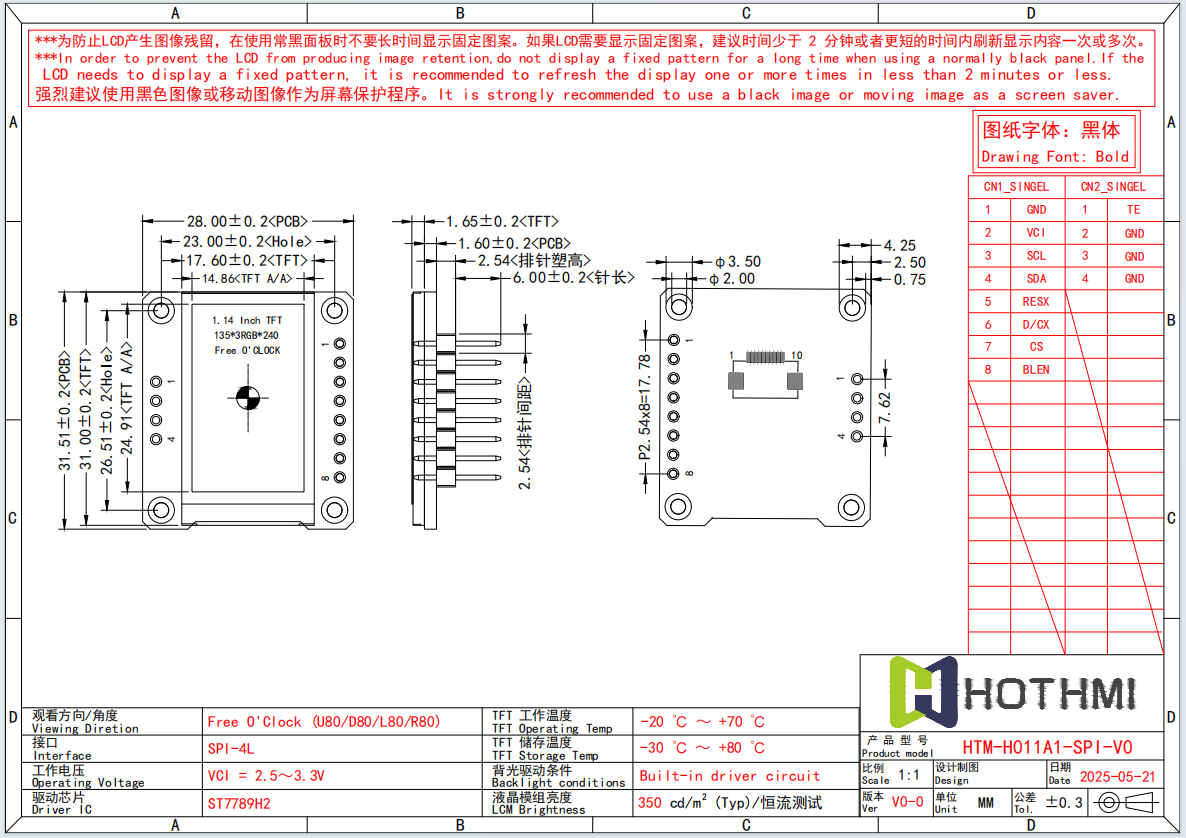

The 1.1 inch TFT LCD Display Screen adopts Free O'Clock flexible layout (U80/D80/L80/R80), supports multi-directional installation, and meets the needs of compact space and customization. The backlight system has a brightness of 350 cd/m², combined with a wide temperature operating range (-20°C to 70°C),with ST7789H2 Controller it can operate stably even in harsh environments. The built-in screen saver function and intelligent protection mechanism effectively avoid image retention problems caused by long-term fixed screens and extend the service life of the screen.
In terms of technical details, the 2.8V main voltage and 1.8V I/O voltage design further optimizes energy consumption, and the LED backlight achieves high-efficiency light effect at a typical value of 3.2V/20mA, taking into account both brightness and energy saving. The module structure is precise, and the dimensional tolerance is strictly controlled within ±0.2mm. It is equipped with PI reinforcement board and FPC flexible circuit to ensure mechanical strength and signal transmission stability. Whether it is the high-frequency refresh demand of industrial instrument panels or the lightweight design of consumer electronics, TFT-H011A1QCIST3N10 uses professional quality to empower your products with clear vision and lasting reliability.
