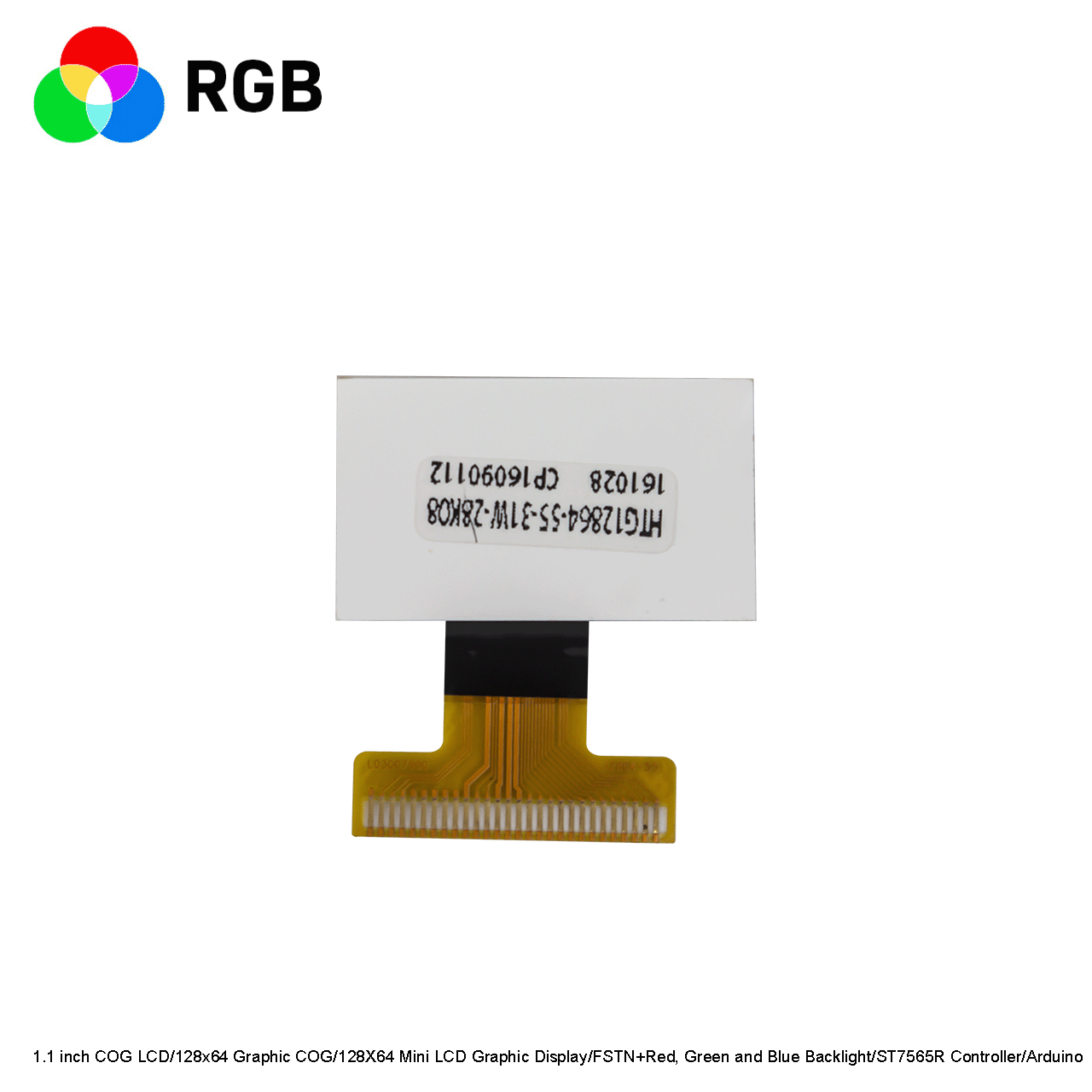

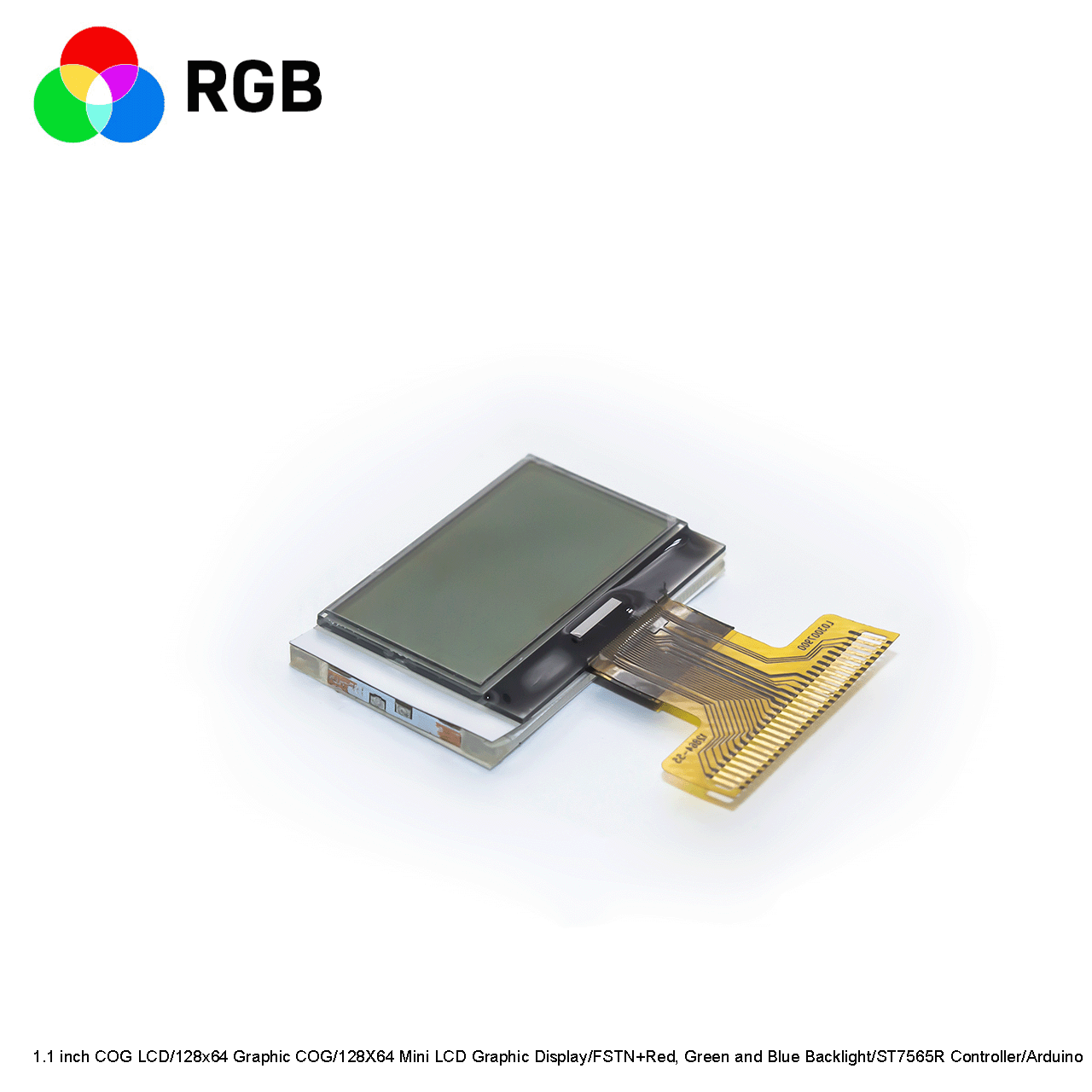

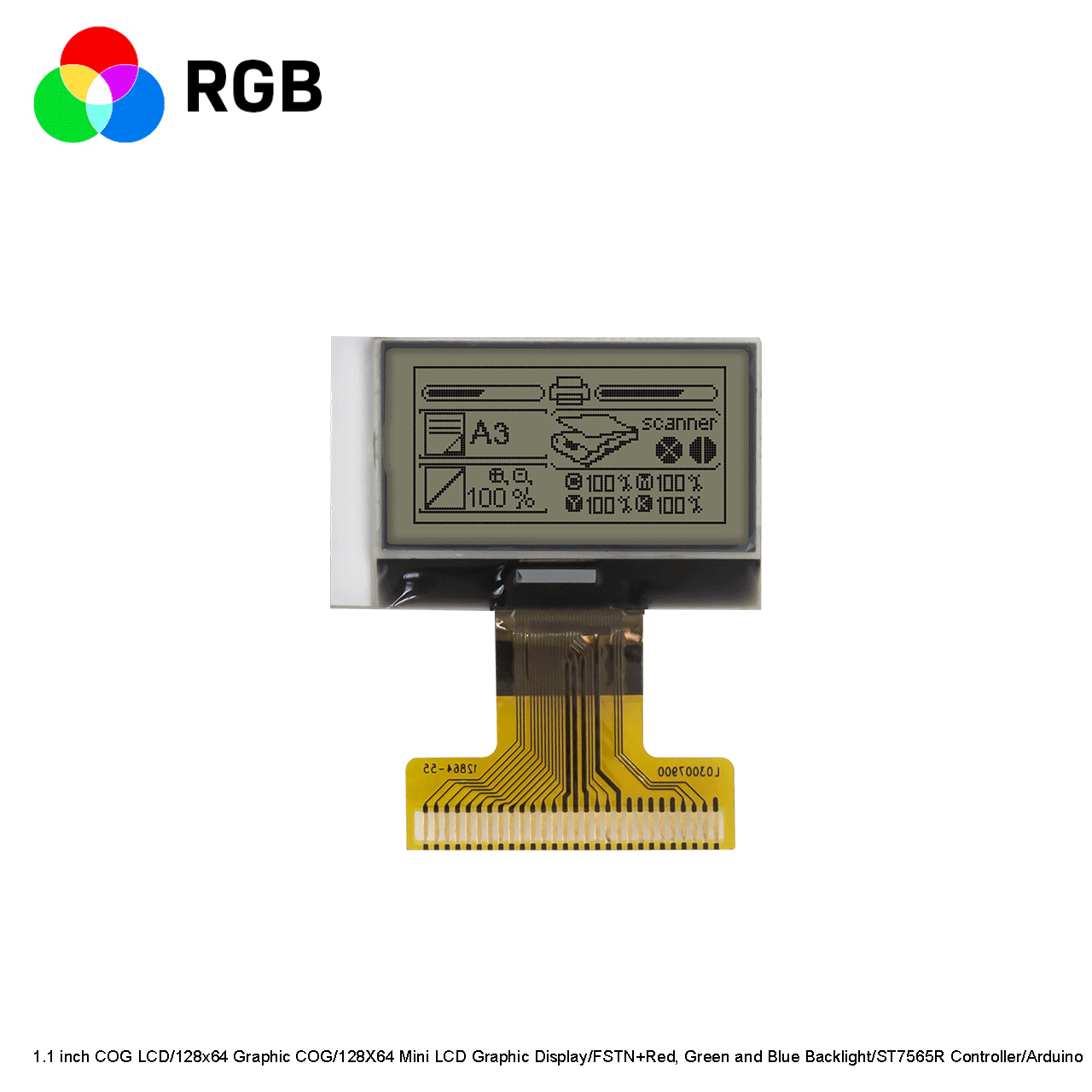

1.1 inch COG LCD/128x64 Graphic COG/128X64 Mini LCD Graphic Display/FSTN+Red, Green and Blue Backlight/ST7565R Controller/Arduino

1.1 inch COG LCD/128x64 Graphic COG/128X64 Mini LCD Graphic Display/FSTN+Red, Green and Blue Backlight/ST7565R Controller/Arduino

▶ Model: HTG12864-55-35S-A3P

▶ Type: COG graphic module
▶ Display pixels: 128x64
▶ Dimensions (mm): 28.55x20.1x1.7
▶ VA size (mm): 26.15x13.9
▶ AA size (mm): 23.02x11.5
▶ Pixel pitch (mm): 0.18x0.18
▶ Application: Instrumentation
▶ Viewing angle: 6H
▶ Backlight/brightness: red green blue light
▶ Pin: FPC-12PIN
▶ Interface mode: MCU
▶ Special instructions: Anti-static ESD 8KV
▶ Operating temperature: -20~70℃
▶ Supply voltage: 3.3V
▶ Driver chip: ST7565R

Product Consultation Datasheets Download Demo Code
- Transportation
- Payment
- Taxes
- Ensure
- Return
- Discontinued
Transportation

Our company cooperates with SF Express for domestic express delivery, and DHL for overseas express delivery. You can contact us to inquire about freight and weight to get the latest quotation.

Payment

Online payment is not supported. Transfers can be made through corporate accounts. If a VAT invoice is issued, please contact our sales staff to obtain a corporate account.

Taxes

All products sold on this website do not include tax. If you need a VAT invoice, please contact our sales staff to purchase offline.

Ensure

All products sold on this website have a one-year warranty. If the product is damaged due to improper use by the customer, it will be repaired free of charge. Material cost will be charged.

Return

Products within the warranty period can be returned for repair or replacement. Before returning, please contact our sales staff to confirm the reason for return.

Discontinued

We are committed to long-term production of all products sold on this website. If the IC or panel is discontinued, we will try our best to replace it with compatible materials.

Prev Back Next

Related Accessories

Arduino adapter board/suitable for Arduino development board COB/character/graphic dot matrix
Single Row Pin Header Connector
COB 20-pin cable base/character/graphic dot matrix

Product Description
Specification
Attributes

1.1 inch COG LCD/128x64 Graphic COG/128X64 Mini LCD Graphic Display/FSTN+Red, Green and Blue Backlight/ST7565R Controller/Arduino
This HOT DISPLAY1.1 inch COG LCD/128x64 Graphic COG/STN+Gray/128X64 Mini Graphic Display/FSTN+Red, Green and Blue Backlight/ST7565R Controller/Arduino. This fully transparent LCD display is carefully designed to provide optimal visibility under various lighting conditions in many different environments. Under the full transparency of the polarizer, the backlight passes completely, increasing the brightness of the display and making the screen easy to read. In darker environments, the LCD has a strong backlight built in to provide high contrast and display clear graphics to the viewer. This advanced display technology ensures that the display is always easy to read regardless of the lighting conditions.
This graphic LCD display module is fully compatible with Arduino/C8051 and can be seamlessly connected with other electronic systems for a variety of applications. This model is designed to withstand harsh working conditions and will not operate properly when used in a temperature range of -20 to 70 degrees Celsius. Mini size, exquisite and beautiful, clear display, industrial control level support for long-term use. The LCD has an optimal viewing angle of 6:00, an operating voltage of 3.3V, and is RoHS compliant.

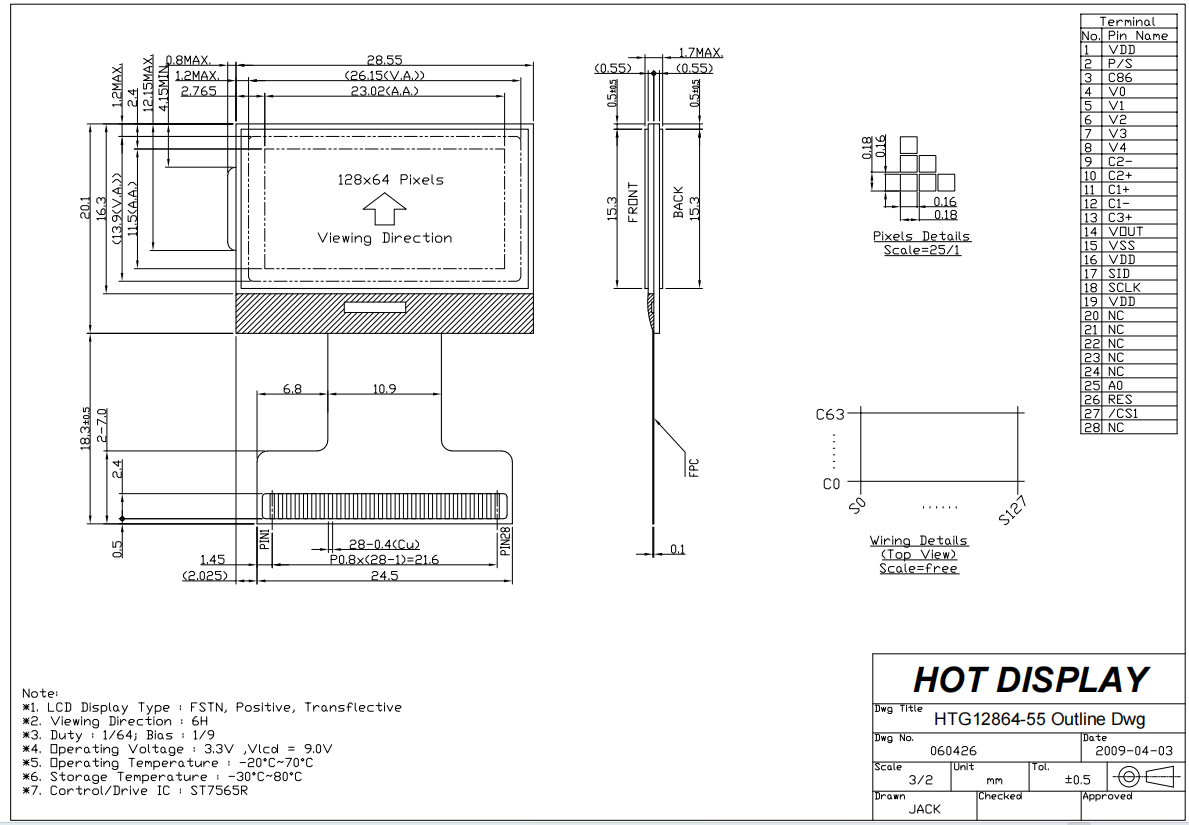

Item	Specification content	Unit
Model	HTG12864-55-35S-A3P
Column × Row	128 × 64	dots
Module Size	28.55 x 20.1 x 1.7 (MAX)	mm
Visual (VA) Area	26.15 x 13.9	mm
Active (AA) Area	23.02 x 11.5	mm
Pixel Pitch	0.18 x 0.18	mm
IC	ST7565R
Power Supply Voltage	3.3	V
Backlight	Yellow-Green
Mode	STN(+)
Drive Mode (Duty)	1/64 duty cycle
Type	Graphic COG
Features	Transmissive
