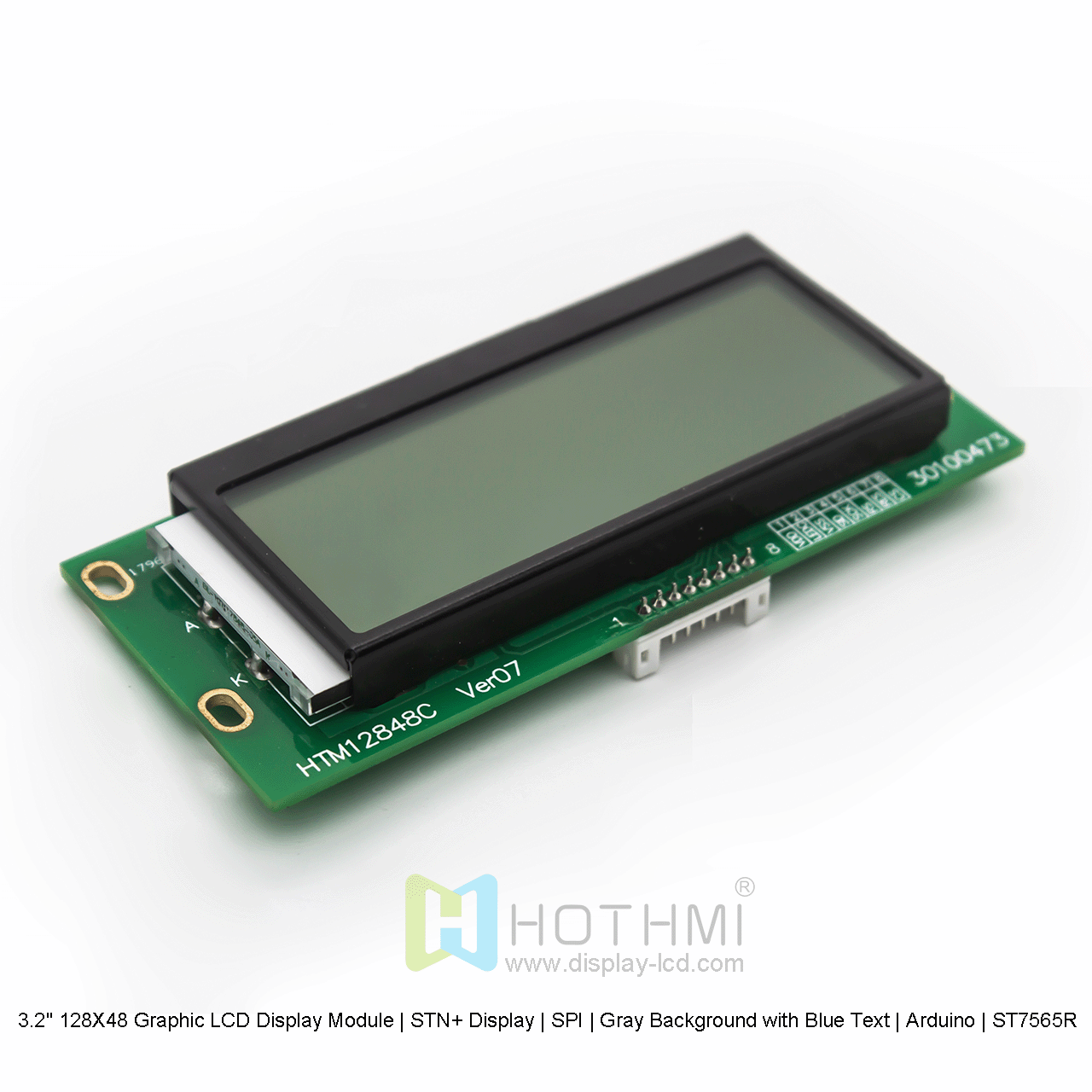

3.2" 128X48 Graphic LCD Display Module | STN+ Display | SPI | Gray Background with Blue Text | Arduino

3.2" 128X48 Graphic LCD Display Module | STN+ Display | SPI | Gray Background with Blue Text | Arduino | ST7565R

▶ Model: HTM12848C-11W-V06

▶ Type: COG LCD module with board
▶ Display pixels: 128x48

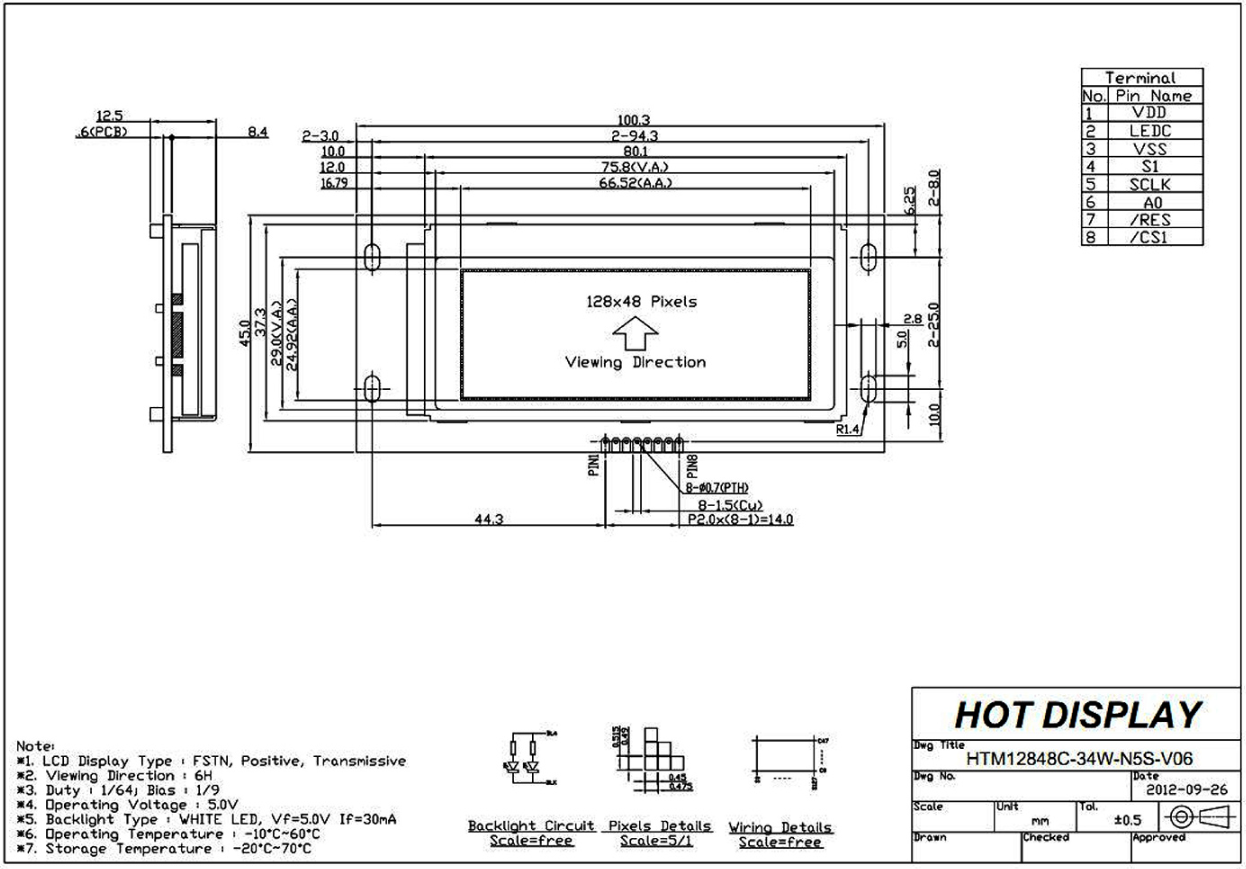

▶ Overall dimensions (mm): 100.3x45.0x12.5
▶ VA size (mm): 75.8x29.0
▶ AA size (mm): 66.52x24.92
▶ Point spacing (mm): 0.52x0.52
▶ Application: Instrumentation
▶ Viewing angle: 6H
▶ Backlight type: white light
▶ PIN: 8PIN
▶ Interface: SPI
▶ Special instructions: Anti-static ESD 8KV
▶ Working temperature: -20~80℃
▶ Power supply voltage: 3.3v
▶ Driver chip: ST7565R

Product Consultation Datasheets Download Demo Code
- Transportation
- Payment
- Taxes
- Ensure
- Return
- Discontinued
Transportation

Our company cooperates with SF Express for domestic express delivery, and DHL for overseas express delivery. You can contact us to inquire about freight and weight to get the latest quotation.

Payment

Online payment is not supported. Transfers can be made through corporate accounts. If a VAT invoice is issued, please contact our sales staff to obtain a corporate account.

Taxes

All products sold on this website do not include tax. If you need a VAT invoice, please contact our sales staff to purchase offline.

Ensure

All products sold on this website have a one-year warranty. If the product is damaged due to improper use by the customer, it will be repaired free of charge. Material cost will be charged.

Return

Products within the warranty period can be returned for repair or replacement. Before returning, please contact our sales staff to confirm the reason for return.

Discontinued

We are committed to long-term production of all products sold on this website. If the IC or panel is discontinued, we will try our best to replace it with compatible materials.

Prev Back Next

Related Accessories

Arduino adapter board/suitable for Arduino development board COB/character/graphic dot matrix
Single Row Pin Header Connector
COB 20-pin cable base/character/graphic dot matrix

Product Description
Specification
Attributes

3.2" 128X48 Graphic LCD Display Module | STN+ Display | SPI | Gray Background with Blue Text | Arduino | ST7565R

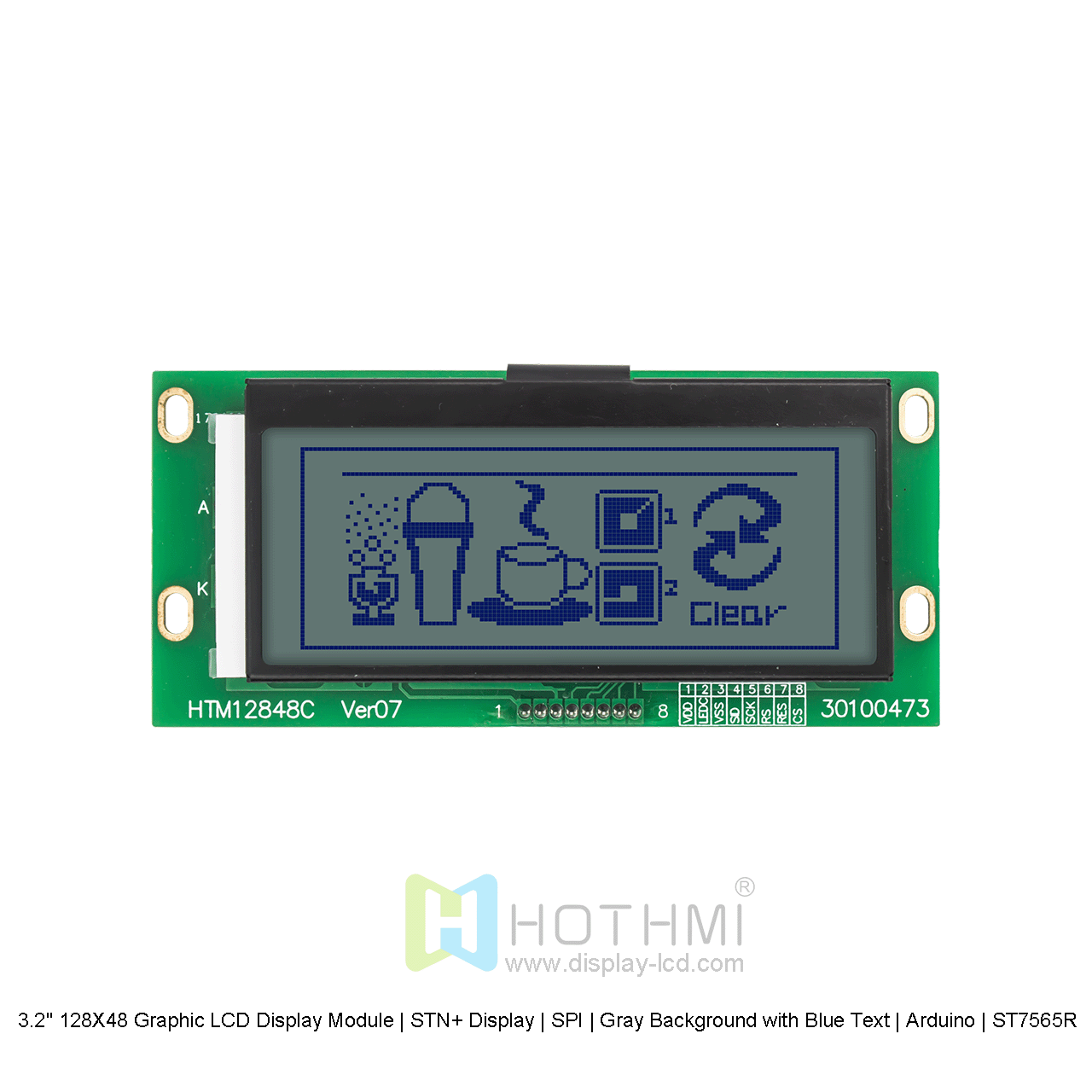

This HOTDISPLAY 128x48 Graphic LCD Display Module displays dark blue pixels illuminated on a gray background. This transflective LCD display is engineered to provide optimal visibility in a variety of lighting conditions in many different environments. In bright sunlight, the display utilizes its reflective layer to reflect ambient light back to the viewer, making the screen easy to read. In darker environments, the LCD has a strong backlight built in to provide high contrast and display clear graphics to the viewer. This advanced display technology ensures that the display is always easy to read regardless of the lighting conditions.

This Graphic LCD Display Module is fully compatible with Arduino/C8051 and can be seamlessly connected with other electronic systems for a variety of applications. Models of the HTM12848C are designed to withstand harsh operating conditions and operate normally when used in a temperature range of -20 to 80 degrees Celsius. The LCD has an optimal viewing angle of 6:00, operates at 3.3V, and is RoHS compliant.

Custom LCD Size:

Combined with the product structure, determine the required LCD size, screen type, etc. Mold manufacturing, according to the design, manufacture LCD molds, this process requires precise manufacturing technology and equipment. Support customization within 396*345mm.

Customize the number of dots and display icon content:

Supports customization of display content within 640*320 dot matrix, and icon style can be customized according to customer needs.

Backlight color and structure customization:

There are many combinations of module backlight to choose from, without backlight or with yellow-green / blue / white / amber / red / RGB backlight, up to 48 effects to choose from, please click on the customization page for reference.

Customized interface: Provide multiple interface options, SPI \ 8080 \ I2C, etc.

Driver board customization:Supports adjustment of driver board size, component sorting, interface type, etc.

ITEM	SPECIFICATION CONTENT	UNIT
Name	HTM12848C-11W-V06
Graphic Display	128 × 48	dots
Dimensions	100.3 x 45.0 x 12.5 (MAX)	mm
VA Size	75.8 x 29.0	mm
AA Size	66.52 x 24.92	mm
Pixel Pitch	0.52 x 0.52	mm
Driver Chip	ST7565R
Applied Voltage	3.3V	V
Backlight Illumination	White
Display Mode	STN(+)
Drive Mode	1/64 duty cycle
Product Type	Graphic LCD Modules
Polarizer Type	Transflective
