Character LCD Modules |8x2 STN- Blue Display with White Side Backlight ST7066U Arduino

Character LCD Modules |8x2 STN- Blue Display with White Side Backlight ST7066U Arduino

▶ Model: HTM-0802B-25W-T5P-V03

▶ Product type: Character LCD Modules
▶ Display content: 8x2 characters

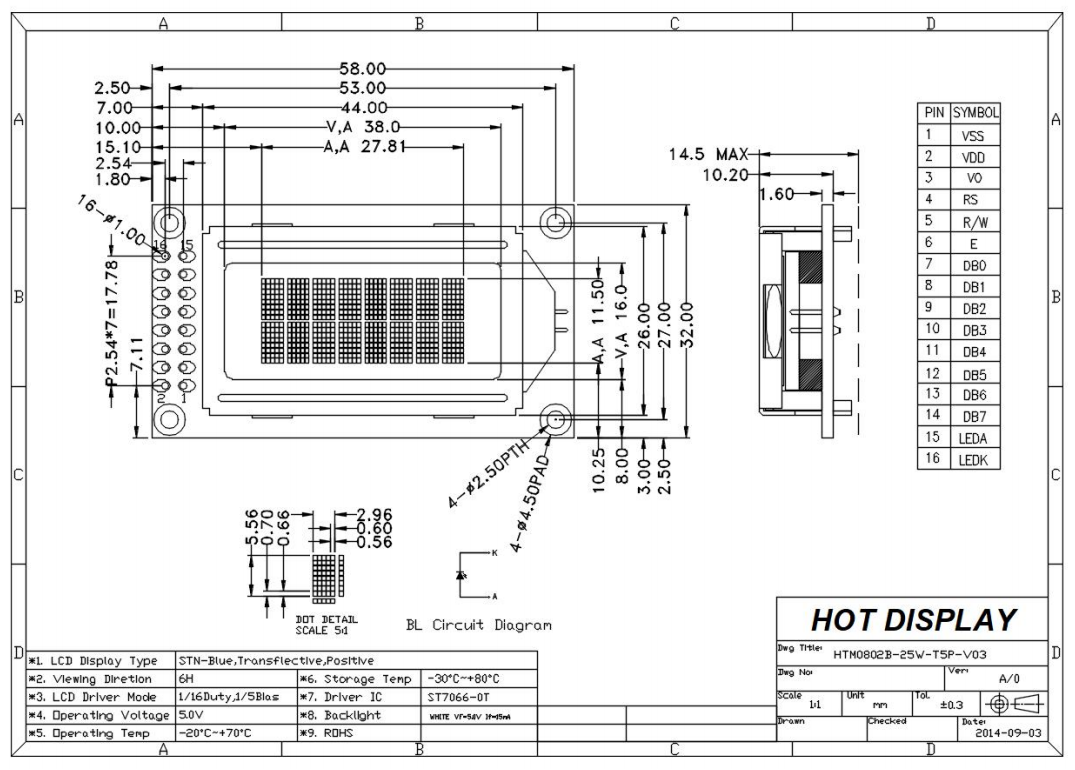

▶ Overall dimensions (mm): 58.0x32.0x10.3
▶ VA size (mm): 38.0x16.0
▶ AA size (mm): 27.81x11.5
▶ Point spacing mm: 0.6x0.7
▶ Product application: Instrumentation
▶ Viewing angle: 6H
▶ Backlight type or brightness: white
▶ Connection method PIN number: 16PIN
▶ Interface mode: MCU/8bit
▶ Special instructions: Anti-static ESD 8KV
▶ Working temperature: -20~70℃
▶ Power supply voltage: 5.0v
▶ Driver chip: ST7066U

Product Consultation Datasheets Download Demo Code
- Transportation
- Payment
- Taxes
- Ensure
- Return
- Discontinued
Transportation

Our company cooperates with SF Express for domestic express delivery, and DHL for overseas express delivery. You can contact us to inquire about freight and weight to get the latest quotation.

Payment

Online payment is not supported. Transfers can be made through corporate accounts. If a VAT invoice is issued, please contact our sales staff to obtain a corporate account.

Taxes

All products sold on this website do not include tax. If you need a VAT invoice, please contact our sales staff to purchase offline.

Ensure

All products sold on this website have a one-year warranty. If the product is damaged due to improper use by the customer, it will be repaired free of charge. Material cost will be charged.

Return

Products within the warranty period can be returned for repair or replacement. Before returning, please contact our sales staff to confirm the reason for return.

Discontinued

We are committed to long-term production of all products sold on this website. If the IC or panel is discontinued, we will try our best to replace it with compatible materials.

Prev Back Next

Related Accessories

Arduino adapter board/suitable for Arduino development board COB/character/graphic dot matrix
Single Row Pin Header Connector
COB 20-pin cable base/character/graphic dot matrix

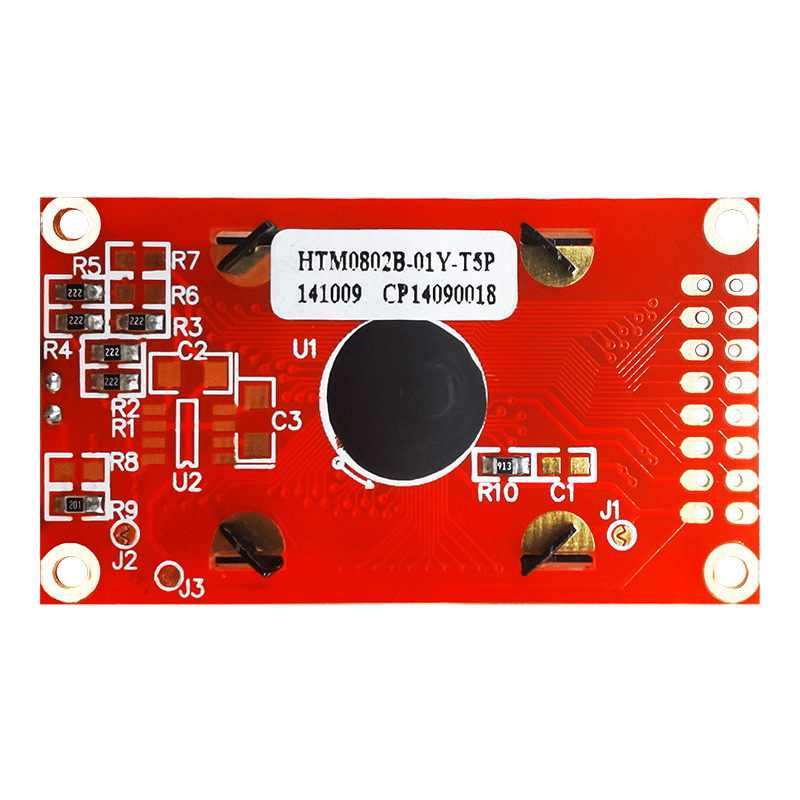

Product Description
Specification
Attributes

Character LCD Modules |8x2 STN- Blue Display with White Side Backlight ST7066U Arduino
Character LCD Modules HTM r0802B, 25W, T5P, V03 is an 8-character, 2-character line LCD that displays white characters on a blue background. Most single-wire transmissions operate on a supply voltage of 5.0V. With this compact blue LCD display, you have the opportunity to experience viewing in the ideal viewing direction at 6:00. It has a wide operating temperature range from h20°C to up to 70°C. Features a unique white backlight that improves visibility and readability in low-light environments. The LCD is specifically designed to control the ST7066U, making it compatible with various interfaces and blocks, including Arduino.

parameter	Specification content	Unit
Model	HTM-0802B-25W-T5P-V03
resolution	8 words × 2lines	dots
Module size	58.0（W） × 32.0（H） × 13.2 （D）mm	mm
Visual (VA) area	38.0 × 16.0mm	mm
Valid (AA) area	27.81 × 11.5	mm
Pixel pitch	0.60 × 0.70	mm
IC	ST7066U
Application voltage	5.0V	V
backlight	White backlight
display mode	STN(+)
Drive mode	1/16 duty cycle
product type	Charzcter LCD
characteristic	Transflective polarizer
