2.4-inch Resistive Touch TFT/240x320 Resolution Color Display/Serial Interface/ST7789 Controller/C8051/Arduino/STM32

2.4-inch Resistive Touch TFT/240x320 Resolution Color Display/Serial Interface/ST7789 Controller/C8051/Arduino/STM32

▶ Model: TFT-H024B26QVTST3R18

▶ Type: TFT vertical screen
▶ Display pixels: 240x320
▶ Dimensions (mm): 42.72x60.26x3.65
▶ Display inches: 2.4"
▶ Effective size (mm): 36.72x48.96
▶ Application: Instrumentation
▶ Viewing angle: full viewing angle
▶ Brightness: 350cd/m2
▶ Pin: FPC-18PIN
▶ Interface: SPI
▶ Special instructions: Anti-static ESD 8KV
▶ Working temperature: -20~70℃
▶ Power supply voltage: 3.3V
▶ Driver chip: ST7789

Product Consultation Datasheets Download Demo Code
- Transportation
- Payment
- Taxes
- Ensure
- Return
- Discontinued
Transportation

Our company cooperates with SF Express for domestic express delivery, and DHL for overseas express delivery. You can contact us to inquire about freight and weight to get the latest quotation.

Payment

Online payment is not supported. Transfers can be made through corporate accounts. If a VAT invoice is issued, please contact our sales staff to obtain a corporate account.

Taxes

All products sold on this website do not include tax. If you need a VAT invoice, please contact our sales staff to purchase offline.

Ensure

All products sold on this website have a one-year warranty. If the product is damaged due to improper use by the customer, it will be repaired free of charge. Material cost will be charged.

Return

Products within the warranty period can be returned for repair or replacement. Before returning, please contact our sales staff to confirm the reason for return.

Discontinued

We are committed to long-term production of all products sold on this website. If the IC or panel is discontinued, we will try our best to replace it with compatible materials.

Prev Back Next

Related Accessories

Arduino adapter board/suitable for Arduino development board COB/character/graphic dot matrix
Single Row Pin Header Connector
COB 20-pin cable base/character/graphic dot matrix

Product Description
Specification
Attributes

2.4-inch Resistive Touch TFT/240x320 Resolution Color Display/Serial Interface/ST7789 Controller/C8051/Arduino/STM32

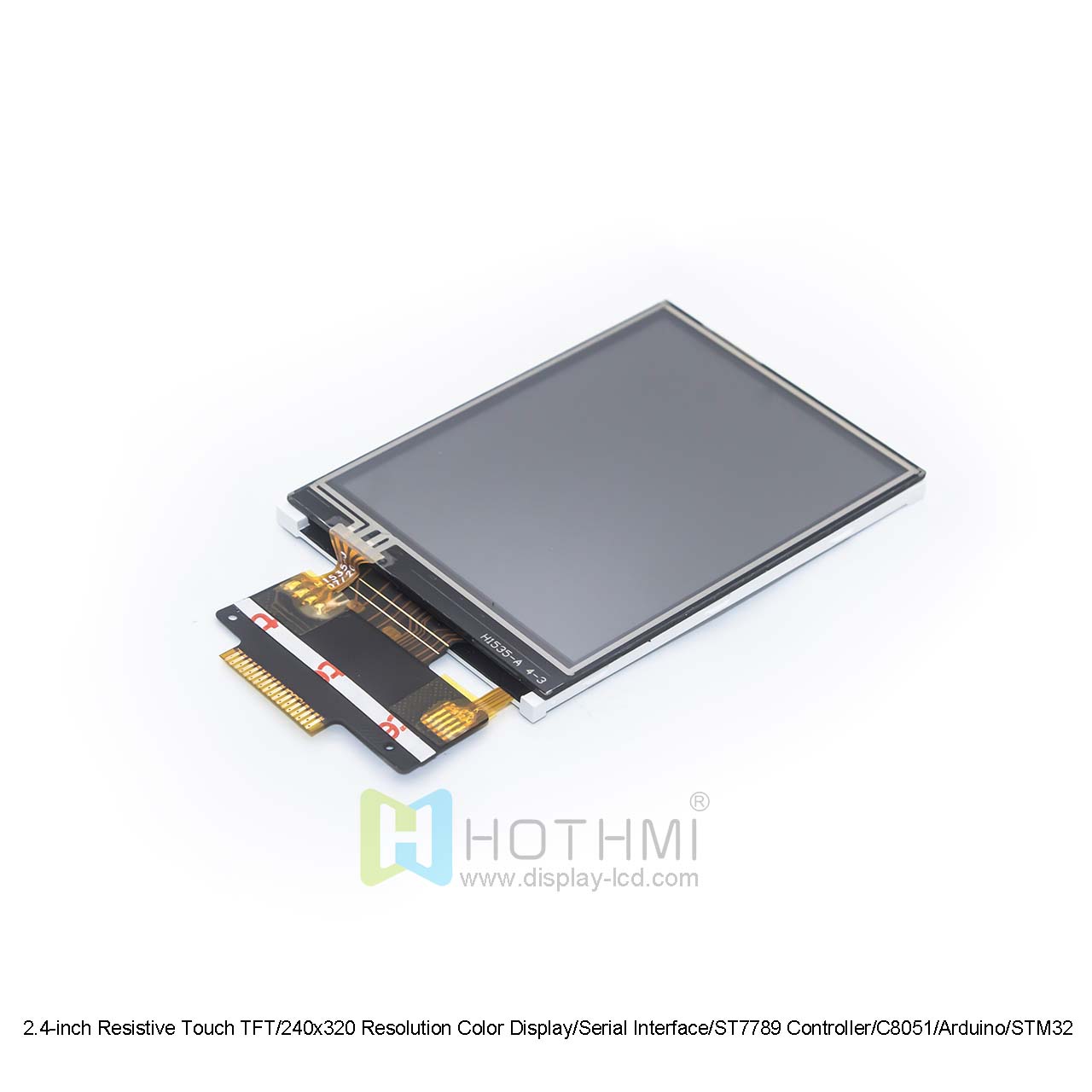

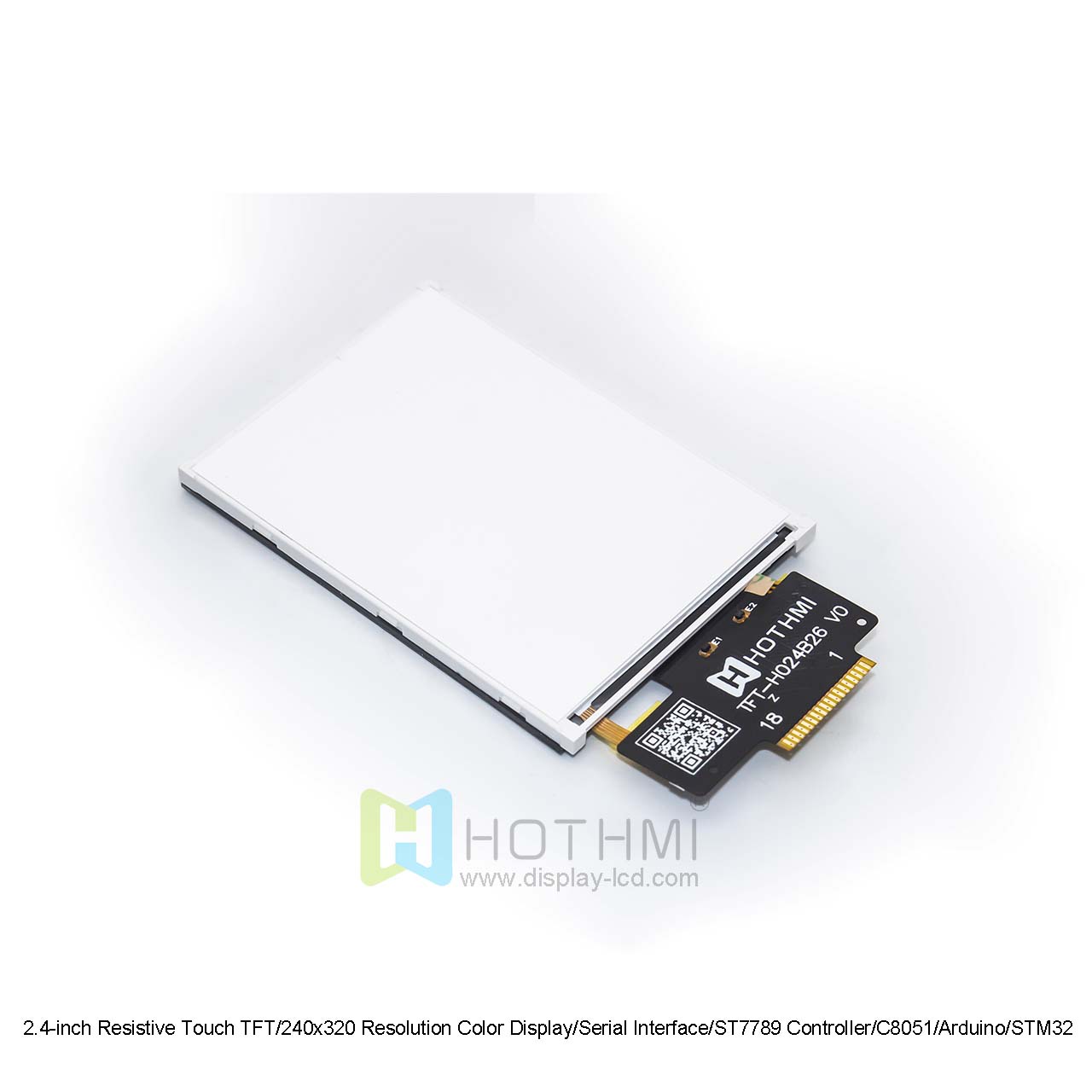

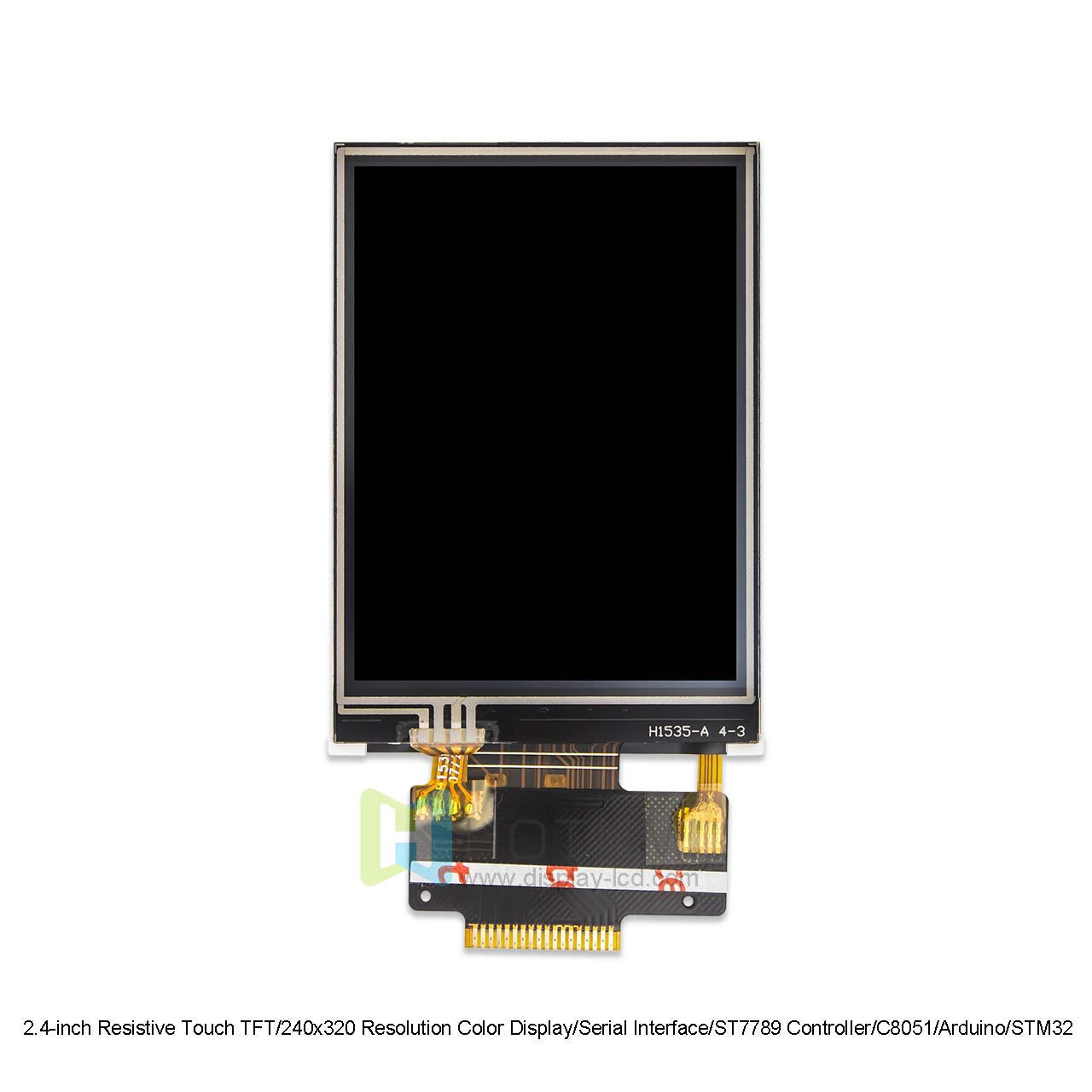

The TFT-H024B26QVTST3R18 is a 2.4-inch IPS TFT vertical LCD display with resistive touch function and a resolution of 240x320 pixels. The display has a high contrast ratio of 800:1, capable of deep blacks and vivid colors. IPS technology enables full viewing angles, and the display provides amazing clarity, excellent color reproduction, better image consistency, and high contrast at full viewing angles.
The TFT-H024B26QVTST3R18 has a built-in ST7789 controller, and an SPI serial interface is used to transfer data to the display. Applicable to C8051/Arduino/STM32 series. Suitable for a wide range of applications, including industrial control systems, home automation, and portable electronics. The LCD uses FFC (Flexible Flat Cable) connection to ensure easy electrical connection. Our monitors are RoHS compliant and adhere to strict environmental and safety standards.

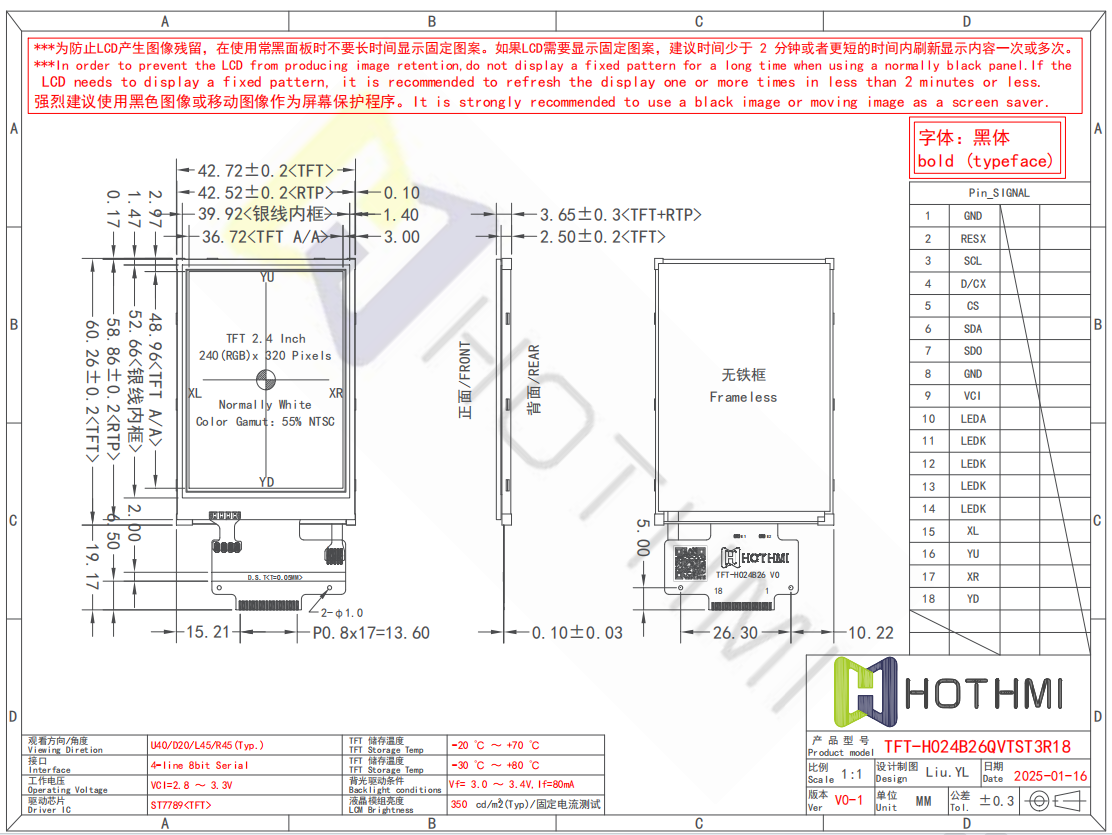

Datasheet for Touch Panel,Controller

Name	Date	Size
TFT-H024B26QVTST3R18	January 01, 1970	1,001.15KB

ITEM	PARAMETER DESCRIPTION	UNIT
TFT series	TFT-H024B26QVTST3R18
Diagonal size	2.4”	Inch
Resolution	240x320	Dot
Dimensions	42.72x60.26x3.65	mm
Active area (AA)	36.72x48.96	mm
LCD type	TFT LCD Display	mm
Display viewing angle	Full View
Aspect ratio	2:3
Backlight type	LED white
TFT driver IC	ST7789V
Brightness	1700	cd/m2
Operating temperature	-20~70℃	℃
Storage temperature	-30~80℃	℃
