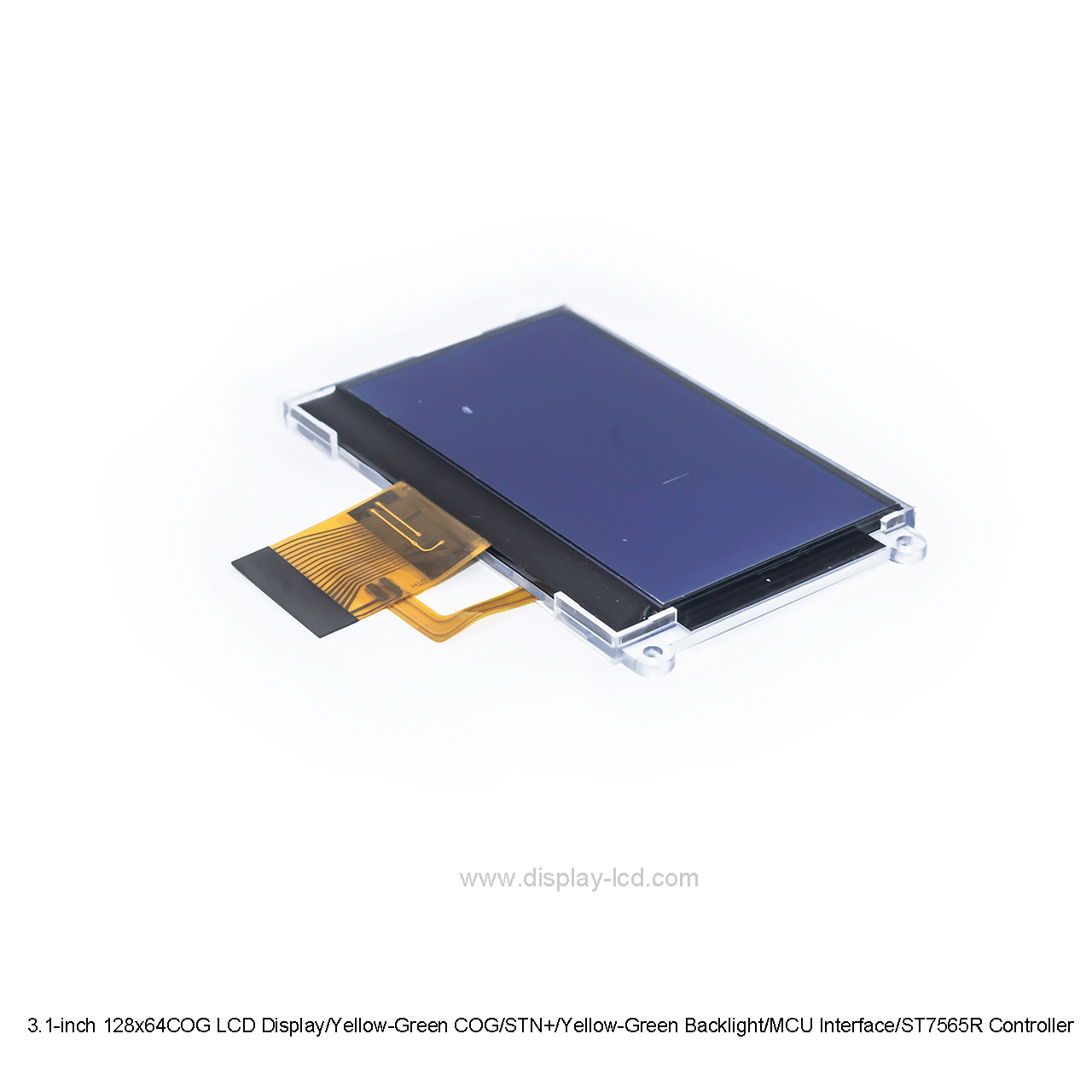

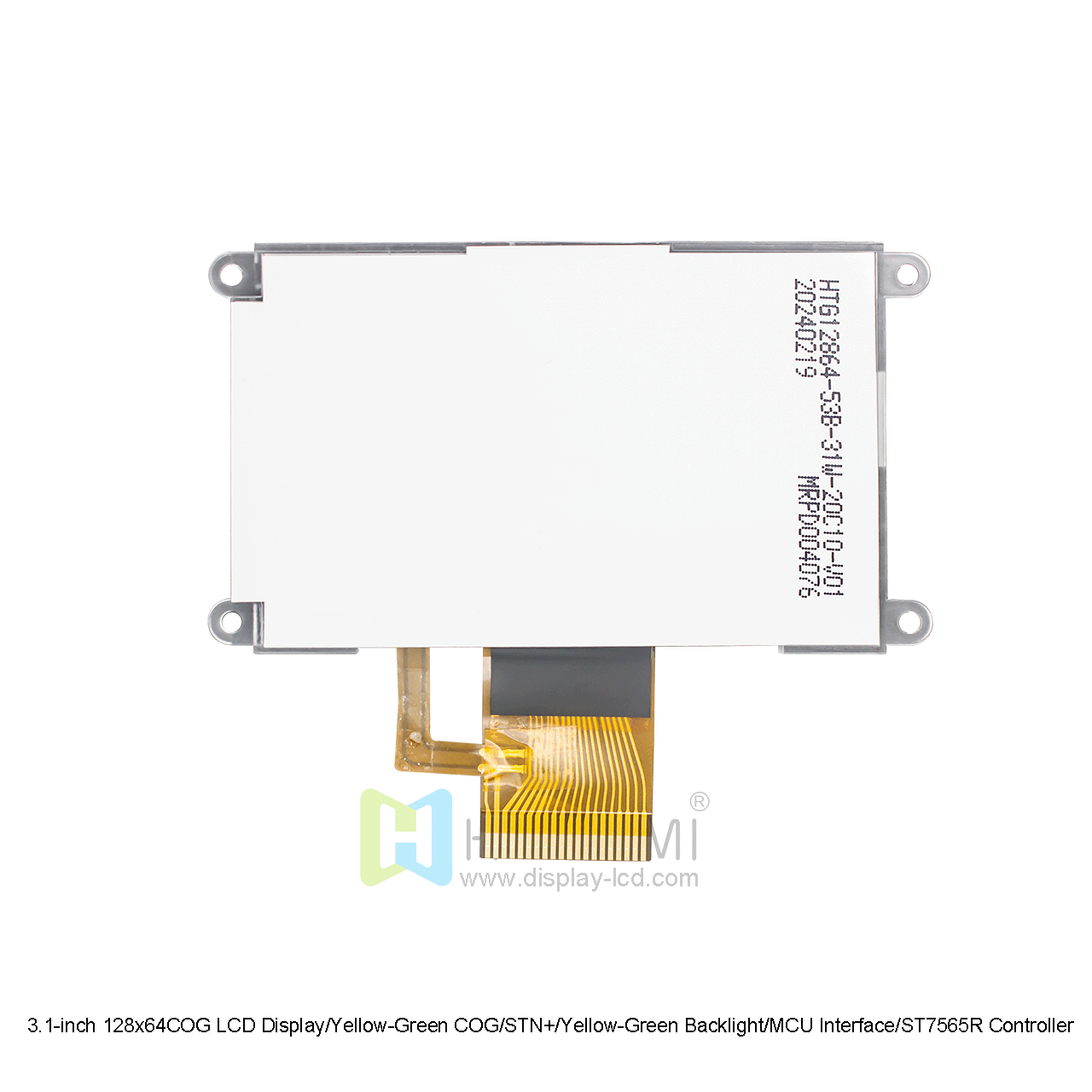

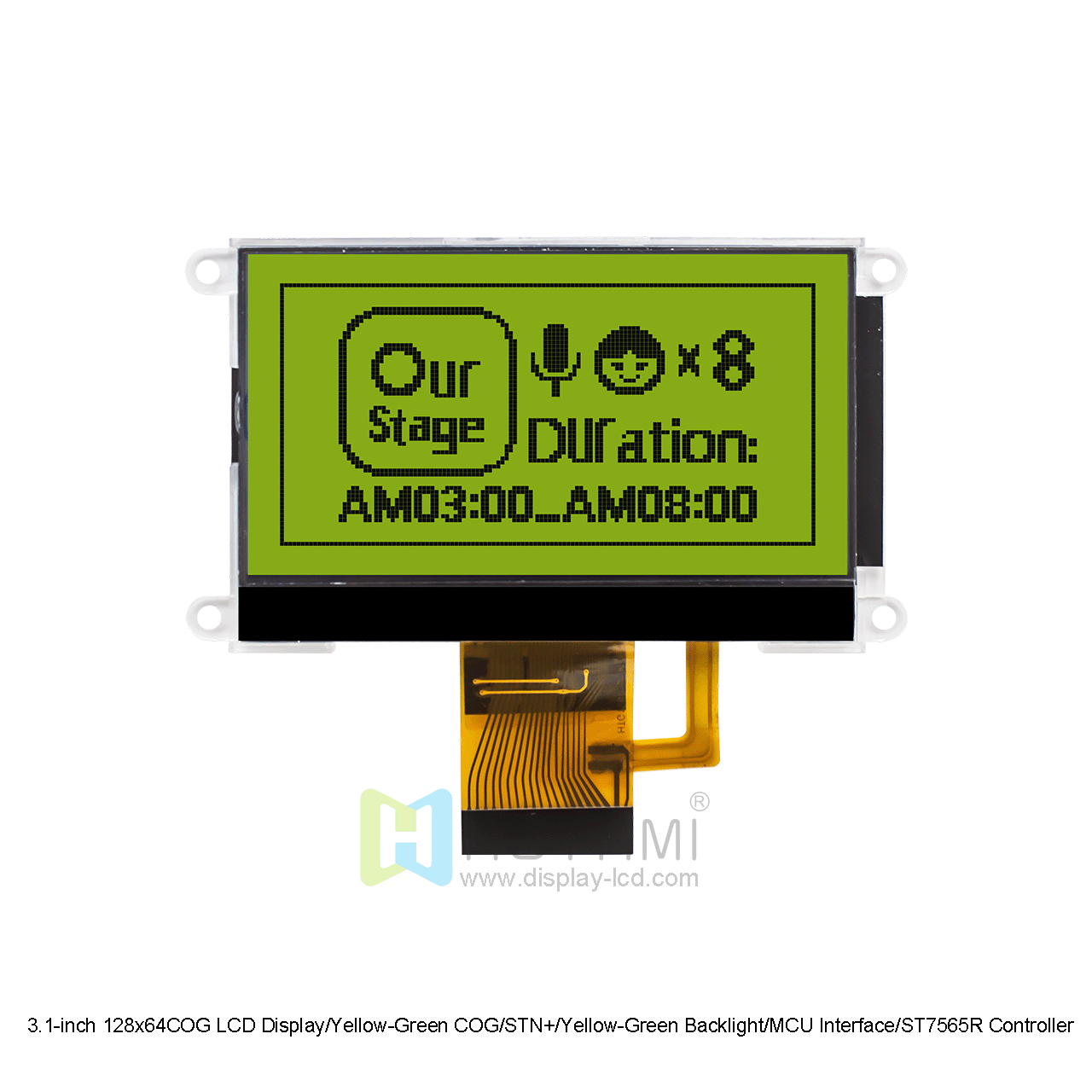

3.1 inch 128x64COG LCD Display/Yellow-Green COG/STN+/Yellow-Green Backlight/MCU Interface/ST7565R Controller
The Hot Display 128x64 Graphic Chip-on-Glass (COG) LCD Display Module displays dark grey pixels on a yellow-green background. This transflective LCD display is engineered to provide optimal visibility in a variety of lighting conditions in many different environments. In bright sunlight, the display uses its reflective layer to reflect ambient light back to the viewer, making the screen easy to read. In darker environments, the LCD has a strong built-in backlight that provides high contrast and displays crisp graphics to the viewer. This advanced display technology ensures that the display is always easy to read, regardless of lighting conditions.
This Graphic LCD Display Module is fully compatible with Arduino and can be seamlessly connected with other electronic systems for a wide range of applications. This model is designed to withstand harsh operating conditions and operates abnormally when used in temperatures ranging from -20 to 70 degrees Celsius. The LCD has an optimal viewing angle of 6:00, it operates at a 3V power supply voltage and is RoHS compliant.
