2X8 Character LCD | STN+ Gray Display with White Side Backlight 5.0V

2X8 Character LCD | STN+ Gray Display with White Side Backlight 5.0V

▶ Model: HTM-0802B-11W-A5P

▶ Product type: Standard COB character LCD module
▶ Display content: 8x2 characters
▶ Overall dimensions (mm): 58.0x32.0x10.3
▶ VA size (mm): 38.0x16.0
▶ AA size (mm): 27.81x11.5
▶ Point spacing mm: 0.6x0.7
▶ Product application: Instrumentation
▶ Viewing angle: 6H
▶ Backlight type or brightness: white
▶ Connection method PIN number: 16PIN
▶ Interface mode: MCU/8bit
▶ Special instructions: Anti-static ESD 8KV
▶ Working temperature: -20~70℃
▶ Power supply voltage: 5.0v
▶ Driver chip: ST7066U

Product Consultation Datasheets Download Demo Code
- Transportation
- Payment
- Taxes
- Ensure
- Return
- Discontinued
Transportation

Our company cooperates with SF Express for domestic express delivery, and DHL for overseas express delivery. You can contact us to inquire about freight and weight to get the latest quotation.

Payment

Online payment is not supported. Transfers can be made through corporate accounts. If a VAT invoice is issued, please contact our sales staff to obtain a corporate account.

Taxes

All products sold on this website do not include tax. If you need a VAT invoice, please contact our sales staff to purchase offline.

Ensure

All products sold on this website have a one-year warranty. If the product is damaged due to improper use by the customer, it will be repaired free of charge. Material cost will be charged.

Return

Products within the warranty period can be returned for repair or replacement. Before returning, please contact our sales staff to confirm the reason for return.

Discontinued

We are committed to long-term production of all products sold on this website. If the IC or panel is discontinued, we will try our best to replace it with compatible materials.

Prev Back Next

Related Accessories

Arduino adapter board/suitable for Arduino development board COB/character/graphic dot matrix
Single Row Pin Header Connector
COB 20-pin cable base/character/graphic dot matrix

Product Description
Specification
Attributes

HTM-0802B-11W-A5P | 8X2 character display | Transmissive LCD display | Side white backlight | STN (-) gray LCD display Arduino display

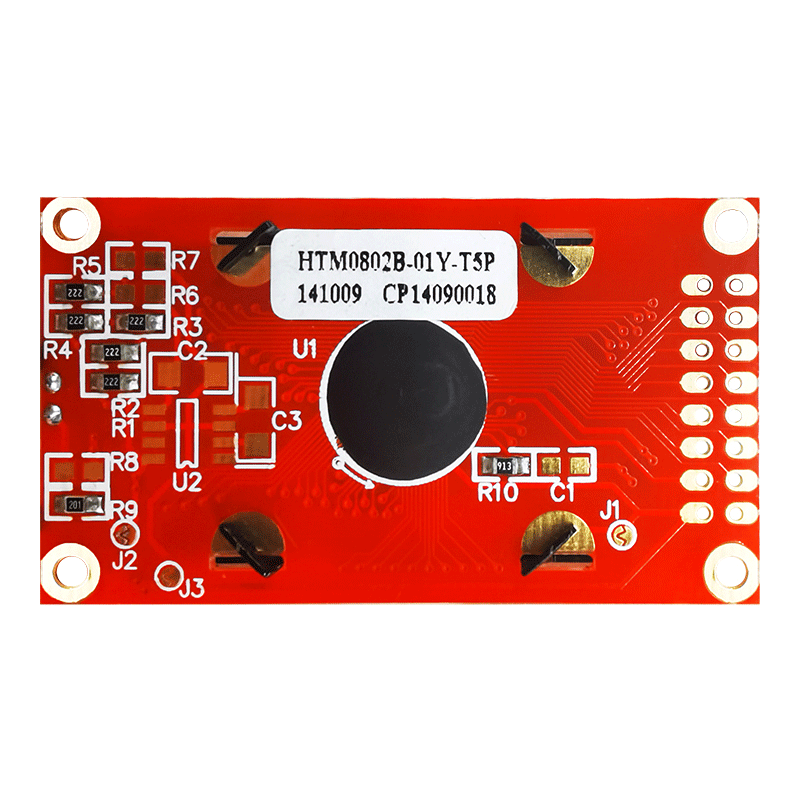

HOTDISPLAY HTM-0802B-11W-A5P is an 8-character, 2-line character LCD that displays blue characters on a gray background. This transmissive single-line display operates from a 5.0V supply voltage. Compact design, blue LCD display, provides you with the best viewing experience with optimal 6:00 viewing direction. It operates over a wide temperature range, from as low as -20°C to as high as 70°C. It features a unique side white backlight that enhances visibility and readability in low-light environments. The LCD display has a built-in ST7066U controller, ensuring high compatibility with a variety of interfaces and development boards including Arduino.

Connector Customization:

Easily modify any connectors on your display to meet your application’s requirements. Our engineers are able to perform soldering for pin headers, boxed headers, right angle headers, and any other connectors your display may require.

PCB Modifications:

Choose from a variety of changes to the PCB's shape, size, pinout, and component layout to make it perfect for your application.

Backlight color customization:

The module backlight has a variety of combinations to choose from, without backlight or with yellow-green/blue/white/amber/red/RGB backlight options. There are 48 effects. You can click on the customization page for reference.

Font library customization:

Provides a variety of font libraries, including English/Japanese, Western Europe, Eastern Europe, Scandinavian Europe, Cyrillic (Russian), Hebrew/Arabic, etc.

Cable Customization:

Adjust the length, position, and pinout of your cables or add additional connectors. Get a cable solution that’s precisely designed to make your connections streamlined and secure.

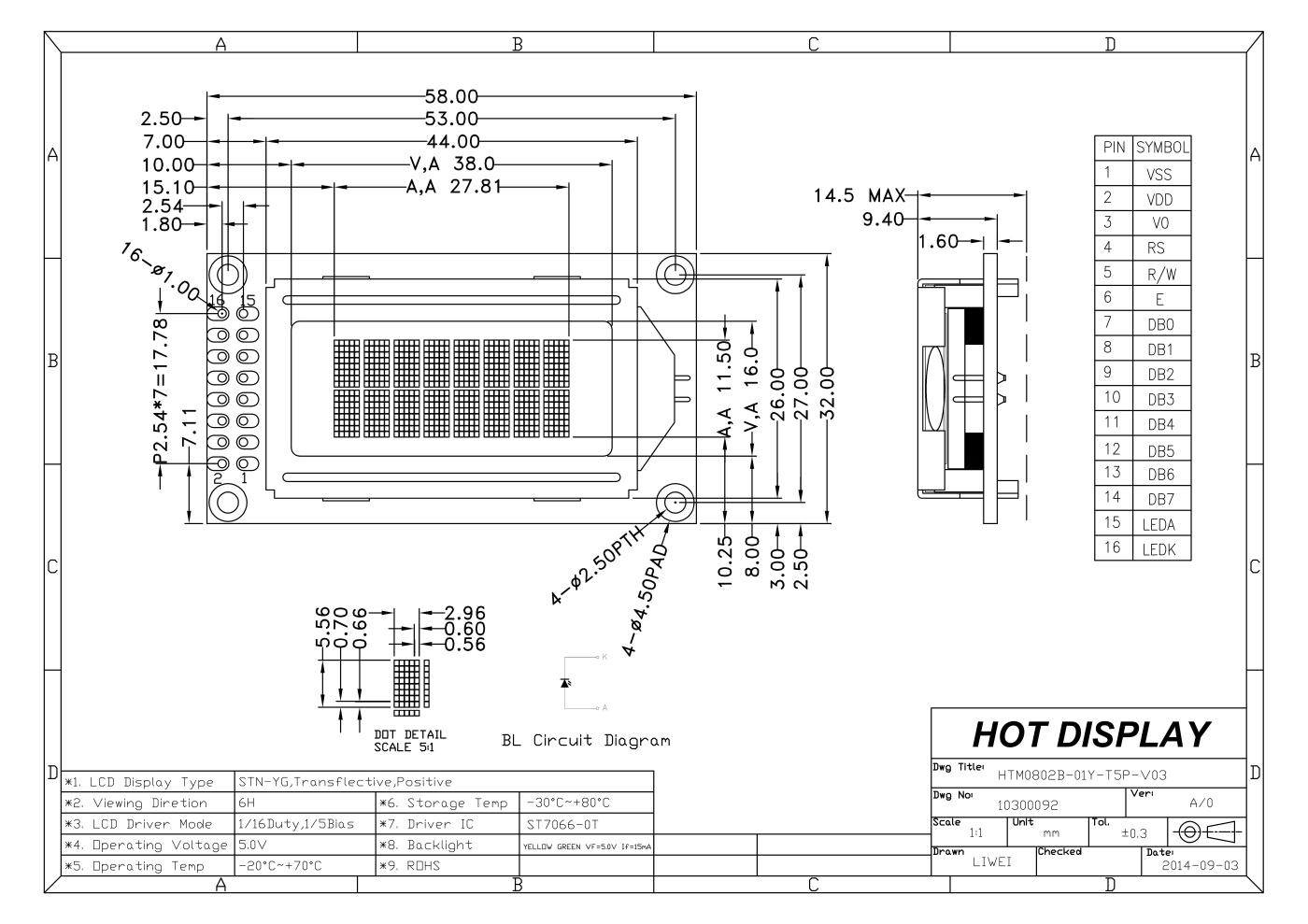

Item	Parameter Description	Unit
name	HTM-0802B-11W-A5P
Number of dots	8word × 2line	dots
Module size	58.0 × 32.0 × 13.2 (MAX)	mm
Visual (VA) area	38.0（W） × 16.0（H）	mm
Valid (AA) area	27.81（W） × 11.5（H）	mm
Point (pixel) spacing	0.60 × 0.70mm	mm
IC	ST7066U driver chip
voltage	5.0V	V
back light	White backlight
display mode	STN postive gray
Drive mode (Duty)	1/16 duty cycle
type	Character LCD
characteristic	Transflective polarizer
