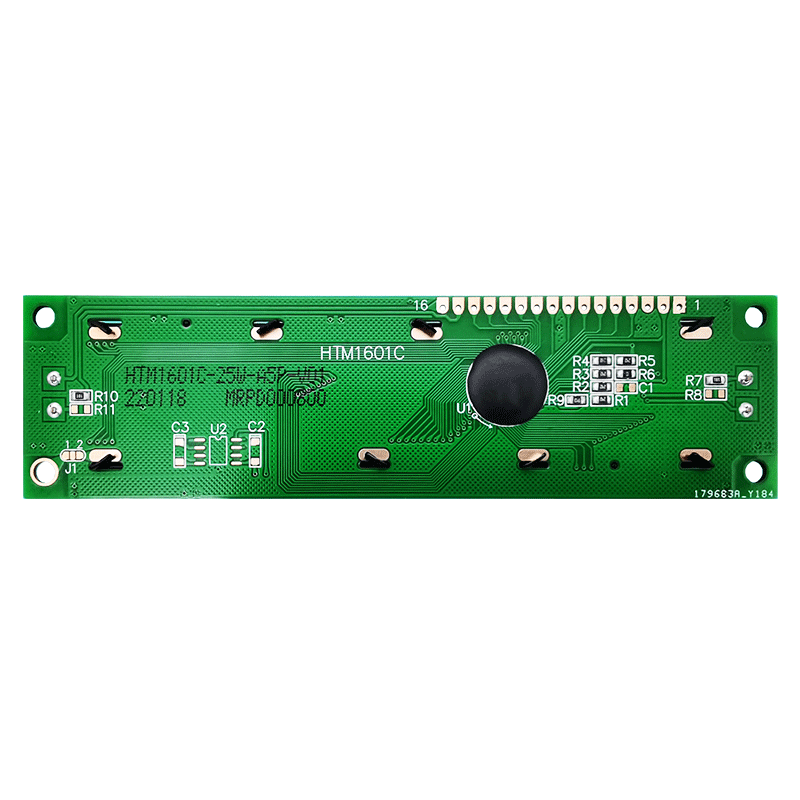

HTM1601C-25W-A5P is a high-quality 16-character single-line LCD with the following features:
Display Characteristics: When powered on, this LCD will display characters with black pixels on a very bright yellow/green background, providing a clear and prominent display.
Controller/Driver: This model employs the ST7066U controller/driver, ensuring efficient display control and stability.
Operating Voltage: The operating voltage for HTM1601C-25w-A5P is 5V, in compliance with RoHS standards, ensuring adherence to health and environmental standards during usage.
Operating Temperature Range: The LCD has a wide operating temperature range, suitable for various environmental conditions ranging from -20 to 70 degrees Celsius.
Flexibility: This LCD screen can be viewed under ambient light or backlight, offering flexibility in various lighting conditions.
Arduino Compatibility: HTM1601C-25w-A5P is Arduino/C8051-compatible, providing developers with broader application possibilities and creative potential.
Optimal Viewing Angle: The best viewing angle for this model is 6:00, ensuring a clear display from various viewing perspectives.
In summary, HTM1601C-25w-A5P stands out with its excellent display performance, reliable controller, and versatile applicability, making it a dependable choice for various environments and projects.
Connector Customization: Easily modify any connectors on your display to meet your application’s requirements. Our engineers are able to perform soldering for pin headers, boxed headers, right angle headers, and any other connectors your display may require. |
PCB Modifications: Choose from a variety of changes to the PCB's shape, size, pinout, and component layout to make it perfect for your application. |
Backlight color customization: The module backlight has a variety of combinations to choose from, without backlight or with yellow-green/blue/white/amber/red/RGB backlight options. There are 48 effects. You can click on the customization page for reference. |
Font library customization: Provides a variety of font libraries, including English/Japanese, Western Europe, Eastern Europe, Scandinavian Europe, Cyrillic (Russian), Hebrew/Arabic, etc. |
Cable Customization: Adjust the length, position, and pinout of your cables or add additional connectors. Get a cable solution that’s precisely designed to make your connections streamlined and secure. |
