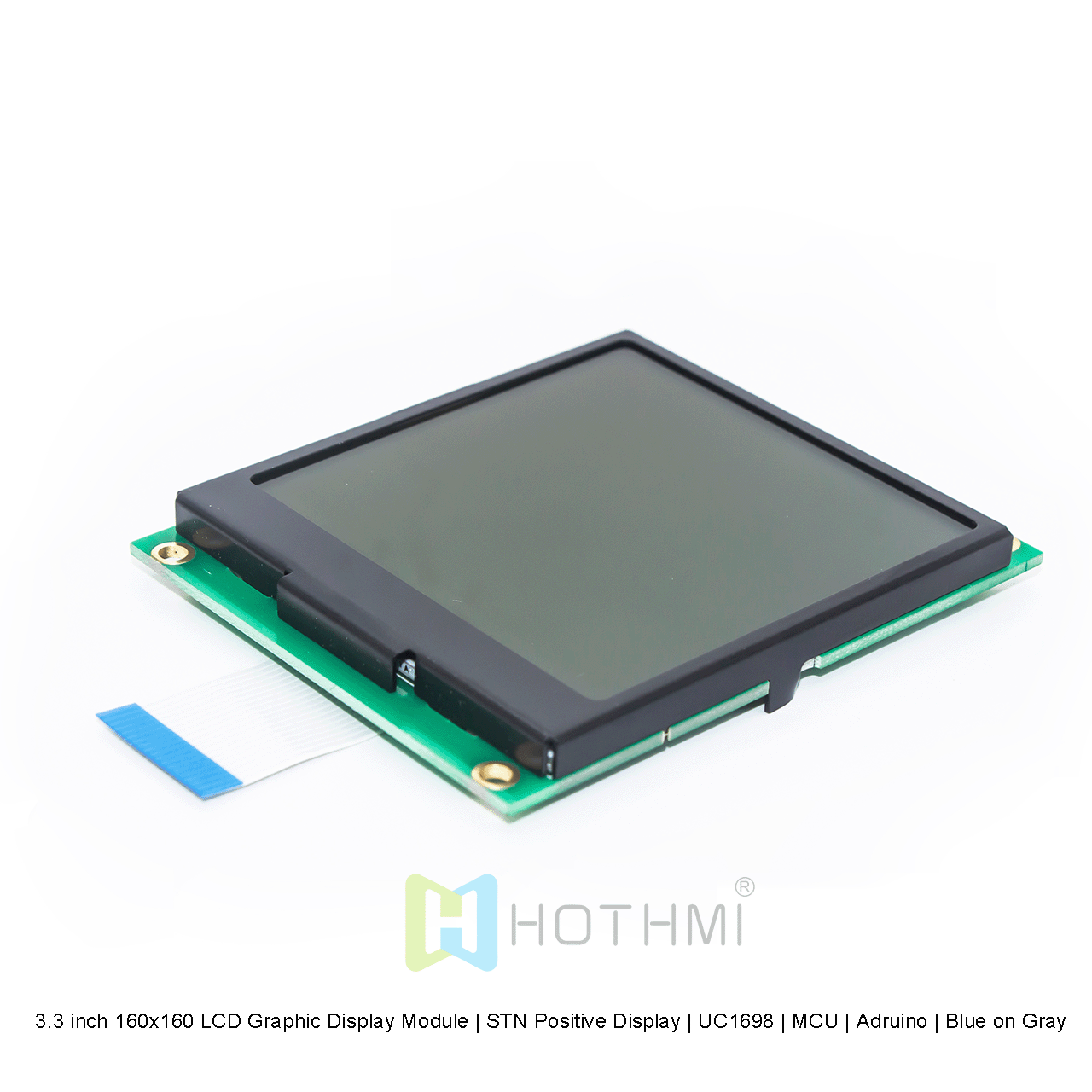

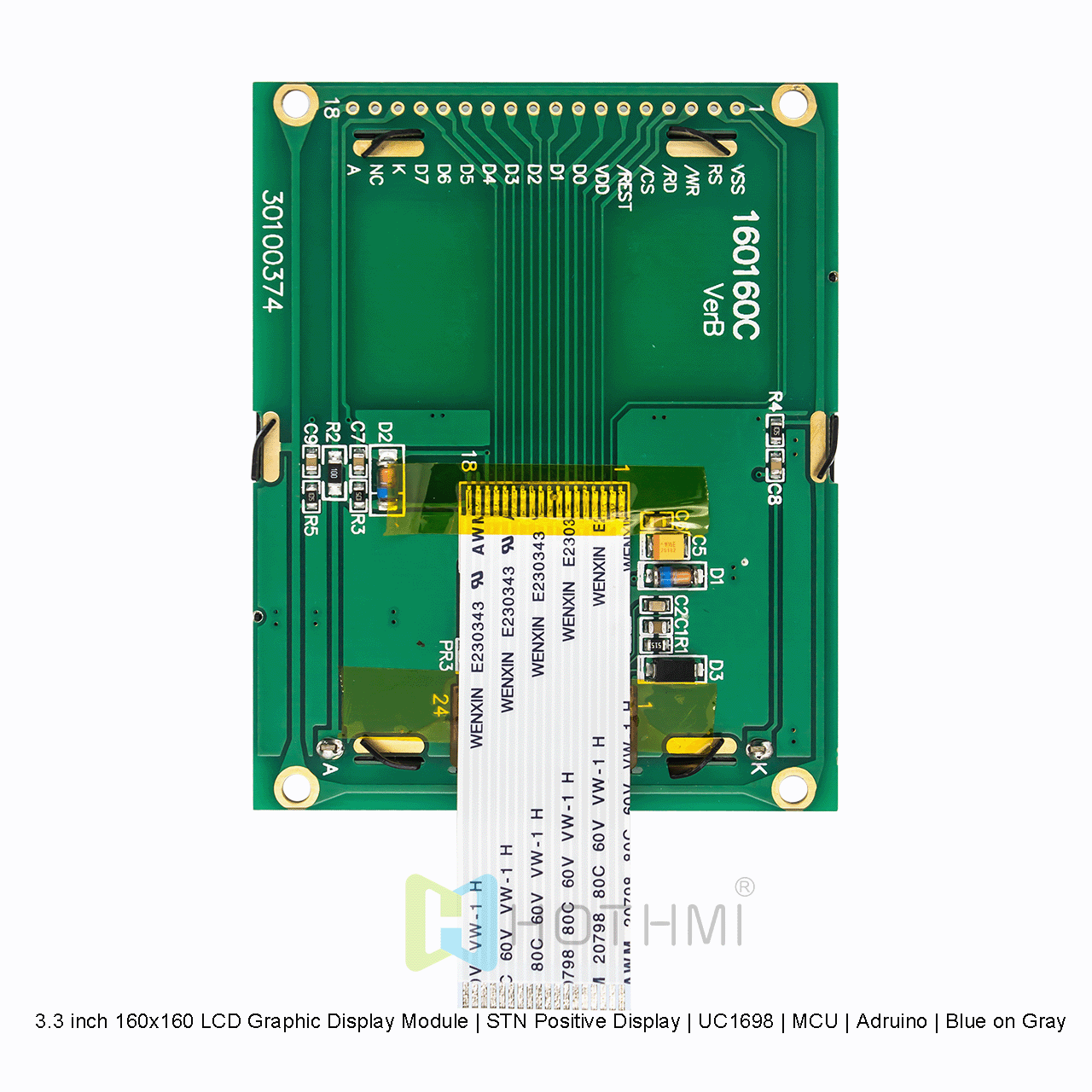

3.3 inch 160x160 LCD Graphic Display Module | STN Positive Display | UC1698 | MCU | Arduino

3.3 inch 160x160 LCD Graphic Display Module | STN Positive Display | UC1698 | MCU | Arduino | Blue on Gray

▶ Model: HTM160160C-11Y-A5P

▶ Type: Standard COB LCD module
▶ Display pixels: 160x160
▶ Overall dimensions (mm): 82.4x66.0x9.5
▶ VA size (mm): 60.0x60.0
▶ AA size (mm): 54.38x54.38
▶ Point spacing (mm): 0.34x0.34
▶ Application: Electric meter
▶ Viewing angle: 6H
▶ Backlight/brightness: white light
▶ Pin: FFC-18PIN
▶ Interface mode: MCU
▶ Special instructions: MCU/8bit
▶ Working temperature: -20~70℃
▶ Supply voltage: 3.3V
▶ Driver chip: UC1698

Product Consultation Datasheets Download Demo Code
- Transportation
- Payment
- Taxes
- Ensure
- Return
- Discontinued
Transportation

Our company cooperates with SF Express for domestic express delivery, and DHL for overseas express delivery. You can contact us to inquire about freight and weight to get the latest quotation.

Payment

Online payment is not supported. Transfers can be made through corporate accounts. If a VAT invoice is issued, please contact our sales staff to obtain a corporate account.

Taxes

All products sold on this website do not include tax. If you need a VAT invoice, please contact our sales staff to purchase offline.

Ensure

All products sold on this website have a one-year warranty. If the product is damaged due to improper use by the customer, it will be repaired free of charge. Material cost will be charged.

Return

Products within the warranty period can be returned for repair or replacement. Before returning, please contact our sales staff to confirm the reason for return.

Discontinued

We are committed to long-term production of all products sold on this website. If the IC or panel is discontinued, we will try our best to replace it with compatible materials.

Prev Back Next

Related Accessories

Arduino adapter board/suitable for Arduino development board COB/character/graphic dot matrix
Single Row Pin Header Connector
COB 20-pin cable base/character/graphic dot matrix

Product Description

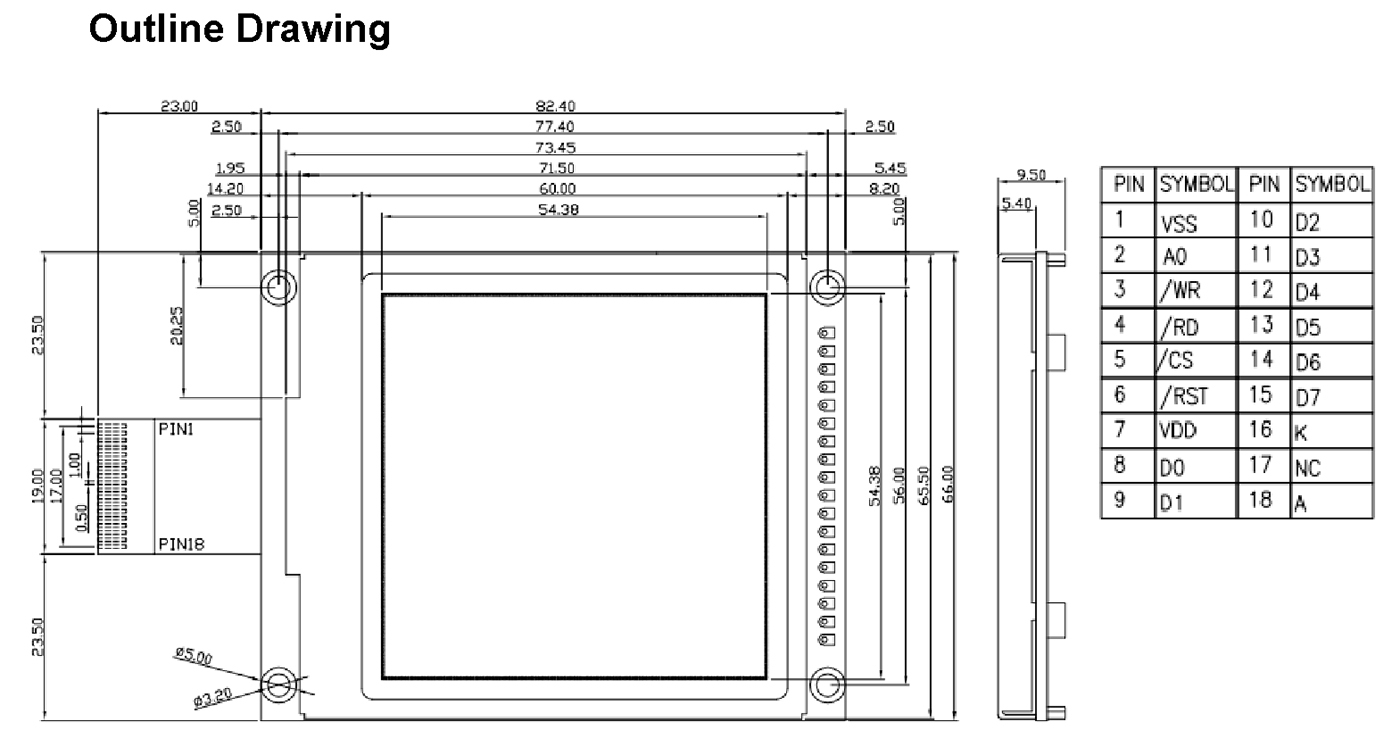

Specification
Attributes

3.3 inch 160x160 LCD Graphic Display Module | STN Positive Display | UC1698 | MCU | Arduino | Blue on Gray

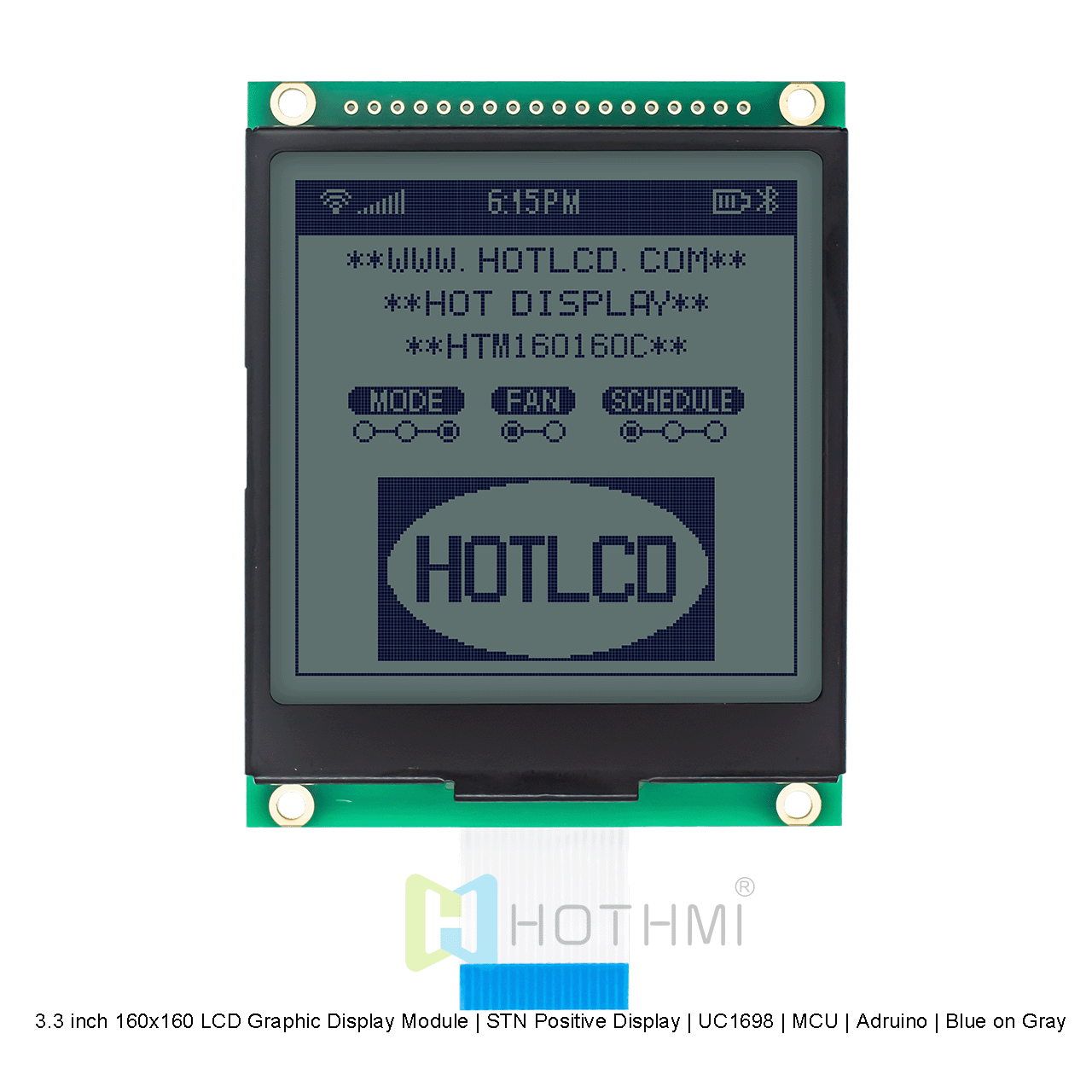

The 3.3 inch 160x160 LCD Graphic Display shows blue pixels on a gray background. This fully transparent LCD display is designed to reflect images to the viewer in bright environments through the reflectivity of the polarizer, and in darker environments, the LCD has a strong built-in backlight to provide high contrast and display clear graphics to the viewer. This advanced display technology ensures that the display is always easy to read regardless of lighting conditions.
