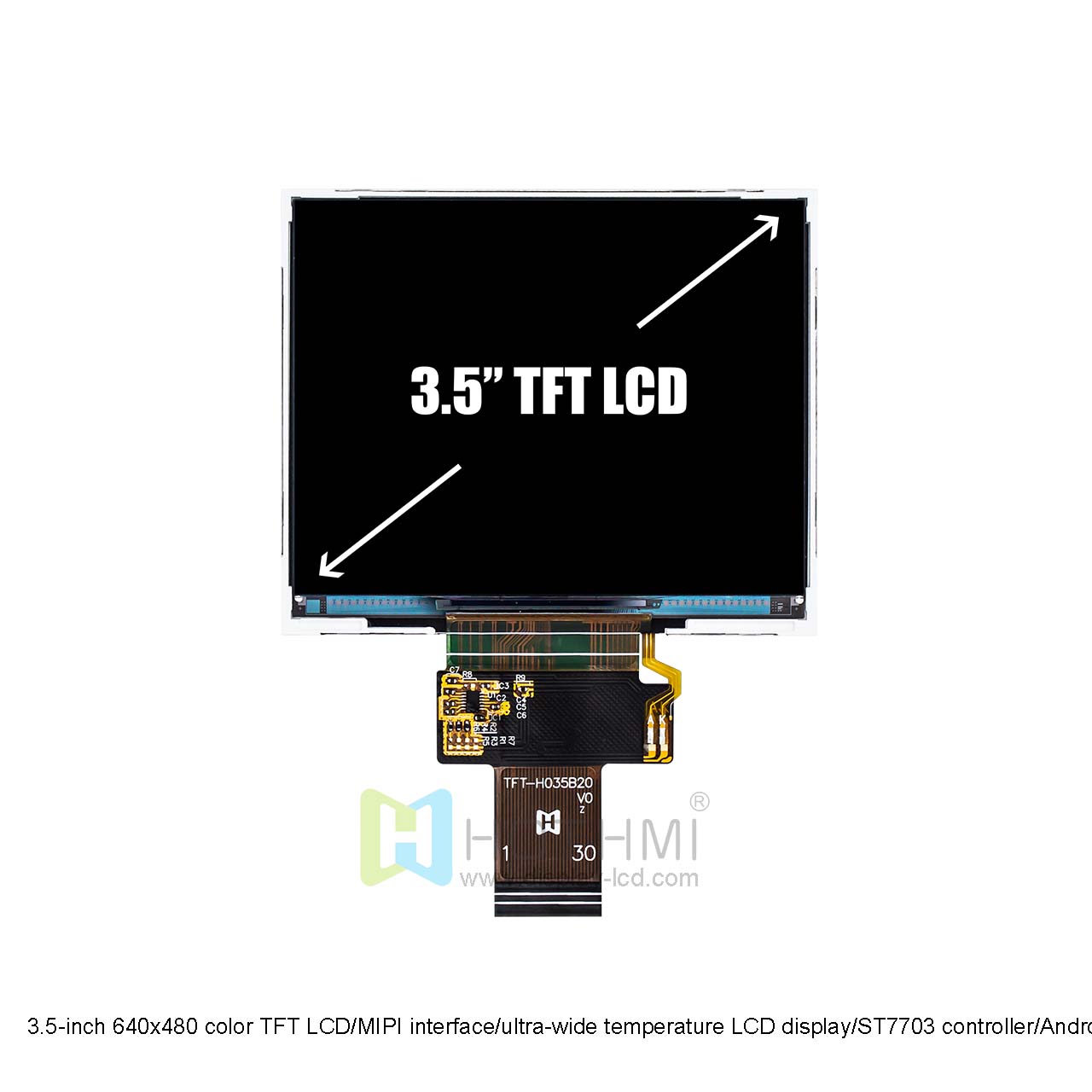

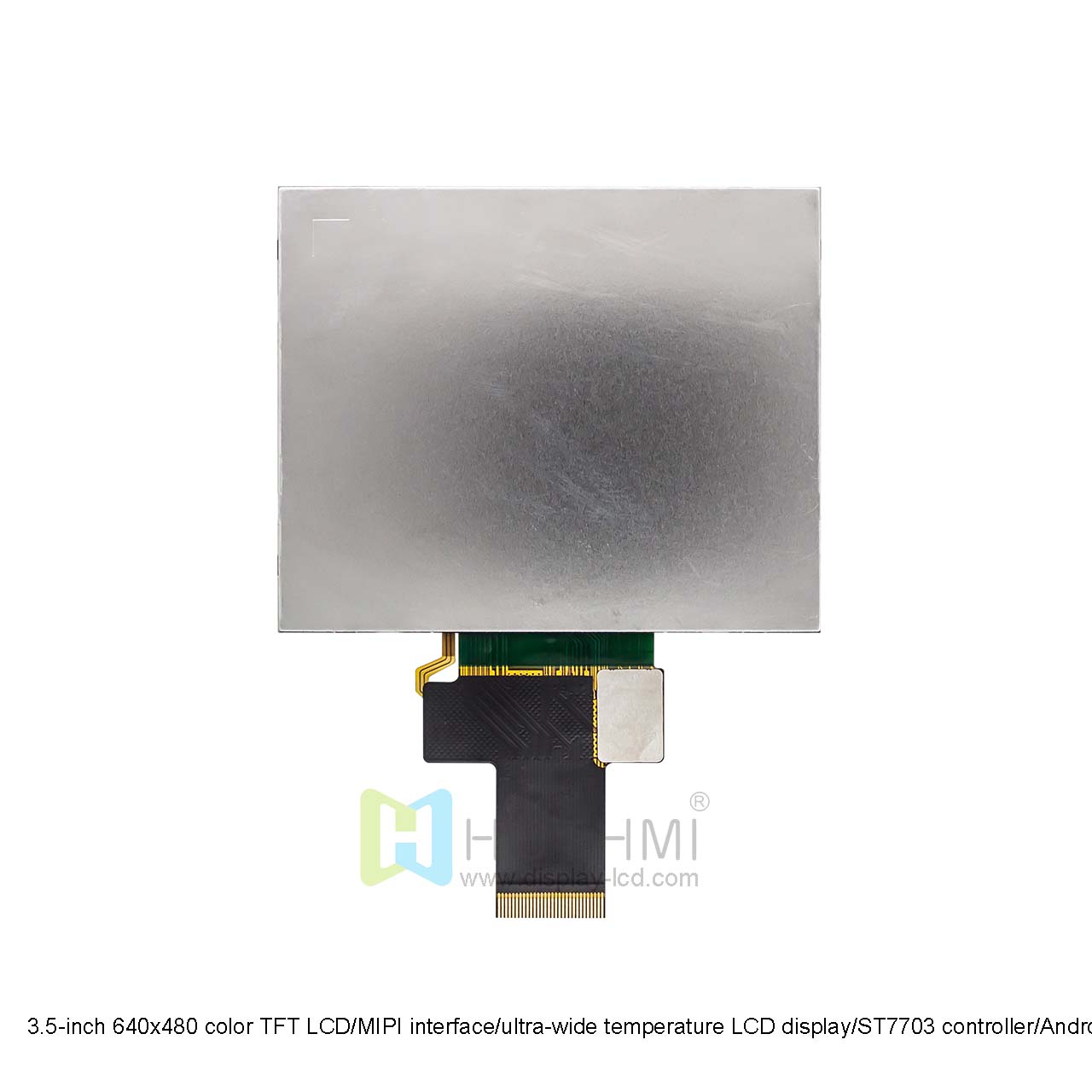

3.5 inch color TFT LCD | 640x480 MIPI interface LCD display
This 3.5 inch color TFT LCD has moderate brightness (450 nits), a resolution of 640x480, and a full-color IPS viewing angle, so you will have a good picture no matter which direction you look at it. It is ideal for a variety of applications. This display can be used in direct sunlight, indoor lighting or dark environments. It can be mounted above, at eye level or below eye level without color inversion.
This 3.5 inch color TFT LCD does not include a touch screen, but we can also provide a version with touch function. Although this transmissive LCD does not have a touch screen, its compact size, 3.3V low voltage power supply and impressive display quality make it an excellent choice for projects that require visual output without touch function. Popular industries include IoT, industrial automation, consumer electronics, test and measurement instruments, handheld devices, and they are perfect for DIY or prototyping projects due to their compatibility with Arduino. Our displays are all RoHS compliant and adhere to strict environmental and safety standards.
3.5 inch color TFT LCD Main features:
IPS (viewable in all directions)
Using ST7703 controller
Low voltage power supply
Configurable touch function
