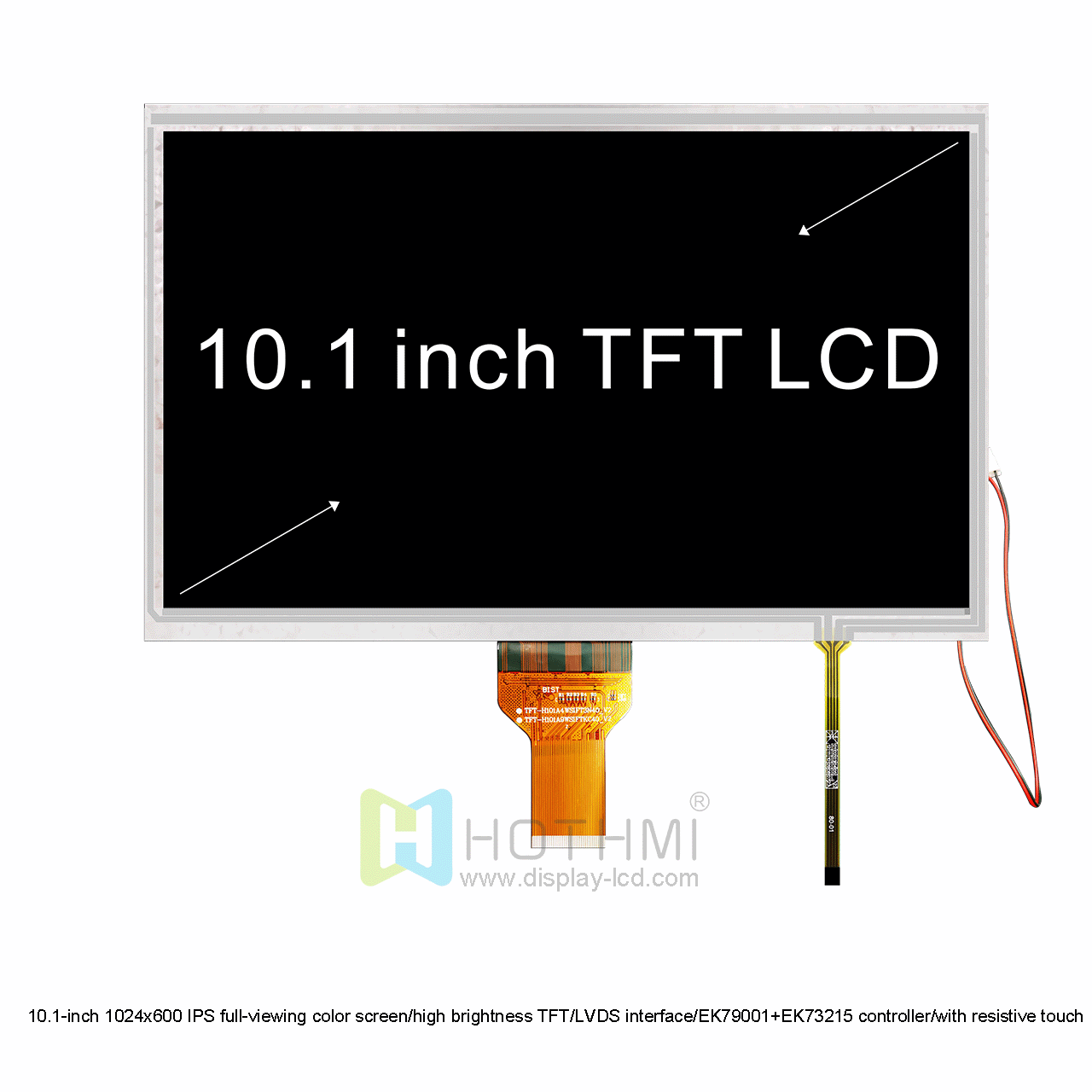

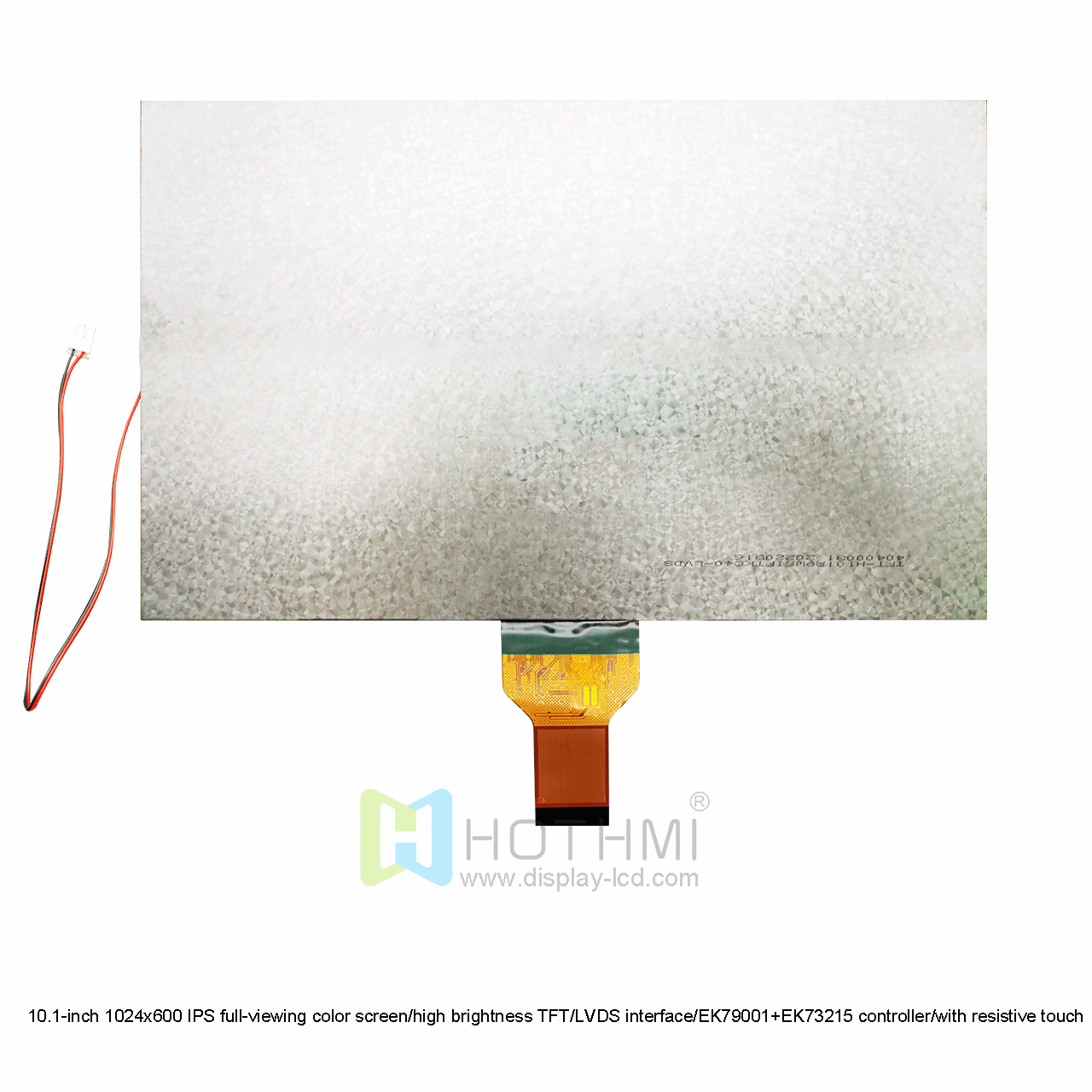

10.1-inch 1024x600 IPS full-viewing color screen/high brightness TFT/LVDS interface/EK79001+EK73215 controller/with resistive touch

10.1-inch 1024x600 IPS full-viewing color screen/high brightness TFT/LVDS interface/EK79001+EK73215 controller/with resistive touch

▶ Model: TFT-H101A9WSIFTKR40

▶ Type: TFT LCD display
▶ Display content: 1024X600
▶ Display inches: 10.1"
▶ Dimensions (mm): 235.00x143x6.9
▶ AA size (mm): 222.72x125.28
▶ Product application: technical equipment, office equipment, operating platform
▶ Viewing angle: IPS full viewing angle
▶ Backlight type or brightness: white backlight 1000cd/M2
▶ Connection method PIN number: FPC-40 pin
▶ Interface method: LVDS
▶ Special instructions: resistive touch screen
▶ Working temperature: -30~80℃
▶ Supply voltage: 3.3V
▶ Driver chip: EK79001+EK73215(TFT)

Product Consultation Datasheets Download Demo Code
- Transportation
- Payment
- Taxes
- Ensure
- Return
- Discontinued
Transportation

Our company cooperates with SF Express for domestic express delivery, and DHL for overseas express delivery. You can contact us to inquire about freight and weight to get the latest quotation.

Payment

Online payment is not supported. Transfers can be made through corporate accounts. If a VAT invoice is issued, please contact our sales staff to obtain a corporate account.

Taxes

All products sold on this website do not include tax. If you need a VAT invoice, please contact our sales staff to purchase offline.

Ensure

All products sold on this website have a one-year warranty. If the product is damaged due to improper use by the customer, it will be repaired free of charge. Material cost will be charged.

Return

Products within the warranty period can be returned for repair or replacement. Before returning, please contact our sales staff to confirm the reason for return.

Discontinued

We are committed to long-term production of all products sold on this website. If the IC or panel is discontinued, we will try our best to replace it with compatible materials.

Prev Back Next

Related Accessories

USB data cable T-port charging data cable/serial screen/adapter board
TFT to HI adapter board

Product Description
Specification
Attributes

10.1-inch 1024x600 IPS full-viewing color screen/high brightness TFT/LVDS interface/EK79001+EK73215 controller/with resistive touch
10.1-inch 1024x600 IPS full-viewing color screen/high brightness TFT/LVDS interface/EK79001+EK73215 controller, model TFT-H101A9WSIFTKR40 is a 10.1-inch IPS TFT display with a resolution of 1024x600 pixels. The display has a high contrast ratio of 800:1 with resistive touch. Capable of rendering deep blacks and vivid colors. It also has an extremely high brightness of 1000cd/m2, suitable for use in both indoor and outdoor environments. IPS technology allows for full viewing angles.
10.1 inch 1024x600 IPS full viewing angle color screen/high brightness TFT/LVDS interface/EK79001+EK73215 controller Equipped with optional resistive or capacitive touch screen function, allowing users to interact with the display through touch. The resistive touch screen option allows precise touch input with a stylus or finger, while the capacitive touch screen option allows multi-touch input with bare fingers.
It can be used in any embedded system, consumer electronics, automotive, GPS, industrial equipment, security and handheld devices that need to display high-quality color images. It supports RGB interface. FPC with zif connector is easy to assemble or disassemble.

ITEM	PARAMETER DESCRIPTION	UNIT
TFT series	TFT-H101A9WSIFTKR40
Diagonal size	10.1”	Inch
Resolution	1024x600	Dot
Dimensions	235.00X143X6.9	mm
Active area (AA)	222.72X125.28	mm
LCD type	TFT LCD Display	mm
Display viewing angle	Full View
Aspect ratio
Backlight type	LED white
TFT driver IC	EK79001+EK73215(TFT)
Brightness	1000	cd/m2
Operating temperature	-20~70℃	℃
Storage temperature	-30~80℃	℃
