1.8 inch 128x64 FSTN(+) Graphic LCD Display | White backlight FSTN (+) | LCD display with ST7567 controller

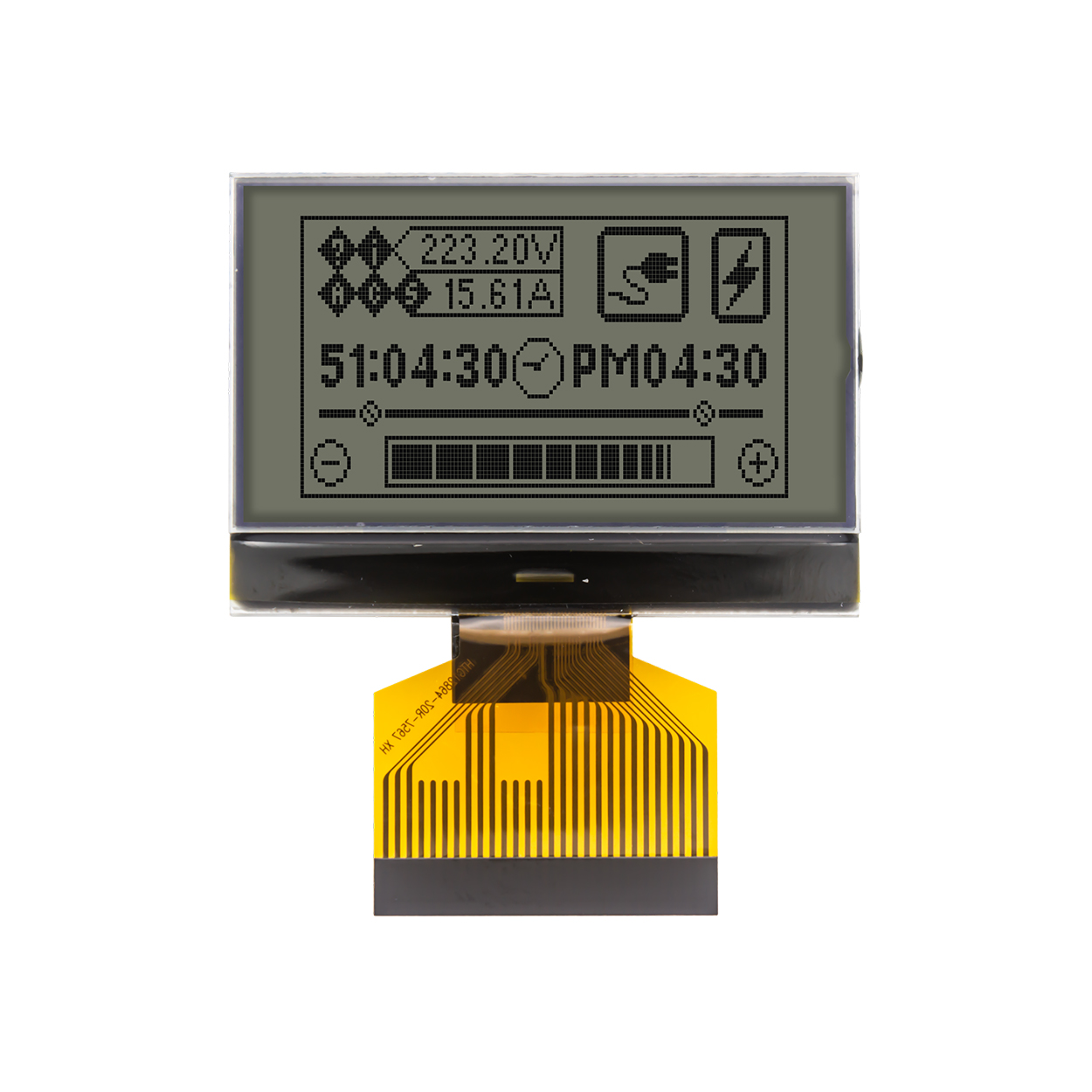

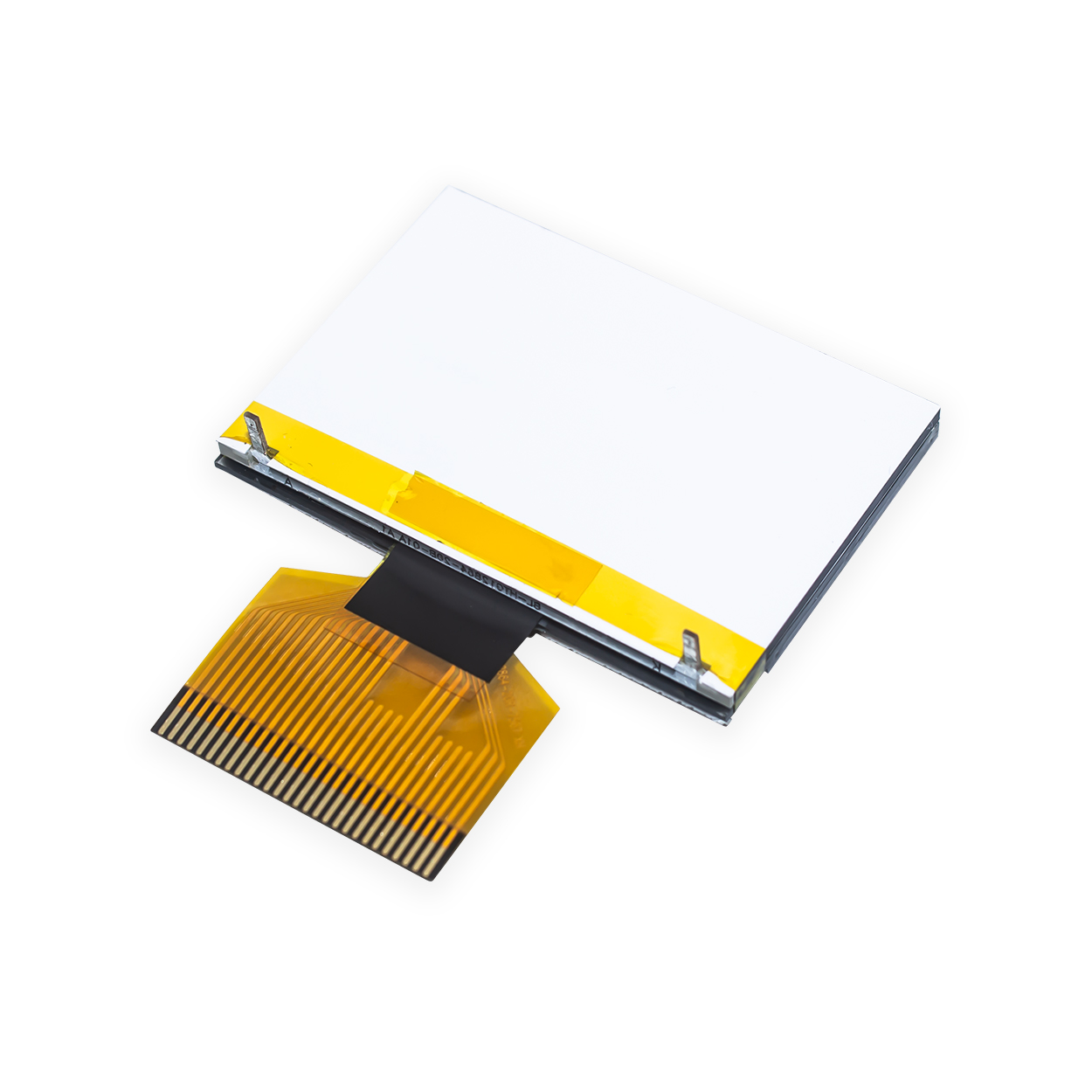

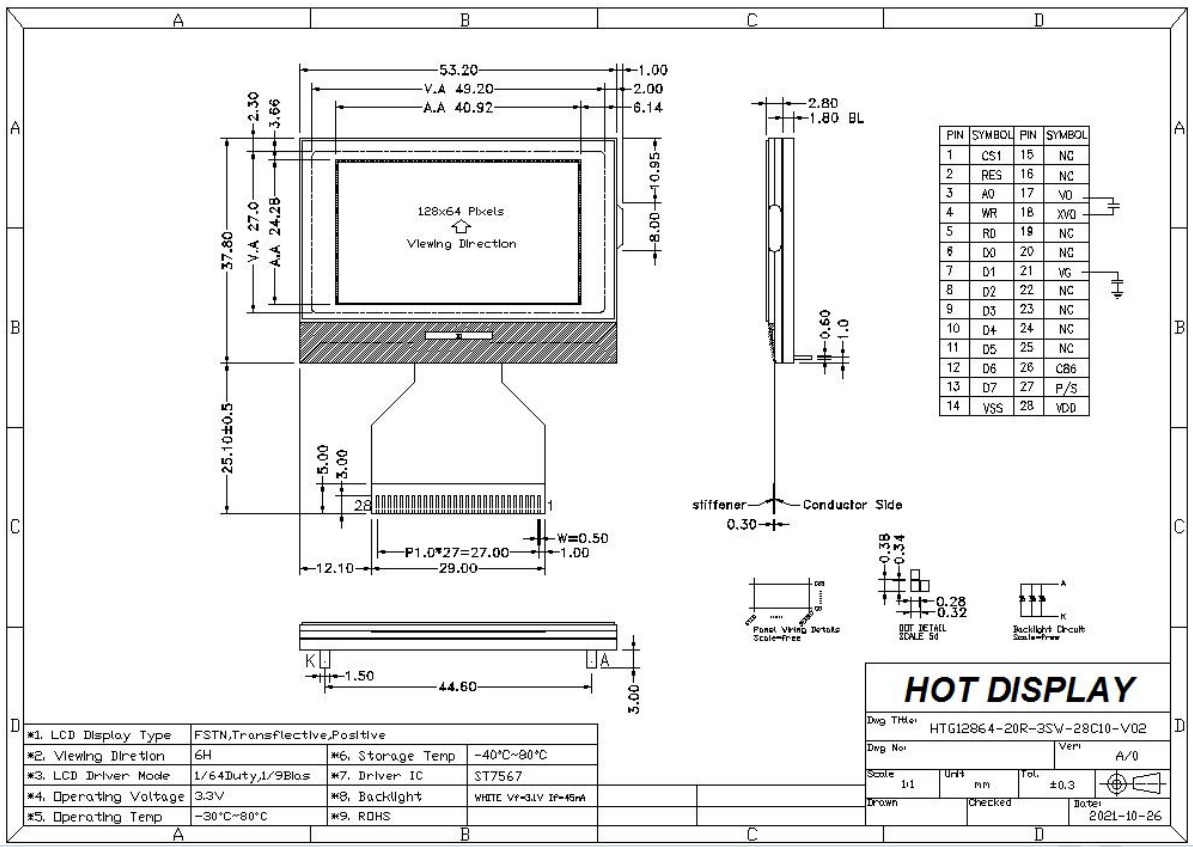

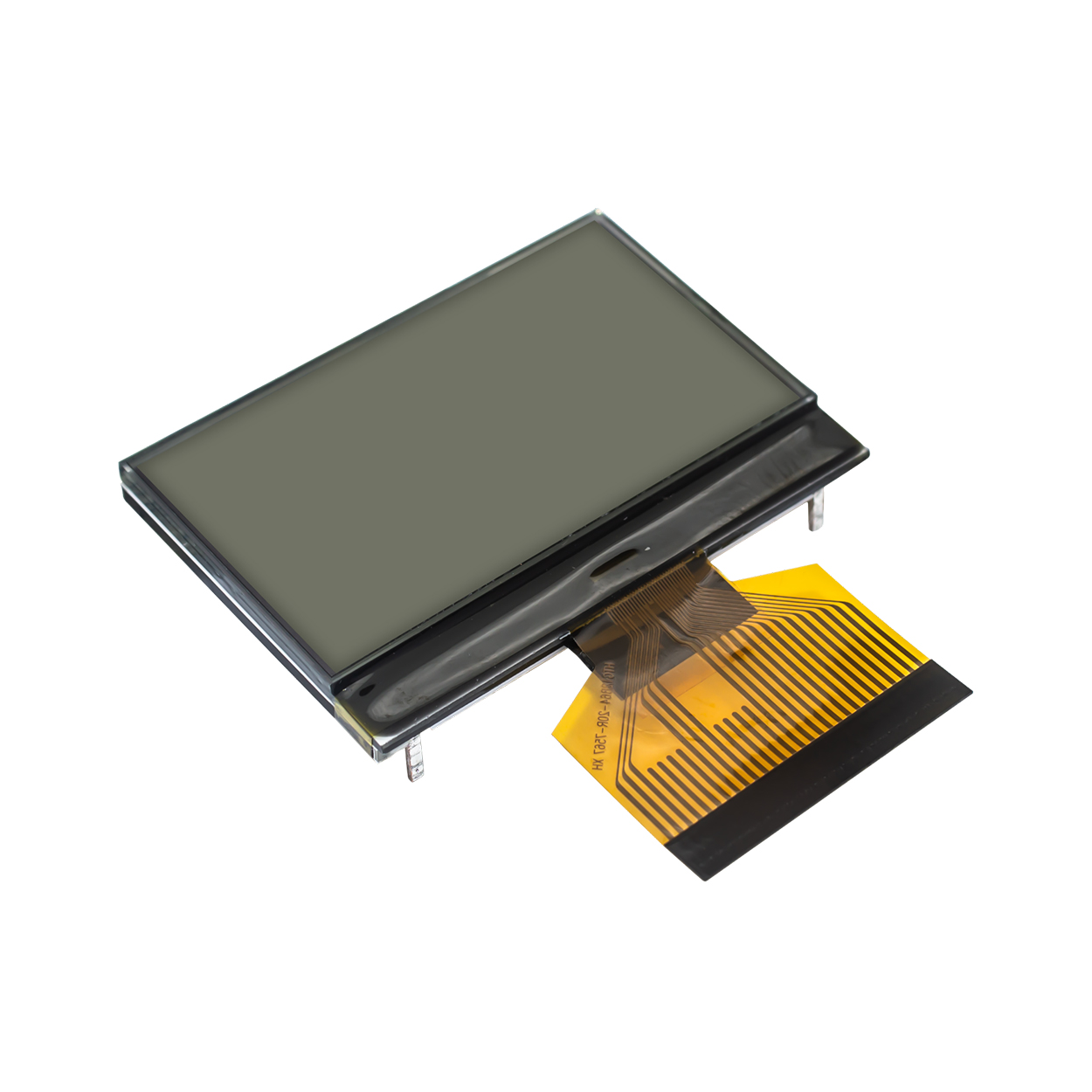

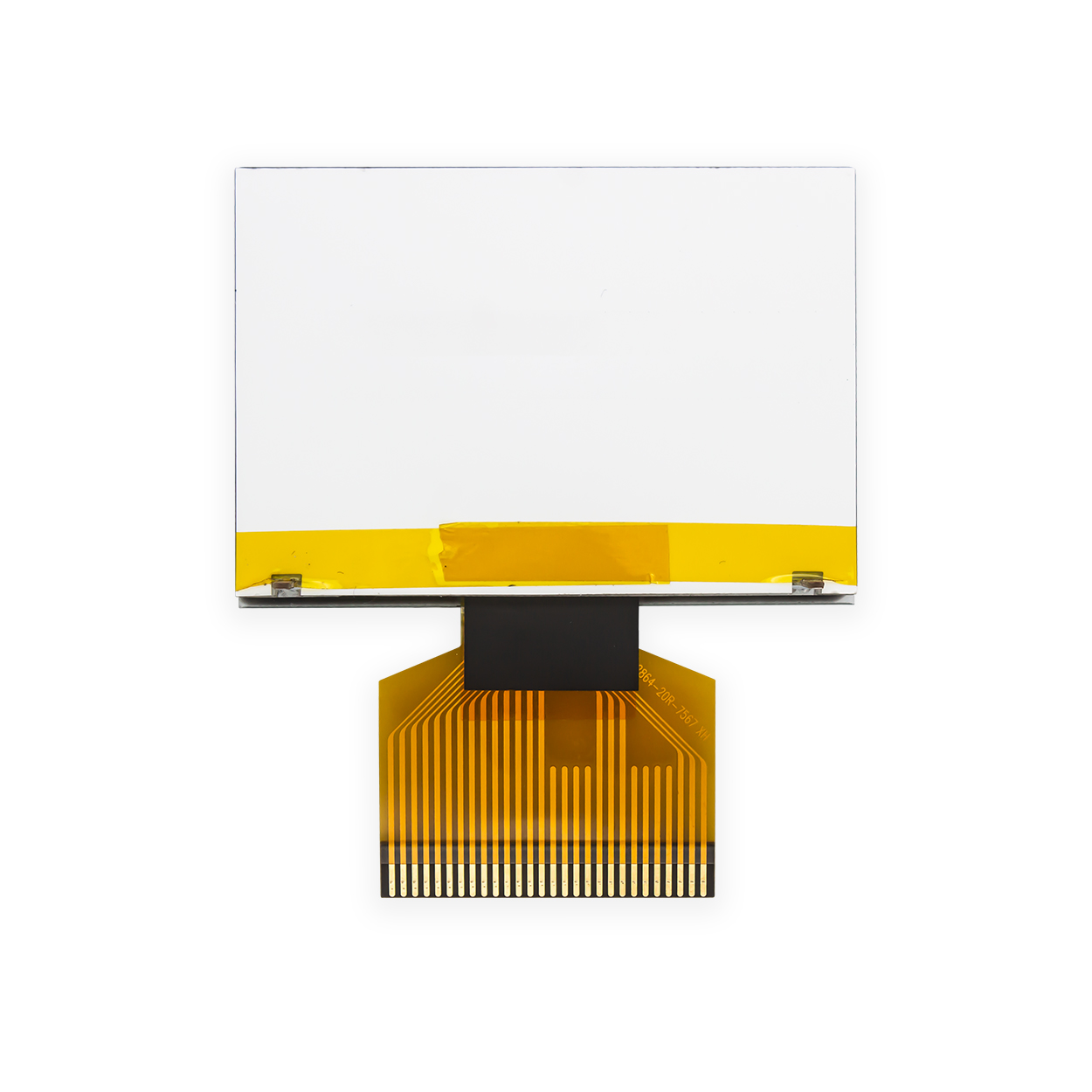

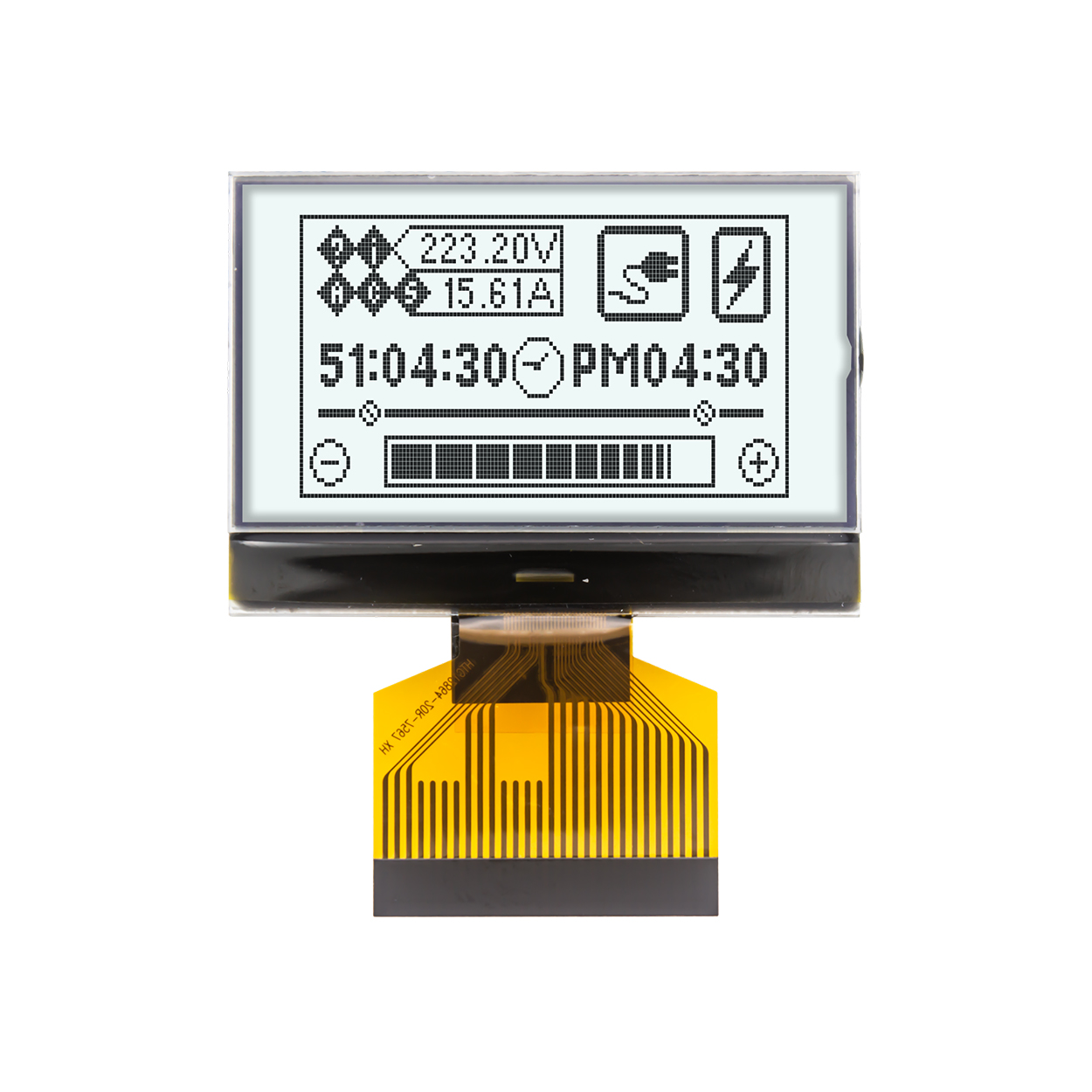

This 1.8-inch 128x64 Graphic COG LCD Display HTG12864-20R-01Y-28C10-V02 is a white background monochrome graphic dot matrix COG LCD (chip on glass) display module. The module uses the ST7567 controller and efficient interfaces, which can be easily connected to mainstream microcontrollers such as 8051, PIC, AVR, Arduino, ARM and Raspberry Pi for control. Its COG structure with FPC connection (optional convenient ZIF connector) is compact and easy for users to assemble, disassemble and integrate into the driver board quickly. The module has high contrast and a wide operating temperature range, and has a built-in white LED backlight to ensure stable operation in various environments.
The core advantage of this display is its semi-transmissive and semi-reflective optical design. In natural light environments, it can effectively use light reflection to clearly present content; when the light is insufficient, the light source can pass through the polarizer after turning on the backlight, which also ensures that users can clearly read the displayed information, thereby achieving excellent readability in all weather and any lighting conditions. This series belongs to the dot matrix COG product line, providing a variety of display effects, including gray background blue text, white background black text, black background white text, blue background white text and other color combinations, and can be used in STN (+), STN (-), FSTN (+) or DFSTN (-) display modes. Users can also choose 6:00 or 12:00 direction as the best viewing angle according to installation requirements to obtain the best visual experience.
This 1.8-inch 128x64 graphic COG LCD display HTG12864-20R-01Y-28C10-V02 and its series products are very suitable for embedded systems, industrial equipment, security monitoring, medical equipment and various handheld devices. In addition to the standard FPC connection solution, we can also provide customized connection methods such as metal PIN pins or zebra strips according to the specific needs of users to meet different integration requirements. All products strictly comply with RoHS environmental protection standards.
