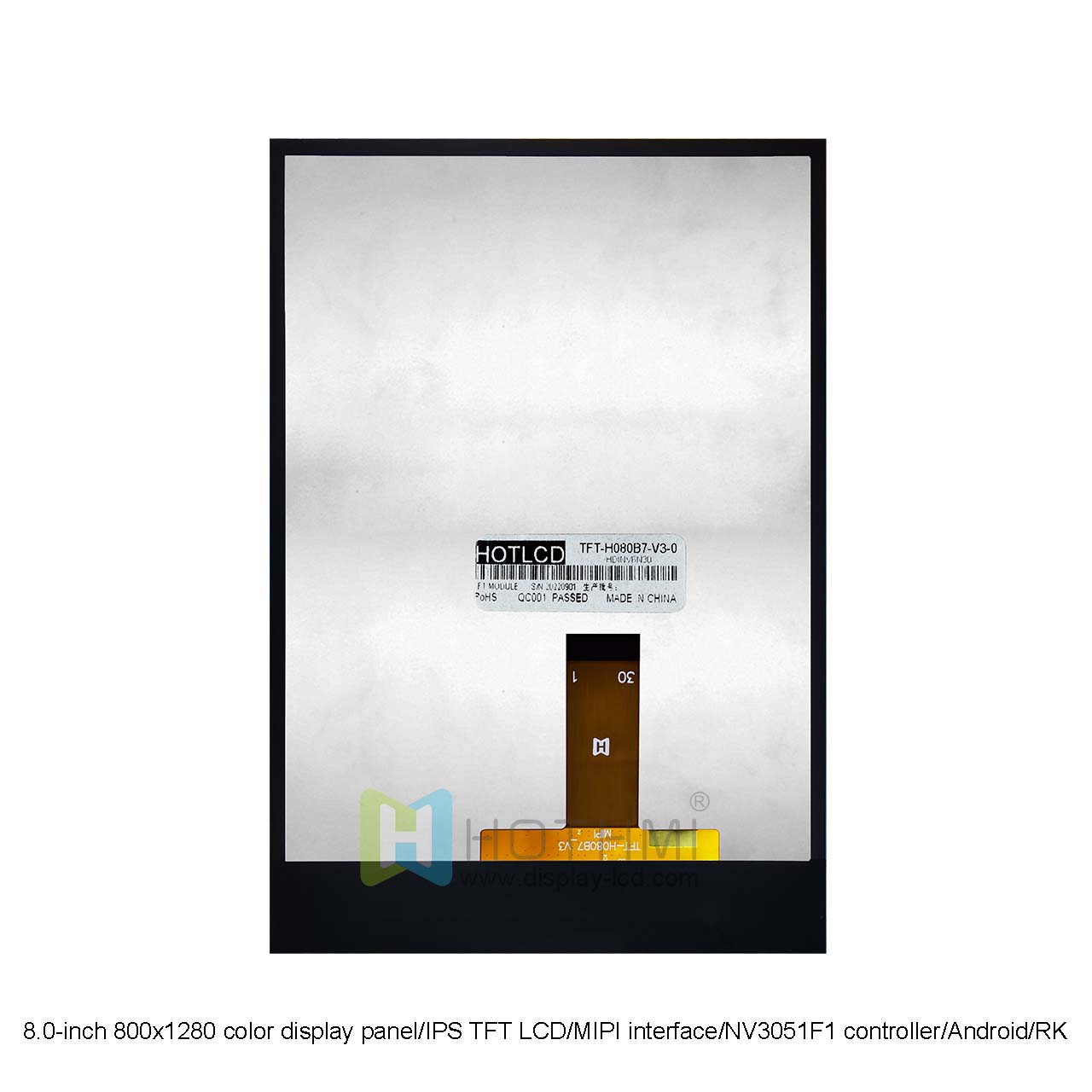

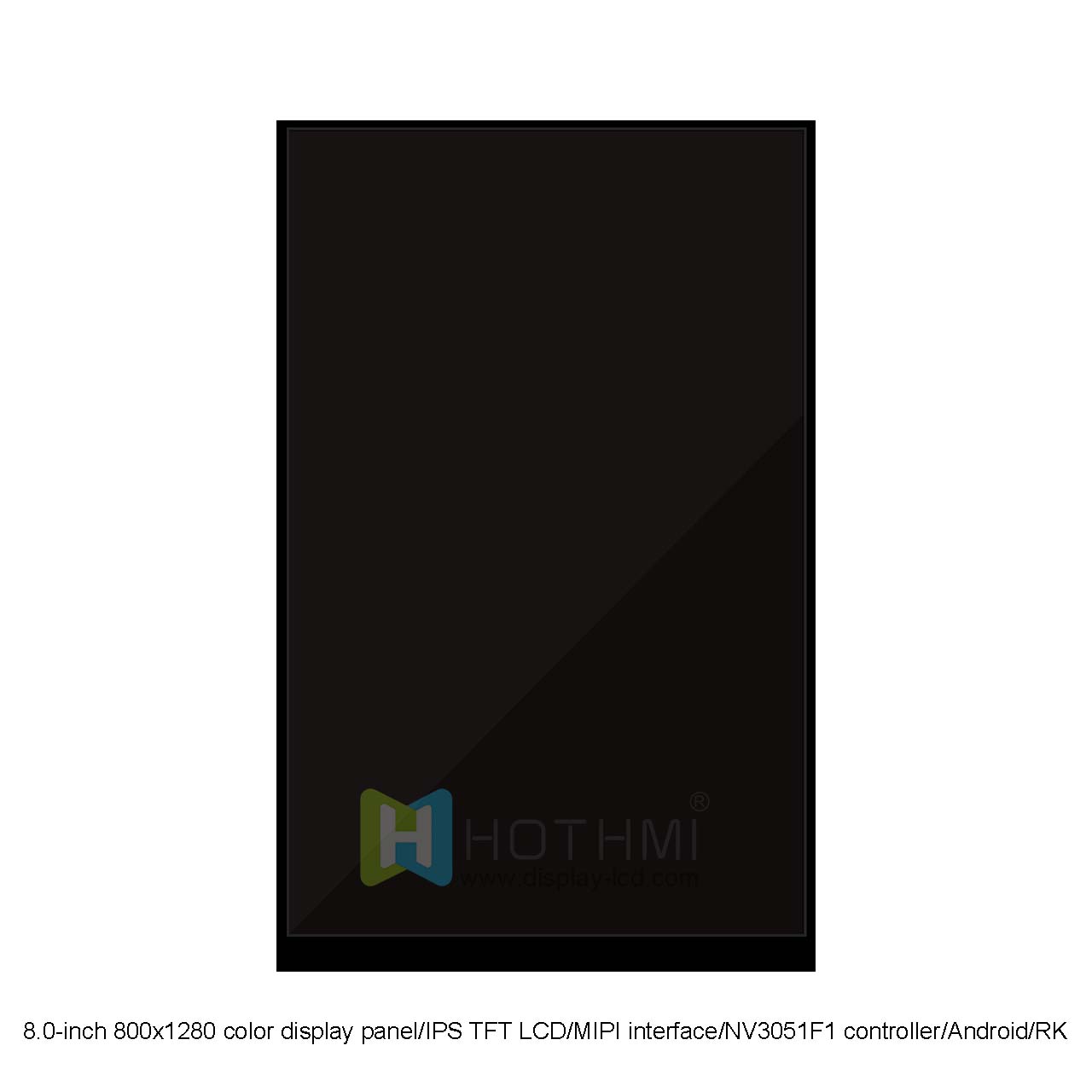

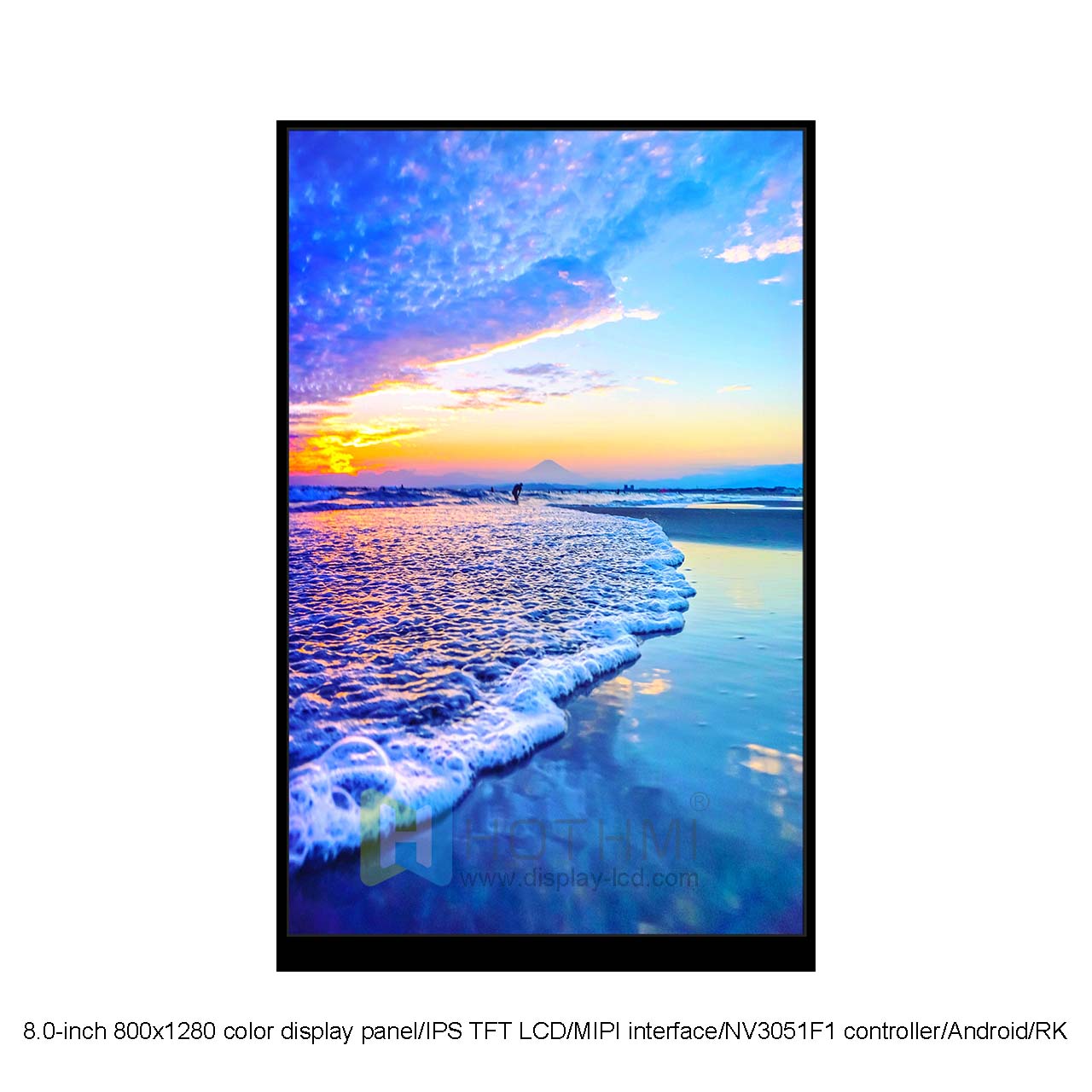

8.0-inch 800x1280 color display panel/IPS TFT LCD/MIPI interface/NV3051F1 controller

8.0-inch 800x1280 color display panel/IPS TFT LCD/MIPI interface/NV3051F1 controller/Android/RK

▶ Model: TFT-H080B7HDINV6N30

▶ Type: IPS full-view TFT display
▶ Display pixels: 800x1280 px

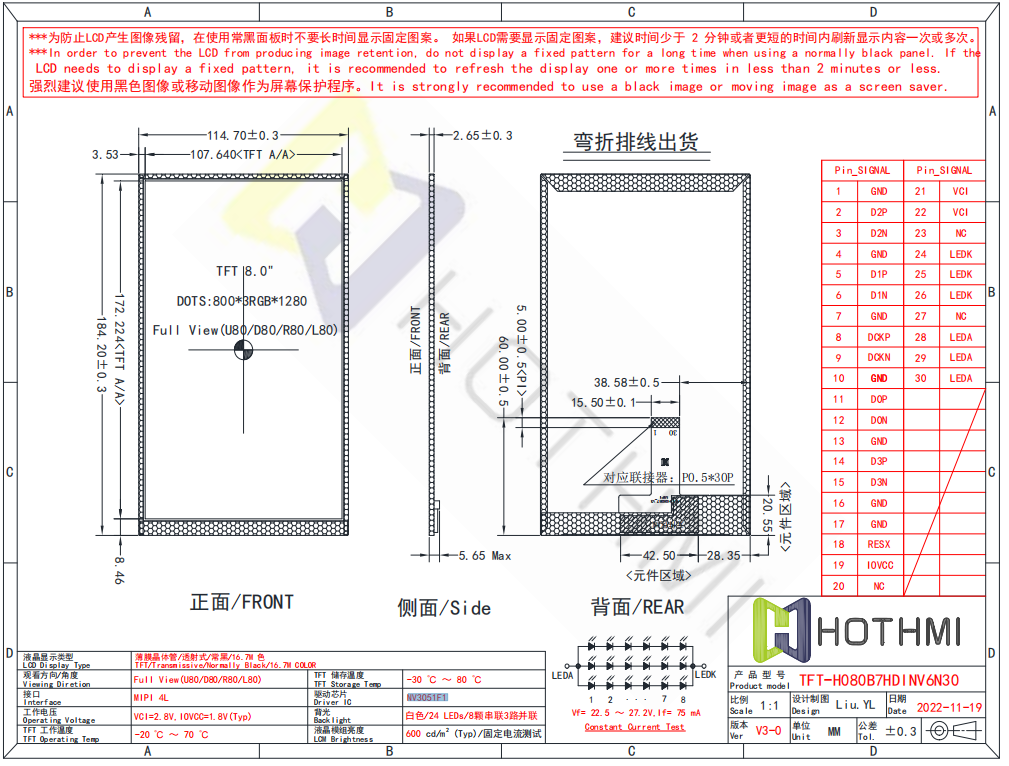

▶ Dimensions (mm): 114.7x184.2x2.65
▶ Display inches: 8.0"
▶ AA size (mm): 107.64x172.224
▶ Application: industrial control systems, portable electronic devices
▶ Viewing angle: IPS
▶ Backlight/brightness: 600cd/m2
▶ Pin: FPC-30 pin
▶ Interface: MIPI 4L
▶ Special instructions: Anti-static ESD 8KV
▶ Operating temperature: -20~70℃
▶ Supply voltage: 2.8V
▶ Driver chip: NV3051F1

Product Consultation Datasheets Download Demo Code
- Transportation
- Payment
- Taxes
- Ensure
- Return
- Discontinued
Transportation

Our company cooperates with SF Express for domestic express delivery, and DHL for overseas express delivery. You can contact us to inquire about freight and weight to get the latest quotation.

Payment

Online payment is not supported. Transfers can be made through corporate accounts. If a VAT invoice is issued, please contact our sales staff to obtain a corporate account.

Taxes

All products sold on this website do not include tax. If you need a VAT invoice, please contact our sales staff to purchase offline.

Ensure

All products sold on this website have a one-year warranty. If the product is damaged due to improper use by the customer, it will be repaired free of charge. Material cost will be charged.

Return

Products within the warranty period can be returned for repair or replacement. Before returning, please contact our sales staff to confirm the reason for return.

Discontinued

We are committed to long-term production of all products sold on this website. If the IC or panel is discontinued, we will try our best to replace it with compatible materials.

Prev Back Next

Related Accessories

USB data cable T-port charging data cable/serial screen/adapter board
TFT to HI adapter board

Product Description
Specification
Attributes

8.0-inch 800x1280 color display panel/IPS TFT LCD/MIPI interface/NV3051F1 controller/Android/RK
8.0-inch 800x1280 color page display panel/IPS TFT LCD/MIPI interface/NV3051F1 controller TFT-H080B7HDINV6N30
The TFT-H080B7HDINV6N30 an 8-inch IPS TFT portrait LCD display with a resolution of 800x1280 pixels. The display has a high contrast ratio of 800:1, capable of deep blacks and vivid colors. IPS technology enables full viewing angles.TFT-H080B7HDINV has a built-in NV3051F1 controller and uses a MIPI interface for data transmission with the display. This model is equipped with an optional capacitive touch screen, allowing users to interact with the display through bare finger touch and multi-touch input.
This is suitable for a wide range of applications, including industrial control systems, home automation, and portable electronic devices.

ITEM	PARAMETER DESCRIPTION	UNIT
TFT series	TFT-H080B7HDINV6N30
Diagonal size	8.0”	Inch
Resolution	172x320px	Dot
Dimensions	19.65x48.0x9.2	mm
Active area (AA)	14.65x32.83	mm
LCD type	TFT LCD Display	mm
Display viewing angle	Full View
Aspect ratio	2:3
Backlight type	LED white
TFT driver IC	NV3051F1
Brightness	600	cd/m2
Operating temperature	-20~70℃	℃
Storage temperature	-30~80℃	℃
