Product Name: HTM-H070A18-UART Series Intelligent Serial Screen

Product Description:

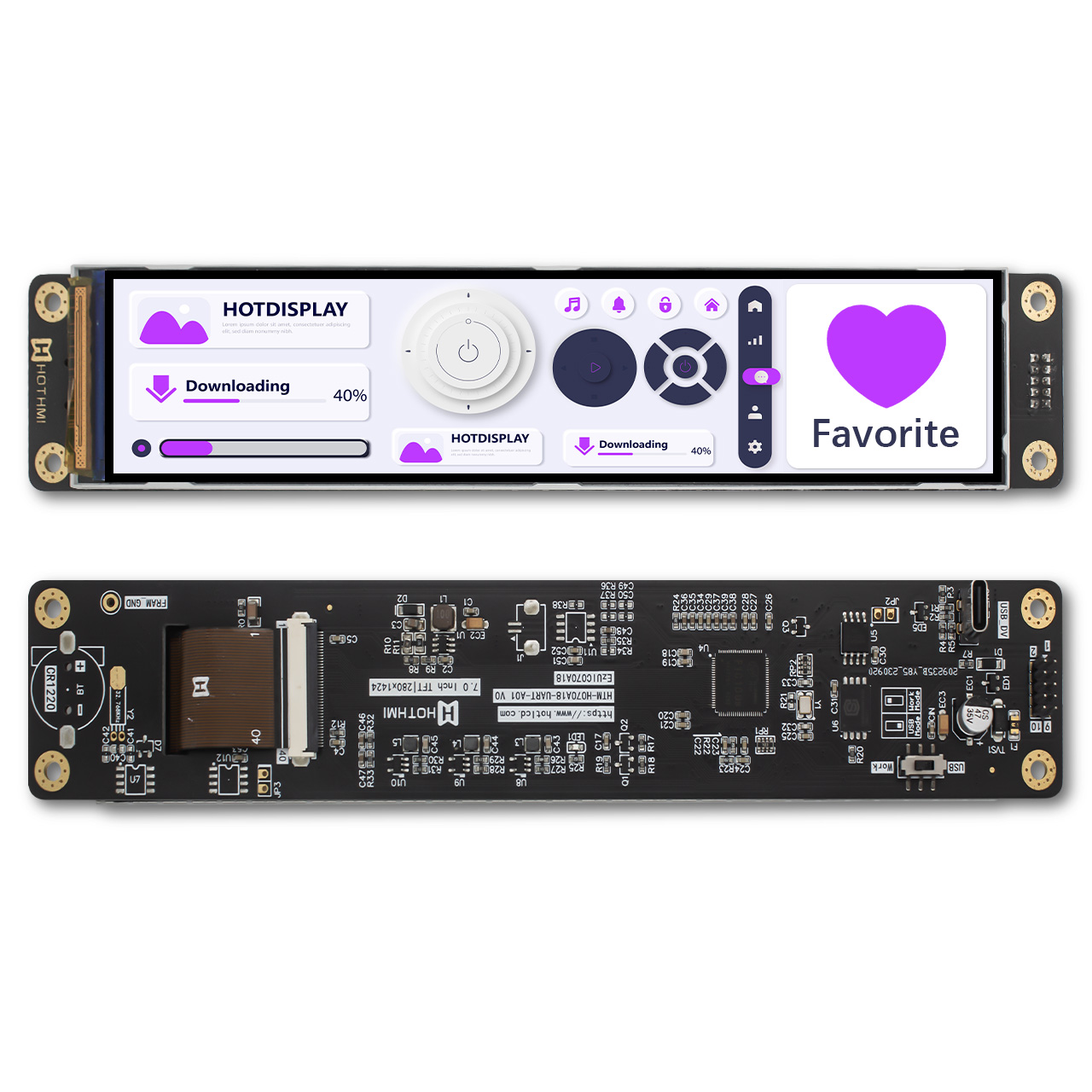

The HTM-H070A18-UART series intelligent serial screen is a 7-inch (diagonal) color TFT display with a high-definition resolution of 280x1424 pixels and a 16-bit color depth. It features an internal resource storage capacity of 128 megabytes and operates on a 5V DC power supply. The external interface uses a serial UART (TTL level), communicating through ASCII string format suitable for Arduino systems and other MCU interface operations.

Standard Configuration:

• 7-inch diagonal color TFT screen with optional non-touch/resistive touch/capacitive touch

• Resolution: 280x1424 pixel array, supporting 65536 colors

• Power supply: 5V DC

• Serial interface: UART serial interface (TTL level), supporting 9600~1000000bps

• Internal resource storage: 128 megabytes

• Standard RTC real-time clock module

• Built-in 6x10, 8x16, 10x20, 16x32 ASCII character Western fonts

Features:

1. Support basic drawing commands, including point, line, rectangle, rounded rectangle, circle, arc, string display, bitmap display, JPEG image, PNG image display, etc.

2. Support audio and video playback commands.

3. Resource storage supports GBK2312 secondary Chinese character library, vector font library, BIG5 font library, BMP bitmap, JPEG image, PNG image display, ASCII Western font library, etc.

4. Support interface switching effects settings, such as transparency fade-in, random fast fade-in, blinds fade-in, fast buffer switching.

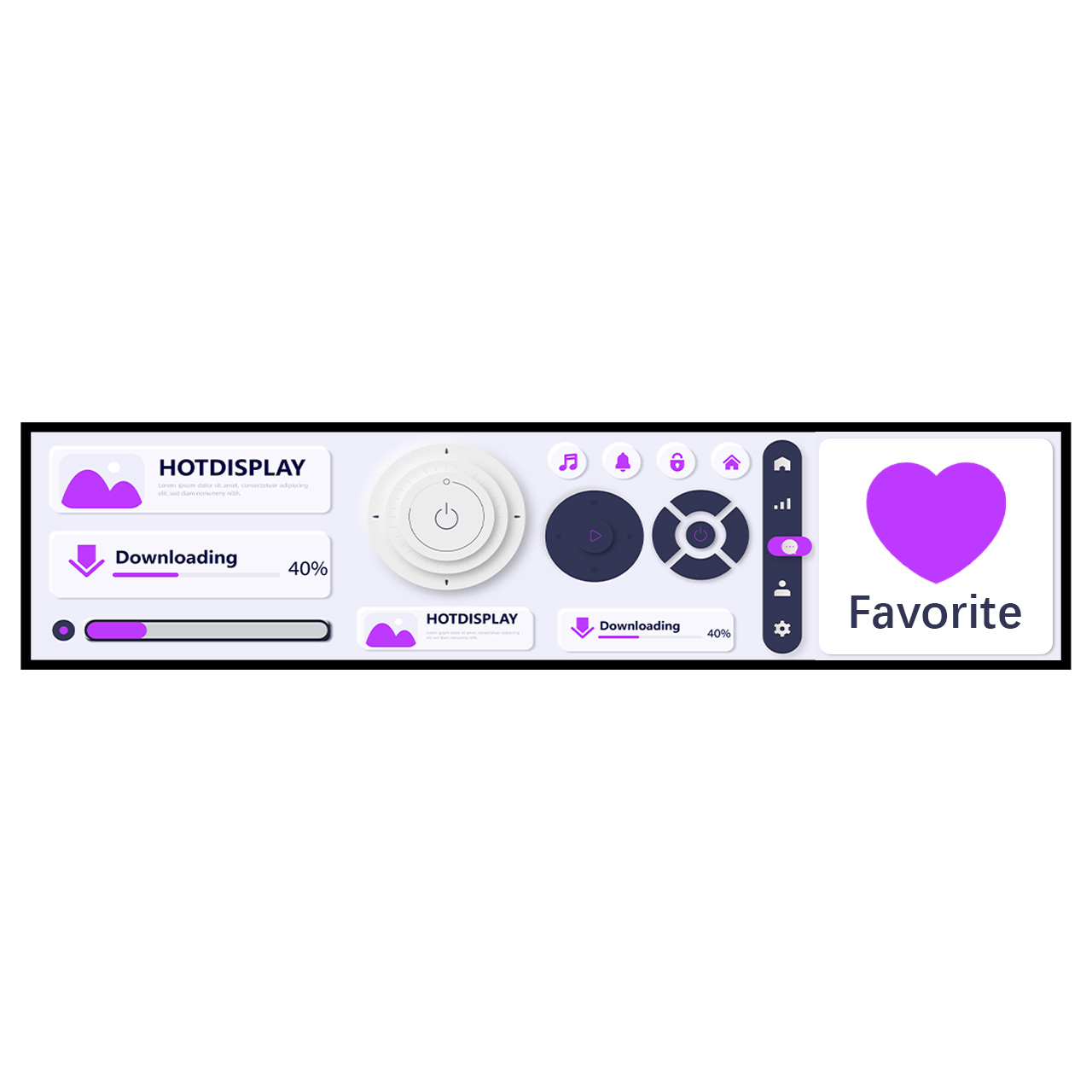

5. Support various controls, including area buttons, bitmap buttons, numeric controls, string controls, dropdown selection controls, waveform controls, progress bar controls, bitmap animation controls, time/date display controls, dial display controls, slider controls, QR code, etc.

HOTHMI's latest EzUI series intelligent LCD display module:

The EzUI series intelligent LCD display module is characterized by its simplicity (E), zero-code (z), and user interface (UI). This series of modules can quickly help users develop full-color graphic touchscreen human-machine interfaces, making it easy for users to design and develop color LCD modules.

The EzUI series intelligent LCD display module's main features include its simplicity and ease of use, allowing users to choose a simple or complex usage mode to achieve the goal of zero-code user interface design. Users can use the interface development tool software (EzUITool) for human-machine interface design, editing, control configuration, and response settings. Then, they can copy the resource files generated by the tool software to the EzUIH series module, completing the required human-machine interaction interface design without programming the microcontroller or other controllers. The EzUIH is an enhanced version of the EzUI series with added functionality and performance, although the hardware platform is different, it is fully compatible with the functions of the EzUI series.

Currently, the EzUI series offers various sizes for customer selection, including 2.8 inches, 3.2 inches, 3.5 inches, 4.3 inches, 5.0 inches, 7.0 inches, 8.0 inches, and 10.1 inches. These modules are commonly applied in industrial control equipment and medical devices.

Features and Applications of EzUI Series Intelligent LCD Display Module:

Easy to use: The EzUI series modules adopt a design philosophy of simplicity, allowing users to quickly get started and conduct interface design and development. Using the EzUITool interface development tool software, users can perform operations such as human-machine interface design, editing, control configuration, and response settings.

Zero code: The EzUI series modules achieve the goal of zero-code user interface design. Users do not need to program the microcontroller or other controllers; they only need to copy the resource files generated by the software to the corresponding EzUIH series module to complete the design and production of the human-machine interaction interface.

Rich functionality: The EzUI series modules provide rich functionality and performance. Users can choose a simple or complex usage mode according to their needs and freely control the module's display functions. The EzUIH series module retains most display control commands to meet the needs of users with special requirements.

Multiple size options: The EzUI series offers multiple sizes for customer selection, including 2.8 inches, 3.2 inches, 3.5 inches, 4.3 inches, 5.0 inches, 7.0 inches, 8.0 inches, and 10.1 inches. These different-sized modules are suitable for various application scenarios, such as industrial control equipment and medical devices.

In summary, these two product series provide rich functionality and flexible usage in the LCD display field, suitable for users and application scenarios with different requirements.
