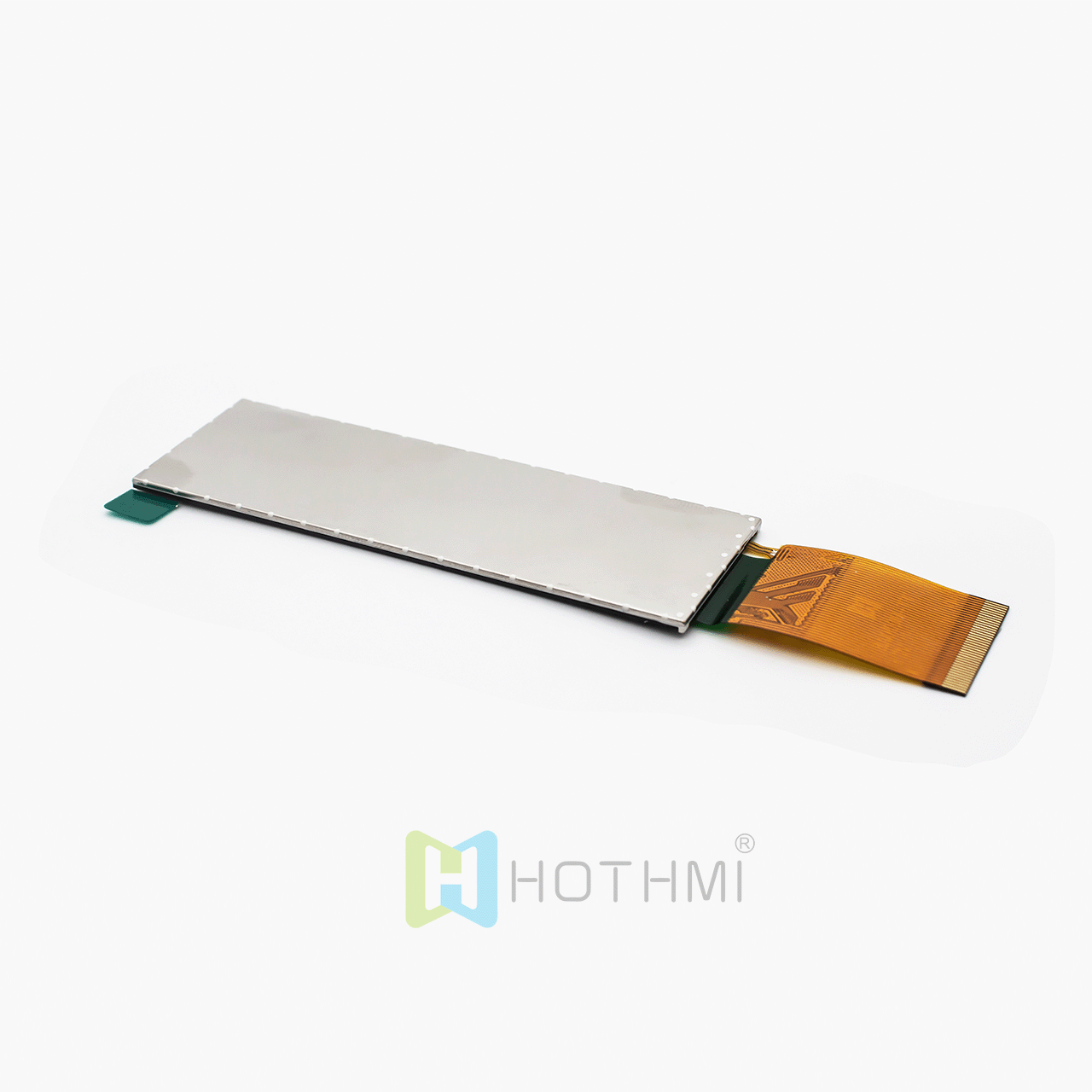

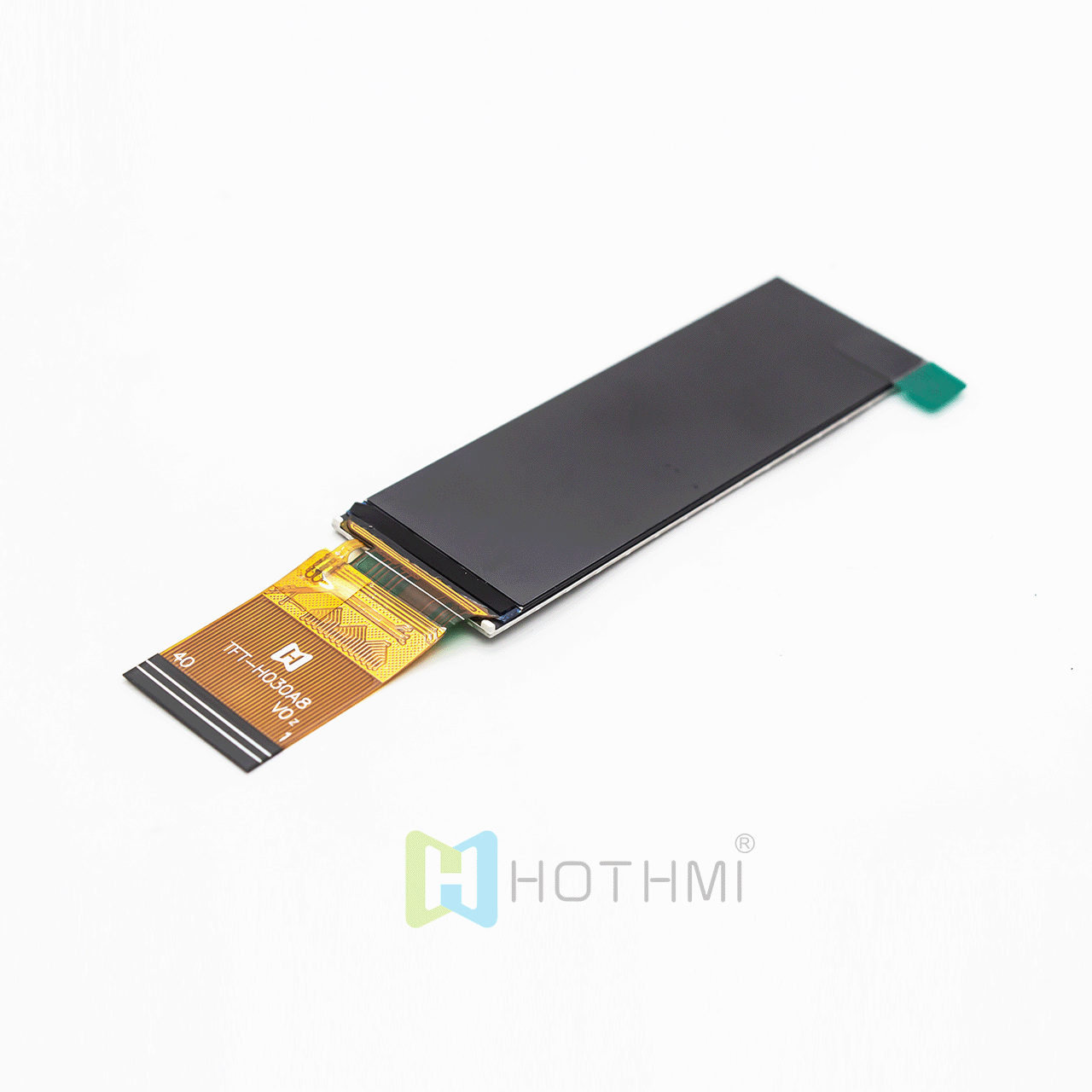

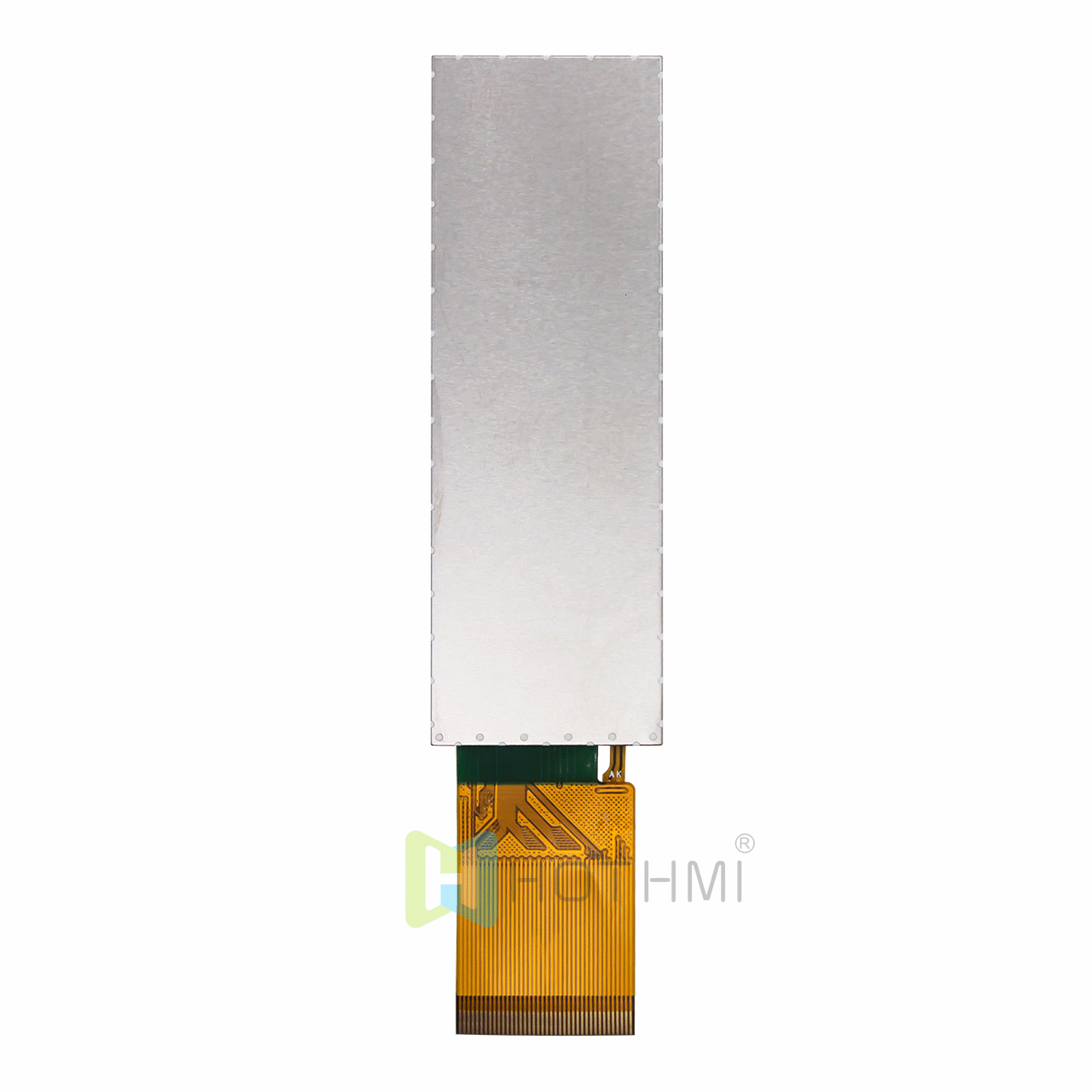

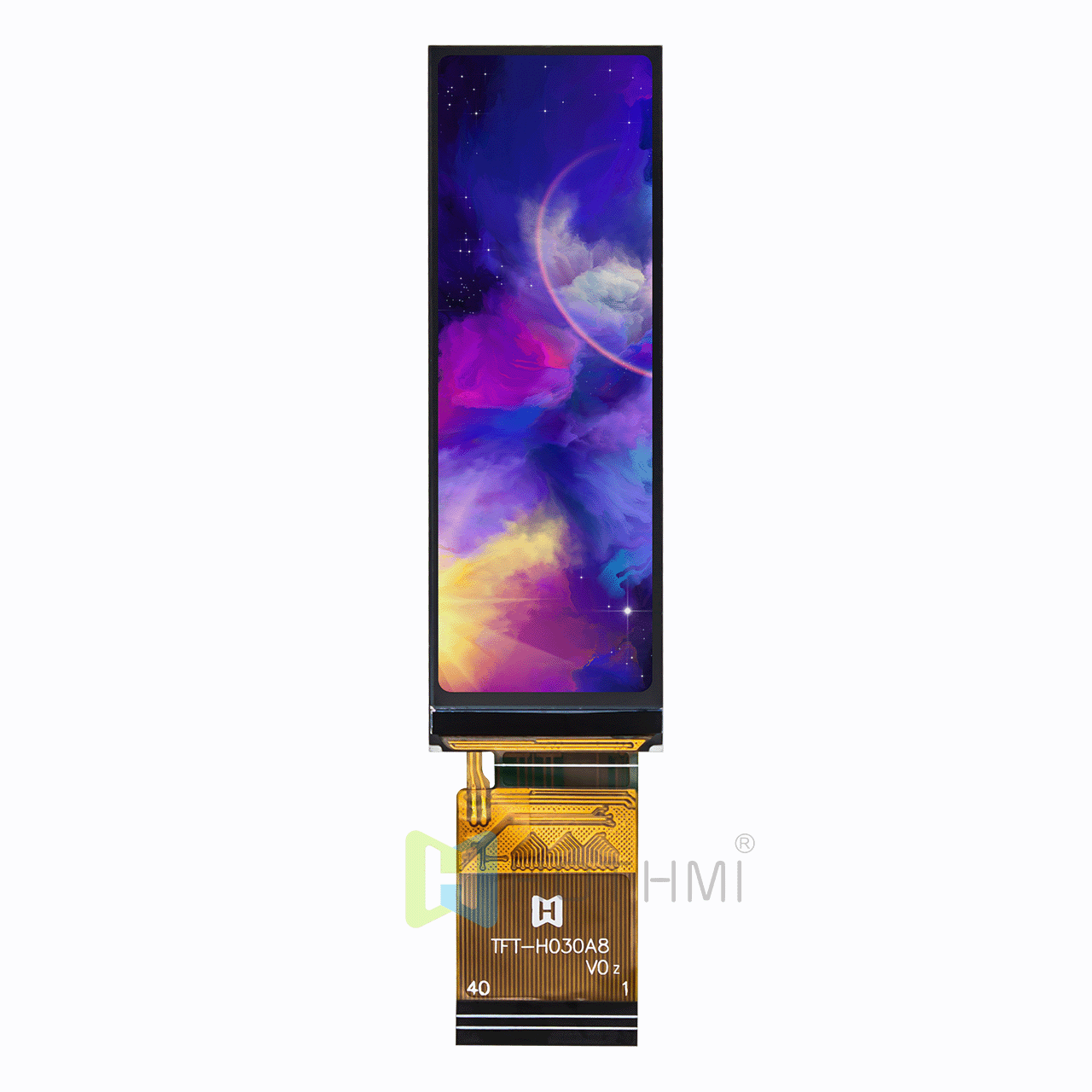

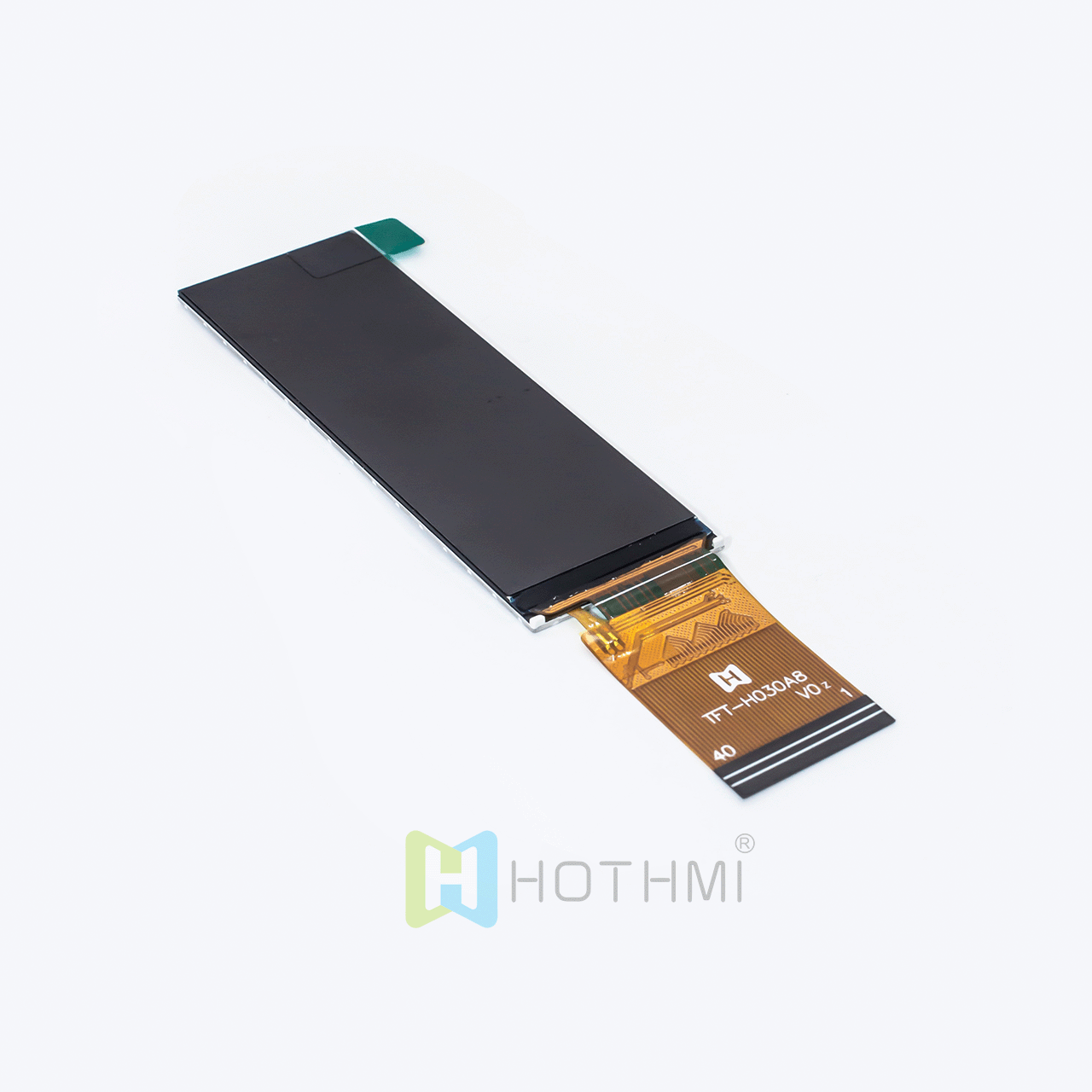

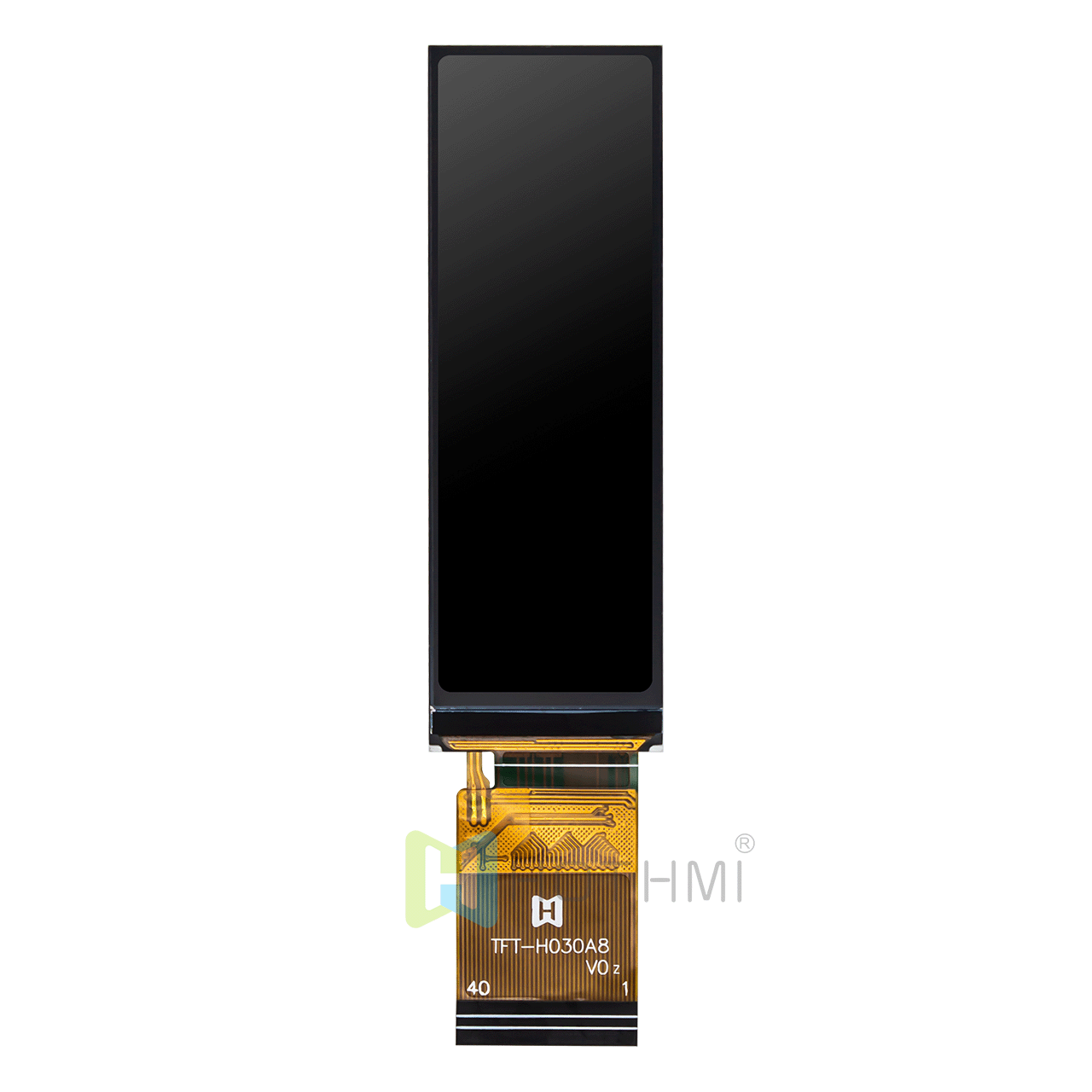

3.0 inch bar TFT LCD display module/IPS full viewing angle/268x800 dots/RGB+SPI interface/ST7701S/sunlight visible/wide temperature/compatible with Arduino

3.0 inch bar TFT LCD display module/IPS full viewing angle/268x800 dots/RGB+SPI interface/ST7701S/sunlight visible/wide temperature/compatible with Arduino

▶ Model: TFT-H030A8ZCISTKN40

▶ Type: TFT bar display
▶ Display pixels: 268x800 dot matrix
▶ Dimensions (mm): 26.42x79.85x1.7
▶ Display inches: 3.0"
▶ Effective size (mm): 24.12x72.0
▶ Application: In-vehicle equipment
▶ Viewing angle: IPS (U80/D80/L80/R80)
▶ Brightness: 1000cd/m2
▶ Pin: FPC-40PIN
▶ Interface: RGB +9b_3SPI
▶ Special reminder: Anti-static ESD 8KV
▶ Working temperature: -30~80℃
▶ Power supply voltage: 3.3V
▶ Driver chip: ST7701S

Product Consultation Datasheets Download Demo Code
- Transportation
- Payment
- Taxes
- Ensure
- Return
- Discontinued
Transportation

Our company cooperates with SF Express for domestic express delivery, and DHL for overseas express delivery. You can contact us to inquire about freight and weight to get the latest quotation.

Payment

Online payment is not supported. Transfers can be made through corporate accounts. If a VAT invoice is issued, please contact our sales staff to obtain a corporate account.

Taxes

All products sold on this website do not include tax. If you need a VAT invoice, please contact our sales staff to purchase offline.

Ensure

All products sold on this website have a one-year warranty. If the product is damaged due to improper use by the customer, it will be repaired free of charge. Material cost will be charged.

Return

Products within the warranty period can be returned for repair or replacement. Before returning, please contact our sales staff to confirm the reason for return.

Discontinued

We are committed to long-term production of all products sold on this website. If the IC or panel is discontinued, we will try our best to replace it with compatible materials.

Prev Back Next

Related Accessories

USB data cable T-port charging data cable/serial screen/adapter board
TFT to HI adapter board

Product Description
Specification
Attributes

TFT-H030A8ZCISTKN40 | 3.0-inch IPS TFT bar LCD | SPI interface | 268x800 dot matrix LCD | optional capacitive touch / resistive touch | readable in sunlight | wide temperature | compatible with Arduino

TFT-H030A8ZCISTKN40 is a 3.0-inch bar LCD module with a resolution of 268x800, built-in ST7701S controller, optional touch screen, high picture quality, IPS wide viewing angle, support 8080 8-bit, 9-bit, 16-bit, 18-bit parallel interface and 3-wire, 4-wire serial interface, 65K/262K true color, FPC connection (optional connector), 2.8V~3.3 voltage, support vertical display. All materials meet environmental protection requirements and RoHS standards. This module is widely used in various instruments, smart devices, etc., suitable for 8051 PIC, AVR, ARDUINO, ARM, Raspberry Pi and other single-chip microcomputer development platforms.

Customized Ribbon Cables/Flexible Printed Circuits (FPC):

Tailor your cables to perfection by adjusting their length, position, and pin arrangements, or adding other connectors. Obtain a precisely designed cable solution to streamline and enhance the safety of your connections

Touchscreen Add-On Components:

Enhance your user experience with capacitive or resistive touchscreen technology. We can adjust the glass thickness or shape of the touchscreen to ensure a perfect fit for your design.

Interface Customization:

Choose from various interface options or consult with our experts to select the options that best suit your project. We can integrate HI,USB, SPI, VGA, and other interfaces into your display to achieve your design goals.

Cover Glass:

Equip your display with custom-cut cover glass to improve durability. Choose from various thicknesses of cover glass and undergo optical bonding to prevent moisture and debris.

参数	参数描述	单位
TFT LCD	标准品条形TFT
对角线英寸	3.0”	英寸
分辨率	268 × RGB × 800 (TFT)	dots
外形尺寸	26.42x79.85x1.7	mm
尺寸(AA)区域	24.12x72.0	mm
LCD规格	TFT, 白色, 透射式
显示视角	IPS(U80/D80/L80/R80)
横纵比	3:1
背光规格	LED, 白色
TFT驱动芯片	ST7701S
触摸玻璃类型	无
表面	防眩光
显示亮度	1000	cd/㎡
工作温度	-30~+80	°C
储存温度	-40~+90	°C
