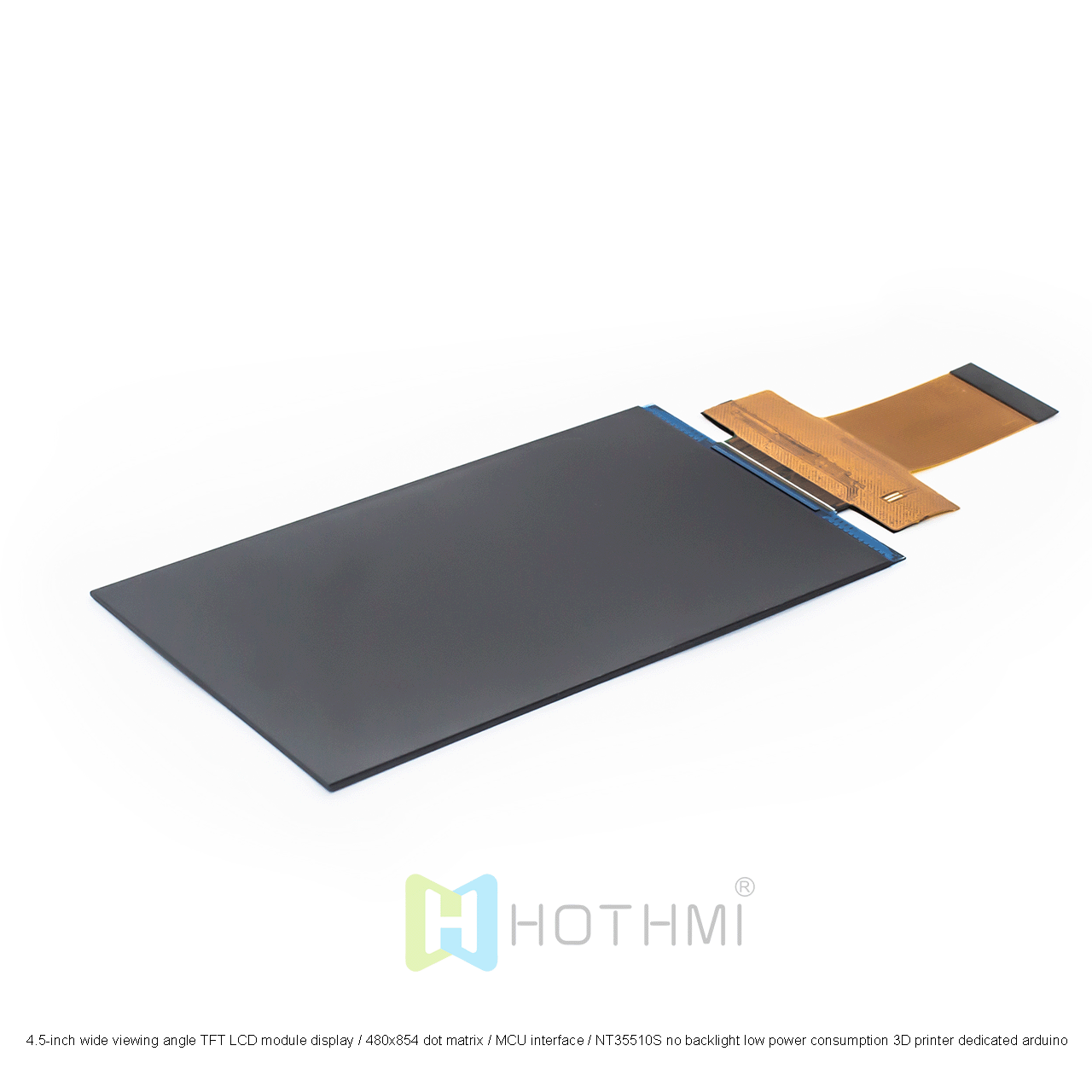

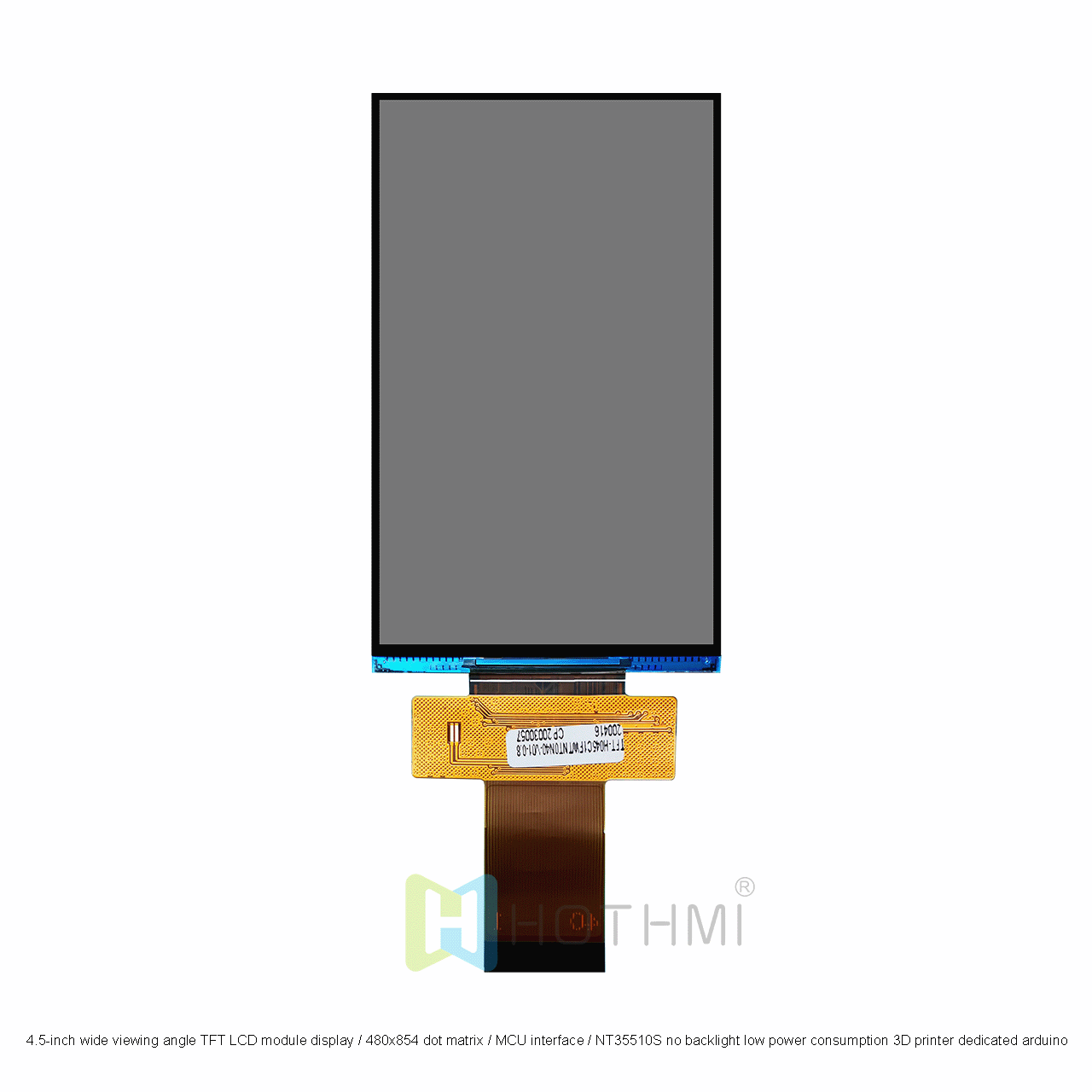

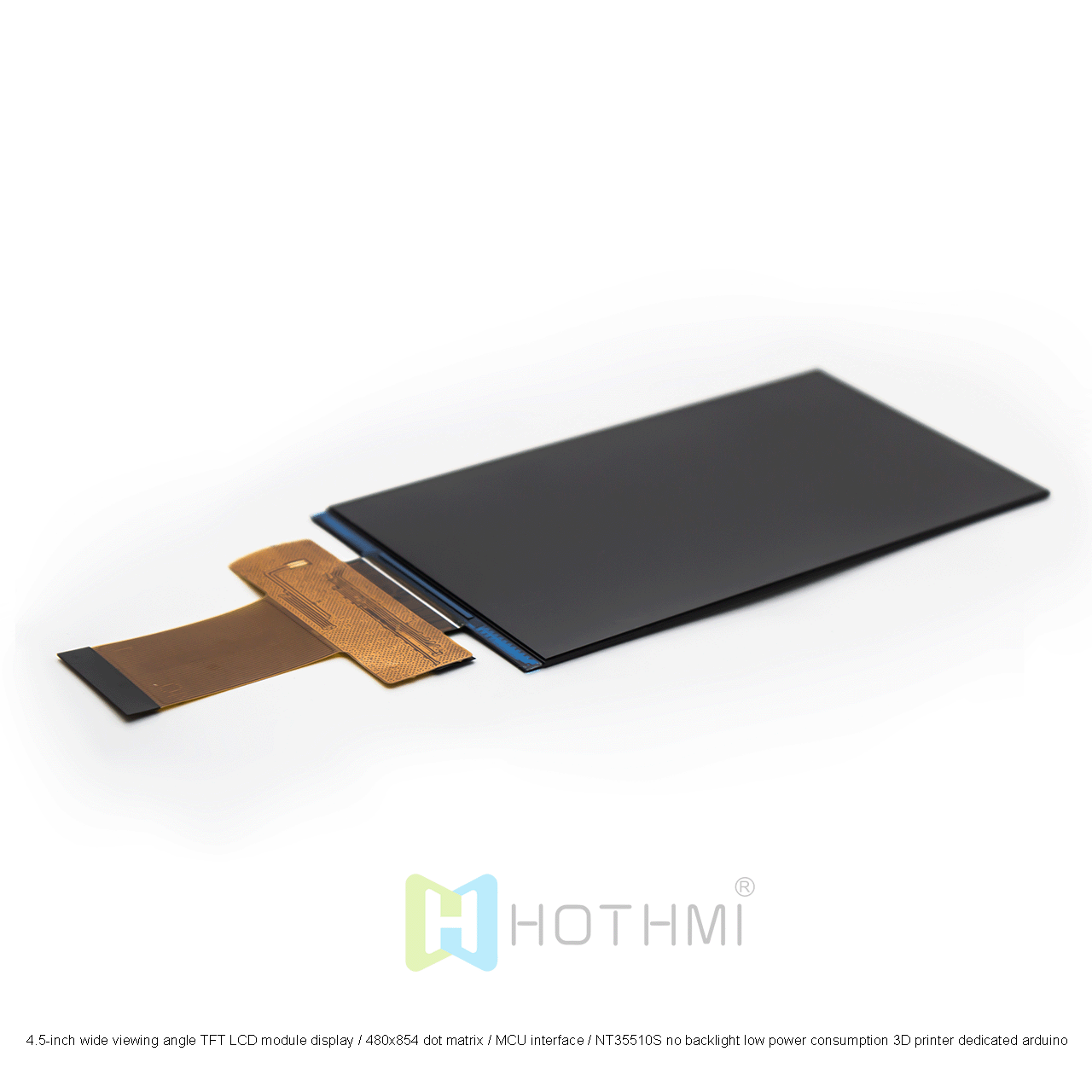

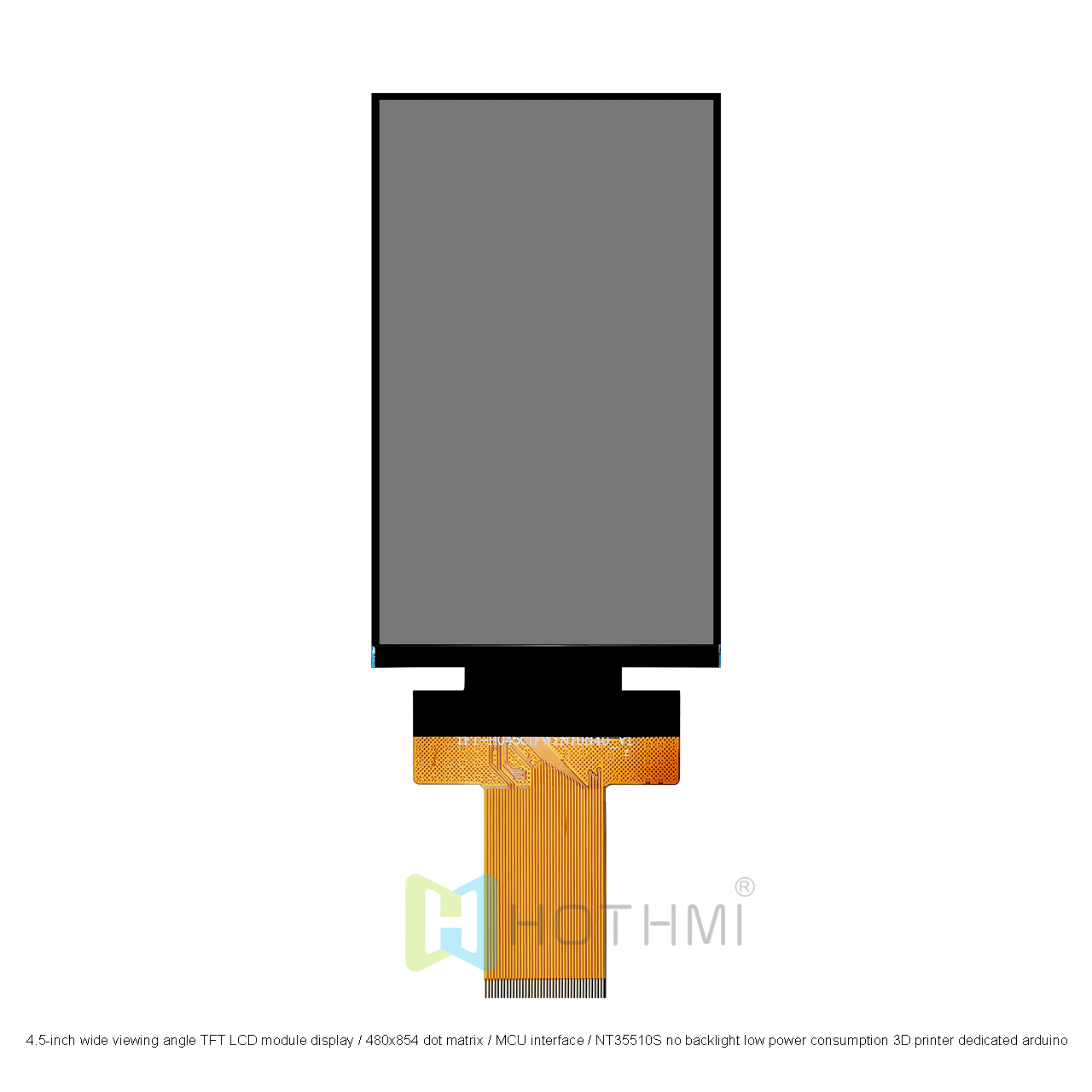

4.5-inch wide viewing angle TFT LCD module display / 480x854 dot matrix / MCU interface / NT35510S no backlight low power consumption 3D printer dedicated arduino

4.5-inch wide viewing angle TFT LCD module display / 480x854 dot matrix / MCU interface / NT35510S no backlight low power consumption 3D printer dedicated arduino

▶ Model: TFT-H045C1FWTNT0N40

▶ Type: TFT full-transparent LCD vertical screen
▶ Display pixels: 480x854 Px
▶ Dimensions (mm): 58.24 × 105.59 × 1.30
▶ Display inches: 4.5"
▶ Effective size (mm): 55.44 X 98.64
▶ Application: STM32/3D printer
▶ Viewing angle: 12H
▶ Brightness: 0cd/m2
▶ Pin: FPC-40PIN
▶ Interface: MCU
▶ Special tips: Anti-static ESD 8KV
▶ Working temperature: -20~60℃
▶ Power supply voltage: 2.8V
▶ Driver chip: NT35510S

Product Consultation Datasheets Download Demo Code
- Transportation
- Payment
- Taxes
- Ensure
- Return
- Discontinued
Transportation

Our company cooperates with SF Express for domestic express delivery, and DHL for overseas express delivery. You can contact us to inquire about freight and weight to get the latest quotation.

Payment

Online payment is not supported. Transfers can be made through corporate accounts. If a VAT invoice is issued, please contact our sales staff to obtain a corporate account.

Taxes

All products sold on this website do not include tax. If you need a VAT invoice, please contact our sales staff to purchase offline.

Ensure

All products sold on this website have a one-year warranty. If the product is damaged due to improper use by the customer, it will be repaired free of charge. Material cost will be charged.

Return

Products within the warranty period can be returned for repair or replacement. Before returning, please contact our sales staff to confirm the reason for return.

Discontinued

We are committed to long-term production of all products sold on this website. If the IC or panel is discontinued, we will try our best to replace it with compatible materials.

Prev Back Next

Related Accessories

USB data cable T-port charging data cable/serial screen/adapter board
TFT to HI adapter board

Product Description
Specification
Attributes

TFT-H045C1FWTNT0N40 | 4.5-inch TFT fully transparent LCD | MCU interface | 480x854 px high-resolution LCD screen | optional capacitive touch / resistive touch

This 4.5-inch TFT fully transparent glass display has a high resolution of 480x854 pixels and uses an MCU interface for easy integration and control. Its fully transparent glass design not only ensures excellent display effects, but also maintains a high degree of transparency. The display has passed ROHS certification, is environmentally friendly and safe, and has low power consumption characteristics, making it very suitable for a variety of application scenarios such as smart windows, car displays, transparent advertising screens, augmented reality devices, etc.

Customized Ribbon Cables/Flexible Printed Circuits (FPC):

Tailor your cables to perfection by adjusting their length, position, and pin arrangements, or adding other connectors. Obtain a precisely designed cable solution to streamline and enhance the safety of your connections

Touchscreen Add-On Components:

Enhance your user experience with capacitive or resistive touchscreen technology. We can adjust the glass thickness or shape of the touchscreen to ensure a perfect fit for your design.

Interface Customization:

Choose from various interface options or consult with our experts to select the options that best suit your project. We can integrate HI,USB, SPI, VGA, and other interfaces into your display to achieve your design goals.

Cover Glass:

Equip your display with custom-cut cover glass to improve durability. Choose from various thicknesses of cover glass and undergo optical bonding to prevent moisture and debris.

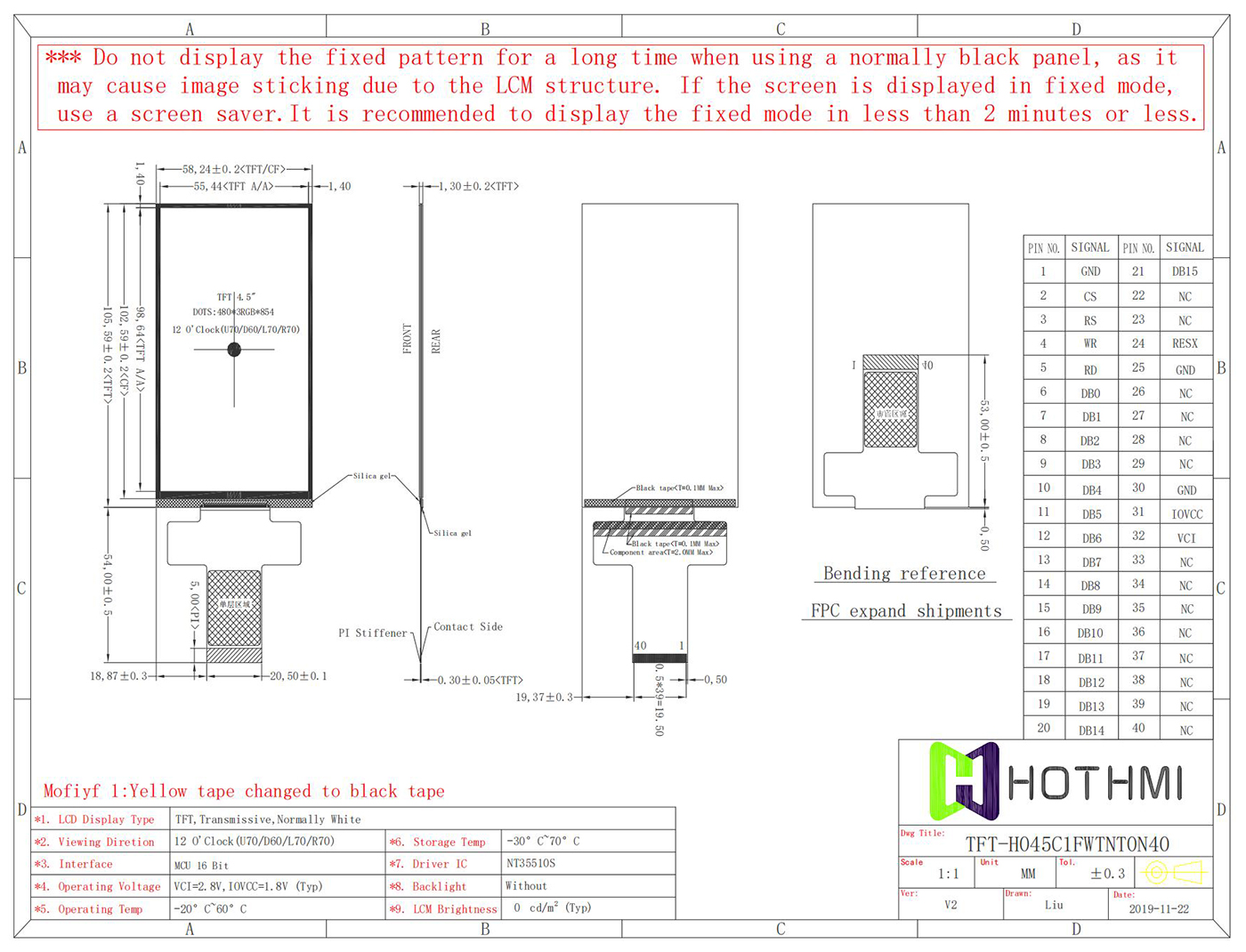

parameter	Parameter Description	unit
TFT LCD	TFT fully transparent LCD
Diagonal inches	4.5”	Inch
resolution	480 × RGB × 854 (TFT)	dots
Dimensions	58.24x105.59x1.30	mm
Size (AA) area	55.44 X 98.64	mm
LCD specifications	TFT, white, transmissive
Display perspective	12H (U70/D60/L70/R70)
aspect ratio	1.1:2
Backlight specifications	LED, white
TFT driver chip	NT35510S
Touch glass type	-
surface	Glossy
Display brightness	0	cd/㎡
Operating temperature	-20~+60	°C
Storage temperature	-30~+80	°C
