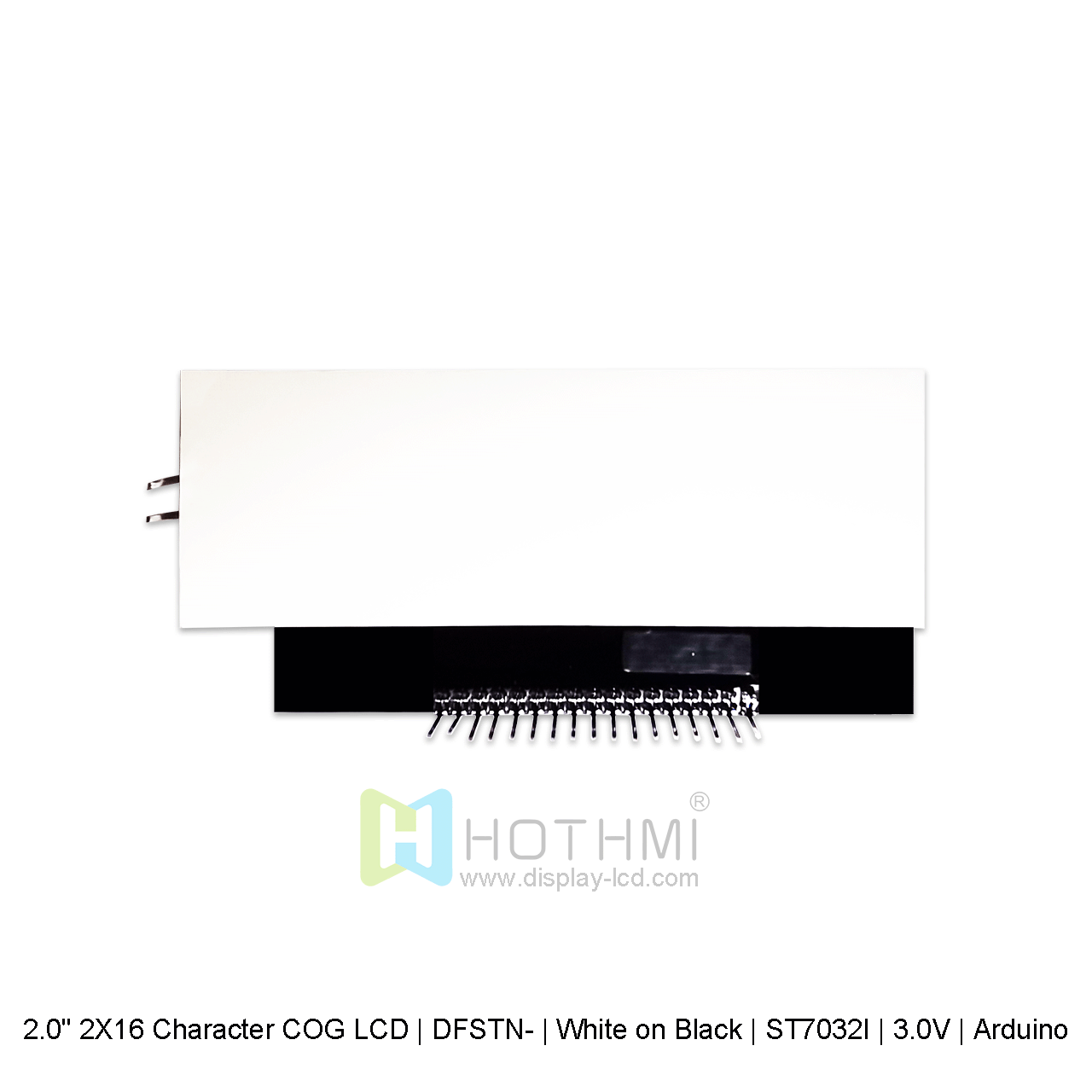

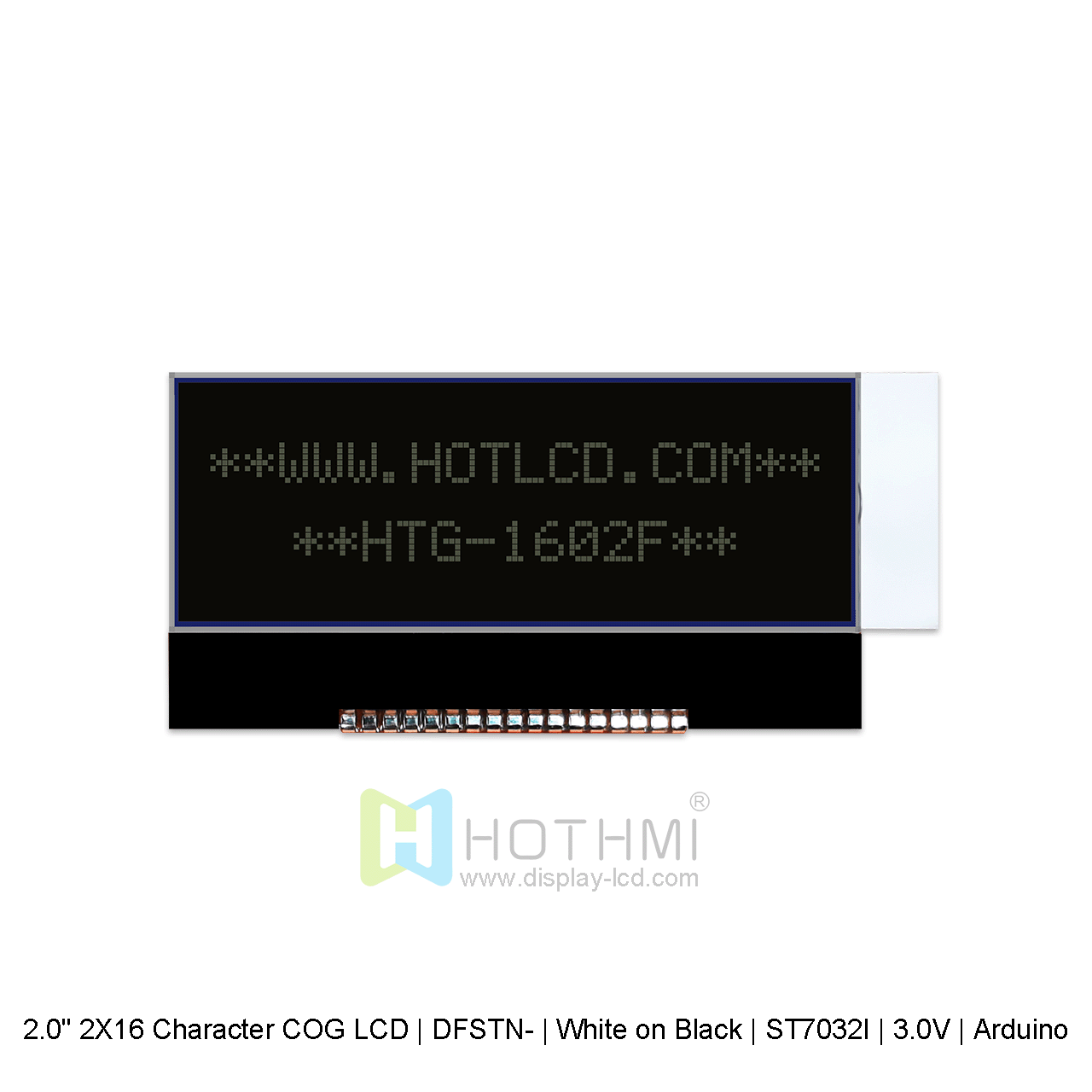

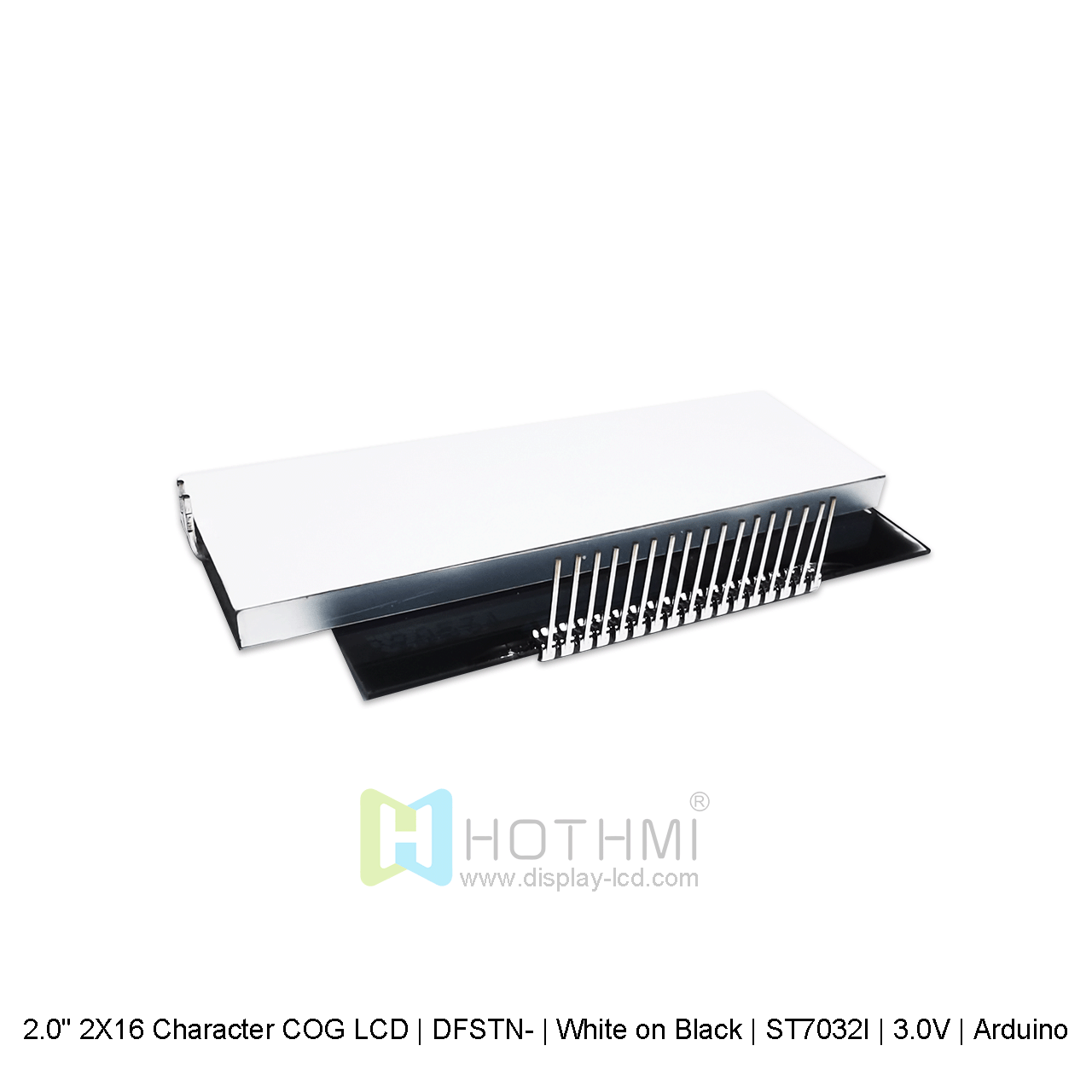

16×2 Character COG LCD | DFSTN- | White on Black | 3.0V

16×2 Character COG LCD | DFSTN- | White on Black | 3.0V | Arduino

▶ Model: HTG1602F-41W-A5P

▶ Type: Character COG LCD
▶ Display pixels: 16x2

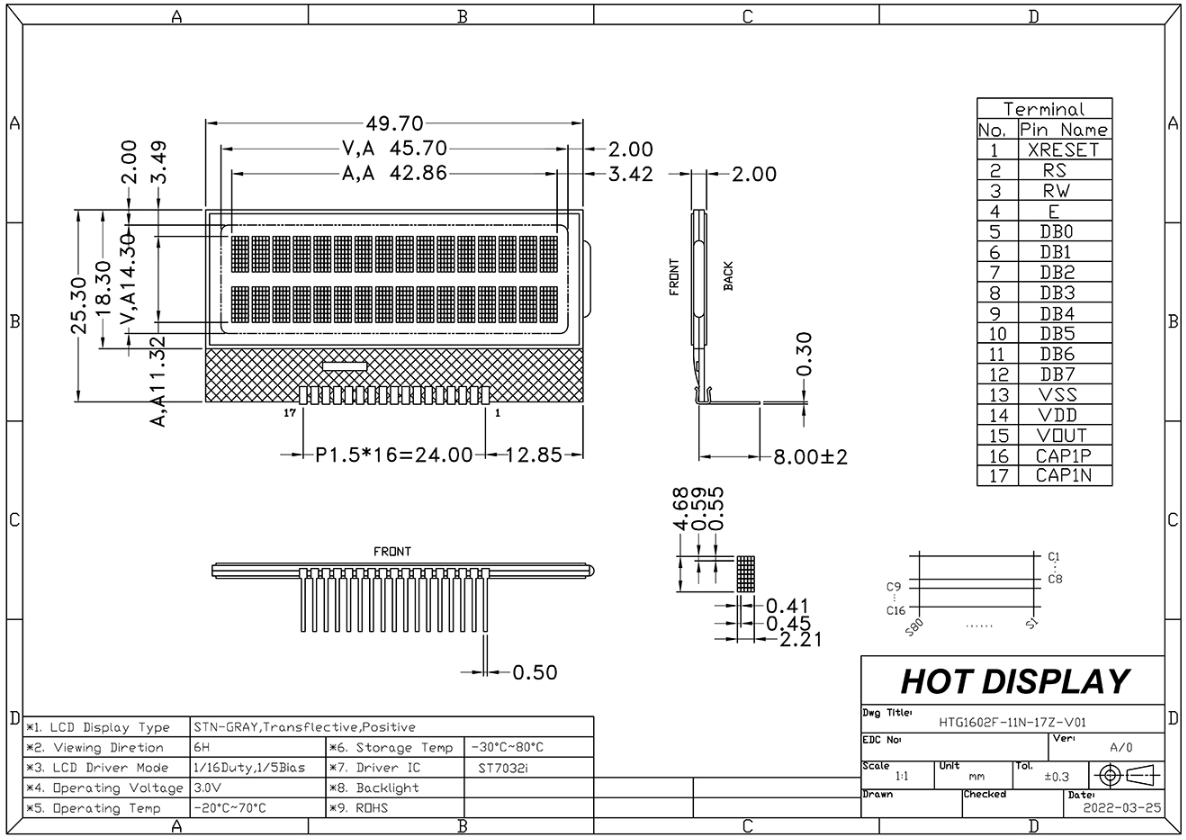

▶ Overall dimensions (mm): 49.7x25.3x2.0
▶ VA size (mm): 45.7x18.3
▶ AA size (mm): 42.86x14.30
▶ Point spacing (mm): 0.59x0.45
▶ Application: Internet phone
▶ Viewing angle: 6H
▶ Backlight/Brightness: white
▶ Pin: 17PIN
▶ Interface mode: MCU/8bit
▶ Special instructions: Anti-static ESD 8KV
▶ Working temperature: -20~70℃
▶ Supply voltage: 3.0V
▶ Driver chip: ST7032I

Product Consultation Datasheets Download Demo Code
- Transportation
- Payment
- Taxes
- Ensure
- Return
- Discontinued
Transportation

Our company cooperates with SF Express for domestic express delivery, and DHL for overseas express delivery. You can contact us to inquire about freight and weight to get the latest quotation.

Payment

Online payment is not supported. Transfers can be made through corporate accounts. If a VAT invoice is issued, please contact our sales staff to obtain a corporate account.

Taxes

All products sold on this website do not include tax. If you need a VAT invoice, please contact our sales staff to purchase offline.

Ensure

All products sold on this website have a one-year warranty. If the product is damaged due to improper use by the customer, it will be repaired free of charge. Material cost will be charged.

Return

Products within the warranty period can be returned for repair or replacement. Before returning, please contact our sales staff to confirm the reason for return.

Discontinued

We are committed to long-term production of all products sold on this website. If the IC or panel is discontinued, we will try our best to replace it with compatible materials.

Prev Back Next

Related Accessories

Arduino adapter board/suitable for Arduino development board COB/character/graphic dot matrix
Single Row Pin Header Connector
COB 20-pin cable base/character/graphic dot matrix

Product Description
Specification
Attributes

HTG1602F-41W-A5P|16×2 Character COG LCD | DFSTN- | White on Black | 3.0V | Arduino
HTG1602F-41W-A5P， this 16x2 Character COG LCD white pixels on a black background. This translucent DFSTN negative LCD is visible in ambient light or backlight. In ambient light, the display's contents are clearly visible due to the reflective effect of the polarizer, which reflects the contents back to the viewer. In dark environments, the display has a backlight, which allows the viewer to clearly see the display contents. As a COG display, there is no PCB, and the controller/driver is bonded directly to the glass of the display. The LCD offers a wide operating temperature range from -20 to 70 degrees Celsius. This built-in ST7032I controller. The display features a 6:00 optimal view, 4-bit/8-bit parallel interface, operates at 5.0V supply voltage and is RoHS compliant.

Parameter	Specification content	Unit
Name	HTG1602F-41W-A5P
Number of dots	16× 2	dots
Module size	49.7 x 25.3 x 2.0 (MAX)	mm
Viewable area (VA)	45.7 x 18.3	mm
AA size	42.86 x 14.3	mm
Dot (pixel) spacing	0.59 x 0.45	mm
IC	ST7032I
Applied voltage	5V	V
Backlight	White
Mode	DFSTN(-)
Drive mode (Duty)	1/2 duty cycle
Type	Character COG
Polarizer type	Transflective
