  • HTM1602-8 | 2x16 Character | MCU Interface | Yellow/Green Backlight | STN (+) Yellow/Green Display | Arduino display


    The 2x16 character HOTDISPLAY LCD display displays characters with black pixels on a bright yellow/green background when turned on. This transmissive LCD display is visible under ambient or backlighting and offers a wide melting time range of -20 to 70 degrees Celsius. This HTM1602-8 series interface display is fully compatible with the Arduino/C8051, making it a convenient choice for DIY and educational electronics projects. The best viewing time of the monitor is 6:00, the power supply voltage is 5V, and it complies with RoHS standards.


    Connector Customization:

    Easily modify any connectors on your display to meet your application’s requirements. Our engineers are able to perform soldering for pin headers, boxed headers, right angle headers, and any other connectors your display may require.

    PCB Modifications:

    Choose from a variety of changes to the PCB's shape, size, pinout, and component layout to make it perfect for your application.

    Backlight color customization:

    The module backlight has a variety of combinations to choose from, without backlight or with yellow-green/blue/white/amber/red/RGB backlight options. There are 48 effects. You can click on the customization page for reference.

    Font library customization:

    Provides a variety of font libraries, including English/Japanese, Western Europe, Eastern Europe, Scandinavian Europe, Cyrillic (Russian), Hebrew/Arabic, etc.

    Cable Customization:

    Adjust the length, position, and pinout of your cables or add additional connectors. Get a cable solution that’s precisely designed to make your connections streamlined and secure.

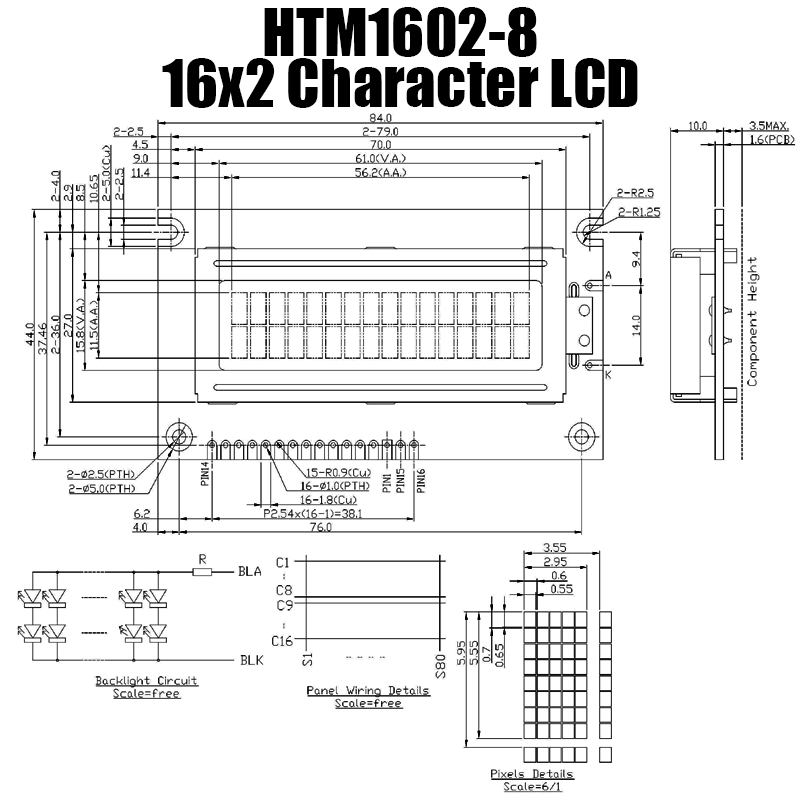

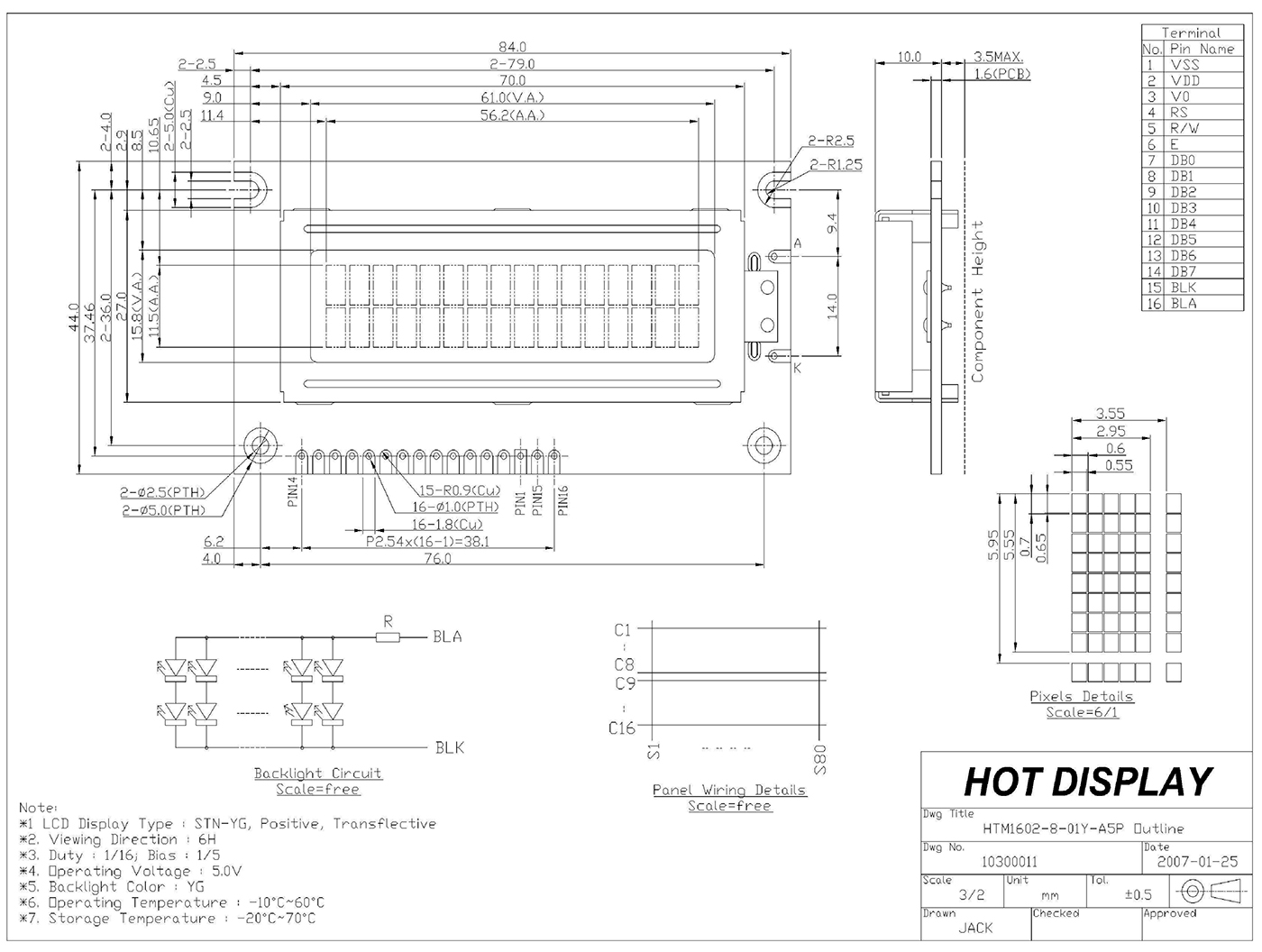

  • HTM1602-8_04.jpg

  • project

    Specification content

    UNIT

    name

    HTM1602-8-01Y-A5P


    Number of dots

    16 x 2

    dots

    Module size

    84.0（W） × 44.0（H） × 13.5 （T）

    mm

    Visual (VA) area

    61.0 × 15.8.0

    mm

    AA size

    56.2（W） × 11.5（H）

    mm

    Point (pixel) spacing

    0.60（W） × 0.70（H）mm

    mm

    IC

    ST7066U driver


    Application voltage

    5.00V

    V

    back light

    Y/G


    model

    STN+


    Drive mode (Duty)

    1/16 duty cycle


    type

    Character LCD


    Polarizer type

    Transflective polarizer
