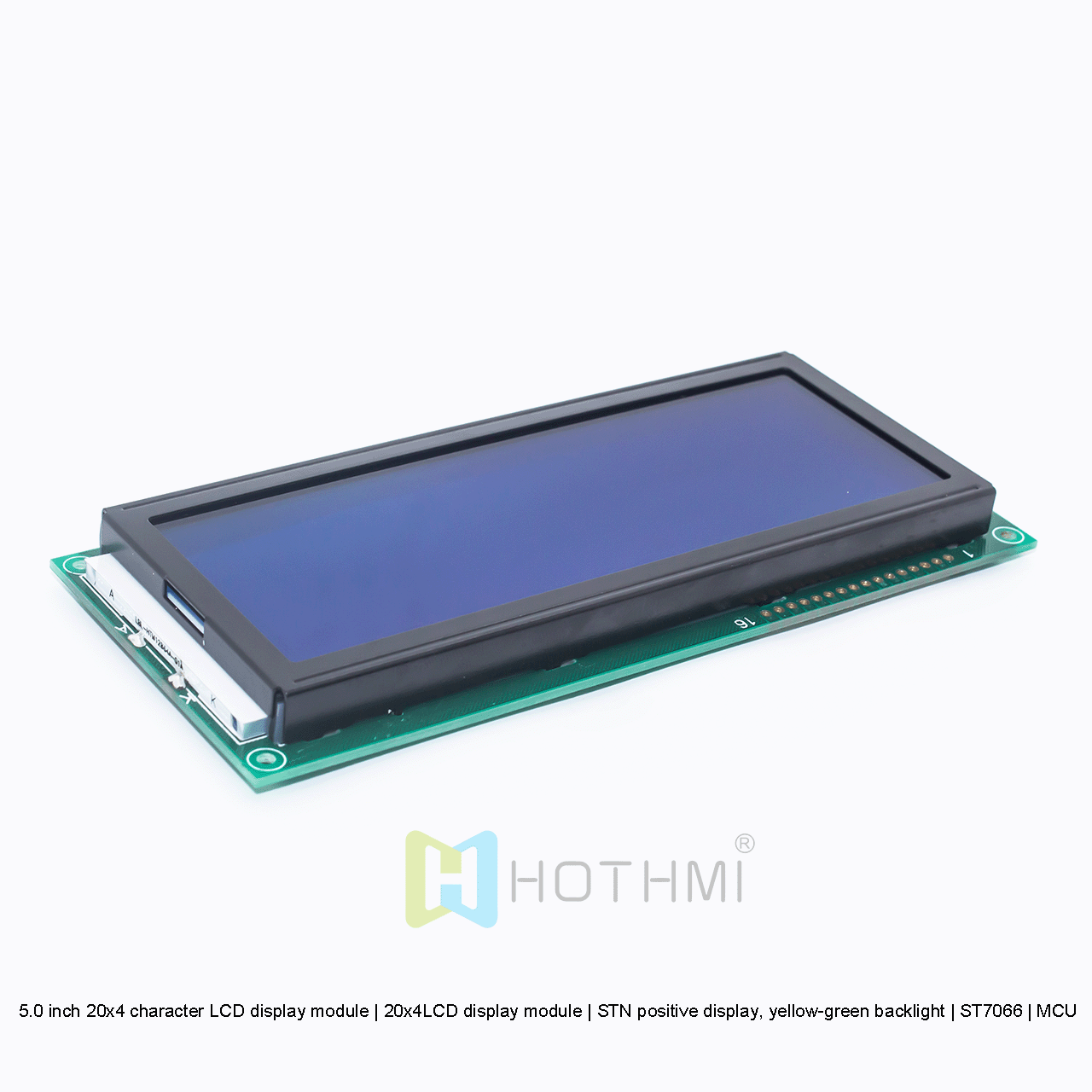

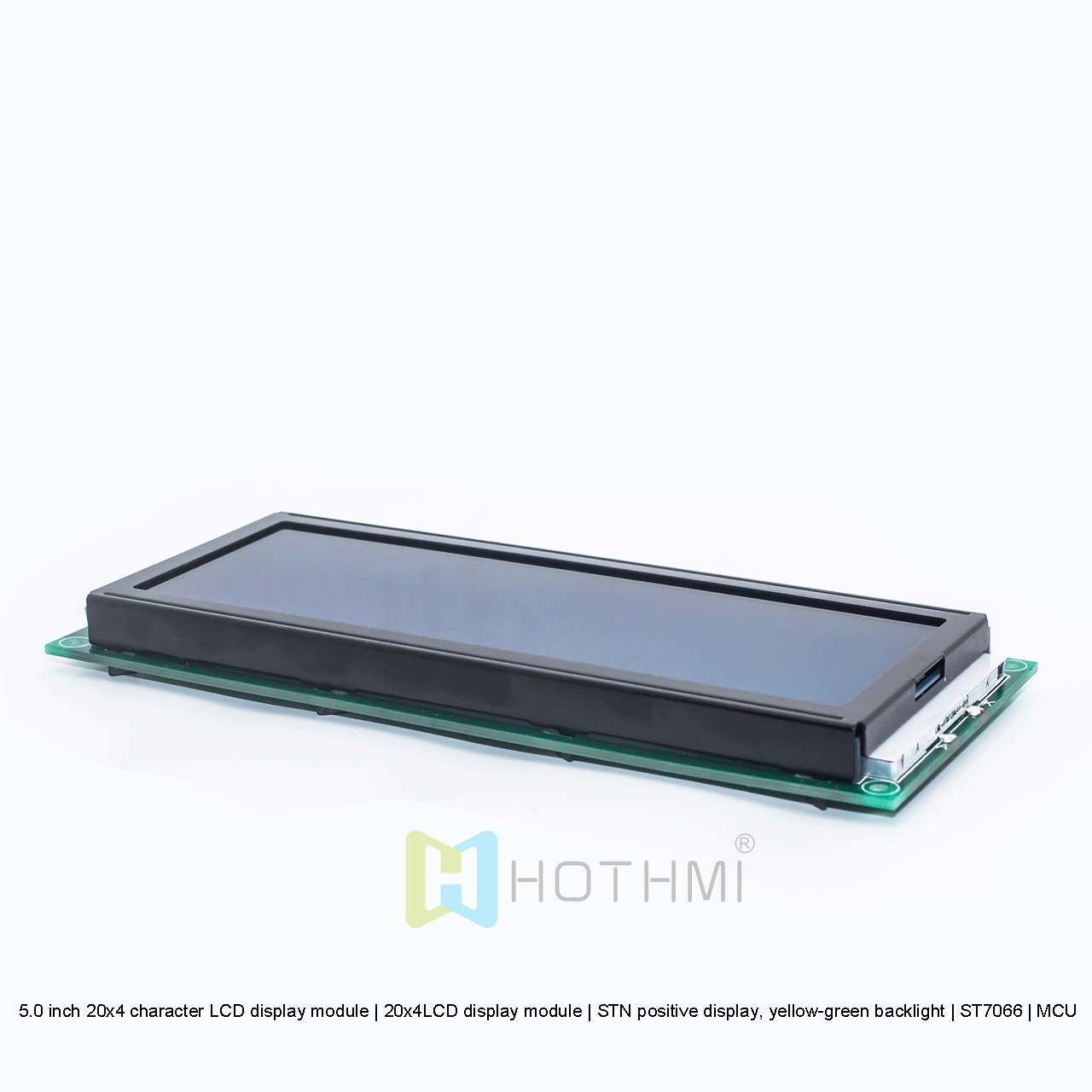

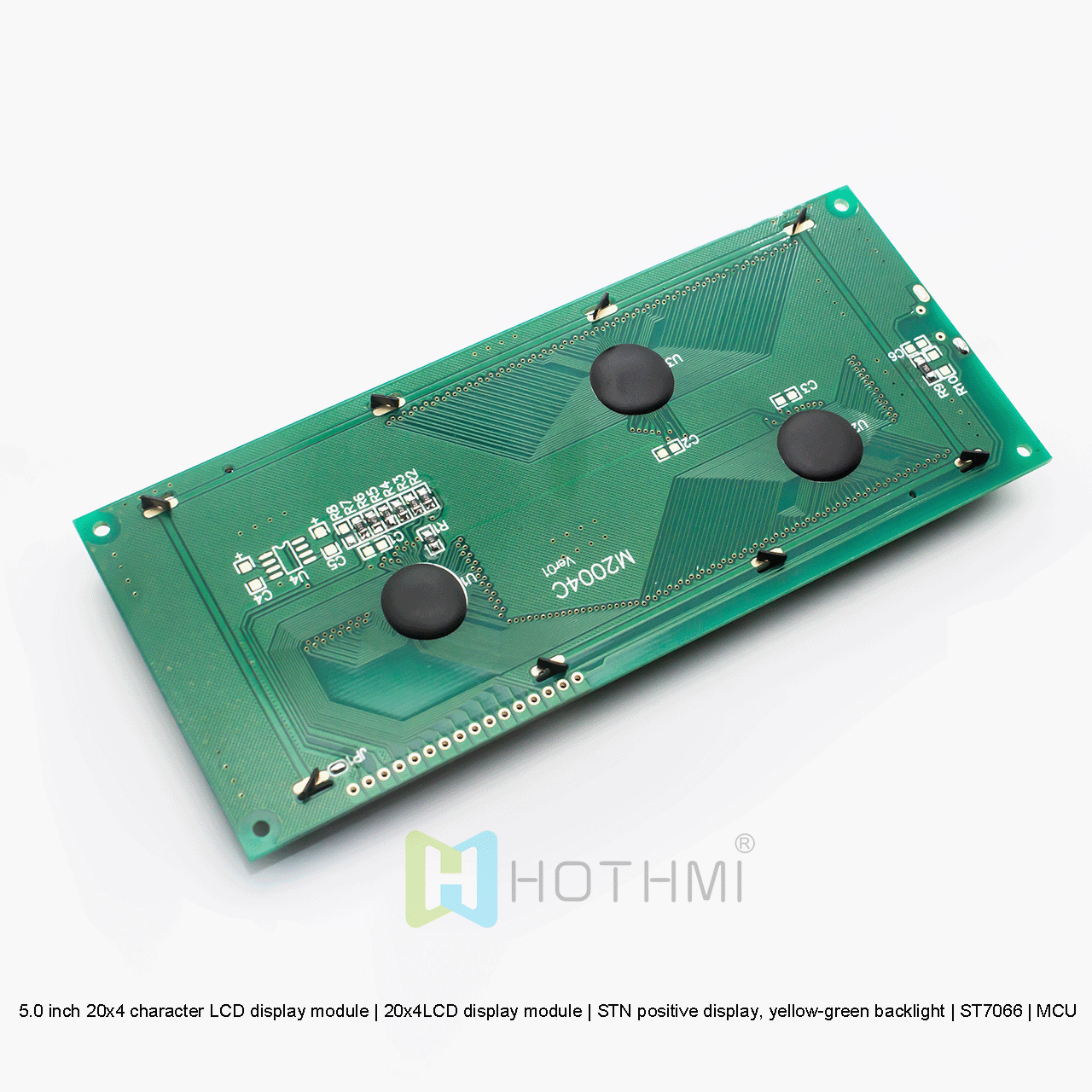

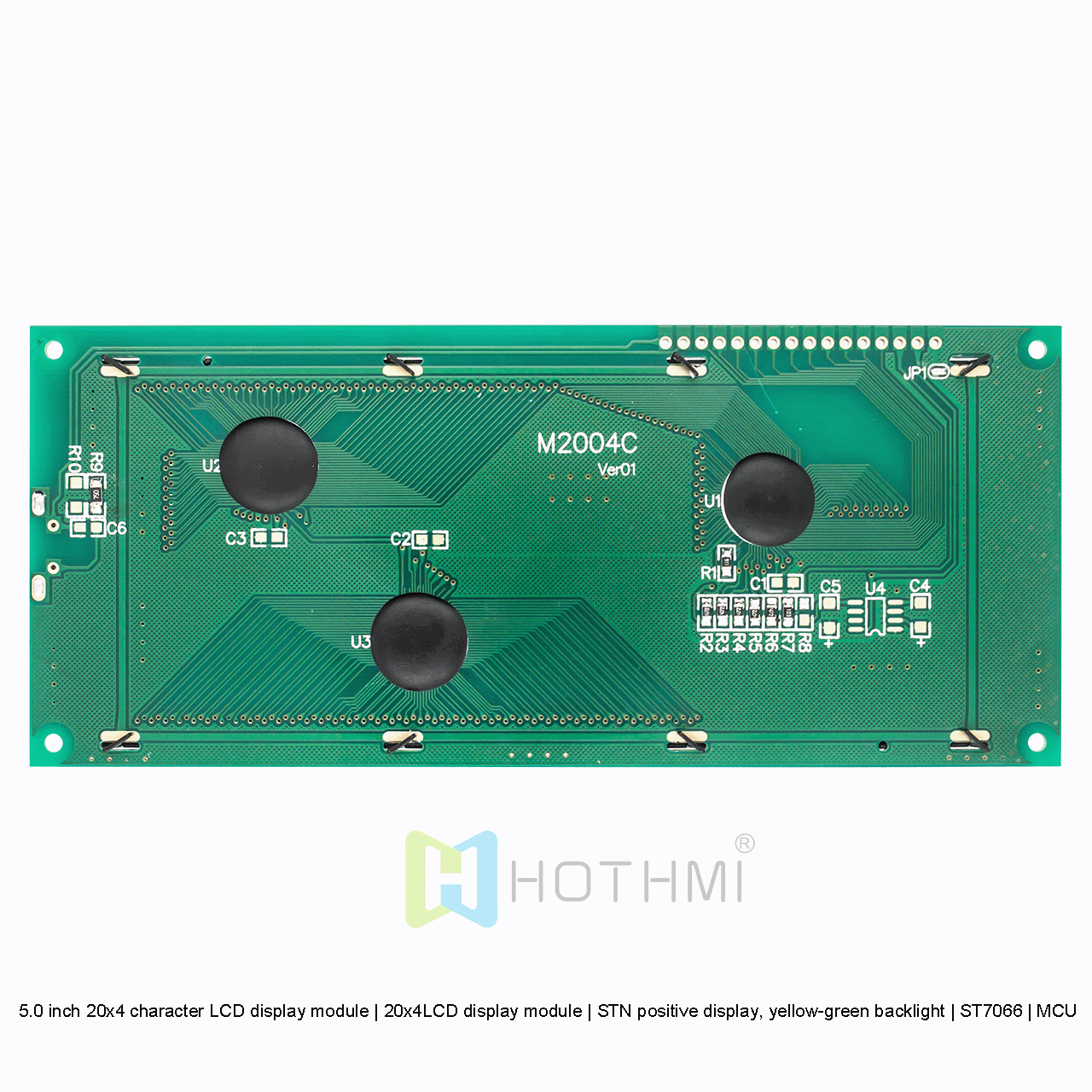

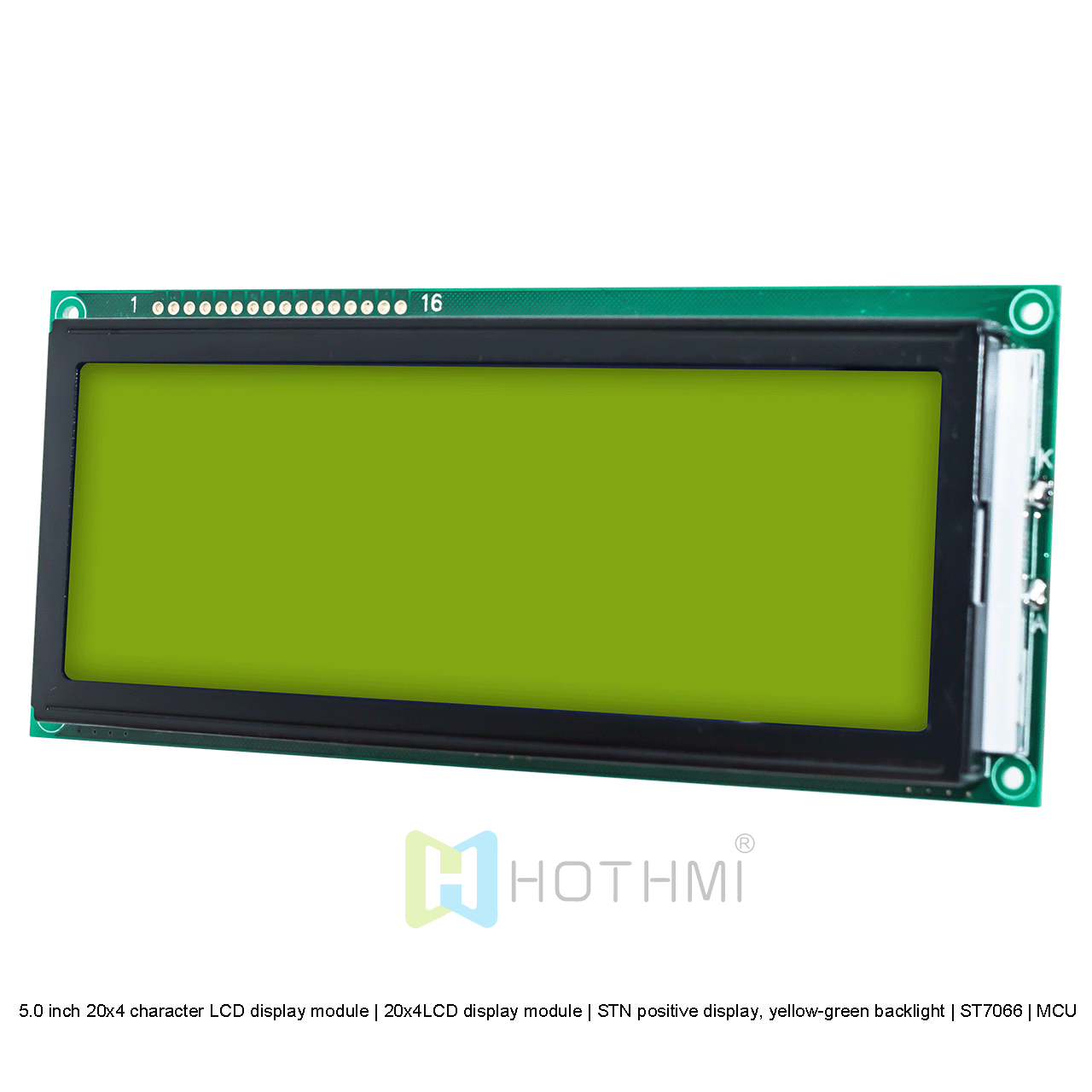

5.0 inch 20x4 character LCD display module | 20x4LCD display module | STN positive display, yellow-green backlight | ST7066

5.0 inch 20x4 character LCD display module | 20x4LCD display module | STN positive display, yellow-green backlight | ST7066 | MCU interface

▶ Model: HTM2004C-01Y-A5P

▶ Product type: standard COB character LCD module
▶ Display content: 20x4 characters

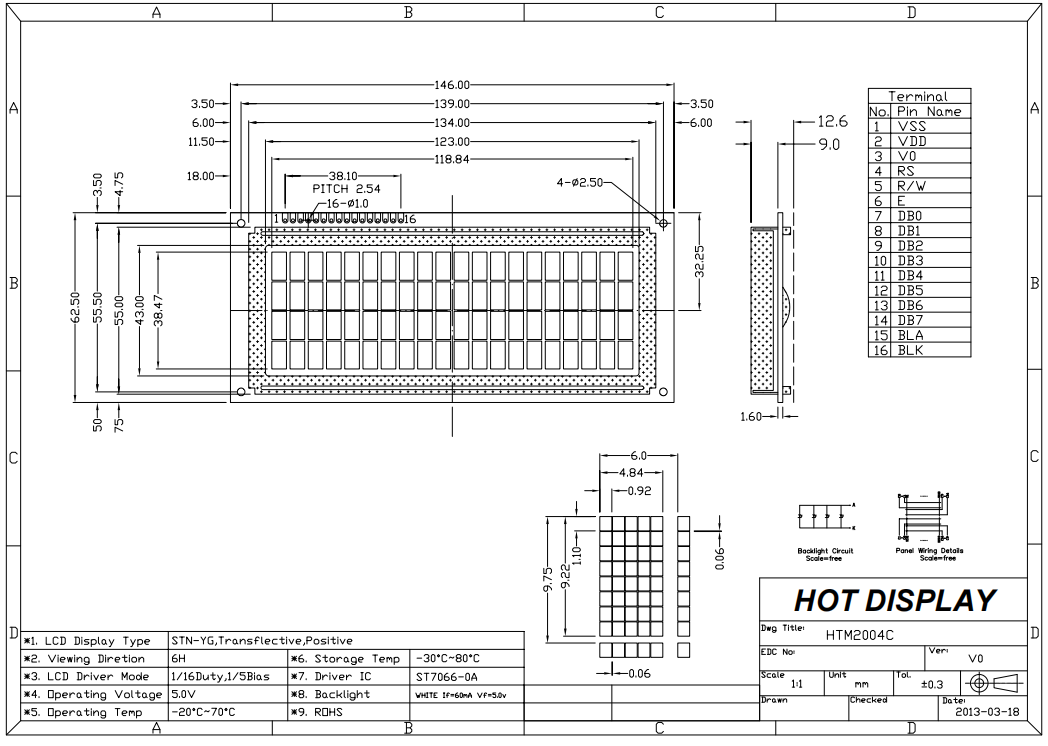

▶ Dimensions (mm): 146X62.5X12.6
▶ Viewing window size (mm): 123X43
▶ Display size (mm): 118.84x38.47
▶ Dot pitch mm: 0.92x1.1
▶ Product application: industrial control
▶ Viewing angle: 6H
▶ Backlight: yellow-green light
▶ Number of PINs: 16PIN
▶ Interface: MCU
▶ Special instructions: Anti-static ESD 8KV
▶ Operating temperature: -20~70℃
▶ Supply voltage: 5.0v
▶ Driver chip: ST7066U
