1.7 inch 128X64 Graphic COG LCD Module | MCU Interface | STN- | White on Blue | 3.3v | ST7565R

1.7 inch 128X64 Graphic COG LCD Module | MCU Interface | STN- | White on Blue | 3.3v | ST7565R | Arduino

▶ Model: HTG12864C9-25W

▶ Type: COG graphics module
▶ Display pixels: 128x64

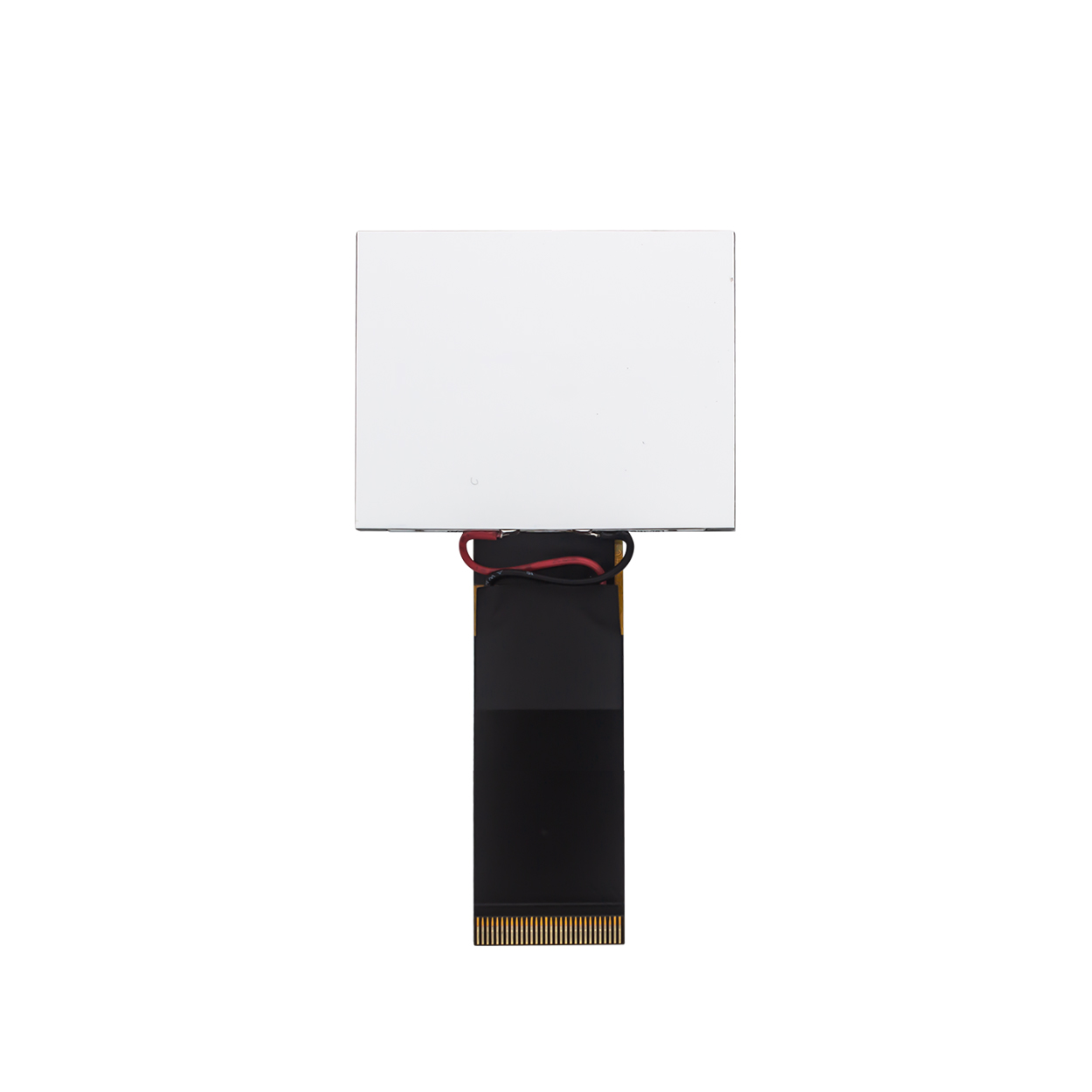

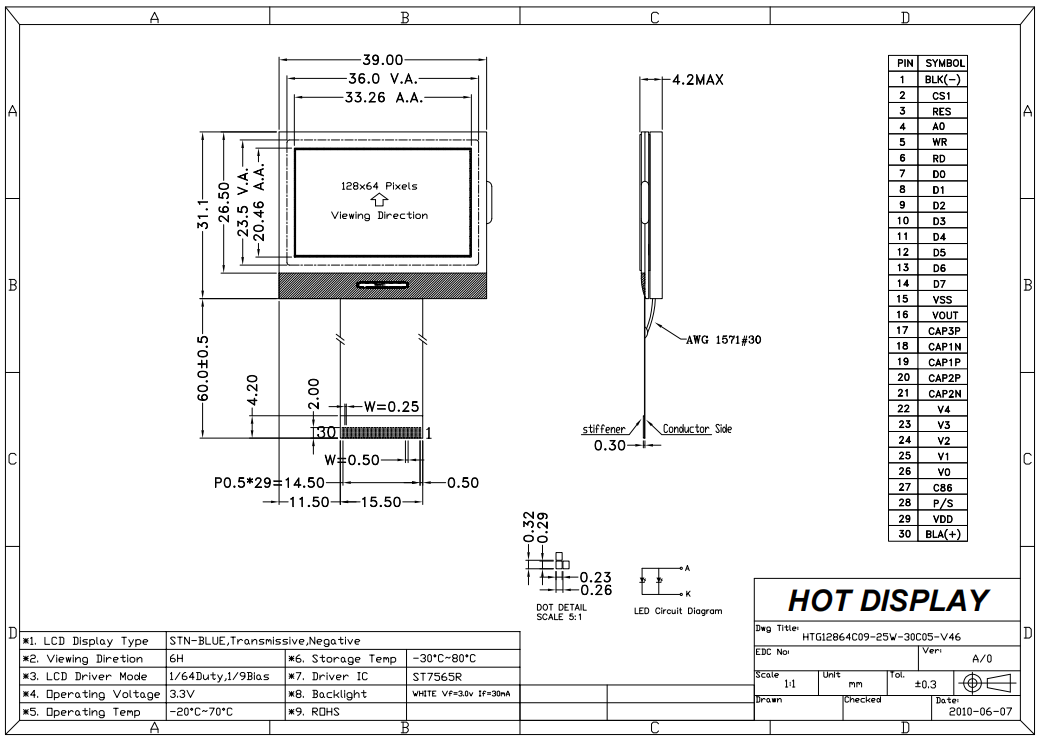

▶ Dimensions (mm): 39.0*31.1*4.2
▶ VA size (mm): 36.0*26.5
▶ AA size (mm): 33.26*20.46
▶ Pixel pitch (mm): 0.32*0.26
▶ Application: Instruments
▶ Viewing angle: 6H
▶ Backlight/brightness: white light
▶ Pin: FPC-30PIN
▶ Interface: MCU
▶ Special instructions: Anti-static ESD 8KV
▶ Operating temperature: -20~70℃
▶ Supply voltage: 3.3V
▶ Driver chip: ST7565R

Product Consultation Datasheets Download Demo Code
- Transportation
- Payment
- Taxes
- Ensure
- Return
- Discontinued
Transportation

Our company cooperates with SF Express for domestic express delivery, and DHL for overseas express delivery. You can contact us to inquire about freight and weight to get the latest quotation.

Payment

Online payment is not supported. Transfers can be made through corporate accounts. If a VAT invoice is issued, please contact our sales staff to obtain a corporate account.

Taxes

All products sold on this website do not include tax. If you need a VAT invoice, please contact our sales staff to purchase offline.

Ensure

All products sold on this website have a one-year warranty. If the product is damaged due to improper use by the customer, it will be repaired free of charge. Material cost will be charged.

Return

Products within the warranty period can be returned for repair or replacement. Before returning, please contact our sales staff to confirm the reason for return.

Discontinued

We are committed to long-term production of all products sold on this website. If the IC or panel is discontinued, we will try our best to replace it with compatible materials.

Prev Back Next

Related Accessories

Monochrome COG/Graphic COB/Character COB/OLED module/E-paper module/Segment screen 8051 test board
Monochrome COG/Graphic COB/Character COB/OLED module/E-paper module/Segment screen STM32 test board
COG Adapter Board

Product Description
Specification
Attributes

1.7 inch 128X64 Graphic COG LCD Module | MCU Interface | STN- | White on Blue | 3.3v | ST7565R | Arduino

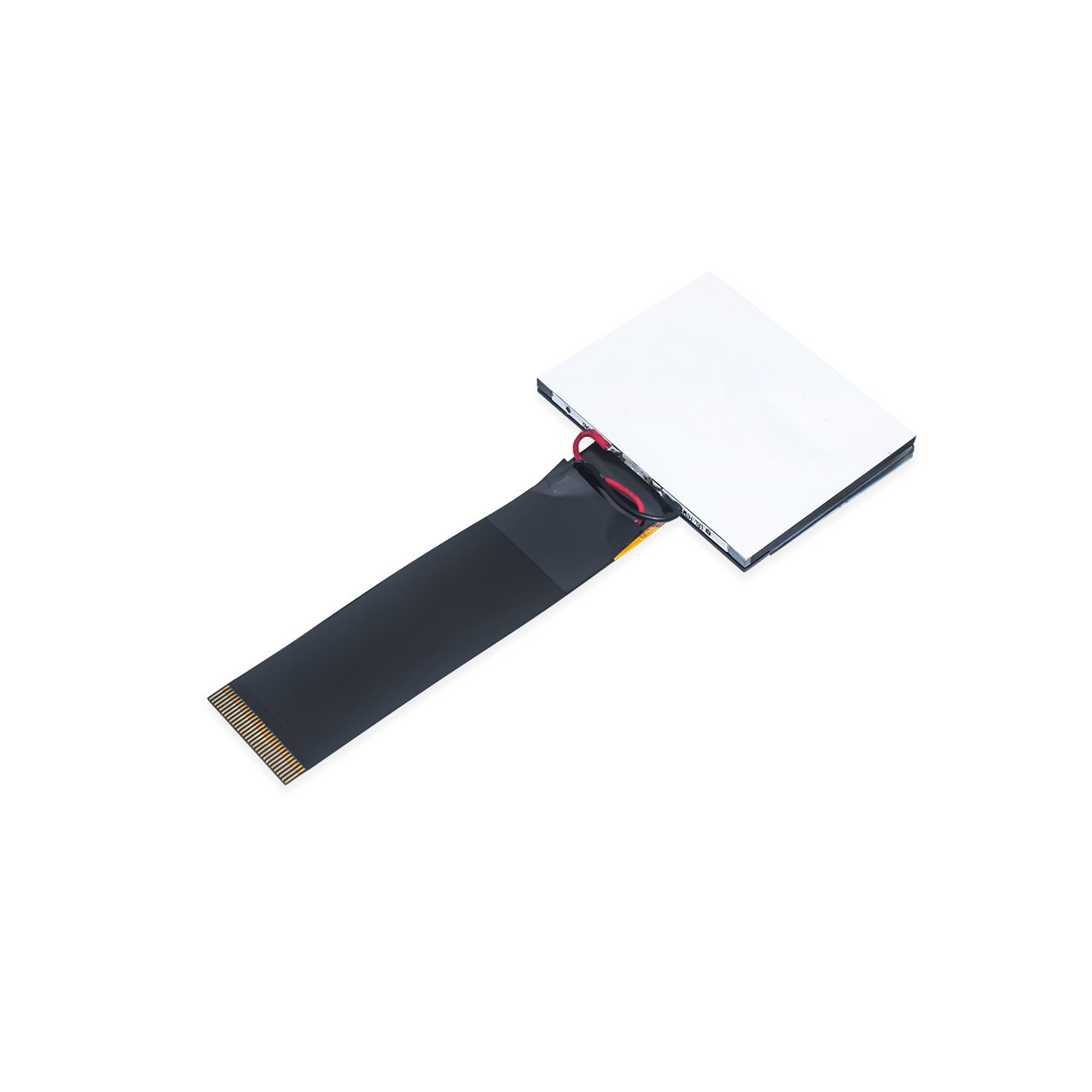

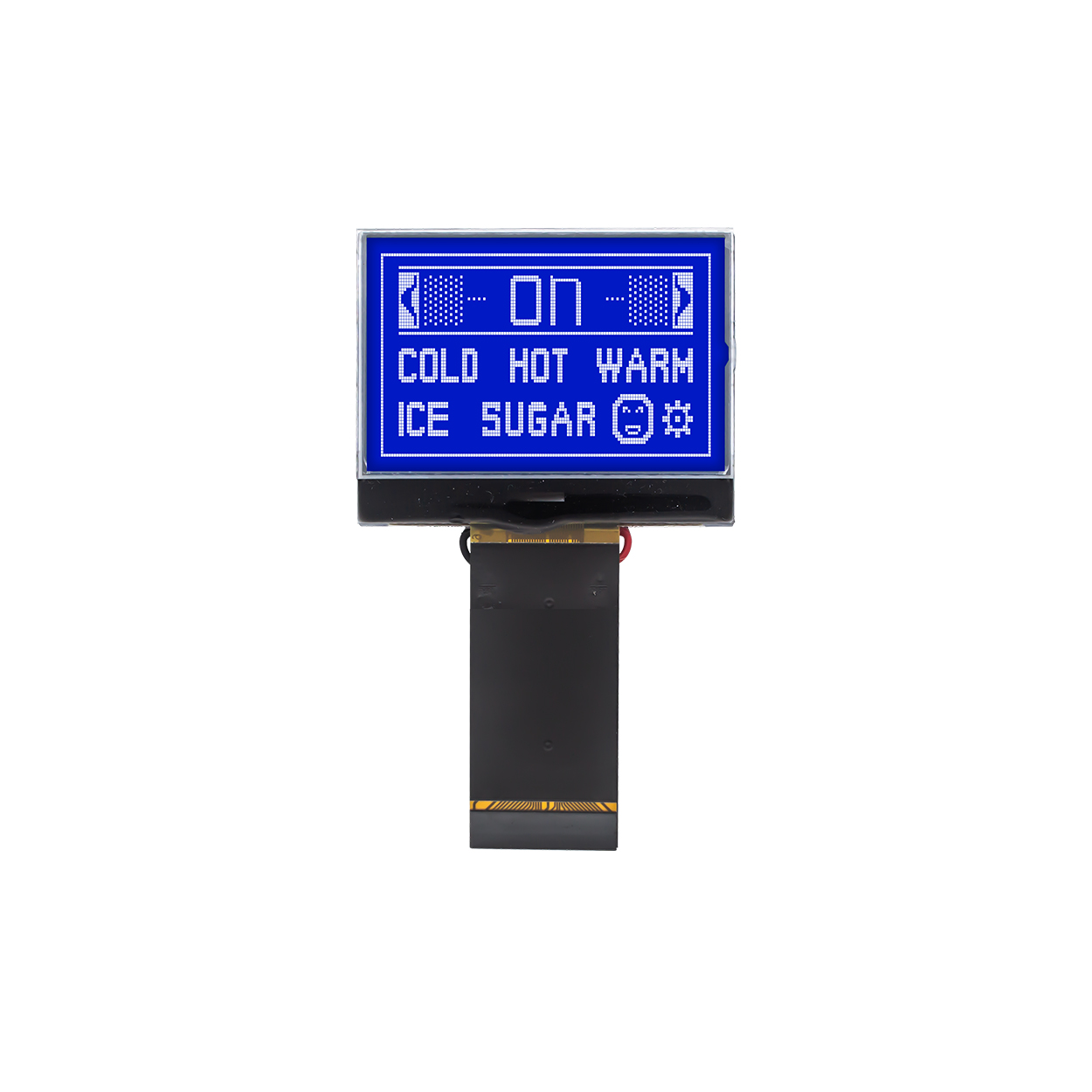

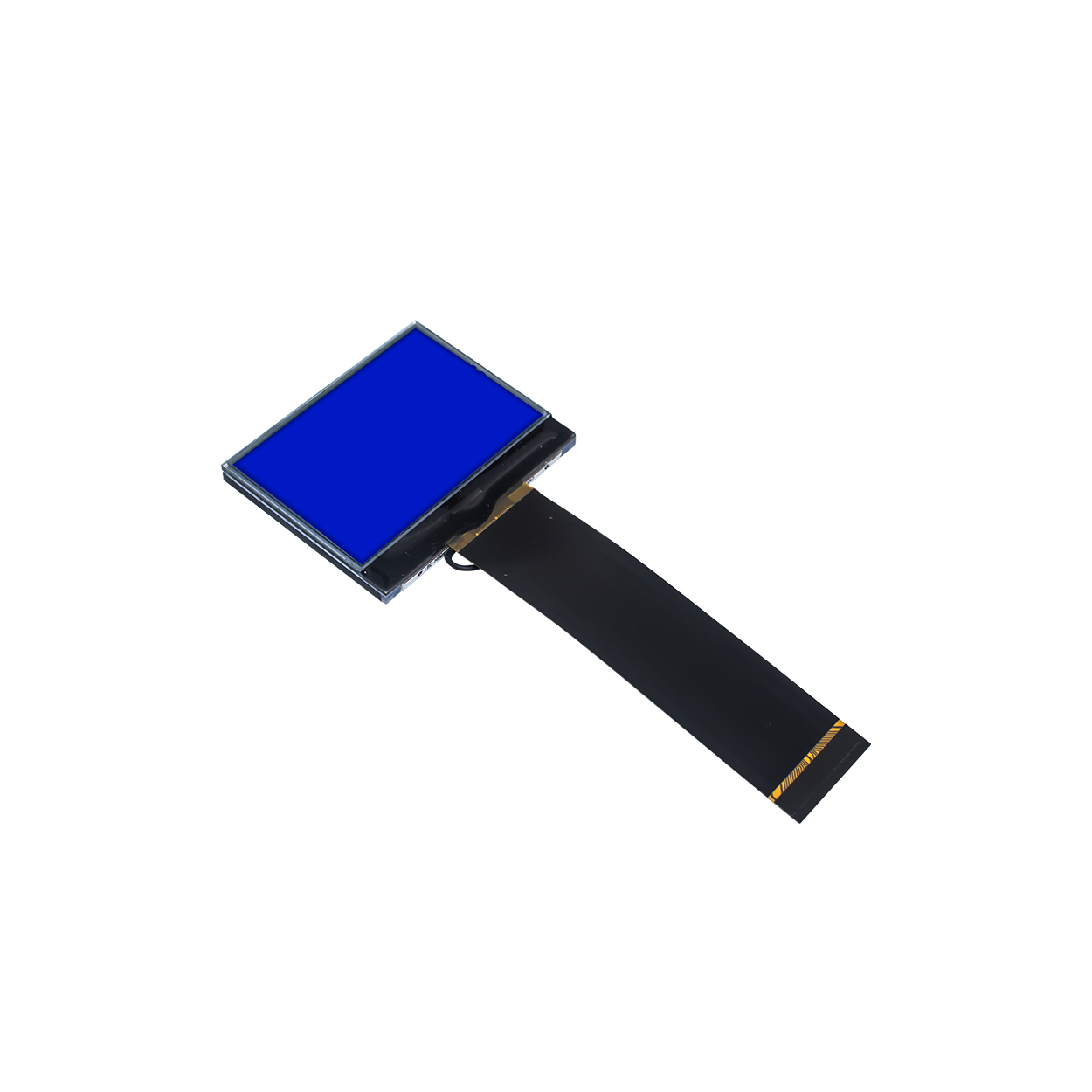

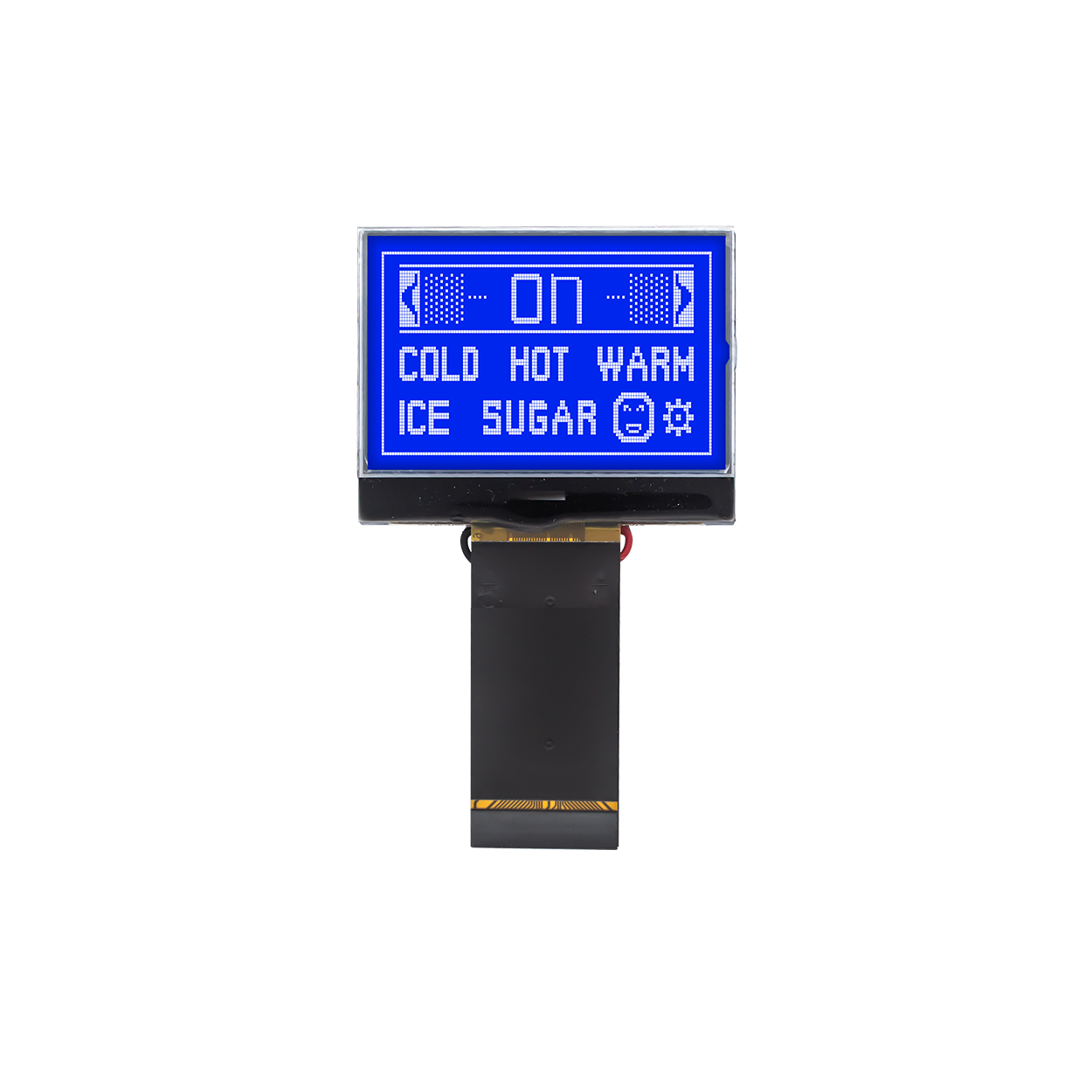

This HOT DISPLAY 128X64 Graphic Glass Chip (COG) LCD Display Module displays white pixels on a blue background. This fully transparent LCD display is designed to provide optimal visibility in a variety of lighting conditions in many different environments. With the full transparency of the polarizer, the backlight is fully transparent, making the screen easy to read. In darker environments, the LCD has a strong backlight built in to provide high contrast and show clear graphics to the viewer. This advanced display technology ensures that the display is always easy to read regardless of the lighting conditions.

This graphic LCD display module is fully compatible with Arduino/C8051 and can be seamlessly connected with other electronic systems for a variety of applications. This model is designed to withstand harsh working conditions and operates abnormally when used in a temperature range of -20 to 70 degrees Celsius. The LCD has an optimal viewing angle of 6:00, operates at 3.3V, and is RoHS compliant.

Custom LCD Size:

Combined with the product structure, determine the required LCD size, screen type, etc. Mold manufacturing, according to the design, manufacture LCD molds, this process requires precise manufacturing technology and equipment. Support customization within 396*345mm.

Customize the number of dots and display icon content:

Supports customization of display content within 640*320 dot matrix, and icon style can be customized according to customer needs.

Backlight color and structure customization:

There are many combinations of module backlight to choose from, without backlight or with yellow-green / blue / white / amber / red / RGB backlight, up to 48 effects to choose from, please click on the customization page for reference.

Customized interface: Provide multiple interface options, SPI \ 8080 \ I2C, etc.

Driver board customization:Supports adjustment of driver board size, component sorting, interface type, etc.

item	Parameter description	unit
Name	HTG12864C9-25W
Number of dots	128 x 64	dots
Module size	39.0（W） × 31.1 （H） × 4.2 （T）	mm
Visual (VA) area	36.0 x 26.5	mm
Effective (AA) area	33.26（W） × 20.46（H）	mm
Dot (pixel) spacing	0.32（W） × 0.26（H）mm	mm
IC	ST7565R
Power supply voltage	3.3V	V
Backlight	white
Display mode	STN(-)
Drive mode (Duty)	1/64 duty cycle
Type	Graphic LCD
Features	Transmissive
