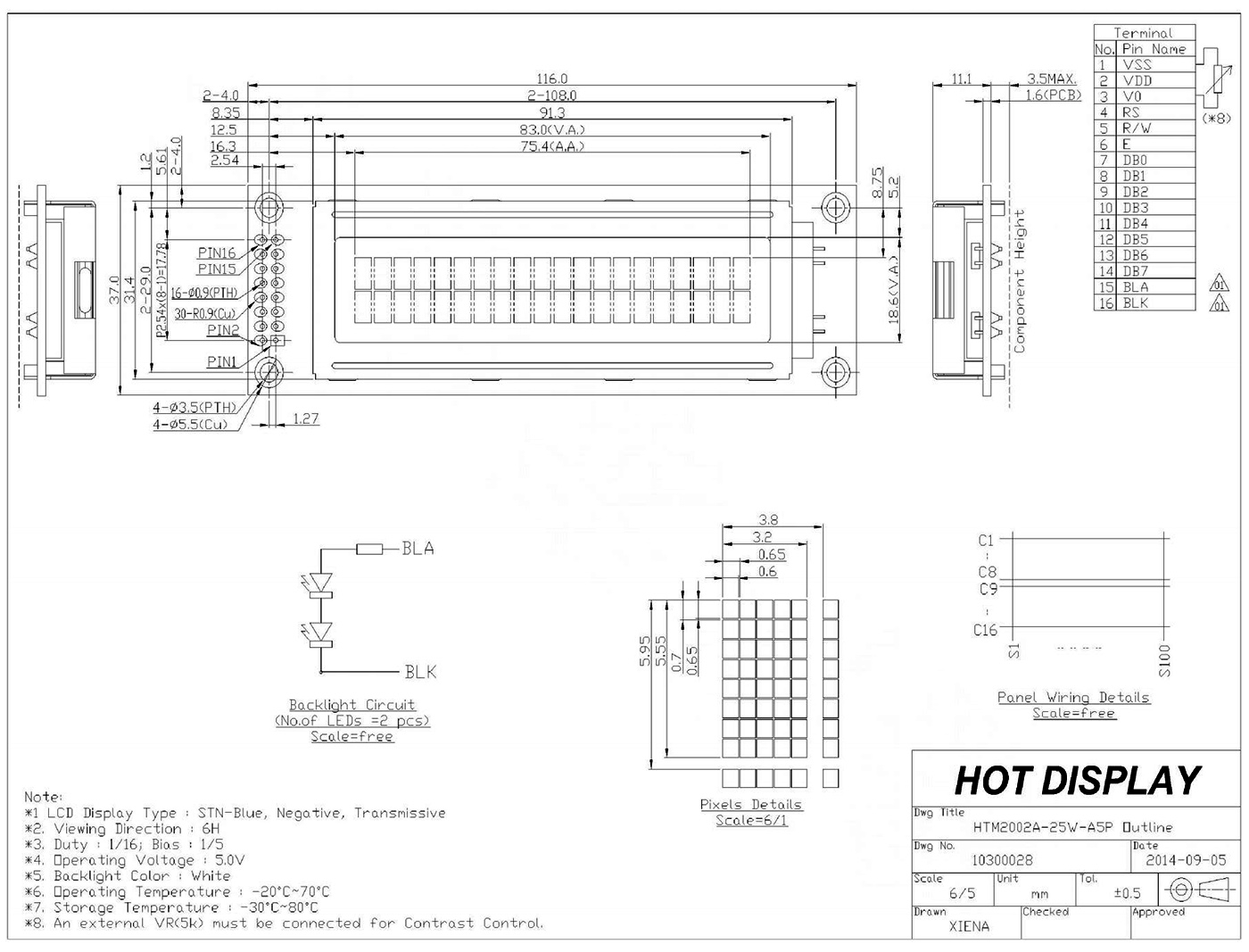

HTM2002A-25W-A5P | 2x20 Characters | MCU Interface | Transmissive LCD | White Backlight | STN (-) Negative Blue Display | Arduino display
The HOTDISPLAY 2x20 character LCD display is a transmissive LCD screen primarily designed for embedded systems, DIY electronic projects, and educational purposes. Here are detailed specifications about the display:
Display Output:
Upon startup, the display shows characters on a blue background with white pixels. This initial configuration is likely the default state and can be adjusted through corresponding driver settings.
LCD Display Principle:
As a transmissive LCD display, it controls the transparency of liquid crystals to modulate the passage of light, forming images. The screen requires a backlight to ensure visibility of pixels.
Operating Temperature Range:
It offers a wide operating temperature range, from -20 degrees Celsius to 70 degrees Celsius, making it suitable for various environmental conditions.
Serial Interface and Arduino/C8051 Compatibility:
Equipped with a serial interface, it is fully compatible with embedded systems like Arduino, providing convenience for DIY electronic projects.
Optimal Viewing Time:
The recommended optimal viewing time is 6:00, possibly indicating the best display performance during daylight or specific lighting conditions.
Operating Power Supply Voltage:
Requires a 5V power supply, conforming to the standard voltage for common embedded systems and Arduino-based electronic projects.
RoHS Compliance:
Compliant with RoHS standards, ensuring that the product adheres to environmental regulations.
If you encounter specific issues during usage or have additional requirements, please specify, and I will do my best to provide further assistance.
Connector Customization: Easily modify any connectors on your display to meet your application’s requirements. Our engineers are able to perform soldering for pin headers, boxed headers, right angle headers, and any other connectors your display may require. |

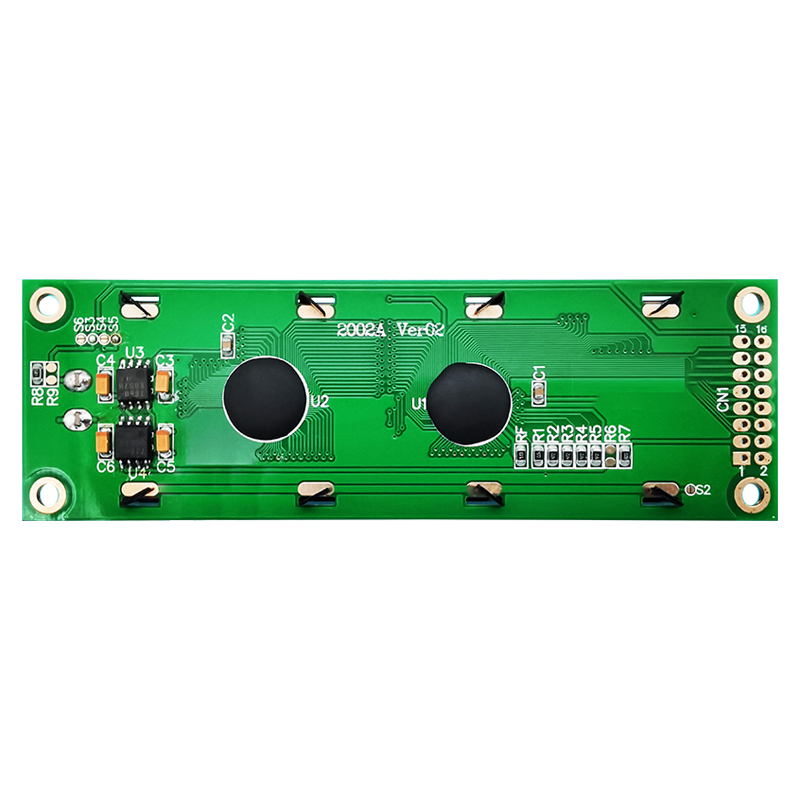

PCB Modifications: Choose from a variety of changes to the PCB's shape, size, pinout, and component layout to make it perfect for your application. |
Backlight color customization: The module backlight has a variety of combinations to choose from, without backlight or with yellow-green/blue/white/amber/red/RGB backlight options. There are 48 effects. You can click on the customization page for reference. |
Font library customization: Provides a variety of font libraries, including English/Japanese, Western Europe, Eastern Europe, Scandinavian Europe, Cyrillic (Russian), Hebrew/Arabic, etc. |
Cable Customization: Adjust the length, position, and pinout of your cables or add additional connectors. Get a cable solution that’s precisely designed to make your connections streamlined and secure. |
