3" 128 x 64 LCD Graphic Display | 128x64 Graphic LCD Module | STN Positive Display Yellow-Green Backlight

3" 128 x 64 LCD Graphic Display | 128x64 Graphic LCD Module | STN Positive Display Yellow-Green Backlight

▶ Model: HTM12864H-01Y-A5P

▶ Type: Standard COB LCD module
▶ Display pixels: 128x64

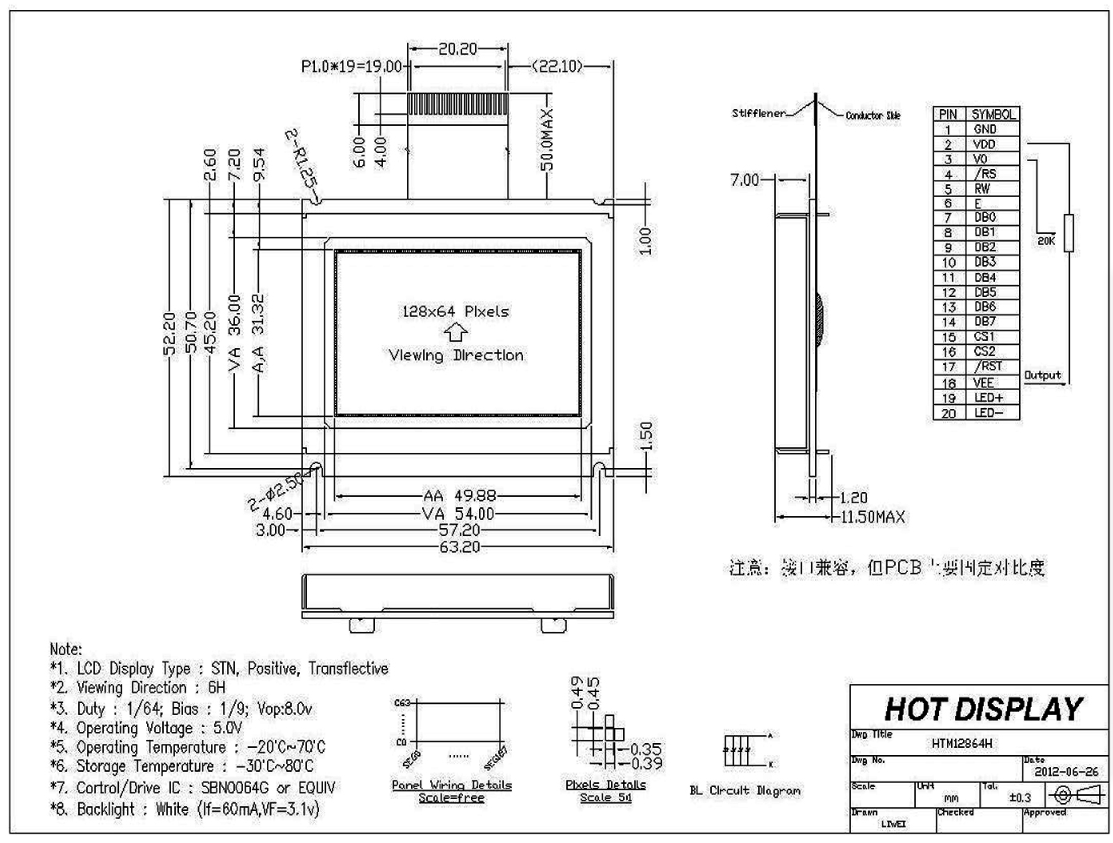

▶ Overall dimensions (mm): 63.0x52.2x11.5
▶ VA size (mm): 54.0x36.0
▶ AA size (mm): 49.88x31.32
▶ Point spacing mm: 0.38x0.34
▶ Application: Instrumentation
▶ Viewing angle: 6H
▶ Backlight/brightness: yellow-green light

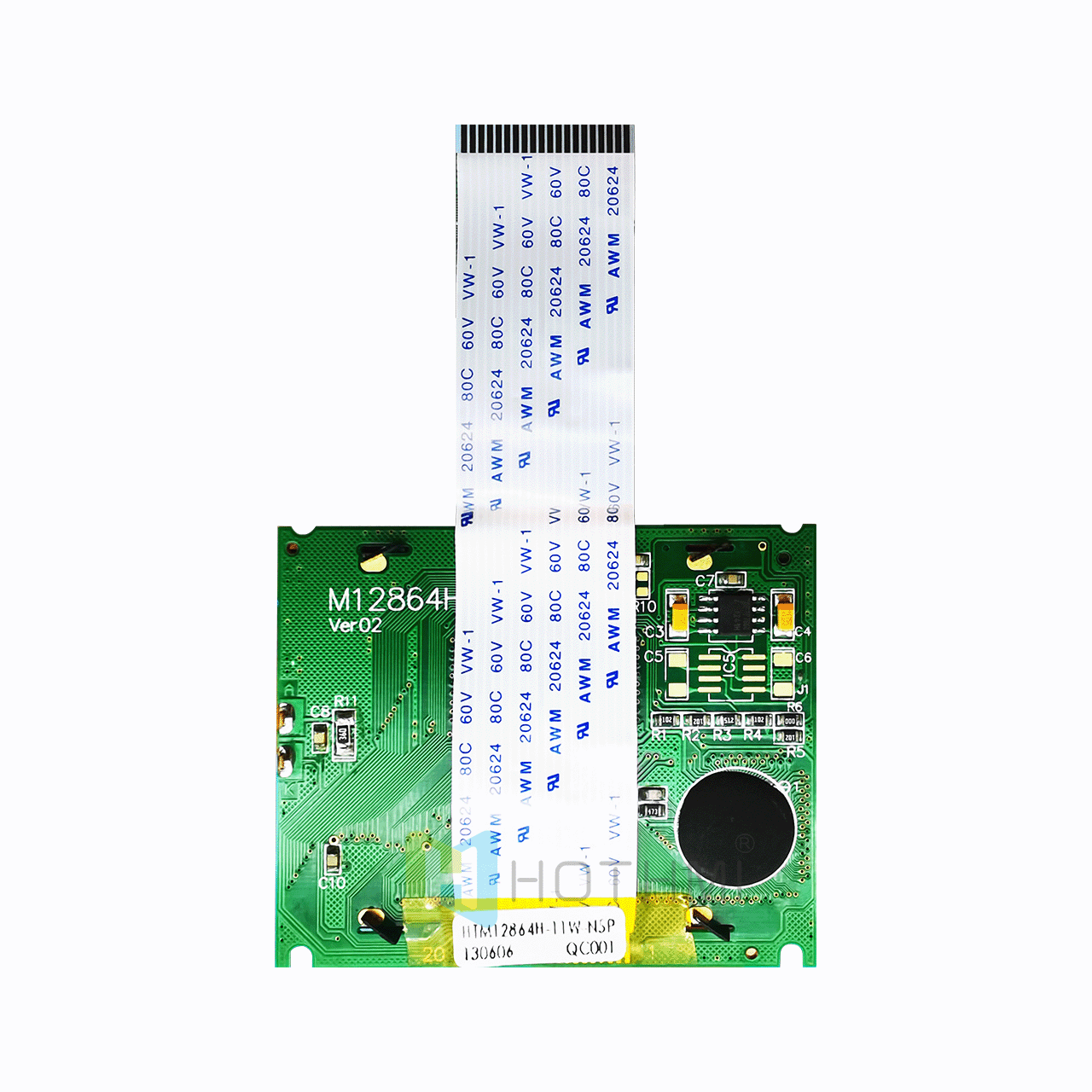

▶ Pin: FFC-20PIN
▶ Interface mode: MCU
▶ Special instructions: Anti-static ESD 8KV
▶ Working temperature: -20~70℃
▶ Supply voltage: 5.0V
▶ Driver chip: SBN0064G

Product Consultation Datasheets Download Demo Code
- Transportation
- Payment
- Taxes
- Ensure
- Return
- Discontinued
Transportation

Our company cooperates with SF Express for domestic express delivery, and DHL for overseas express delivery. You can contact us to inquire about freight and weight to get the latest quotation.

Payment

Online payment is not supported. Transfers can be made through corporate accounts. If a VAT invoice is issued, please contact our sales staff to obtain a corporate account.

Taxes

All products sold on this website do not include tax. If you need a VAT invoice, please contact our sales staff to purchase offline.

Ensure

All products sold on this website have a one-year warranty. If the product is damaged due to improper use by the customer, it will be repaired free of charge. Material cost will be charged.

Return

Products within the warranty period can be returned for repair or replacement. Before returning, please contact our sales staff to confirm the reason for return.

Discontinued

We are committed to long-term production of all products sold on this website. If the IC or panel is discontinued, we will try our best to replace it with compatible materials.

Prev Back Next

Related Accessories

Arduino adapter board/suitable for Arduino development board COB/character/graphic dot matrix
Single Row Pin Header Connector
COB 20-pin cable base/character/graphic dot matrix

Product Description
Specification
Attributes

3" 128 x 64 LCD Graphic Display | 128x64 Graphic LCD Module | STN Positive Display Yellow-Green Backlight

3" 128 x 64 LCD Graphic Display with yellow-green background, with 128x64 monochrome dark grey pixels, SBN0064G controller is very common and well documented, 6800 8-bit parallel interface, contains single LED backlight in yellow-green, easily dimmed with resistor or PWM, stn-lcd positive, wide operating temperature range, ROHS compliant, compact size. Optional 3.3v or 5v power supply and optional pin header connection.

It is easily controlled by MCUs such as 8051, PIC, AVR, ARDUINO, ARM and Raspberry Pi. It can be used in any embedded system, industrial equipment, security, medical and handheld devices.

Connector Customization:

Easily modify any connectors on your display to meet your application’s requirements. Our engineers are able to perform soldering for pin headers, boxed headers, right angle headers, and any other connectors your display may require.

PCB Modifications:

Choose from a variety of changes to the PCB's shape, size, pinout, and component layout to make it perfect for your application.

Backlight color customization:

The module backlight has a variety of combinations to choose from, without backlight or with yellow-green/blue/white/amber/red/RGB backlight options. There are 48 effects. You can click on the customization page for reference.

Font library customization:

Provides a variety of font libraries, including English/Japanese, Western Europe, Eastern Europe, Scandinavian Europe, Cyrillic (Russian), Hebrew/Arabic, etc.

Cable Customization:

Adjust the length, position, and pinout of your cables or add additional connectors. Get a cable solution that’s precisely designed to make your connections streamlined and secure.

item	Specification	Unit
Model	HTM12864H-01Y-A5P
Column × Row	128 columns × 64 rows	dots
Module size	63.0 x 52.2 x 11.5 (MAX)	mm
Visual (VA) area	54.0 x 36.0	mm
Effective (AA) area	49.88 x 31.2	mm
Dot (pixel) spacing	0.38 x 0.34	mm
IC	SBN0064G
Power supply voltage	5V	V
Backlight	yellow-green
Mode	STN(+)
Drive mode (Duty)	1/64 duty cycle
Type	Graphic LCD
Features	Transflective
