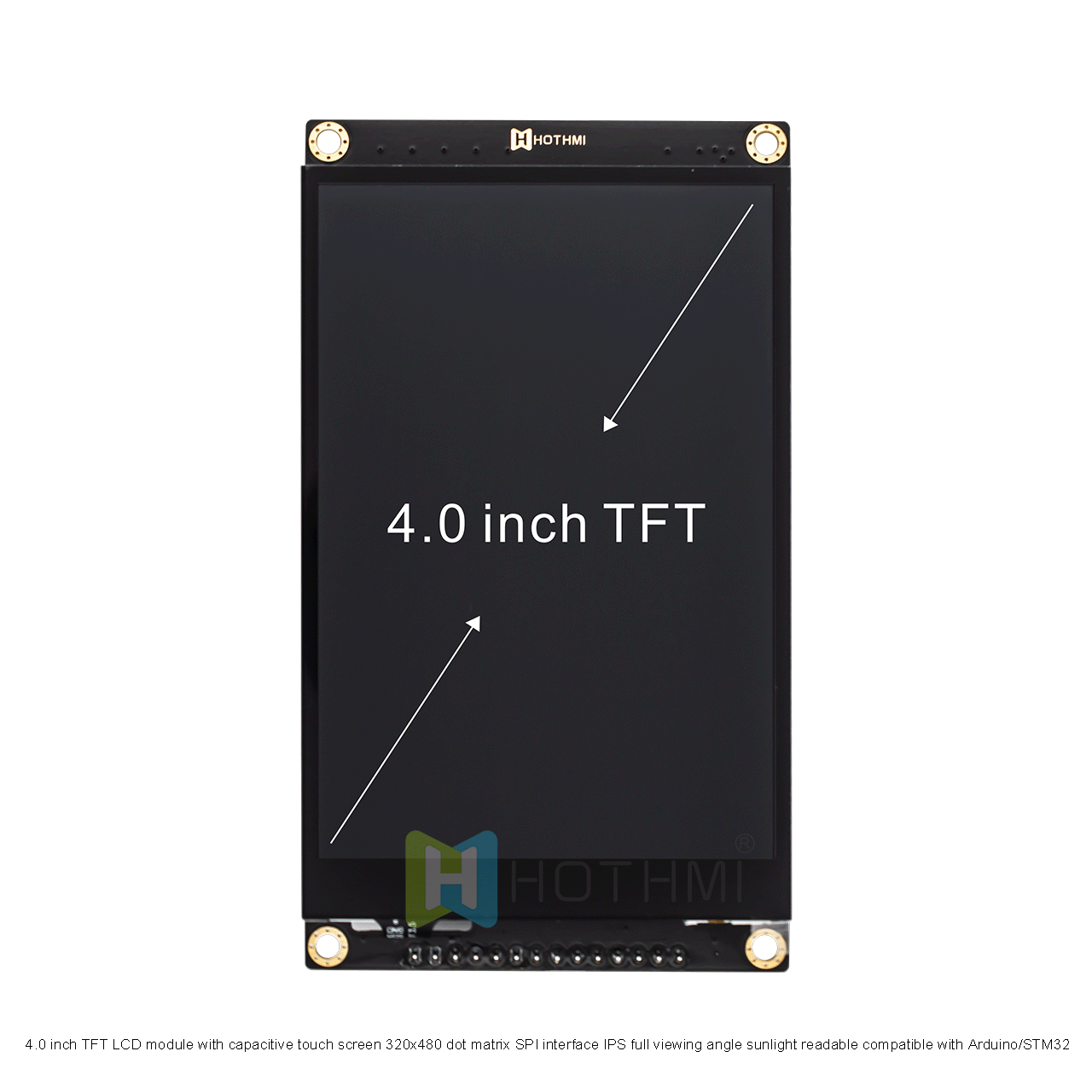

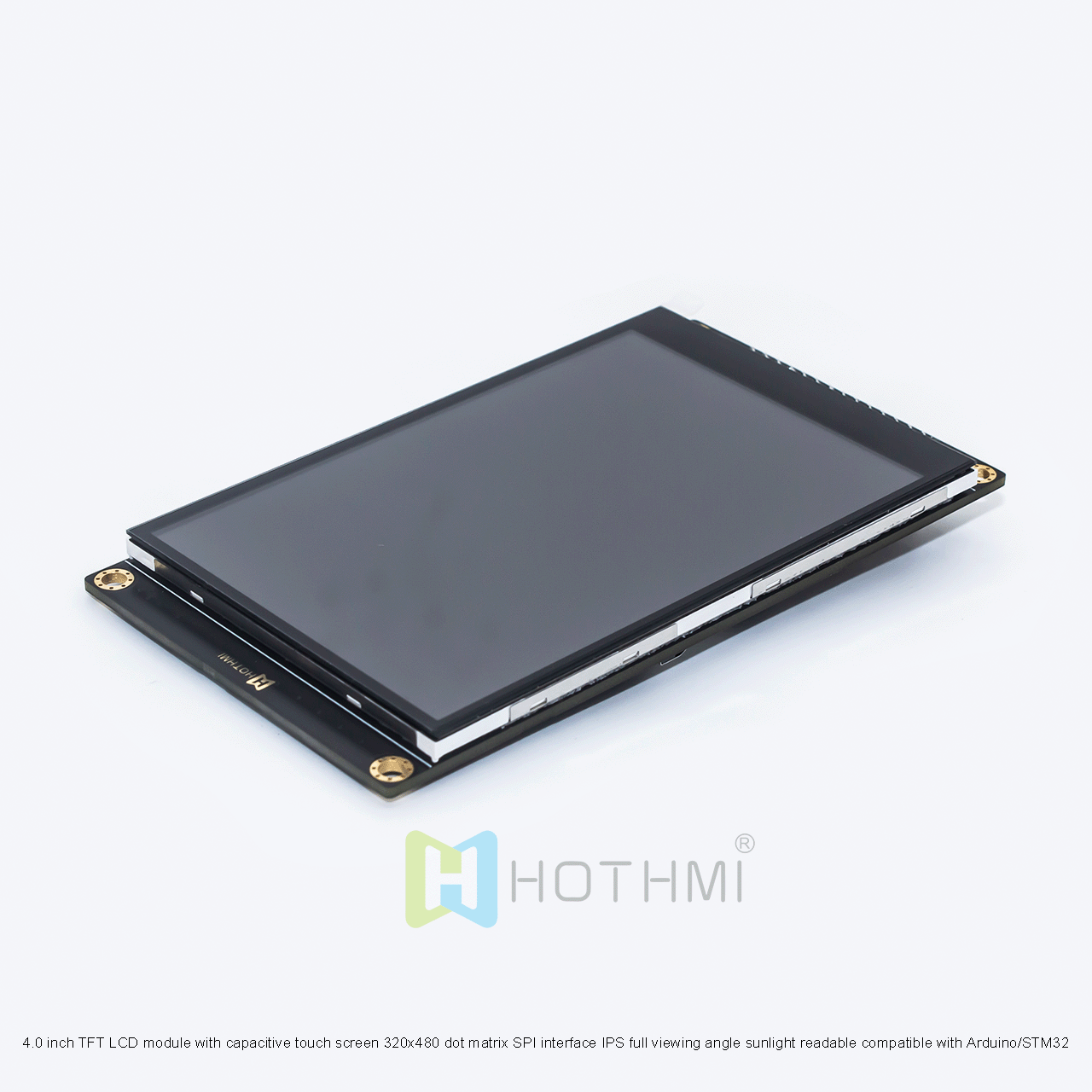

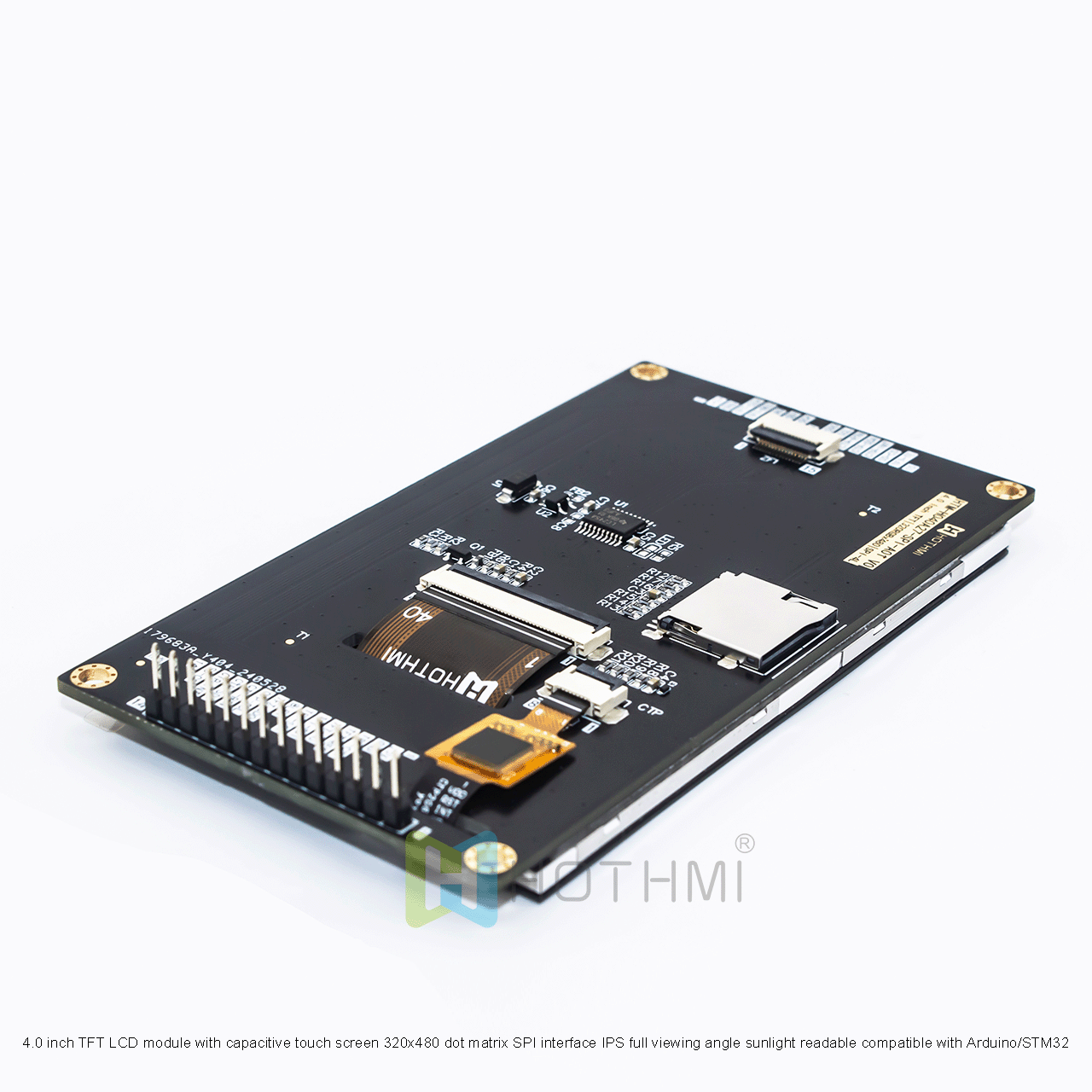

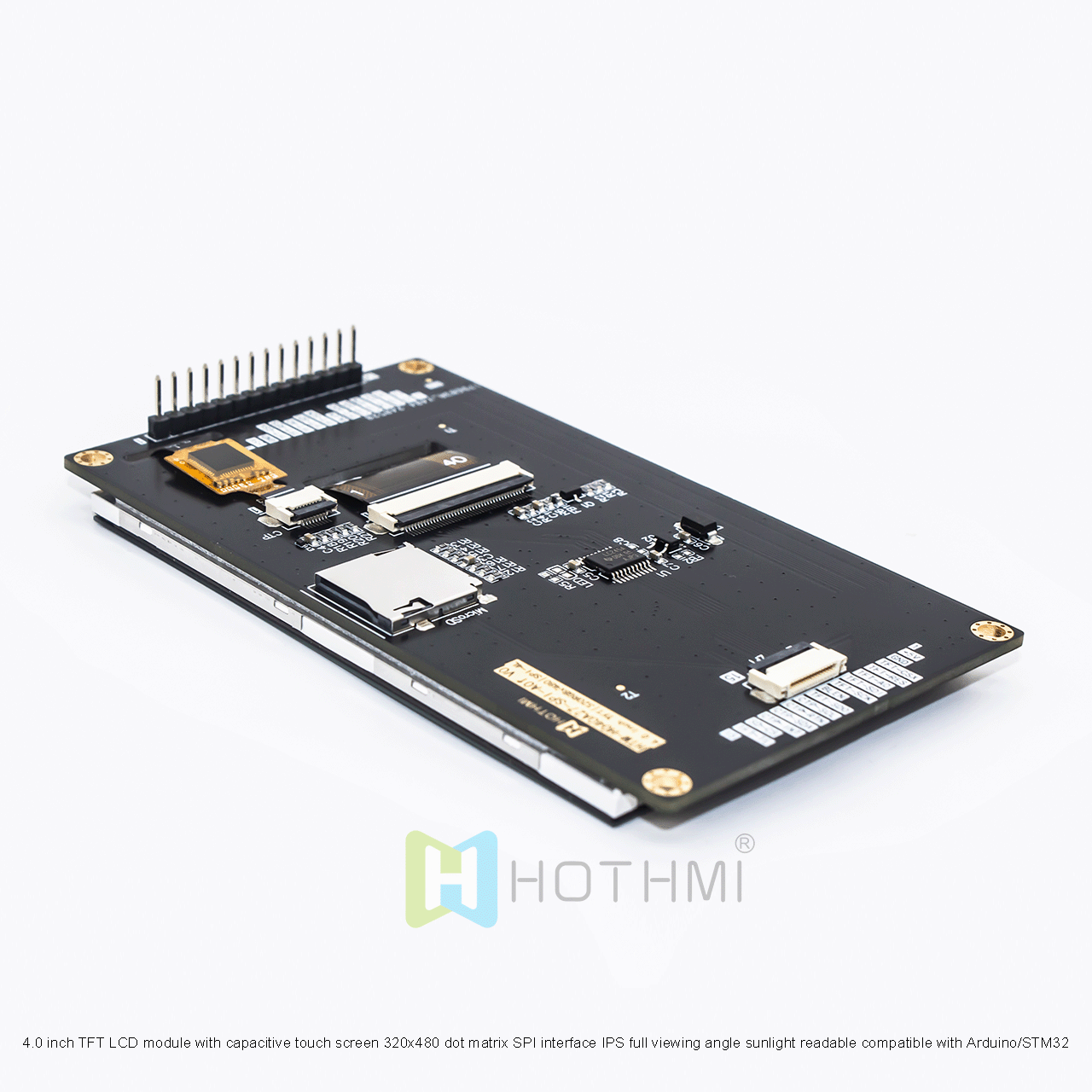

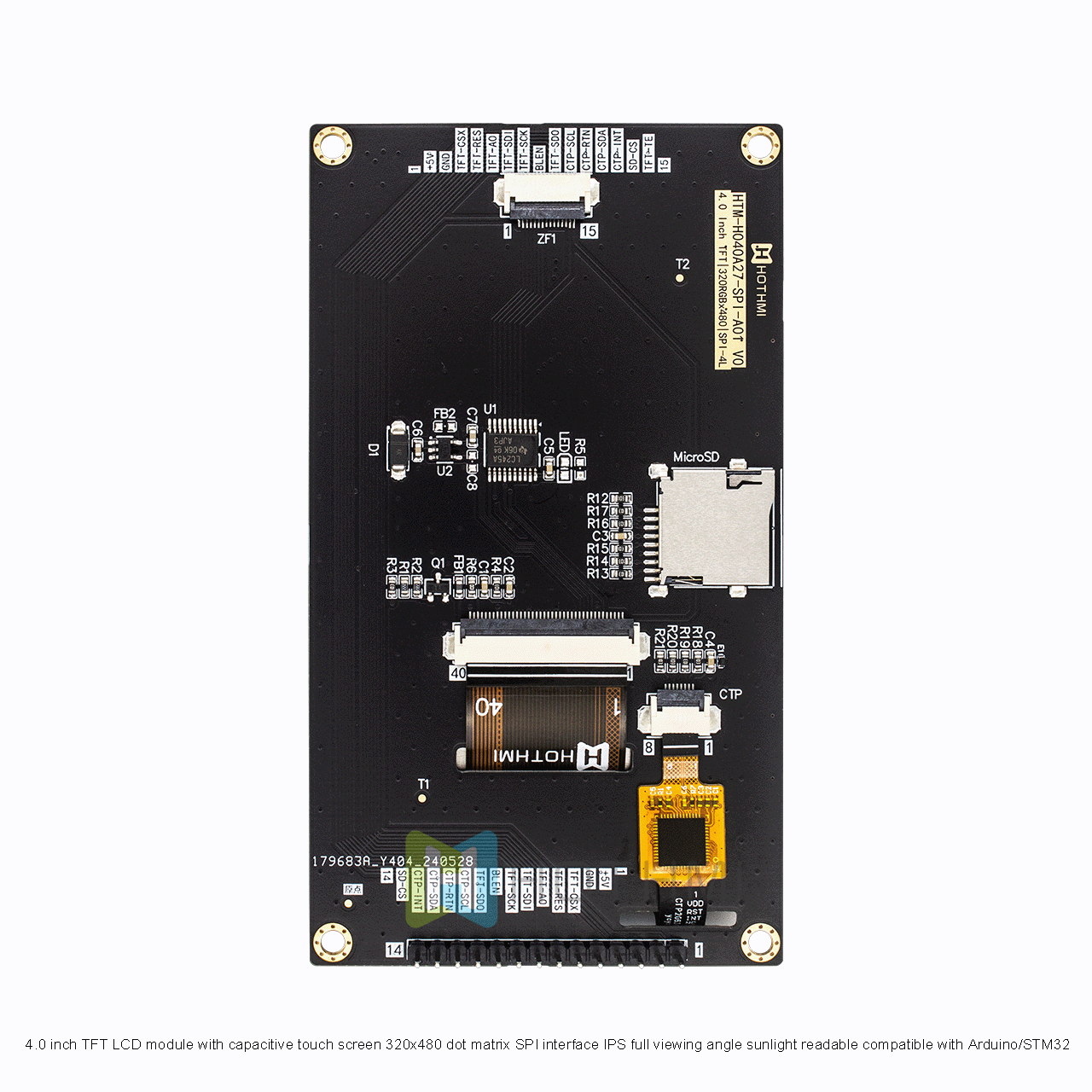

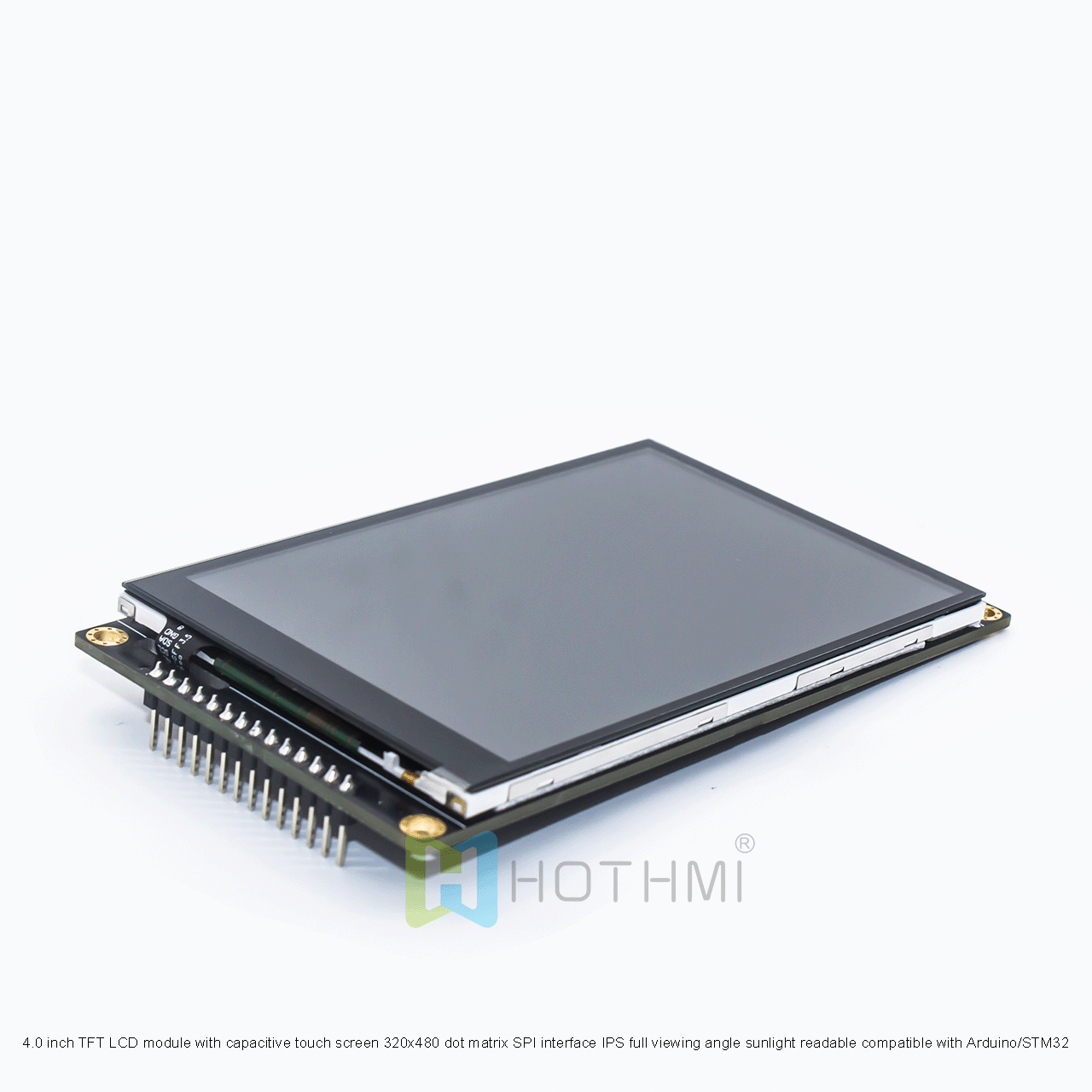

4.0 inch TFT LCD module with capacitive touch screen 320x480 dot matrix SPI interface IPS full viewing angle sunlight readable compatible with Arduino/STM32

4.0 inch TFT LCD module with capacitive touch screen 320x480 dot matrix SPI interface IPS full viewing angle sunlight readable compatible with Arduino/STM32

▶ Model: HTM-H040A27-SPI-A01C

▶ Type: TFT strip LCD module
▶ Display pixel: 320x480 dot matrix
▶ External dimensions (mm): 60.88x108.0x6.3
▶ Display inches: 4.0"
▶ Effective size (mm): 55.68x83.52
▶ Application: handheld devices, instruments and meters
▶ Visual angle: IPS (U80/D80/L80/R80)
▶ Brightness: 450cd/m2
▶ Pin: FPC-15PIN
▶ Interface: SPI
▶ Special reminder: Anti static ESD 8KV
▶ Working temperature: -30~80 ℃
▶ Power supply voltage: 3.3V
▶ Driver chip: ST7796

Product Consultation Datasheets Download Demo Code
- Transportation
- Payment
- Taxes
- Ensure
- Return
- Discontinued
Transportation

Our company cooperates with SF Express for domestic express delivery, and DHL for overseas express delivery. You can contact us to inquire about freight and weight to get the latest quotation.

Payment

Online payment is not supported. Transfers can be made through corporate accounts. If a VAT invoice is issued, please contact our sales staff to obtain a corporate account.

Taxes

All products sold on this website do not include tax. If you need a VAT invoice, please contact our sales staff to purchase offline.

Ensure

All products sold on this website have a one-year warranty. If the product is damaged due to improper use by the customer, it will be repaired free of charge. Material cost will be charged.

Return

Products within the warranty period can be returned for repair or replacement. Before returning, please contact our sales staff to confirm the reason for return.

Discontinued

We are committed to long-term production of all products sold on this website. If the IC or panel is discontinued, we will try our best to replace it with compatible materials.

Prev Back Next

Product Description
Specification
Attributes

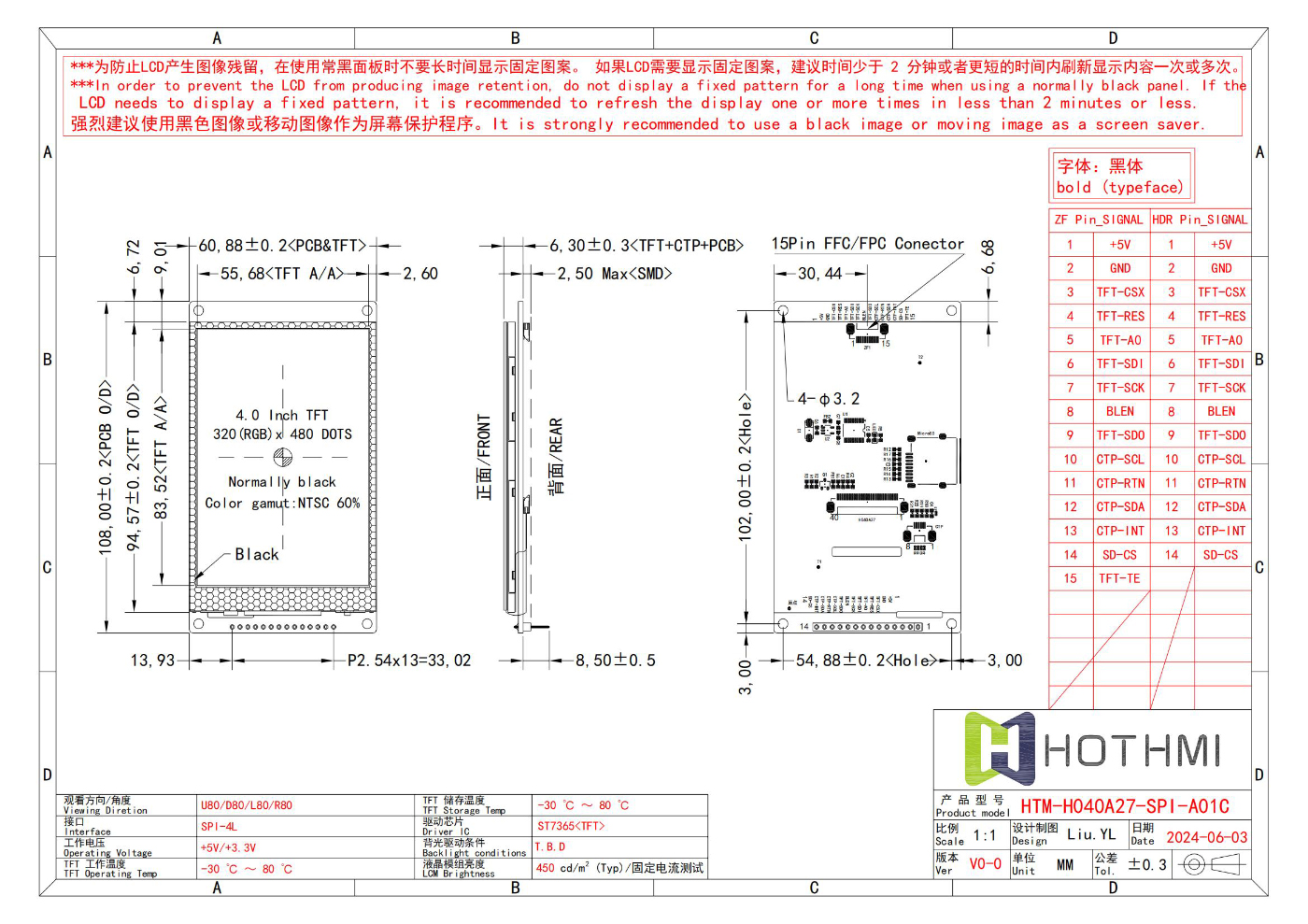

HTM-H040A27-SPI-A01C | 4.0 inch IPS board LCD module - capacitive touch | SPI interface | 320X480 pixel resolution LCD screen | optional capacitive touch/resistive touch

HTM-H040A27-SPI-A01C is a 4.0-inch IPS LCD module with a capacitive touch screen, with a resolution of 320X480 pixels. It uses ST7797 display driver IC, plug-in PIN pin, can also be compatible with FPC ribbon cables, and can be used with matching connectors. The IPS (U80/D80/L80/R80) technology used in this monitor provides full view and excellent color performance, allowing you to easily view from all angles without distortion. This monitor has a high contrast of 500:1 and can display deep black and vivid colors. It has a brightness of up to 450cd/m2 and can be read in sunlight. FPC connection (optional connector), 3.3V voltage, supports vertical screen display. All materials comply with RoHS environmental standards. This module is widely used in various instruments, industrial computers, intelligent devices, etc. Suitable for various microcontroller development platforms such as C8051/Arduino/STM32.

Customized Ribbon Cables/Flexible Printed Circuits (FPC):

Tailor your cables to perfection by adjusting their length, position, and pin arrangements, or adding other connectors. Obtain a precisely designed cable solution to streamline and enhance the safety of your connections

Touchscreen Add-On Components:

Enhance your user experience with capacitive or resistive touchscreen technology. We can adjust the glass thickness or shape of the touchscreen to ensure a perfect fit for your design.

Interface Customization:

Choose from various interface options or consult with our experts to select the options that best suit your project. We can integrate HI,USB, SPI, VGA, and other interfaces into your display to achieve your design goals.

Cover Glass:

Equip your display with custom-cut cover glass to improve durability. Choose from various thicknesses of cover glass and undergo optical bonding to prevent moisture and debris.

project	Parameter Description	unit
TFT series	TFT with board module
Diagonal size	4.0”	Inch
Resolution	320 × RGB × 480 (TFT)	dots
Dimensions	60.88x108.0x6.3	mm
Effective area (AA)	55.68x83.52	mm
LCD type	Vertical screen TFT module
Display perspective	80/80/80/80 (IPS)
Aspect ratio	2:3
Backlight type	LED, white
TFT driver IC	ST7796
Touch panel	Capacitive touch screen
Surface	Glossy/anti-glare
Brightness	450	cd/㎡
Operating temperature	-30~+80	°C
Storage temperature	-30~+80	°C
