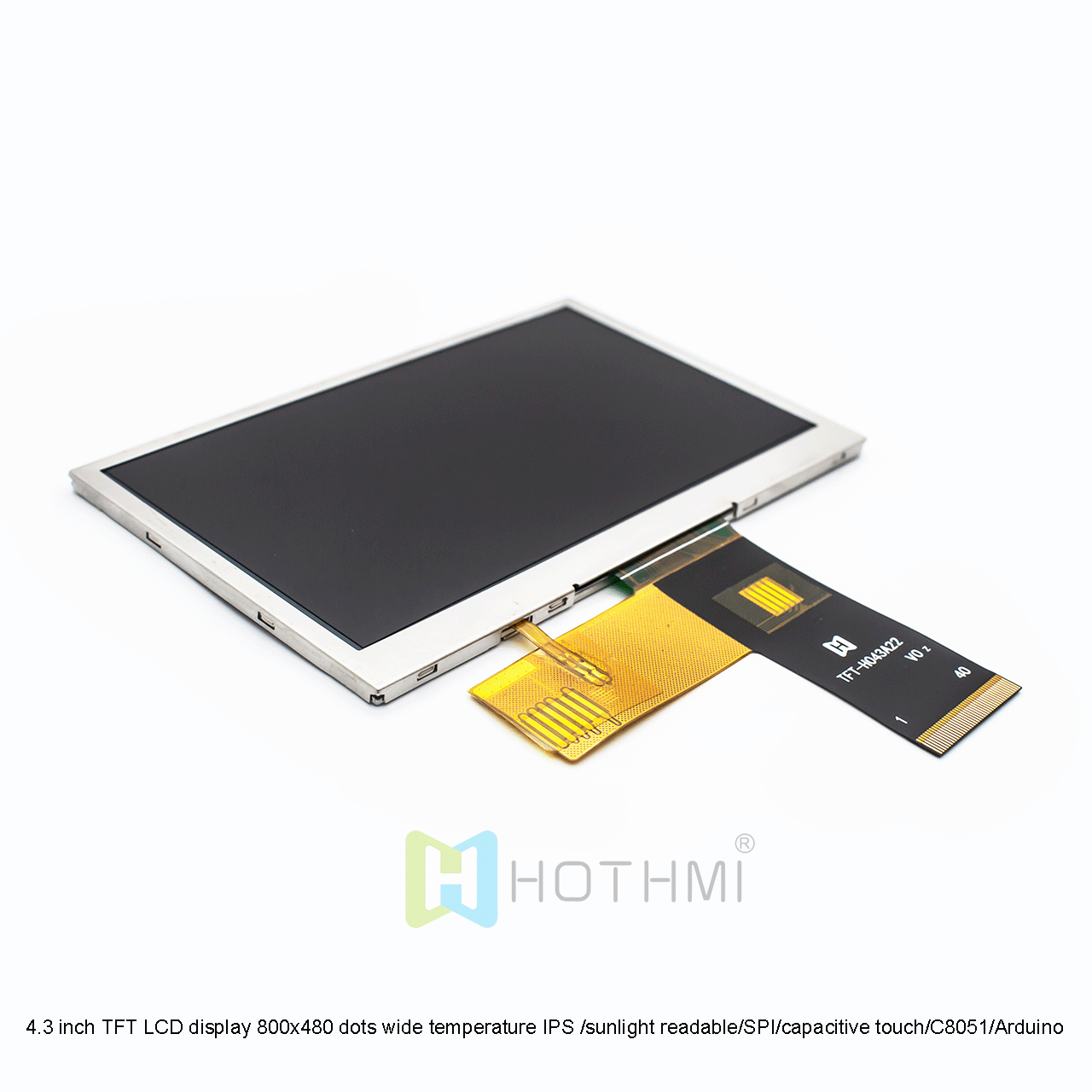

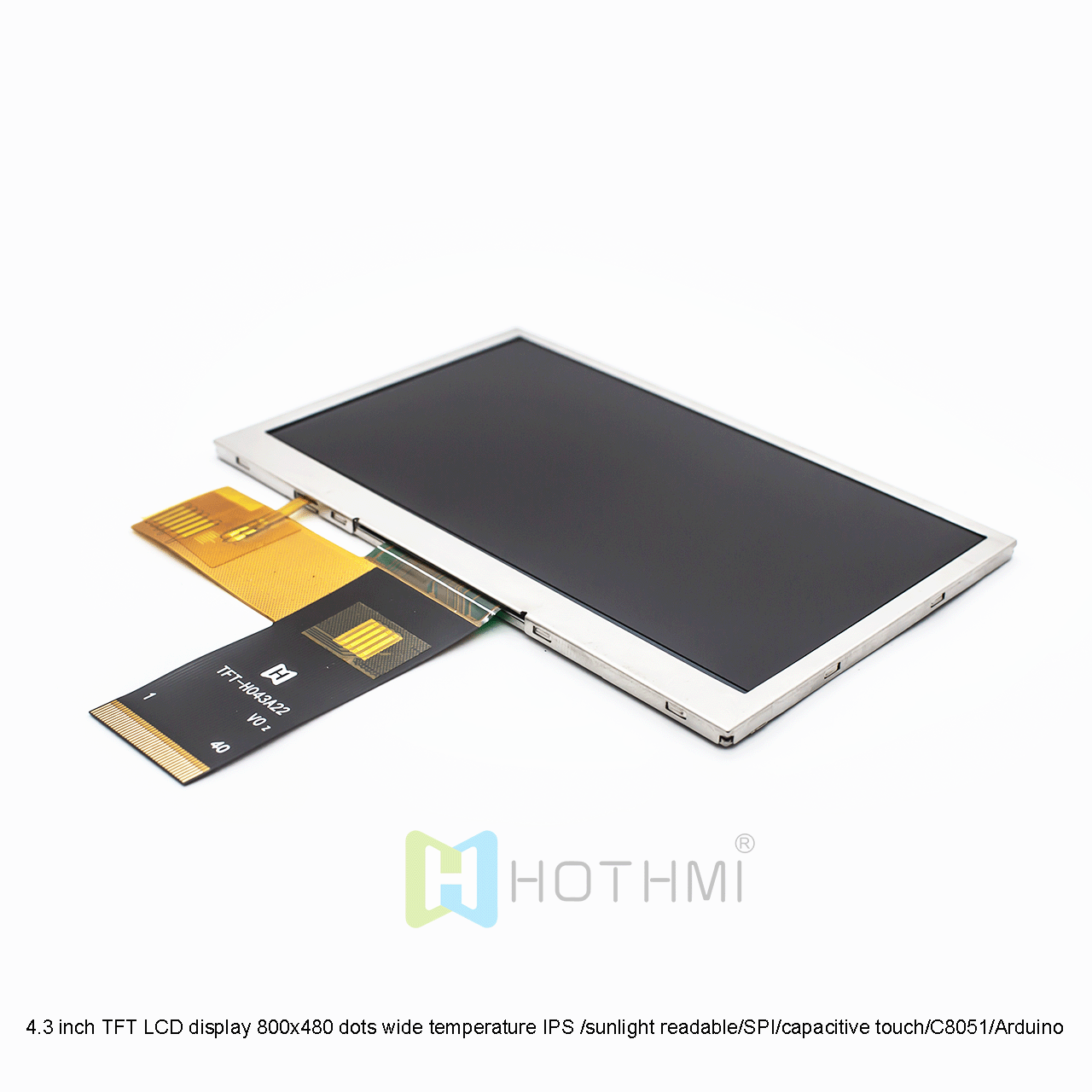

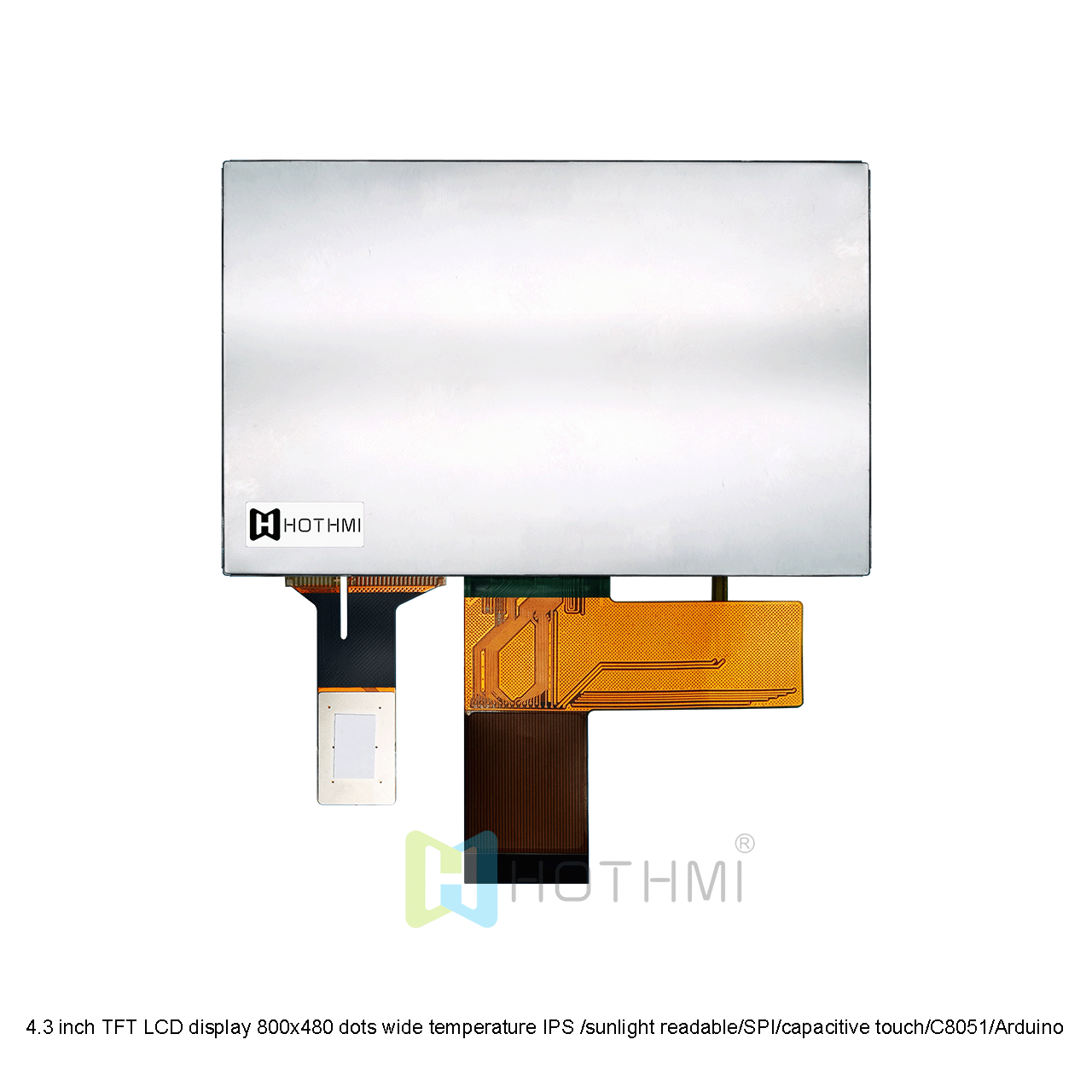

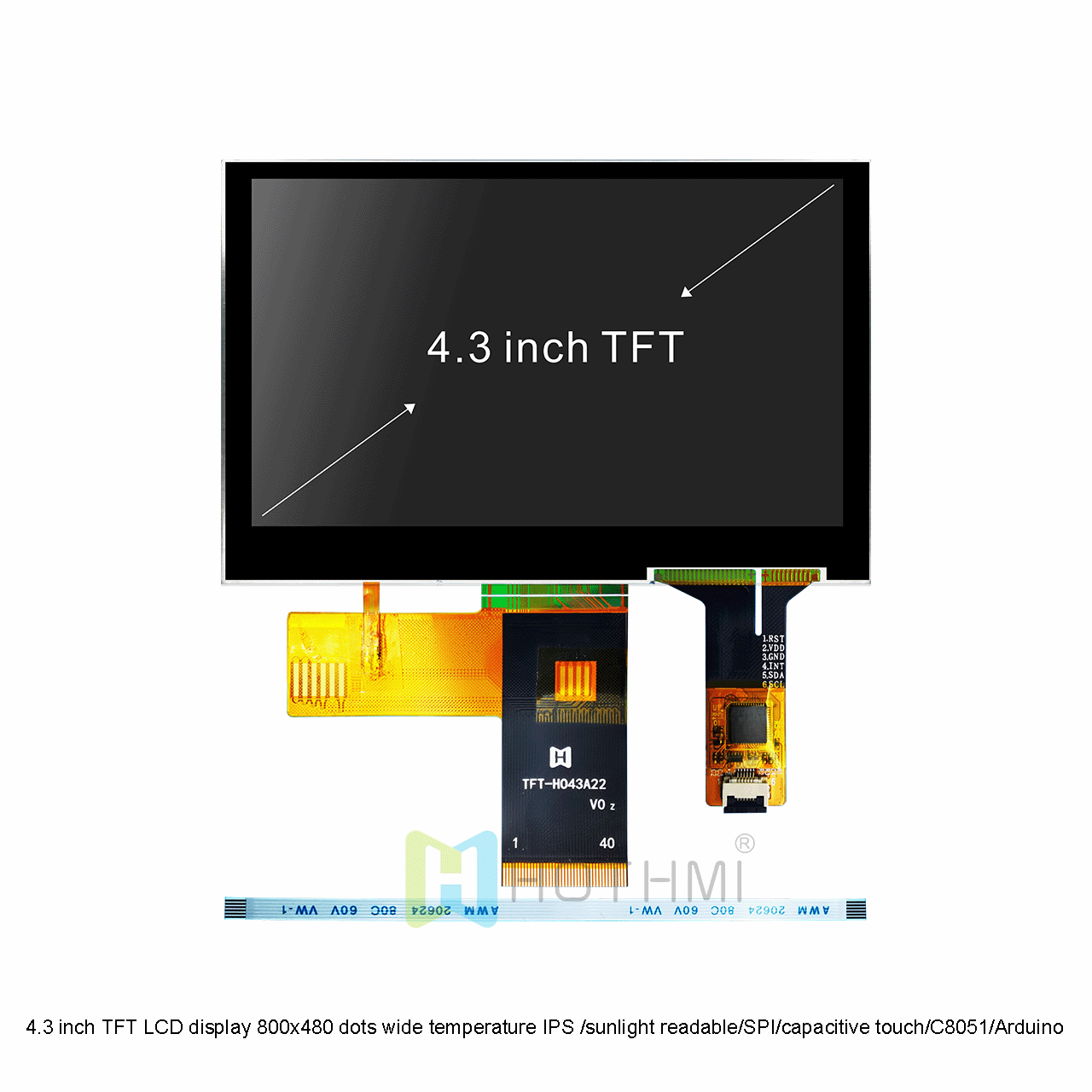

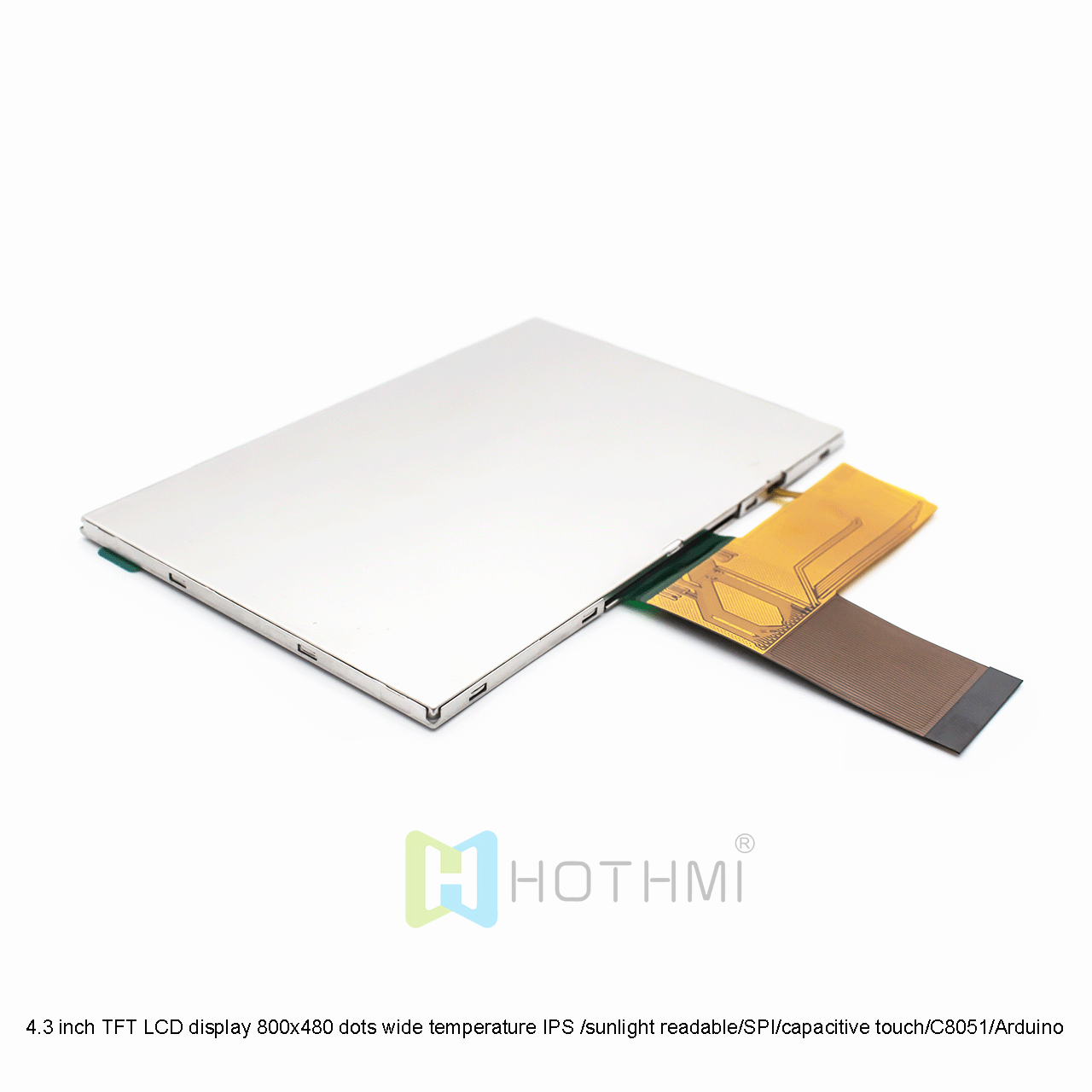

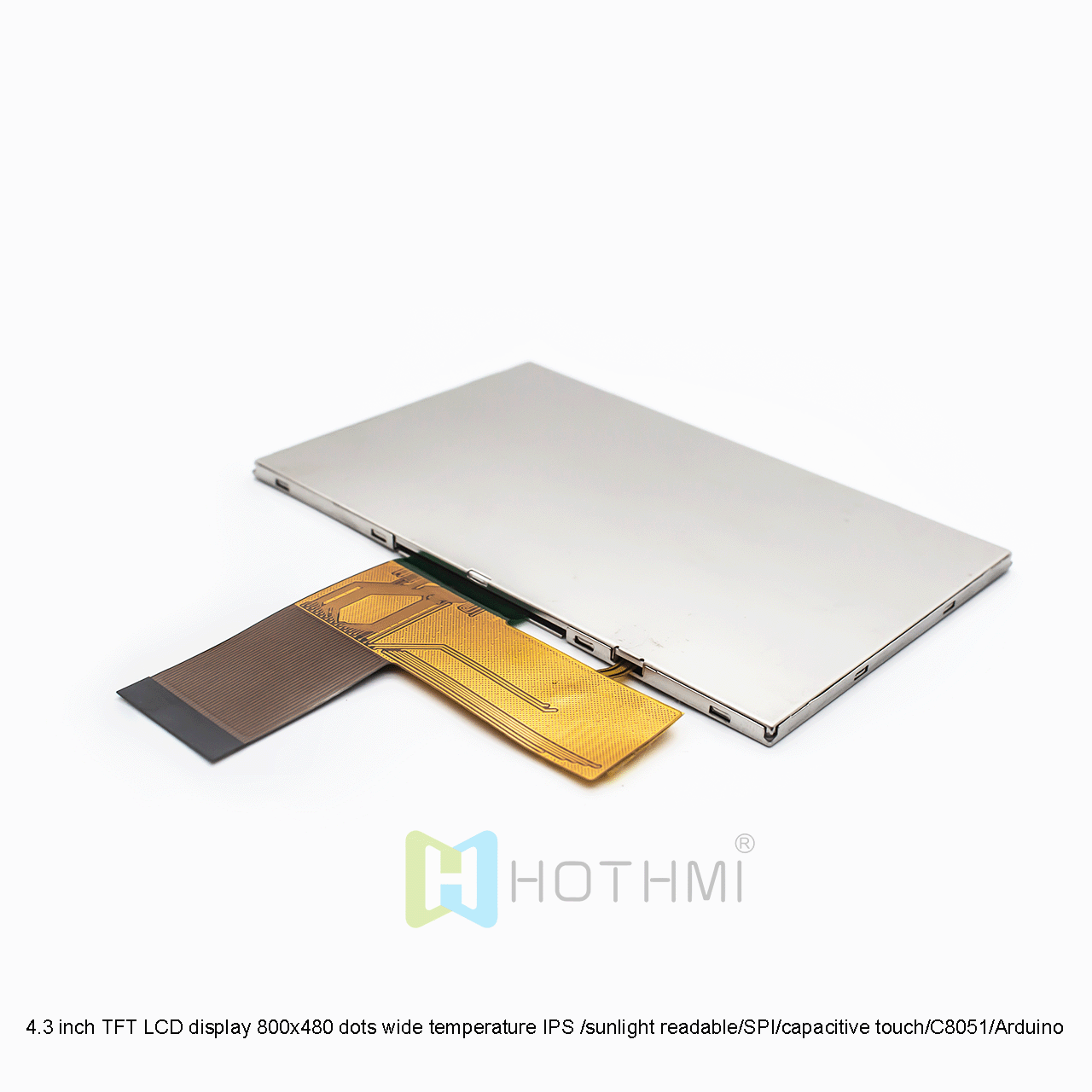

  • TFT-H043A22WQINV8C40 | 4.3 inch TFT LCD display 480x272 wide temperature IPS full viewing angle/sunlight readable/SPI interface/capacitive touch compatible with C8051/Arduino/STM32

    TFT-H043A22WQINV8C40 is the only 4.3 inch TFT LCD display in the industry that supports SPI interface, with a resolution of 480x272, built-in TBD controller, optional touch screen, high picture quality, IPS full viewing angle, support 8080 8-bit, 9-bit, 16-bit, 18-bit parallel interface and 3-wire, 4-wire serial // QSPI interface, 65K/262K true color, FPC connection (optional connector), 3.3V voltage. All materials meet environmental protection requirements and RoHS standards. This module is widely used in various instruments, intelligent devices, etc., and is suitable for 8051 PIC, STM32, AVR, ARDUINO, ARM, Raspberry Pi and other single-chip microcomputer development platforms.

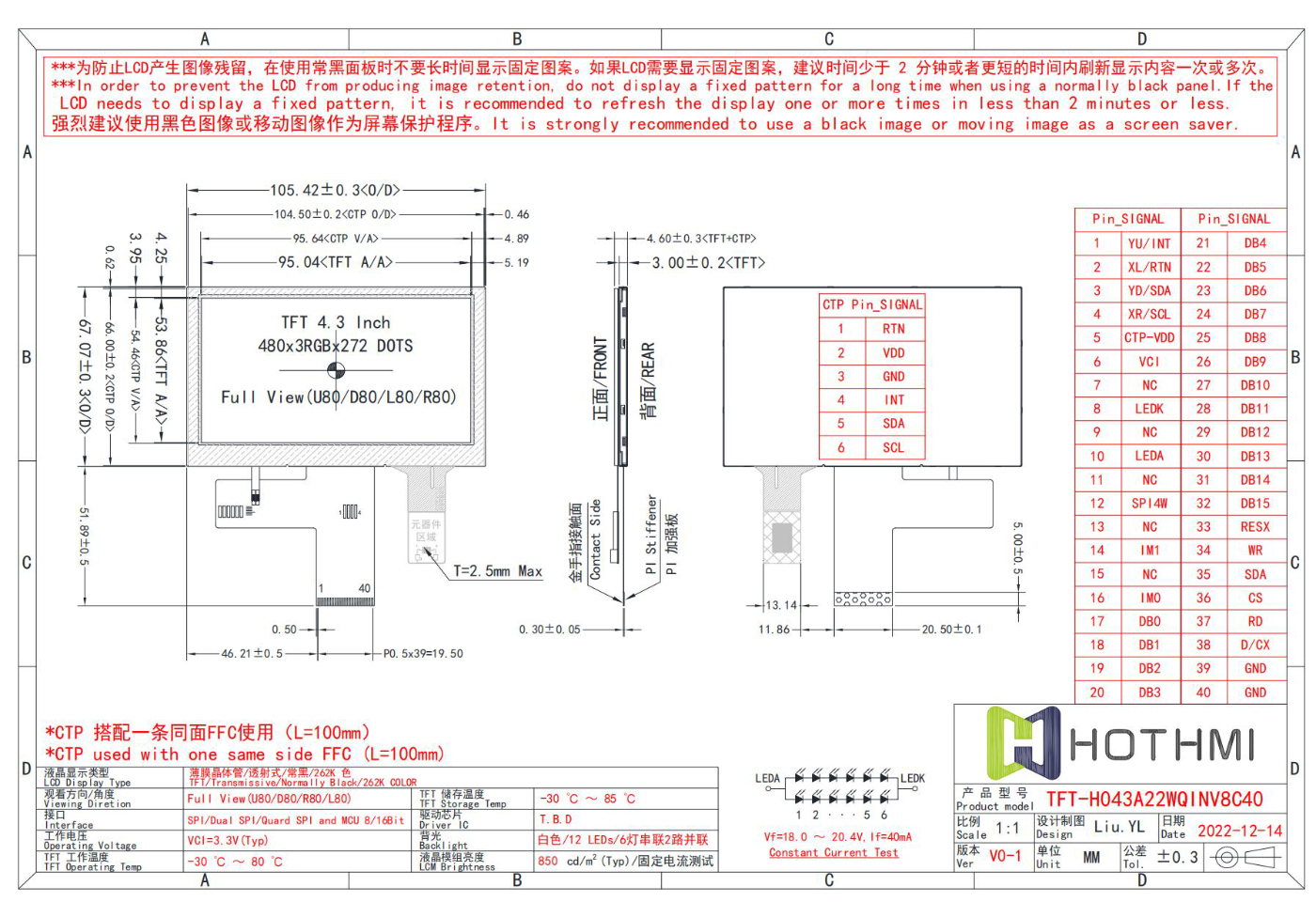

  • TFT-H043A22 使用说明书_06.jpg

  • parameter

    Parameter Description

    unit

    TFT LCD

    Standard TFT


    Diagonal inches

    4.3

    Inch

    resolution

    480 × RGB × 272 (TFT)

    dots

    Dimensions

    105.46x67.11x4.30

    mm

    Size (AA) area

    95.04x53.86

    mm

    LCD specifications

    TFT,  White, transparent


    Display perspective

    IPS(U80/D80/L80/R80)


    aspect ratio

    1.1:2


    Backlight specifications

    LED,  white


    TFT driver chip

    TBD


    Touch glass type

    Capacitive Touch (CTP)


    surface

    Anti glare/glossy surface


    Display brightness

    eight hundred and fifty

    cd/

    Operating temperature

    -30~+80

    °C

    Storage temperature

    -30~+85

    °C
