What is the display of HOTDISPLAY UART?

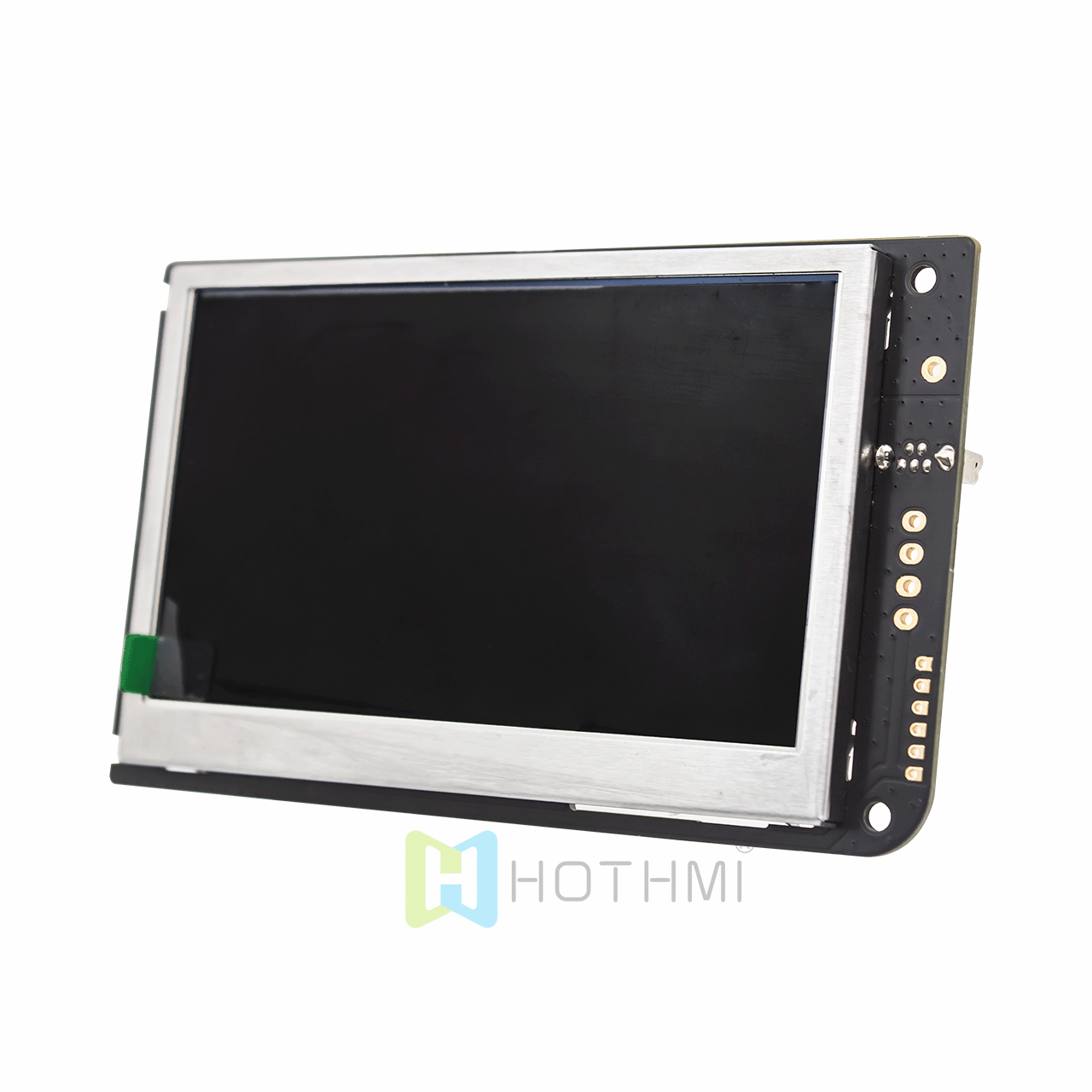

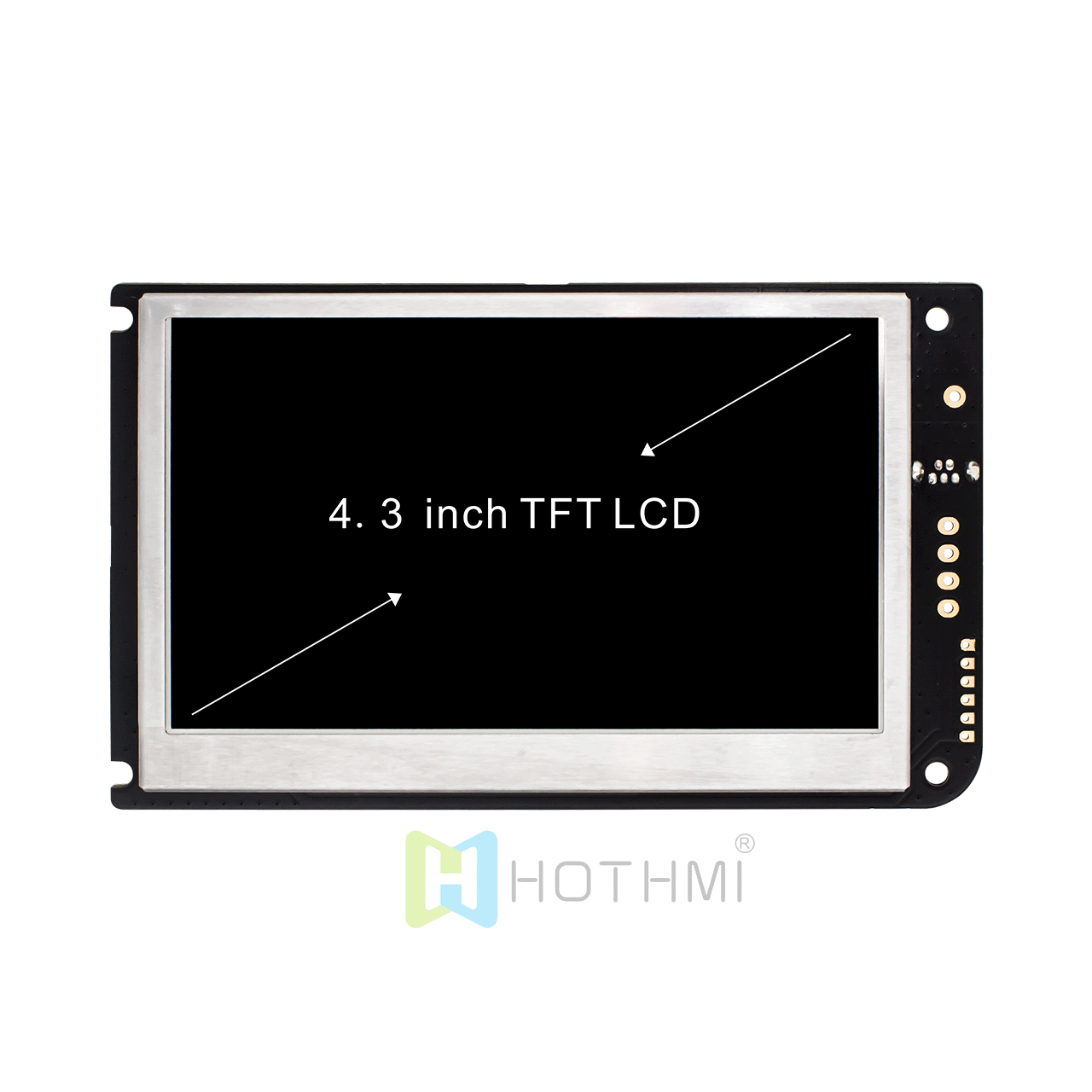

HOTDISPLAY UART monitor is an LCD screen that uses UART serial port for communication. The user sends instructions to the serial LCD screen through the microcontroller, and the serial screen automatically completes all operations of drawing on the LCD screen. Due to its simple operation, even those who do not understand any programming can easily develop the human-computer interaction interface they want.
The HOTDISPLAY UART monitor consists of two parts: serial screen hardware and the accompanying serial screen software:

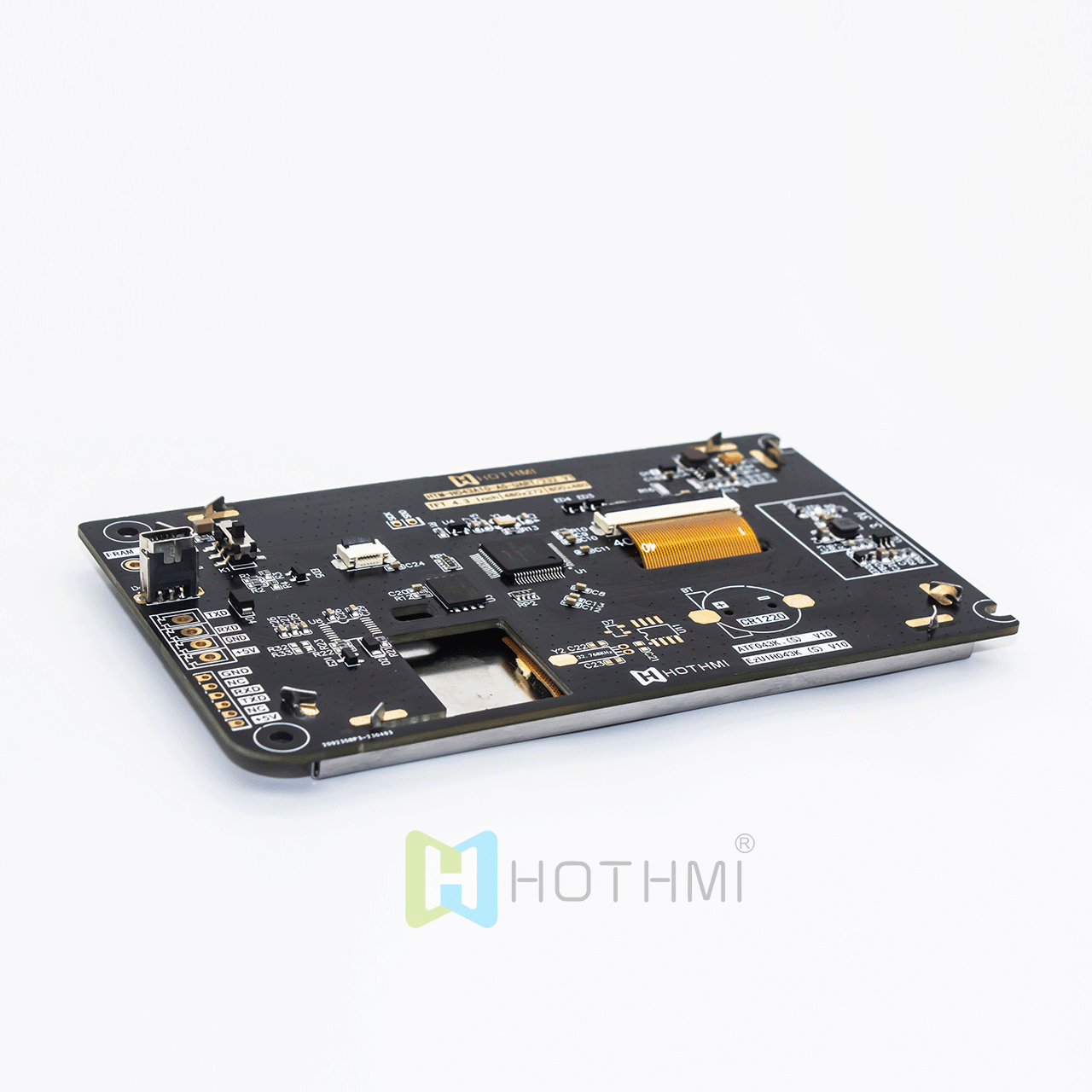

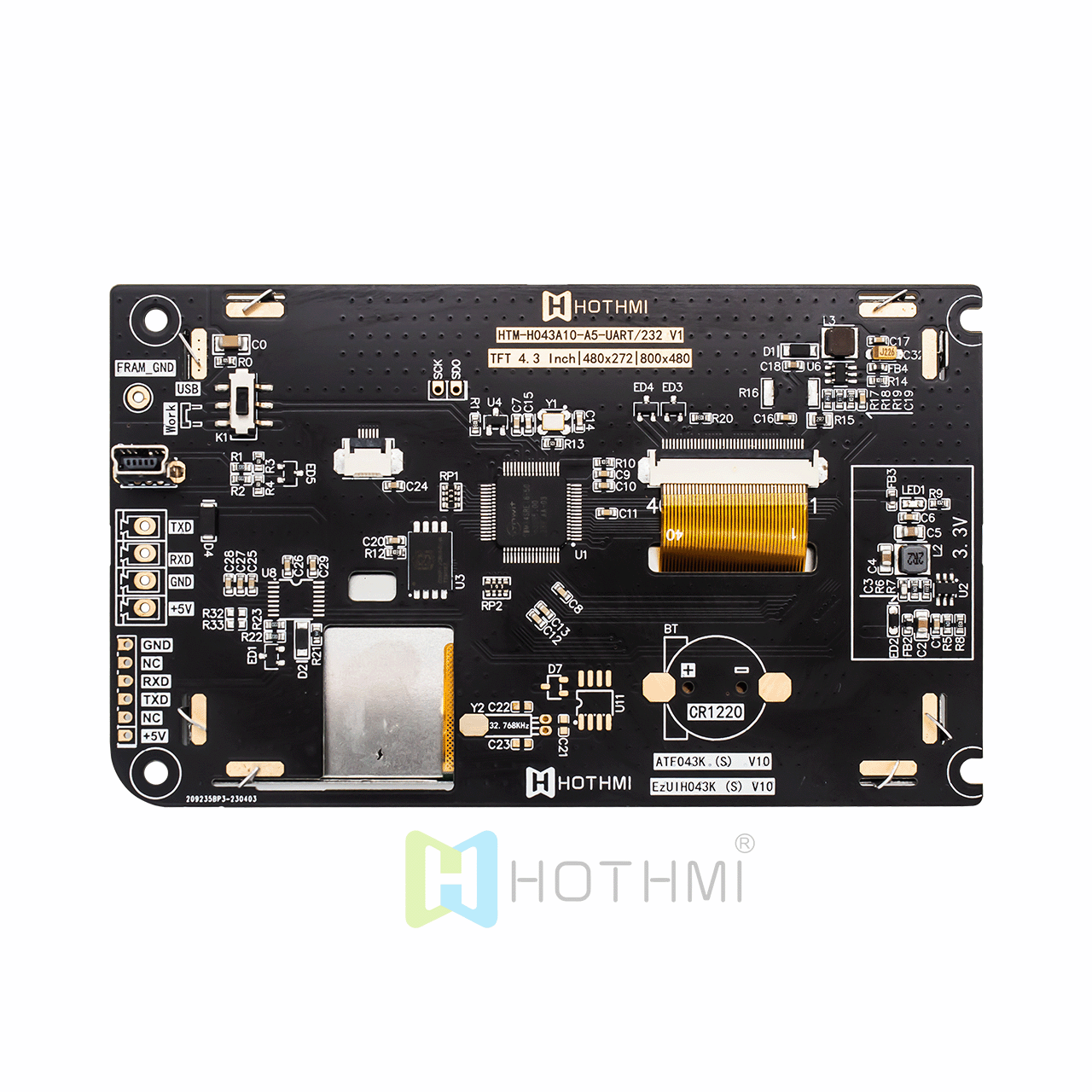

1. The hardware part includes a processor, LCD screen, resistive touch screen or capacitive touch screen FLASH memory RS232 or 485 serial port chip, audio and video decoding chip SD card slots, etc. Some models include modules such as WIFI, 4G, Bluetooth, voice recognition, facial recognition, fingerprint recognition, etc,
2. The operating software is generally divided into two parts, namely the system software running on the UART display and the interface development software UI Editor running on the PC Windows operating system, which is used for program debugging software UI EZUI.
The user first creates a "Project BIN file" using a UI editor, and then downloads the compiled "Project BIN" file to the serial port display's FLASH through the UART port, USB port, or SD card of the UART monitor.
What are the application areas of UART displays?
HOTDISPLAY UART displays are widely used in dozens of industries and fields, including industrial automation, power, telecommunications, environmental protection, healthcare, finance, petroleum, chemical, transportation, energy, geology, metallurgy, public inquiry and monitoring, smart home appliances, transportation rail, data centers, charging stations, power, medical, national defense security, and shared equipment.
Customized Ribbon Cables/Flexible Printed Circuits (FPC): Tailor Your Cables To Perfection By Adjusting Their Length, Position, And Pin Arrangements, Or Adding Other Connectors. Obtain A Precisely Designed Cable Solution To Streamline And Enhance The Safety Of Your Connections |
Touchscreen Add-On Components: Enhance Your User Experience With Capacitive Or Resistive Touchscreen Technology. We Can Adjust The Glass Thickness Or Shape Of The Touchscreen To Ensure A Perfect Fit For Your Design. |
Interface Customization: Choose From Various Interface Options Or Consult With Our Experts To Select The Options That Best Suit Your Project. We Can Integrate HI,USB, SPI, VGA, And Other Interfaces Into Your Display To Achieve Your Design Goals. |
Cover Glass: Equip Your Display With Custom-Cut Cover Glass To Improve Durability. Choose From Various Thicknesses Of Cover Glass And Undergo Optical Bonding To Prevent Moisture And Debris. |
