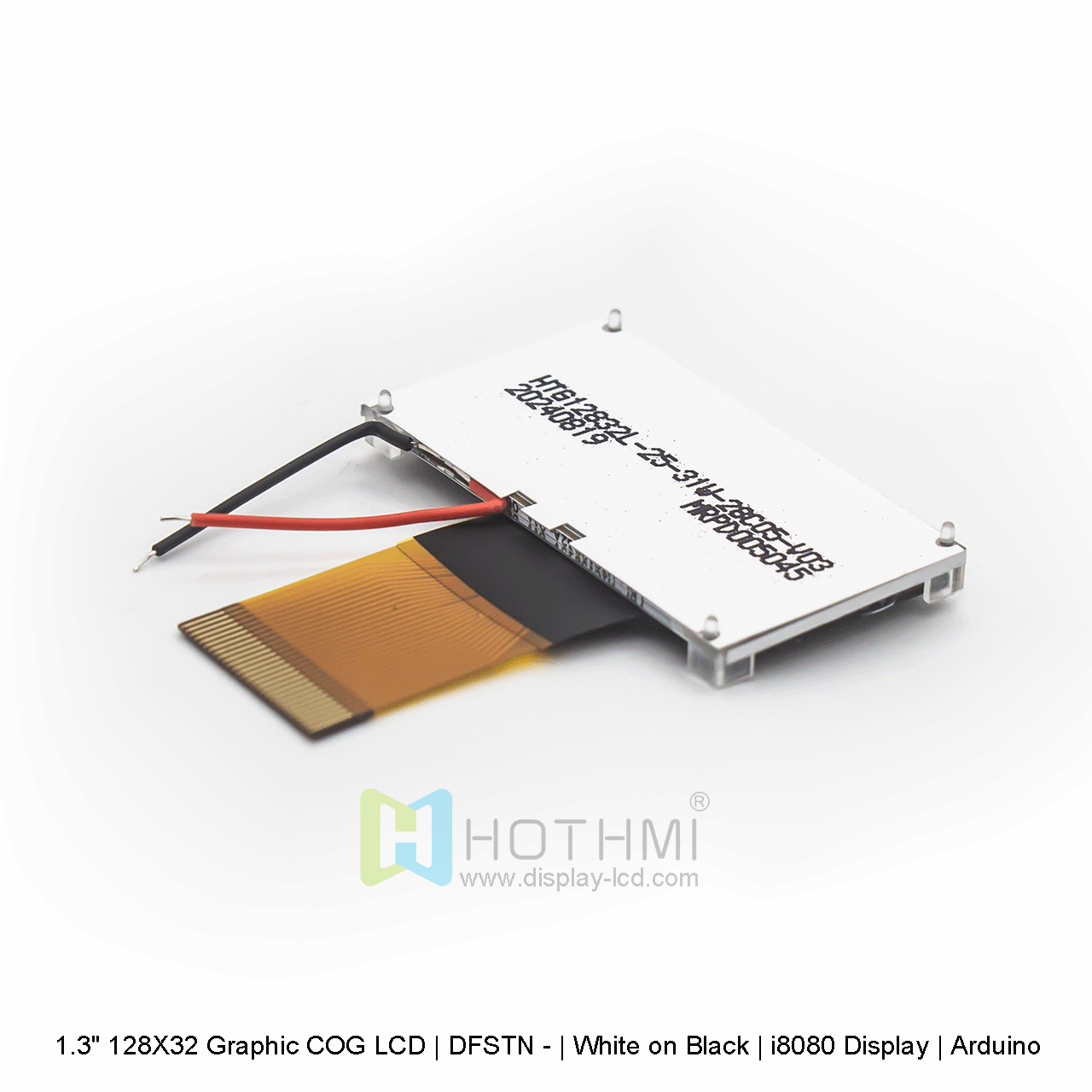

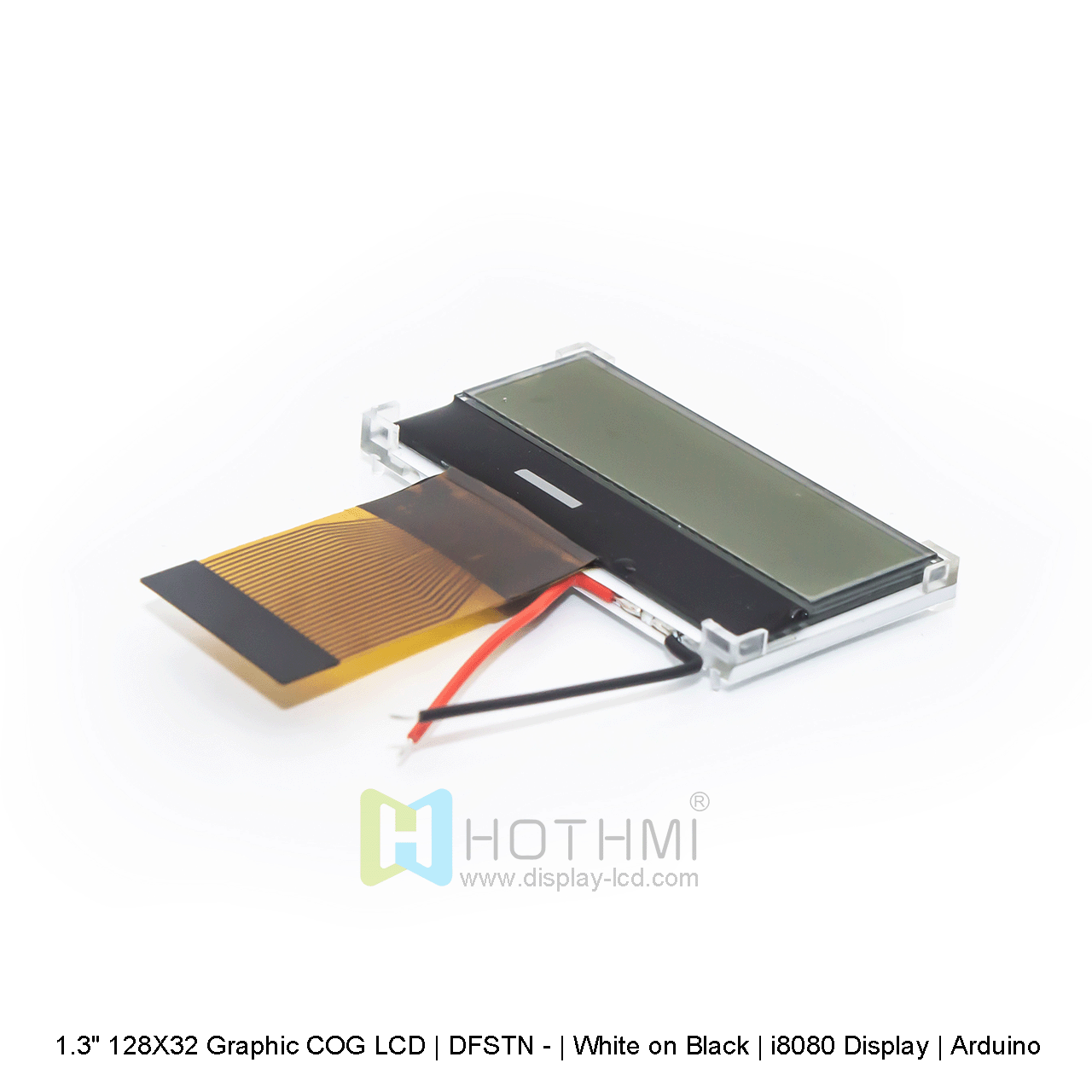

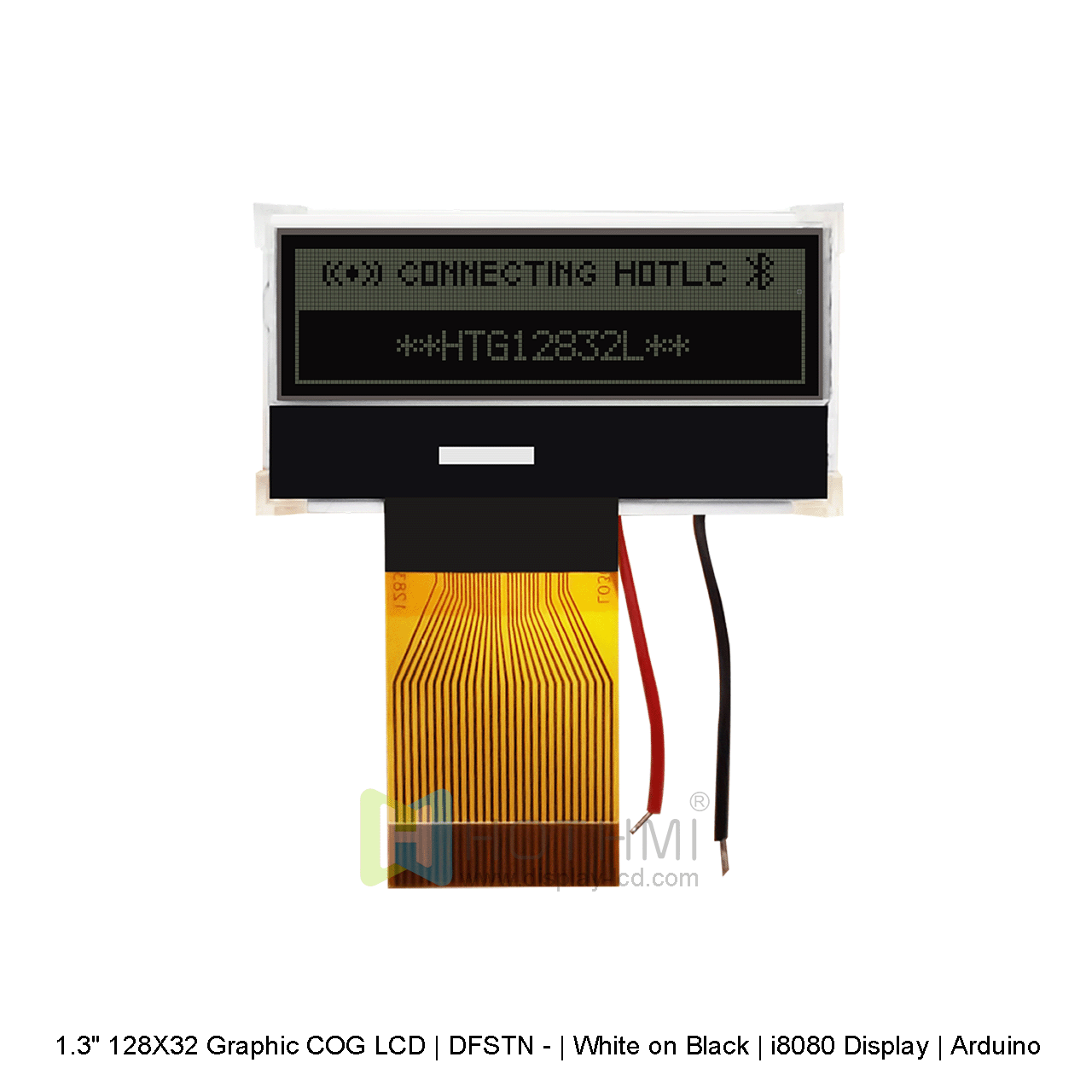

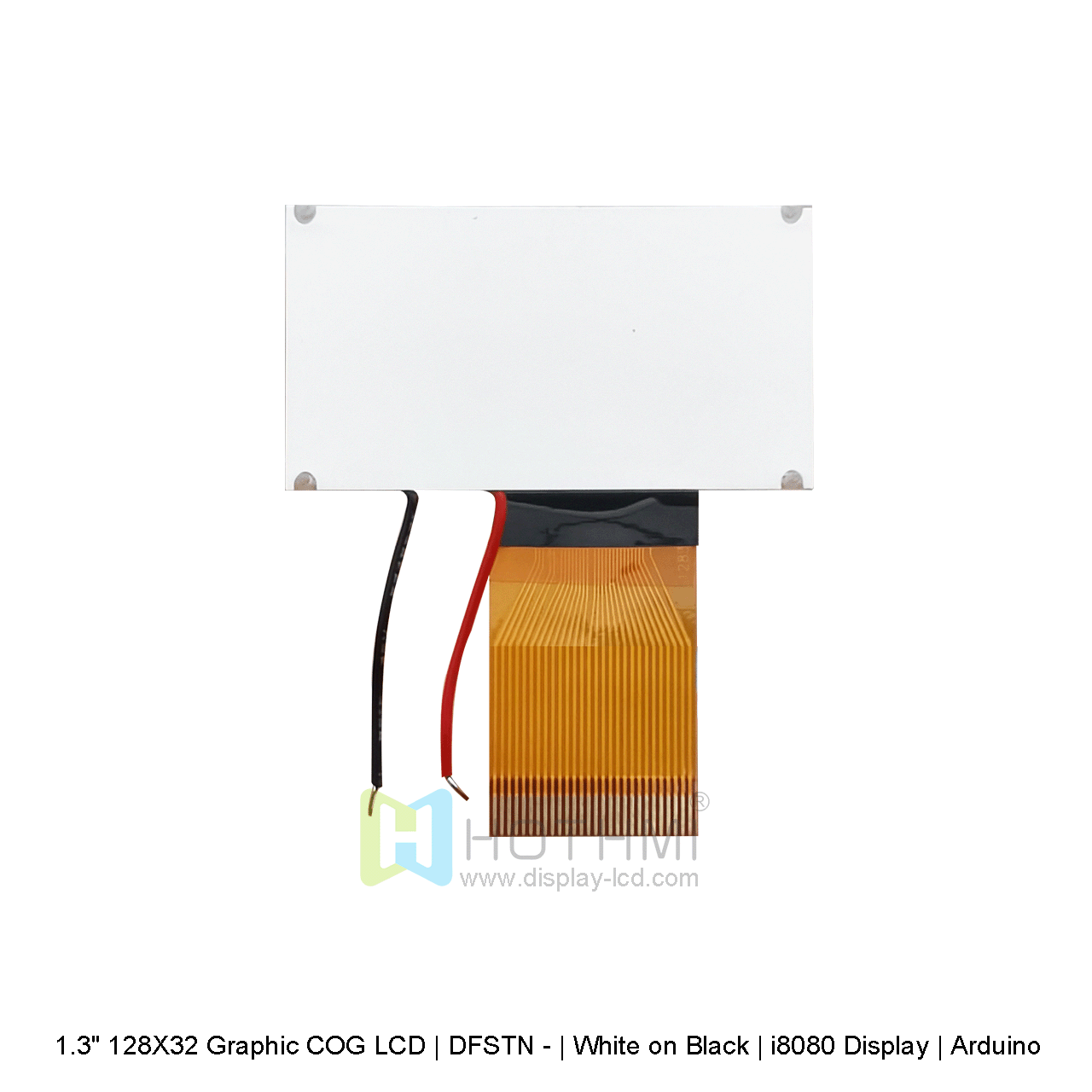

Graphic COG LCD Screen 1.3 Inch DFSTN Black Background White Text Arduino

Graphic COG LCD Screen 1.3 Inch DFSTN Black Background White Text Arduino

▶ Model: HTG12832L-41W-A3P

▶ Type: Graphic COG LCD Screen
▶ Display pixels: 128x32
▶ Overall dimensions (mm): 36.5x19.9x3.3
▶ Display Inch: 1.3"
▶ VA size (mm): 32.0x10.1
▶ AA size (mm): 29.66x8.45
▶ Point spacing (mm): 0.235x0.202
▶ Application: Bank U-Shield
▶ Viewing angle: 6H
▶ Backlight/brightness: white light
▶ Pin: FPC-28PIN
▶ Interface mode: MCU
▶ Special instructions: Anti-static ESD 8KV
▶ Working temperature: -20-70℃
▶ Supply voltage: 3.3V
▶ Driver chip: ST7567

Product Consultation Datasheets Download Demo Code
- Transportation
- Payment
- Taxes
- Ensure
- Return
- Discontinued
Transportation

Our company cooperates with SF Express for domestic express delivery, and DHL for overseas express delivery. You can contact us to inquire about freight and weight to get the latest quotation.

Payment

Online payment is not supported. Transfers can be made through corporate accounts. If a VAT invoice is issued, please contact our sales staff to obtain a corporate account.

Taxes

All products sold on this website do not include tax. If you need a VAT invoice, please contact our sales staff to purchase offline.

Ensure

All products sold on this website have a one-year warranty. If the product is damaged due to improper use by the customer, it will be repaired free of charge. Material cost will be charged.

Return

Products within the warranty period can be returned for repair or replacement. Before returning, please contact our sales staff to confirm the reason for return.

Discontinued

We are committed to long-term production of all products sold on this website. If the IC or panel is discontinued, we will try our best to replace it with compatible materials.

Prev Back Next

Related Accessories

Arduino adapter board/suitable for Arduino development board COB/character/graphic dot matrix
Single Row Pin Header Connector
COB 20-pin cable base/character/graphic dot matrix

Product Description
Specification
Attributes

Graphic COG LCD Screen 1.3 Inch DFSTN Black Background White Text Arduino
ThisHTG12832L-41W-A3P Graphic COG LCD Screen 128×32 white pixels on a black background. This translucent LCD display is designed to be clearly visible in ambient light due to the reflection of the polarizer, which reflects the image back to the viewer. When used in darker environments, the display has a backlight, which makes the display brightness suitable for optimal visibility and impressive colors. The display has a powerful built-in backlight to provide high contrast and ensure readability of all graphics on the screen.
The display of this Graphic COG LCD Display Module is fully compatible with Arduino/C8051 and can be seamlessly connected with other electronic systems for a variety of applications. The HTG12832L model is designed to withstand harsh operating conditions and operates abnormally when used in a temperature range of -20 to 70 degrees Celsius. The LCD has an optimal viewing angle of 6:00, operates at 3.3V, and is RoHS compliant.

Parameter	Specifications	Unit
Name	HTG12832L-41W-A5P
Graphic display	128 × 32	dots
Dimensions	36.5x 19.9 x 3.3 (MAX)	mm
VA size	32.0 x 10.1	mm
AA size	29.66 x 8.45	mm
Pixel pitch	0.235 x 0.202	mm
Driver chip	ST7567
Applied voltage	3.3V	V
Backlight illumination	White
Display mode	DFSTN(-)
Drive mode	1/32 duty cycle
Product type	Graphic LCD COG
Polarizer type	Transflective
