1X16 Character LCD Display | DFSTN+ with White Backlight-Arduino

1X16 Character LCD Display | DFSTN+ with White Backlight-Arduino

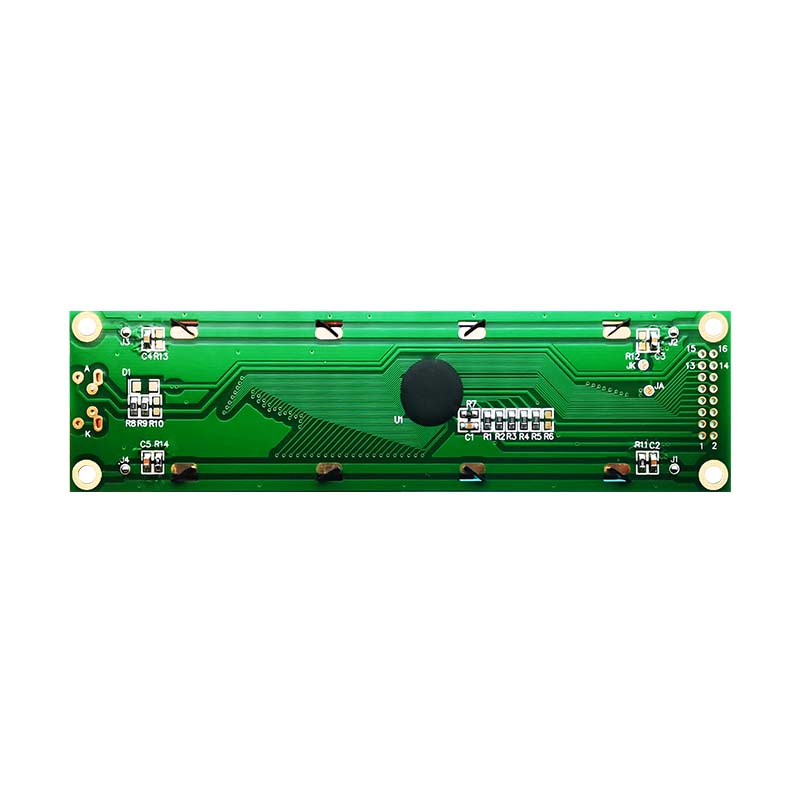

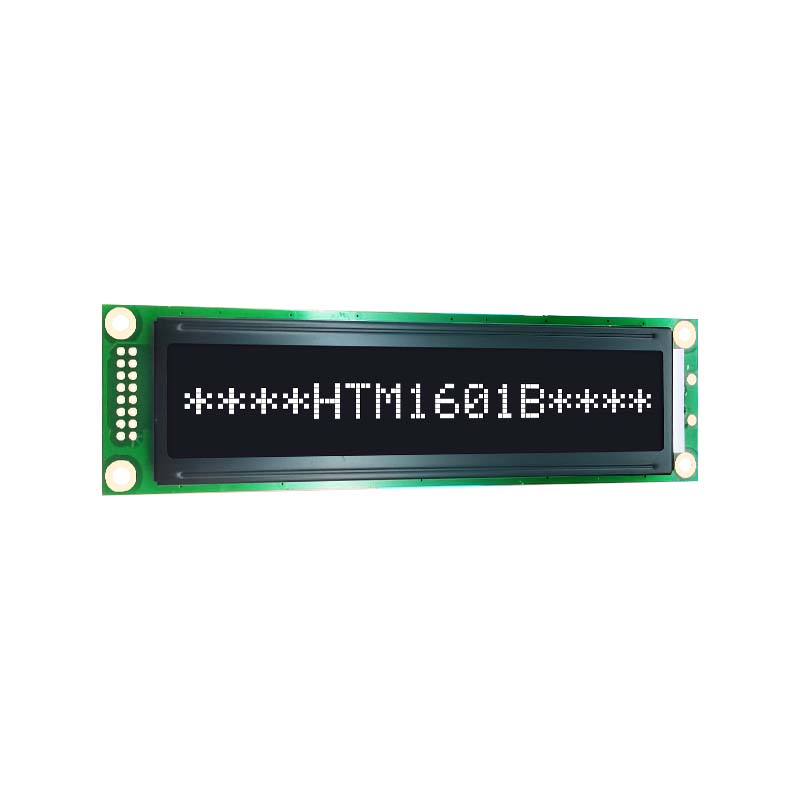

▶ Model: HTM-1601B-41W-A5P

▶ Product type: Standard COB character module
▶ Display content: 1x16 characters
▶ Overall dimensions (mm): 151.0x40.0x9.6
▶ VA size (mm): 120.0x23.0
▶ AA size (mm): 114.0x14.54
▶ Point spacing mm: 1.212x1.825
▶ Product application: Instrumentation
▶ Viewing angle: 6H
▶ Backlight type: white
▶ Number of PINs: 16pin
▶ Interface mode: MCU
▶ Special instructions: Anti-static ESD 8KV
▶ Working temperature: -20~70℃
▶ Power supply voltage: 5.0V
▶ Driver chip: ST7066U

Product Consultation Datasheets Download Demo Code
- Transportation
- Payment
- Taxes
- Ensure
- Return
- Discontinued
Transportation

Our company cooperates with SF Express for domestic express delivery, and DHL for overseas express delivery. You can contact us to inquire about freight and weight to get the latest quotation.

Payment

Online payment is not supported. Transfers can be made through corporate accounts. If a VAT invoice is issued, please contact our sales staff to obtain a corporate account.

Taxes

All products sold on this website do not include tax. If you need a VAT invoice, please contact our sales staff to purchase offline.

Ensure

All products sold on this website have a one-year warranty. If the product is damaged due to improper use by the customer, it will be repaired free of charge. Material cost will be charged.

Return

Products within the warranty period can be returned for repair or replacement. Before returning, please contact our sales staff to confirm the reason for return.

Discontinued

We are committed to long-term production of all products sold on this website. If the IC or panel is discontinued, we will try our best to replace it with compatible materials.

Prev Back Next

Related Accessories

Arduino adapter board/suitable for Arduino development board COB/character/graphic dot matrix
Single Row Pin Header Connector
COB 20-pin cable base/character/graphic dot matrix

Product Description
Specification
Attributes

The HTM-1601B-41W-A5P is a high-quality 16-character single-line LCD with the following features:

Controller/Driver: This model uses ST7066U controller/driver to ensure efficient display control and stability.

Working temperature range: LCD has a wide working temperature range, suitable for various environmental conditions ranging from -20 to 70 degrees Celsius.

Display function: After turning on the power, the LCD screen will display white pixel characters on a black background, providing a clear and eye-catching display.

Working voltage: The working voltage of HTM-1601B-41W-A5P-V03 is 5V, which complies with RoHS standards and ensures that the product meets health and environmental standards during use.

Best viewing angle: The best viewing angle for this model is 6:00, ensuring clear display under various viewing angles.

Compatible with Arduino: HTM-1601B-41W-A5P-V03 is compatible with Arduino/C8051, providing developers with a wider range of applications and creative possibilities.

Overall, HTM-1601B-41W-A5P-V03 has become a reliable choice for various environments and projects due to its excellent display, reliable controller, and wide applicability.

Connector Customization:

Easily modify any connectors on your display to meet your application’s requirements. Our engineers are able to perform soldering for pin headers, boxed headers, right angle headers, and any other connectors your display may require.

PCB Modifications:

Choose from a variety of changes to the PCB's shape, size, pinout, and component layout to make it perfect for your application.

Backlight color customization:

The module backlight has a variety of combinations to choose from, without backlight or with yellow-green/blue/white/amber/red/RGB backlight options. There are 48 effects. You can click on the customization page for reference.

Font library customization:

Provides a variety of font libraries, including English/Japanese, Western Europe, Eastern Europe, Scandinavian Europe, Cyrillic (Russian), Hebrew/Arabic, etc.

Cable Customization:

Adjust the length, position, and pinout of your cables or add additional connectors. Get a cable solution that’s precisely designed to make your connections streamlined and secure.

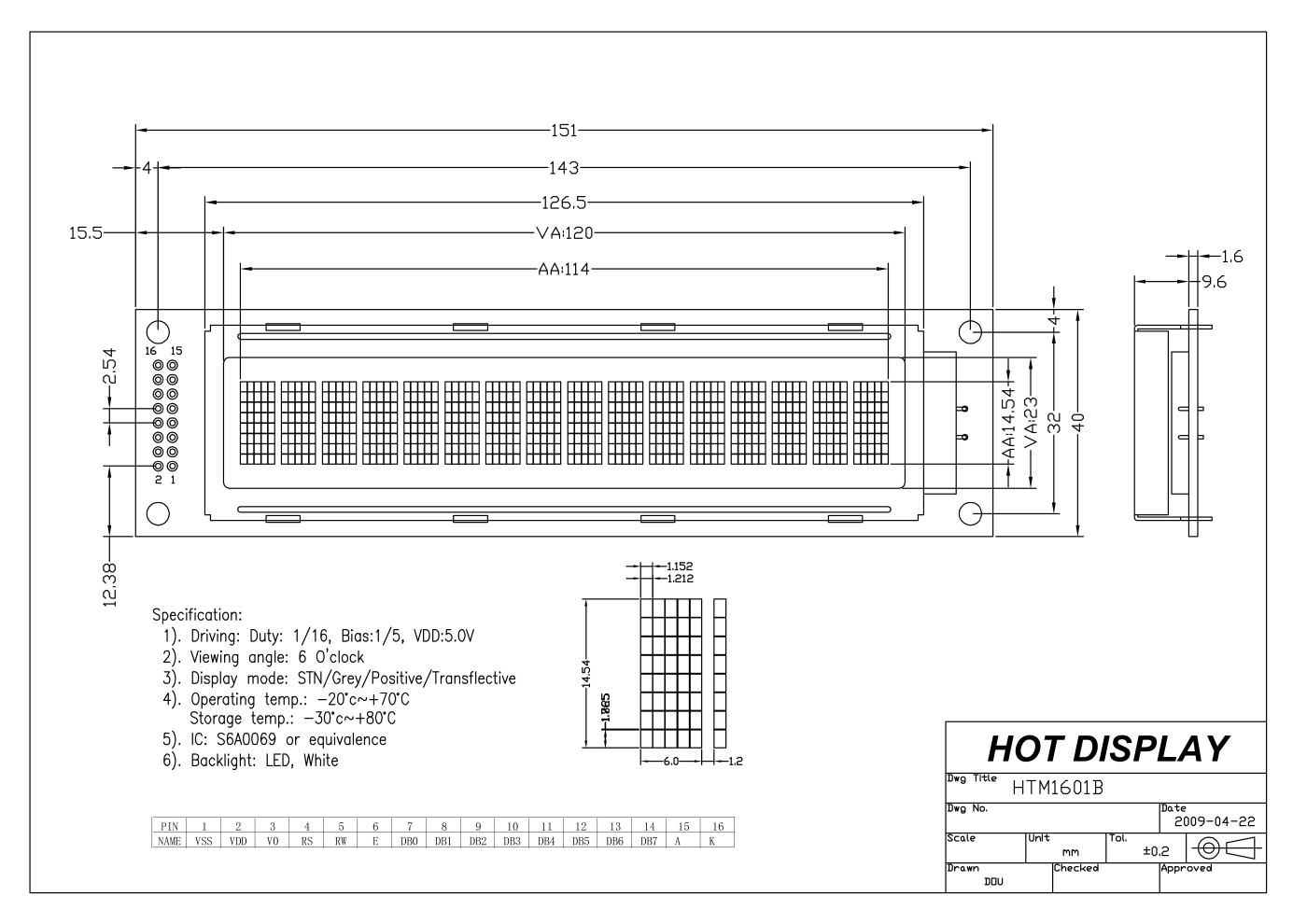

Parameters	Specification content	uint
Model	HTM-1601B-41W-A5P
resolving power	16 words × 1line	dots
Module Size	151.0（W） × 40.0（H） × 9.6 （D）mm	mm
Visible (VA) area	120.0x23.0mm	mm
Effective (AA) area	114.0x14.54	mm
Pixel spacing	1.212x1.825	mm
IC	ST7066U
Application voltage	5.0V	V
Backlight	White backlight
display mode	DSTN(-)
Drive mode	1/16 duty cycle
product type	Character LCD
characteristic	Semi-transparent reflective polarizer
