7.0-inch 1024x600 full-color TFT LCD/TTL interface LCD display/sunlight viewable/EK79001+EK73215 controller/STM32/RK motherboard

7.0-inch 1024x600 full-color TFT LCD/TTL interface LCD display/sunlight viewable/EK79001+EK73215 controller/STM32/RK motherboard

▶ Model: TFT-H070A2WSIFT8N50

▶ Type: TFT display
▶ Display pixels: 1024x600
▶ Dimensions (mm): 164.9x100x5.5
▶ Display inches: 7.0"
▶ Effective size (mm): 154.21x85.92
▶ Application: micro instruments, mini home appliances
▶ Viewing angle: IPS full viewing angle
▶ Brightness: 800cd/m2
▶ Pin: FPC-50PIN
▶ Interface: TTL
▶ Special instructions: Anti-static ESD 8KV
▶ Working temperature: -20~70℃
▶ Power supply voltage: 3.3V
▶ Driver chip: EK79001+EK73215

Product Consultation Datasheets Download Demo Code
- Transportation
- Payment
- Taxes
- Ensure
- Return
- Discontinued
Transportation

Our company cooperates with SF Express for domestic express delivery, and DHL for overseas express delivery. You can contact us to inquire about freight and weight to get the latest quotation.

Payment

Online payment is not supported. Transfers can be made through corporate accounts. If a VAT invoice is issued, please contact our sales staff to obtain a corporate account.

Taxes

All products sold on this website do not include tax. If you need a VAT invoice, please contact our sales staff to purchase offline.

Ensure

All products sold on this website have a one-year warranty. If the product is damaged due to improper use by the customer, it will be repaired free of charge. Material cost will be charged.

Return

Products within the warranty period can be returned for repair or replacement. Before returning, please contact our sales staff to confirm the reason for return.

Discontinued

We are committed to long-term production of all products sold on this website. If the IC or panel is discontinued, we will try our best to replace it with compatible materials.

No Back Next

Related Accessories

USB data cable T-port charging data cable/serial screen/adapter board
TFT to HI adapter board

Product Description
Specification
Attributes

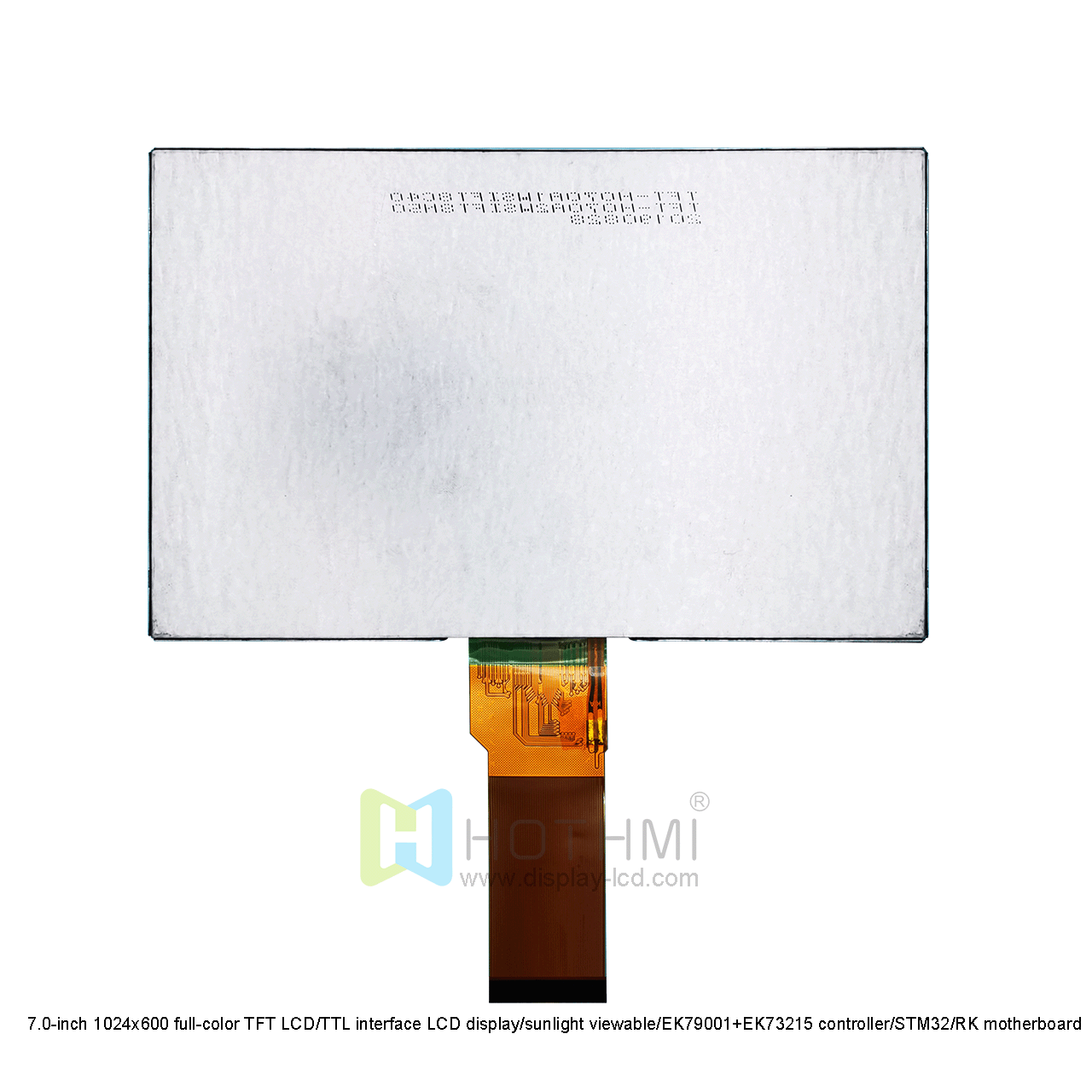

7.0-inch 1024x600 full-color TFT LCD/TTL interface LCD display/sunlight viewable/EK79001+EK73215 controller/STM32/RK motherboard
7.0-inch 1024x600 full-color TFT LCD/TTL interface LCD display/sunlight viewable/EK79001+EK73215 controller/STM32/RK motherboardTFT-H070A2WSIFT8N50This 7.0-inch TFT display has high brightness (800 nits), a resolution of 1024x600, and a full-color IPS viewing angle, so you will have a good picture no matter which direction you watch from. It is ideal for a variety of applications. This display can be used in direct sunlight, indoor lighting or dark environments. It can be mounted above, at eye level or below eye level without color inversion.

This display does not include a touch screen, but we can also provide a version with touch function. While this transmissive LCD does not feature a touchscreen, its large display size, 3.3V low voltage power supply, and impressive display quality make it a great choice for projects that require visual output without touch functionality. Popular industries include IoT, industrial automation, consumer electronics, test and measurement instruments, handheld devices, and they are great for DIY or prototyping projects due to their compatibility with Linux/RK boards/. Our displays are all RoHS compliant and adhere to strict environmental and safety standards.

Main features:
- IPS (viewable in all directions)
- Using EK79001+EK73215 controller
- Low voltage power supply
- Configurable touch function

Datasheet for Touch Panel,Controller

Name	Date	Size
TFT-H070A2WSIFT8N50	January 01, 1970	848.94KB

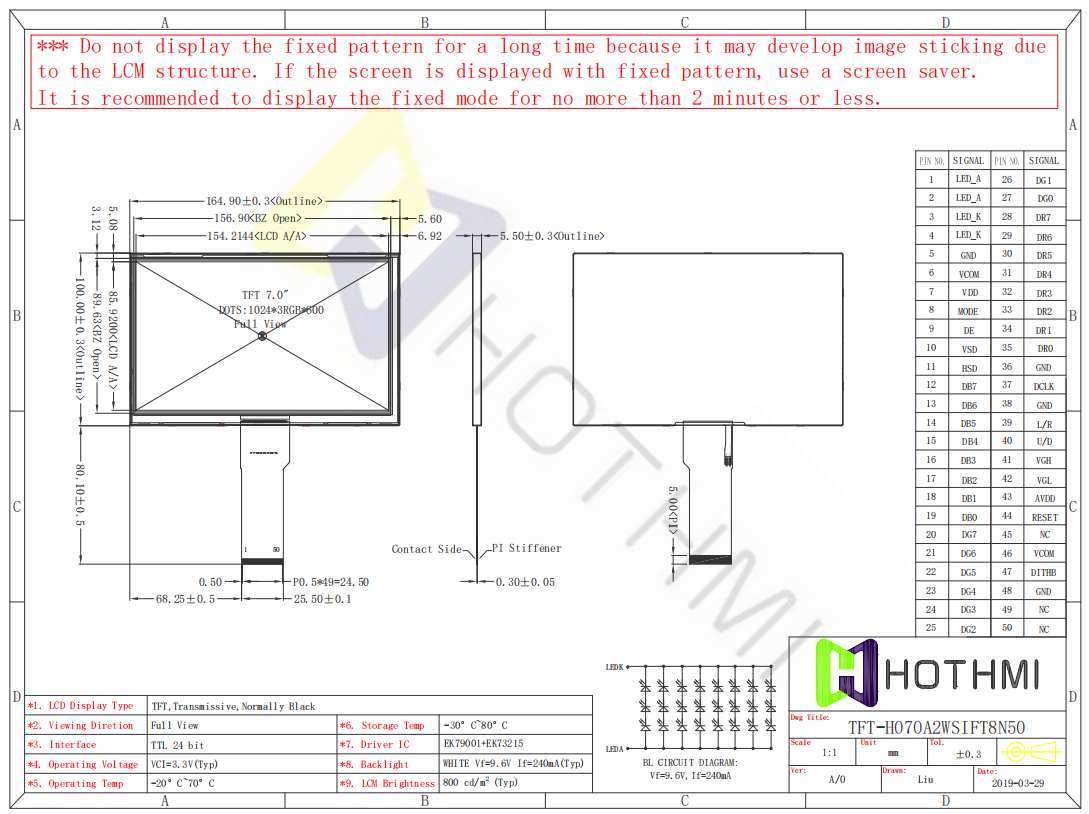

ITEM	PARAMETER DESCRIPTION	UNIT
TFT series	TFT-H070A2WSIFT8N50
Diagonal size	7.0”	Inch
Resolution	1024x600	Dot
Dimensions	164.9x100x5.5	mm
Active area (AA)	154.21x85.92	mm
LCD type	TFT LCD Display	mm
Display viewing angle	Full View
Aspect ratio	3:2
Backlight type	LED white
TFT driver IC	EK79001+EK73215
Brightness	800	cd/m2
Operating temperature	-20~70℃	℃
Storage temperature	-30~80℃	℃
