2.7-inch 128 x 64 graphic LCD module/LCM128x64 graphic dot matrix module/white text on black background/ST7567 controller

2.7-inch 128 x 64 graphic LCD module/LCM128x64 graphic dot matrix module/white text on black background/ST7567 controller

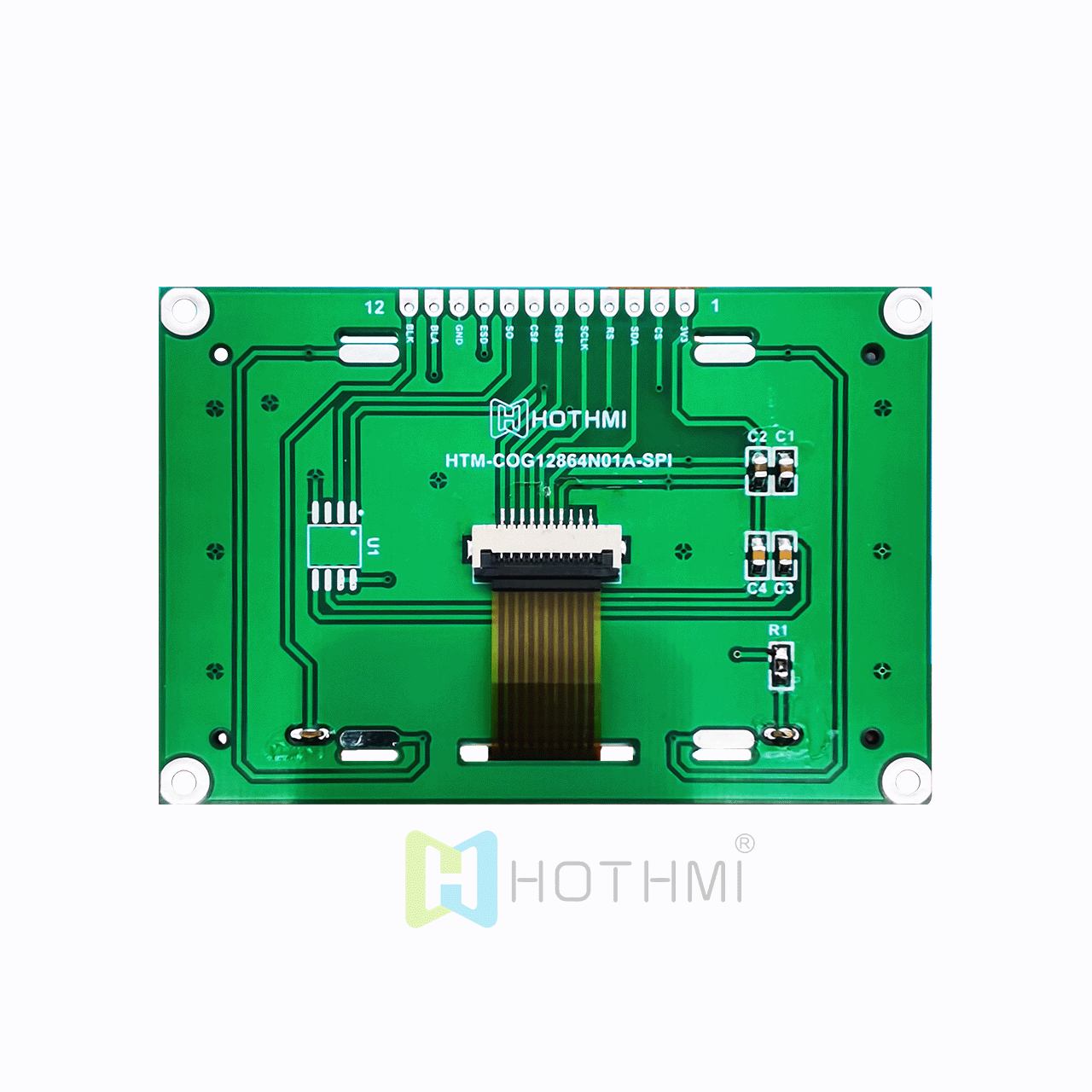

▶ Model: HTM12864N01A-41W-A5P

▶ Type: Standard COB LCD module
▶ Display pixels: 128x64

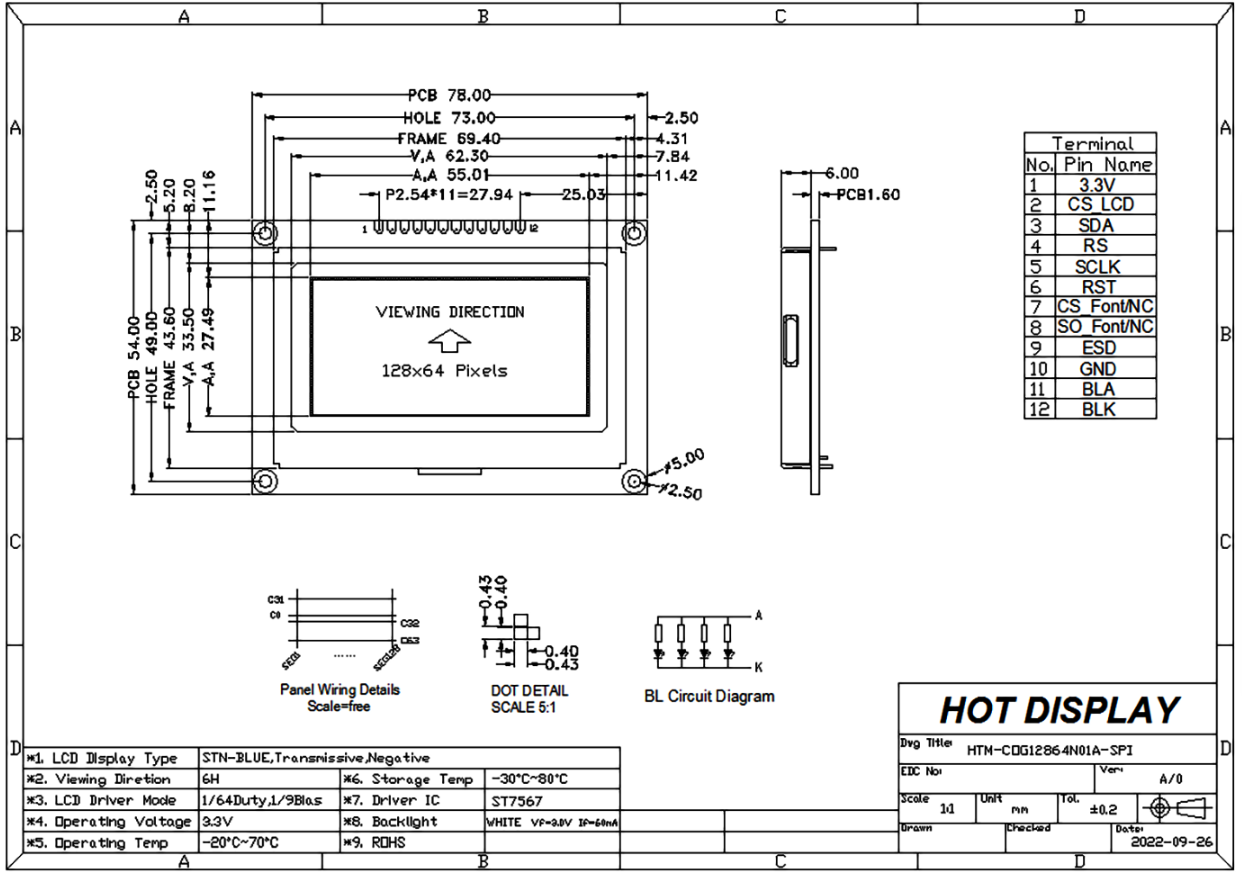

▶ Overall dimensions (mm): 78.0x54.0x7.6
▶ VA size (mm): 62.3x33.5
▶ AA size (mm): 55.01x27.49
▶ Viewing angle: 6H
▶ Point spacing (mm): 0.43x0.43
▶ Backlight/brightness: white light
▶ Pin: 12PIN
▶ Interface mode: SPI
▶ Working temperature: -20~70℃
▶ Special instructions: Chinese font library can be brought
▶ Supply voltage: 3.3v
▶ Driver chip: ST7567
