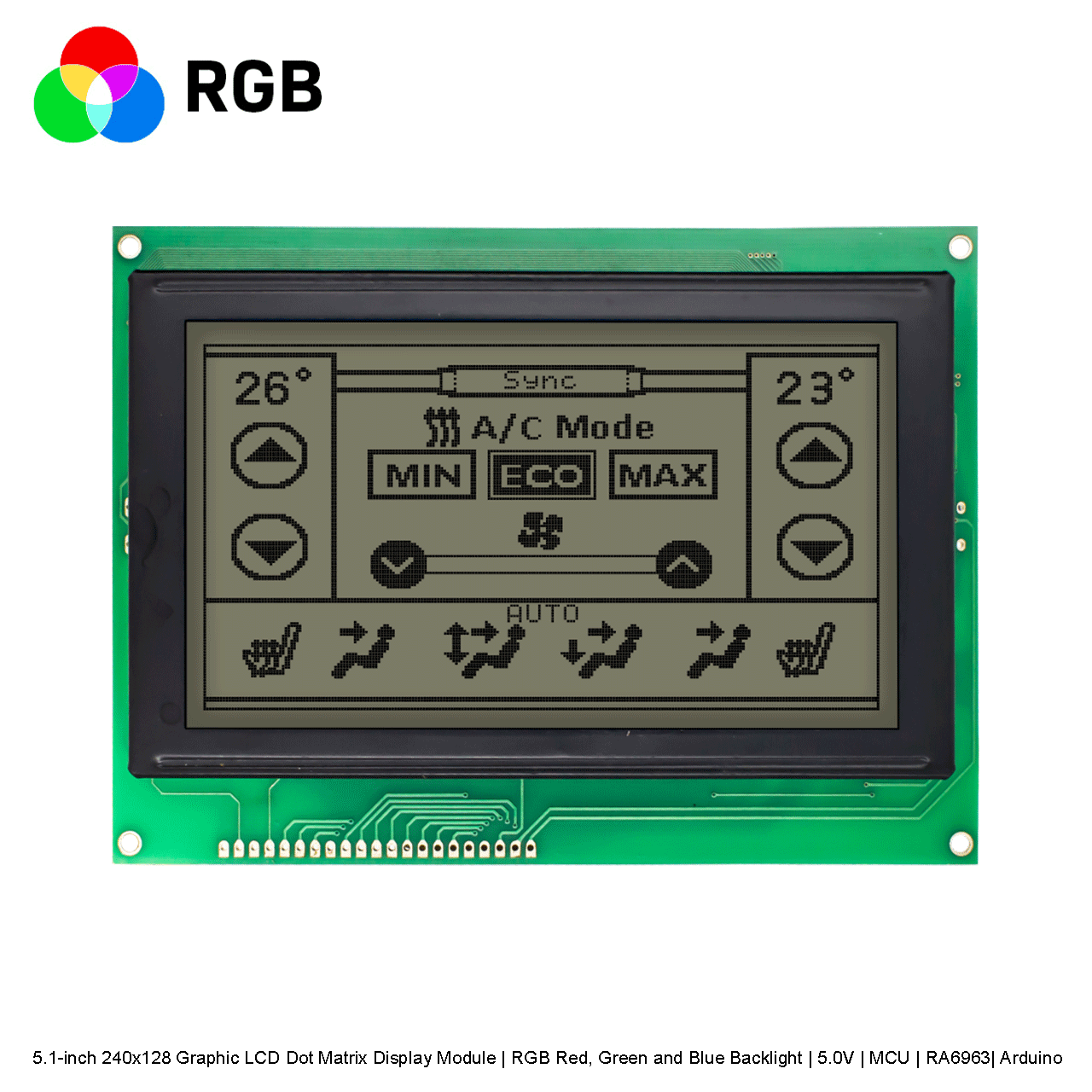

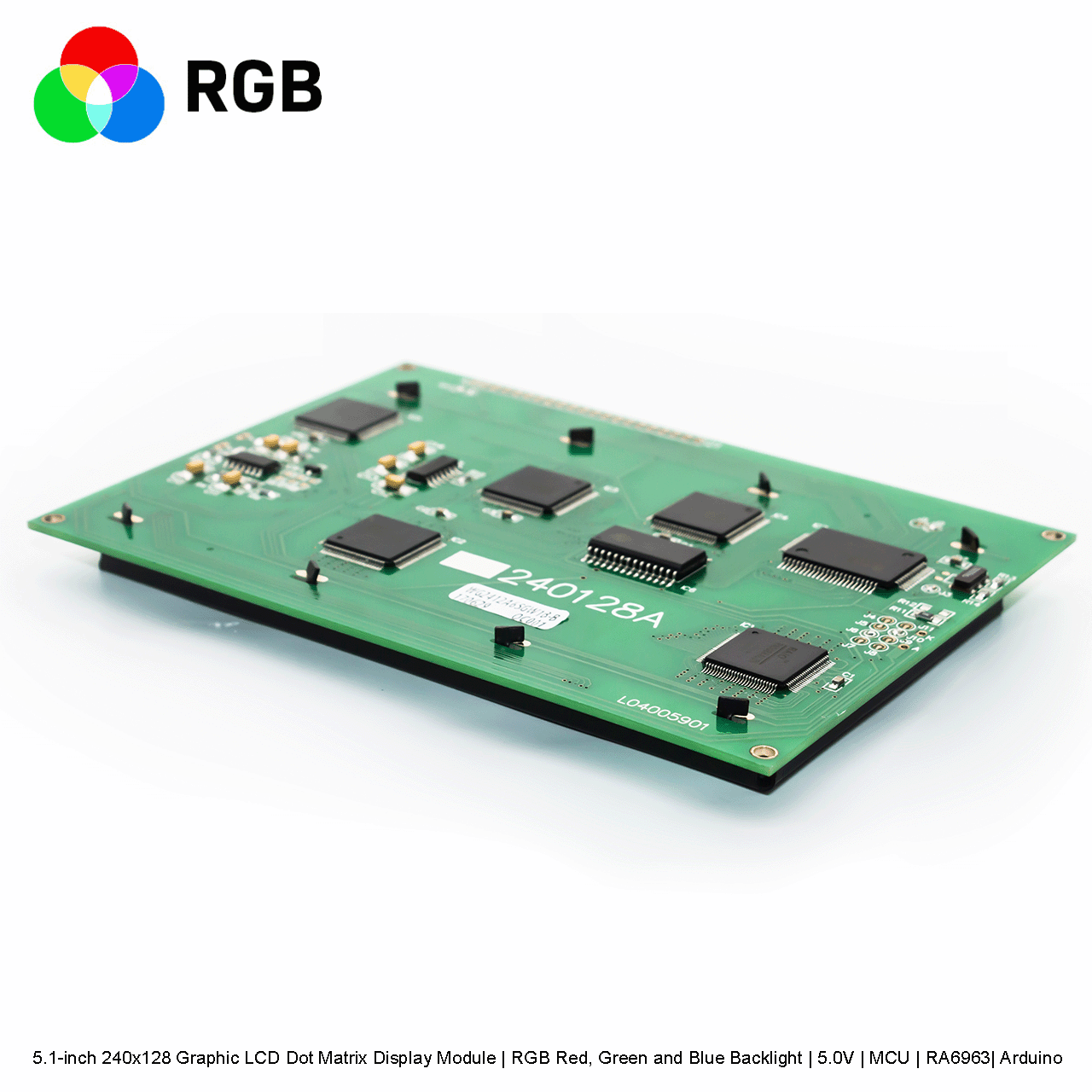

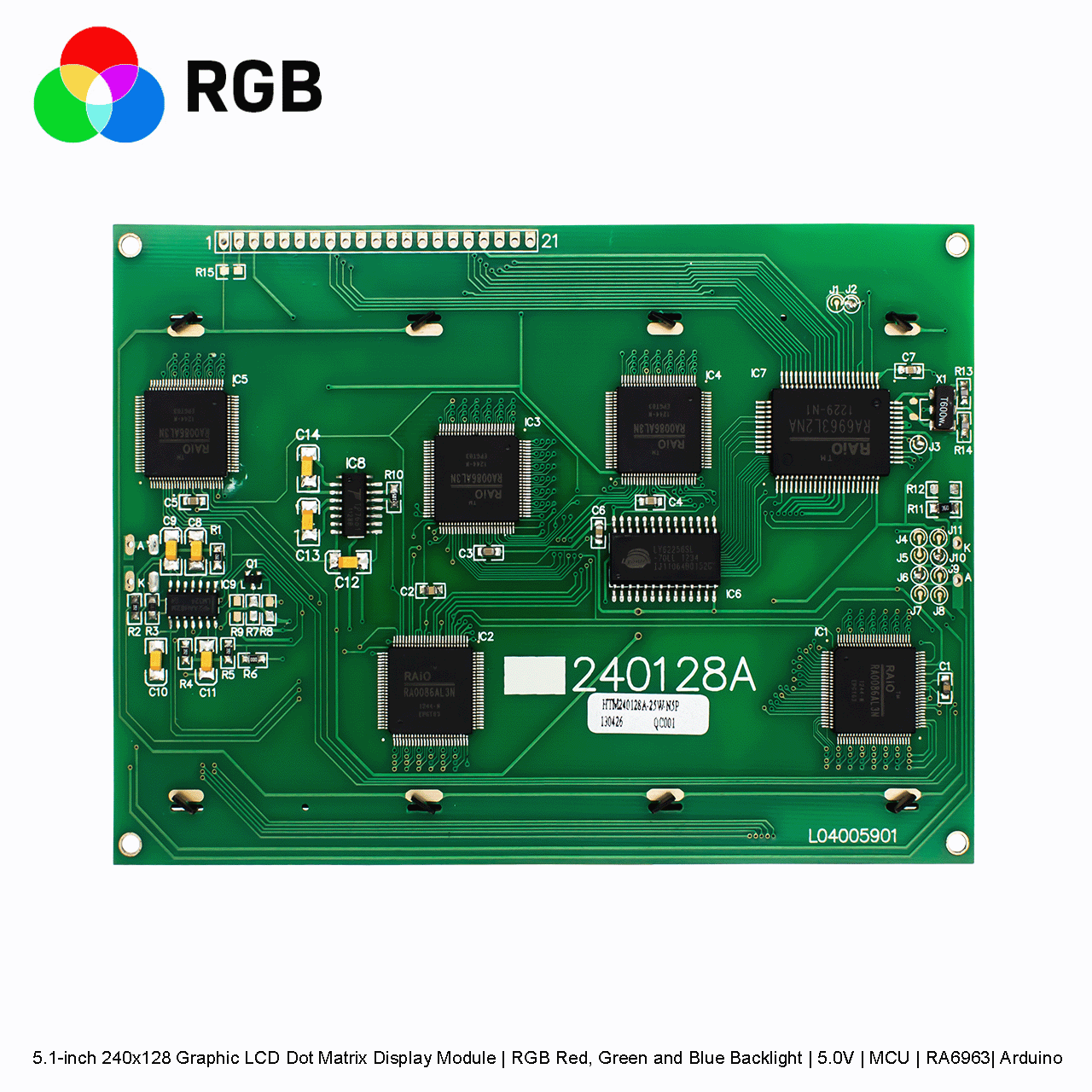

5.1-inch 240x128 Graphic LCD Dot Matrix Display Module | RGB Red, Green and Blue Backlight | 5.0V | MCU | RA6963| Arduino
The 5.1-inch 240x128 Graphic LCD Dot Matrix Display Module displays dark gray pixels on a red, green and blue background. This fully transparent LCD display is carefully designed. In a well-lit place, due to the full transparency, the backlight is fully transparent, and the brightness is enough to allow the viewer to clearly see the displayed image in bright light. In a dark environment, the LCD has a strong backlight built in, and the transmittance of the polarizer allows the backlight to pass through, providing high contrast and showing clear graphics to the viewer. This advanced display technology ensures that the display is always easy to read regardless of the lighting conditions.
This graphic LCD display module is fully compatible with Arduino and can be seamlessly connected with other electronic systems for a variety of applications. Contains multi-language word lists for use. This product model is designed to withstand harsh operating conditions and operates well when used in a temperature range of -20 to 70 degrees Celsius. This LCD has an optimal viewing angle of 6:00, operates at a 5V supply voltage, and is RoHS compliant.
Connector Customization: Easily modify any connectors on your display to meet your application’s requirements. Our engineers are able to perform soldering for pin headers, boxed headers, right angle headers, and any other connectors your display may require. |
PCB Modifications: Choose from a variety of changes to the PCB's shape, size, pinout, and component layout to make it perfect for your application. |
Backlight color customization: The module backlight has a variety of combinations to choose from, without backlight or with yellow-green/blue/white/amber/red/RGB backlight options. There are 48 effects. You can click on the customization page for reference. |
Font library customization: Provides a variety of font libraries, including English/Japanese, Western Europe, Eastern Europe, Scandinavian Europe, Cyrillic (Russian), Hebrew/Arabic, etc. |
Cable Customization: Adjust the length, position, and pinout of your cables or add additional connectors. Get a cable solution that’s precisely designed to make your connections streamlined and secure. |
