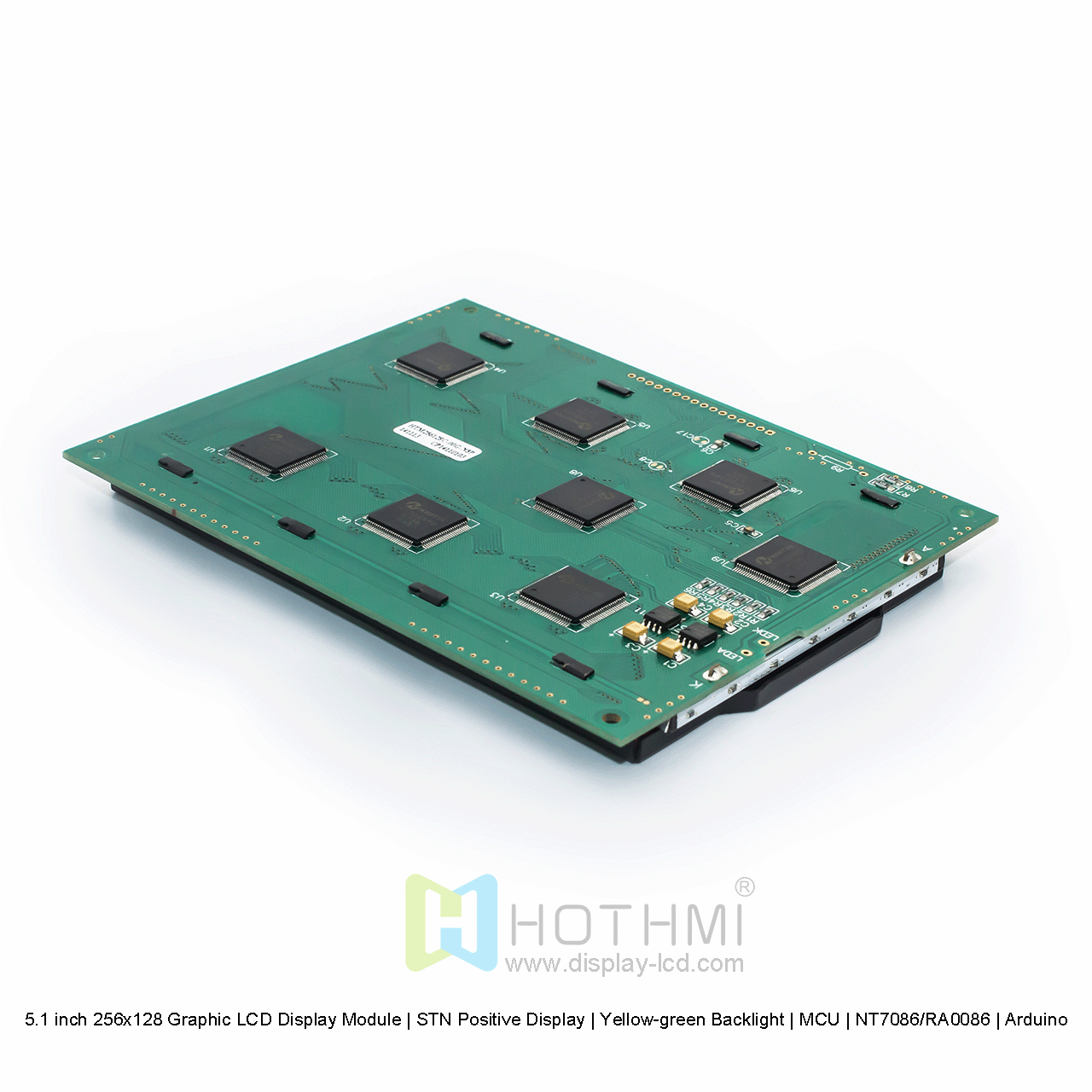

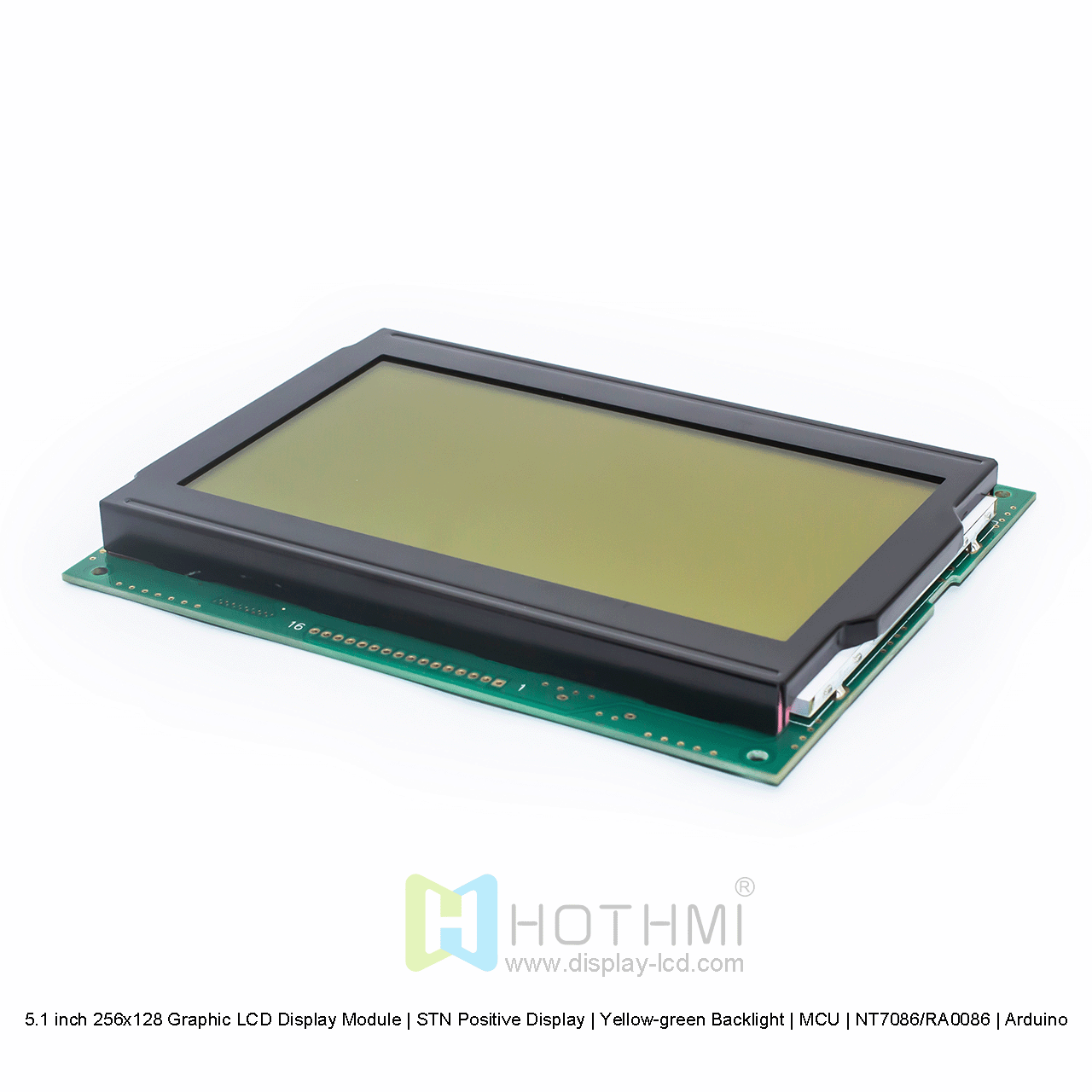

5.1 inch 256x128 Graphic LCD Display Module | STN Positive Display | Yellow-green Backlight | MCU | NT7086/RA0086

5.1 inch 256x128 Graphic LCD Display Module | STN Positive Display | Yellow-green Backlight | MCU | NT7086/RA0086 | Arduino

▶ Model: HTM256128C-11Y-A5P

▶ Type: Standard COB LCD module
▶ Display pixels: 256x128
▶ Overall dimensions (mm): 147.0x116.0x14.6
▶ VA size (mm): 114.0x64.0
▶ AA size (mm): 127.0x70.0
▶ Point spacing (mm): 0.47x0.47
▶ Application: Industrial Control
▶Viewing angle: 6H
▶ Backlight/brightness: yellow-green light
▶ Pin: 16PIN
▶Interface mode: MCU
▶ Working temperature: -20~70℃
▶Power supply voltage: 5.0v
▶ Driver chip: NT7086/RA0086

Product Consultation Datasheets Download Demo Code
- Transportation
- Payment
- Taxes
- Ensure
- Return
- Discontinued
Transportation

Our company cooperates with SF Express for domestic express delivery, and DHL for overseas express delivery. You can contact us to inquire about freight and weight to get the latest quotation.

Payment

Online payment is not supported. Transfers can be made through corporate accounts. If a VAT invoice is issued, please contact our sales staff to obtain a corporate account.

Taxes

All products sold on this website do not include tax. If you need a VAT invoice, please contact our sales staff to purchase offline.

Ensure

All products sold on this website have a one-year warranty. If the product is damaged due to improper use by the customer, it will be repaired free of charge. Material cost will be charged.

Return

Products within the warranty period can be returned for repair or replacement. Before returning, please contact our sales staff to confirm the reason for return.

Discontinued

We are committed to long-term production of all products sold on this website. If the IC or panel is discontinued, we will try our best to replace it with compatible materials.

Prev Back Next

Related Accessories

Arduino adapter board/suitable for Arduino development board COB/character/graphic dot matrix
Single Row Pin Header Connector
COB 20-pin cable base/character/graphic dot matrix

Product Description
Specification
Attributes

5.1 inch 256x128 Graphic LCD Display Module | STN Positive Display | Yellow-green Backlight | MCU | NT7086/RA0086 |Arduino

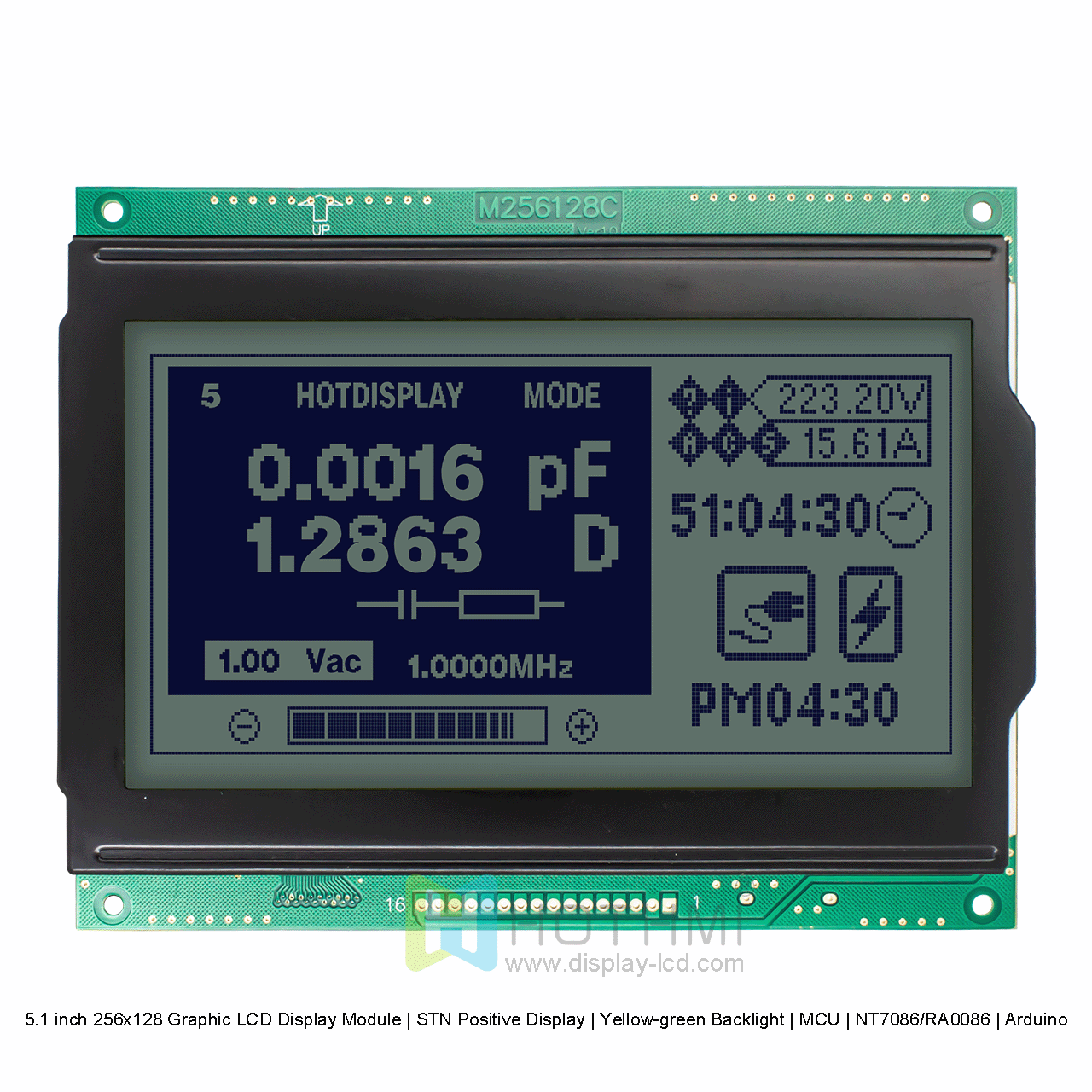

This HOT Display 256x128 Graphic LCD Display Module displays dark grey pixels on a yellow-green background. This translucent polarizer LCD display is carefully designed so that in bright environments, its translucent nature allows the content to be reflected back to the viewer, making it readable. In darker environments, the bright backlight also allows the viewer to clearly read the display content. It provides optimal visibility and impressive colors when used. The display has a built-in powerful backlight that provides high contrast and ensures readability of all graphics on the screen.

This graphic LCD display module has a built-in negative voltage. It is also fully compatible with Arduino/C8051 and can be seamlessly connected with other electronic systems for a variety of applications. The HTM256128C model is designed to withstand harsh operating conditions and operates abnormally when used in a temperature range of -20 to 70 degrees Celsius. The LCD has an optimal viewing angle of 6:00, an operating voltage of 5V, and is RoHS compliant.

Connector Customization:

Easily modify any connectors on your display to meet your application’s requirements. Our engineers are able to perform soldering for pin headers, boxed headers, right angle headers, and any other connectors your display may require.

PCB Modifications:

Choose from a variety of changes to the PCB's shape, size, pinout, and component layout to make it perfect for your application.

Backlight color customization:

The module backlight has a variety of combinations to choose from, without backlight or with yellow-green/blue/white/amber/red/RGB backlight options. There are 48 effects. You can click on the customization page for reference.

Font library customization:

Provides a variety of font libraries, including English/Japanese, Western Europe, Eastern Europe, Scandinavian Europe, Cyrillic (Russian), Hebrew/Arabic, etc.

Cable Customization:

Adjust the length, position, and pinout of your cables or add additional connectors. Get a cable solution that’s precisely designed to make your connections streamlined and secure.

Item	Specification content	Unit
Name	HTM256128C-11Y-A5P
Number of dots	256 × 128	dots

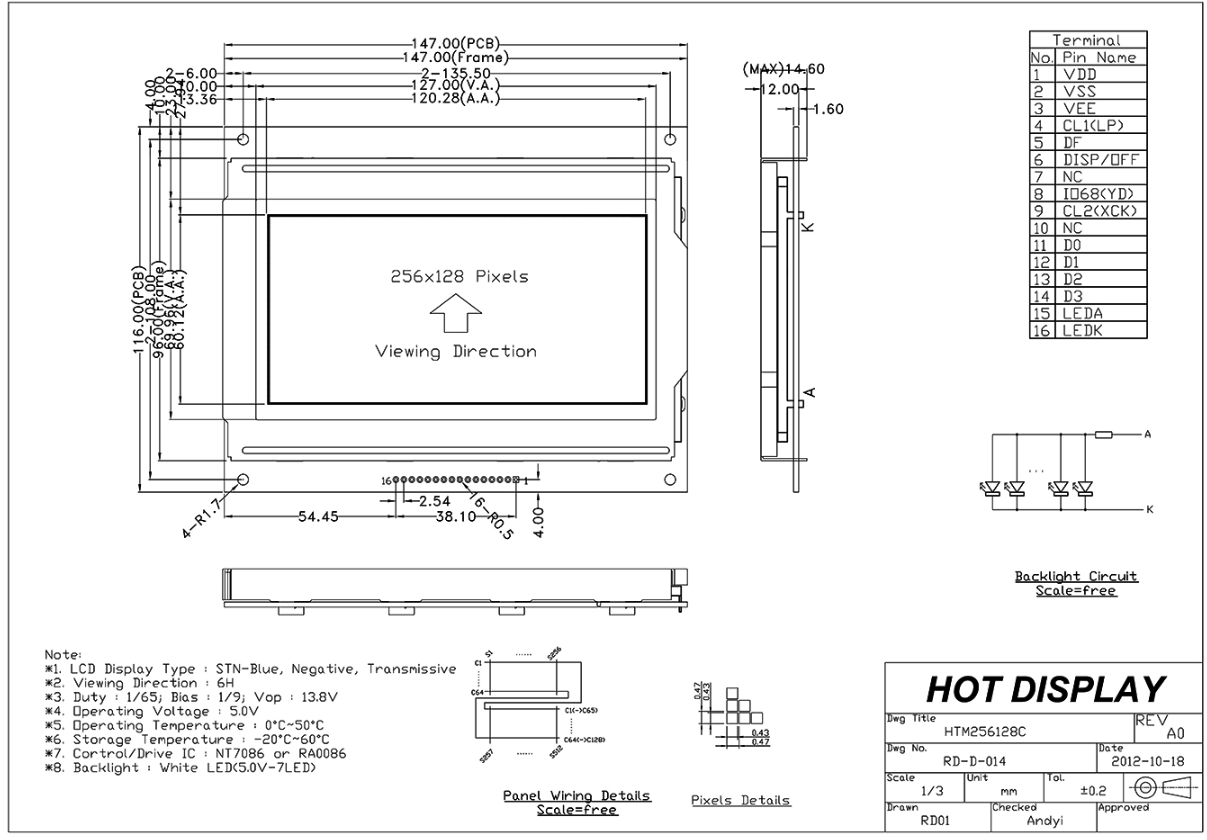

Module size	147.0 x 116.0 x 14.6 (MAX)	mm
VA size	114.0 x 64.0	mm
AA size	127.0 x 70.0	mm
Pixel pitch	0.47 x 0.47	mm
IC	NT7086/RA0086
Power supply voltage	5V	V
Backlight	Yellow-green
Display mode	STN+
Drive mode (Duty)	1/128 duty cycle
Type	Graphic LCD
Features	Transflective
