  • 18.5 inch 1920x1080 TFT Display with Capacitive Touch -IPS AG TFT LCD with LVDS Interface

    This 18.5 inch 1920x1080 TFT Display enhances your visual and interactive experience with precise specifications and excellent performance.


    This product uses a normally black TFT panel with 72% NTSC color gamut and 850 cd/m² brightness, which can present clear and sharp high-contrast images even in bright environments. Its anti-glare (AG) surface treatment (haze 3–4%, gloss 70°±10 degrees, Ra 0.06–0.12 µm) minimizes reflections for a comfortable viewing experience. The display can operate reliably in a temperature range of -20°C to +70°C, supports power inputs of 5.0V±0.5V (VCI) and 12.0V±0.5V (VLED), and integrates capacitive touch function through the USB interface for seamless interaction. Chemically strengthened glass, 3M VHB adhesive mounting and industrial-grade connectors (CN1_UJU IS100-L30O-C23 / CN2_CIO114M1HR0-NH) ensure its durability, while the LVDS 48-bit interface supports high-speed data transmission. Key design optimizations include a slim 20.9 mm profile, 450.40×272.20 mm effective display area, >88% transmittance, and backlight stability achieved through LEDEN/VPWM control (CN2 cable length ≤300 mm).

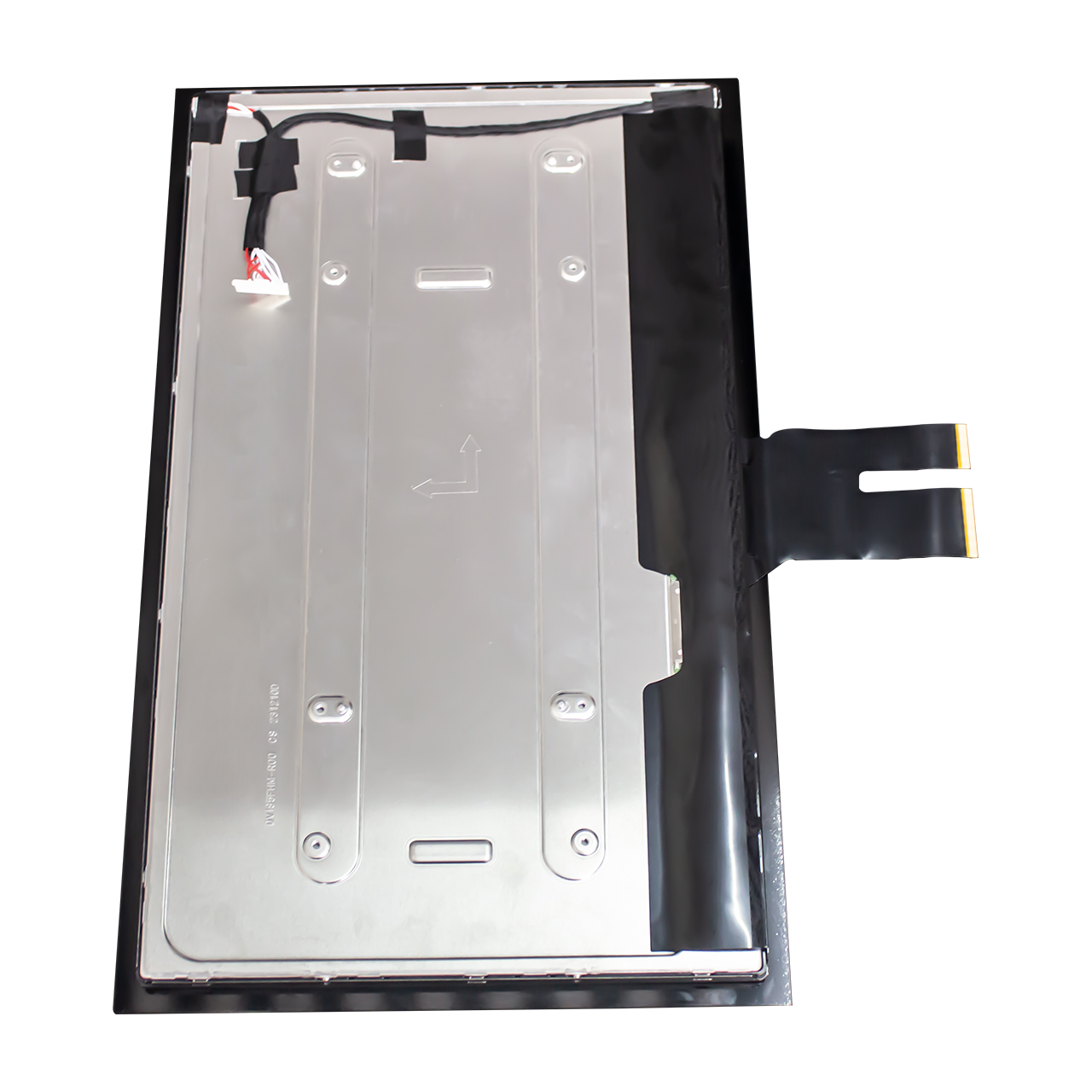

    This 18.5 inch 1920x1080 TFT Display mode with ILI2510 chip as the controller, multi-touch, and sensitive touch experience, giving users a unique experience of silky smoothness. For touch screen panels, we also provide customized services, users can customize printed fonts, graphics, colors, or customize different sizes of panels with rounded corners according to actual needs. This TFT and the main control board transmit data via FPC, providing a very convenient way to assemble and disassemble the module. We can also customize the cable according to user needs.


    This 18.5 inch 1920x1080 TFT Display is ideal for self-service terminals, medical equipment and control systems. It combines rigorous technology with user-centric excellence - every parameter has been carefully designed to enhance your hardware experience.

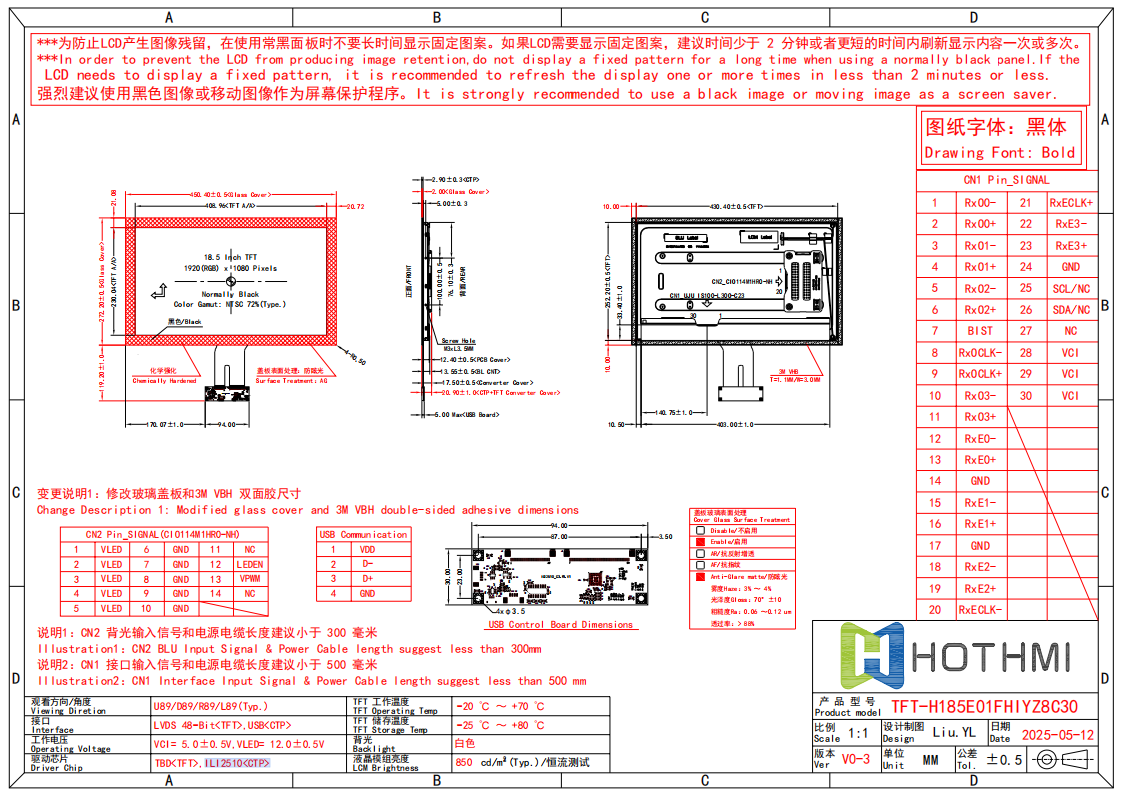

  • 18.5.png

  • ITEM

    PARAMETER DESCRIPTION

    UNIT

    TFT series

    TFT-H185E01FHIYZ8C30


    Diagonal size

    18.5”

    Inch

    Resolution

    1920x1080

    Dot

    Dimensions

    450.0x272.0x5.0

    mm

    Active area (AA)

    408.96x230.04

    mm

    LCD type

    18.5” TFT Module

    mm

    Display viewing angle

    Full View


    Aspect ratio

    2:1


    Backlight type

    LED white


    TFT driver IC

    -


    Brightness

    850cd/m2

    cd/m2

    Operating temperature

    -20~70℃

    Storage temperature

    -25~80℃
