2-inch 12864 LCD Graphic Display Module | 128 X 64 Graphic Dot Matrix Module | STN Positive Display | SPI Interface

2-inch 12864 LCD Graphic Display Module | 128 X 64 Graphic Dot Matrix Module | STN Positive Display | SPI Interface | ST7567 Controller

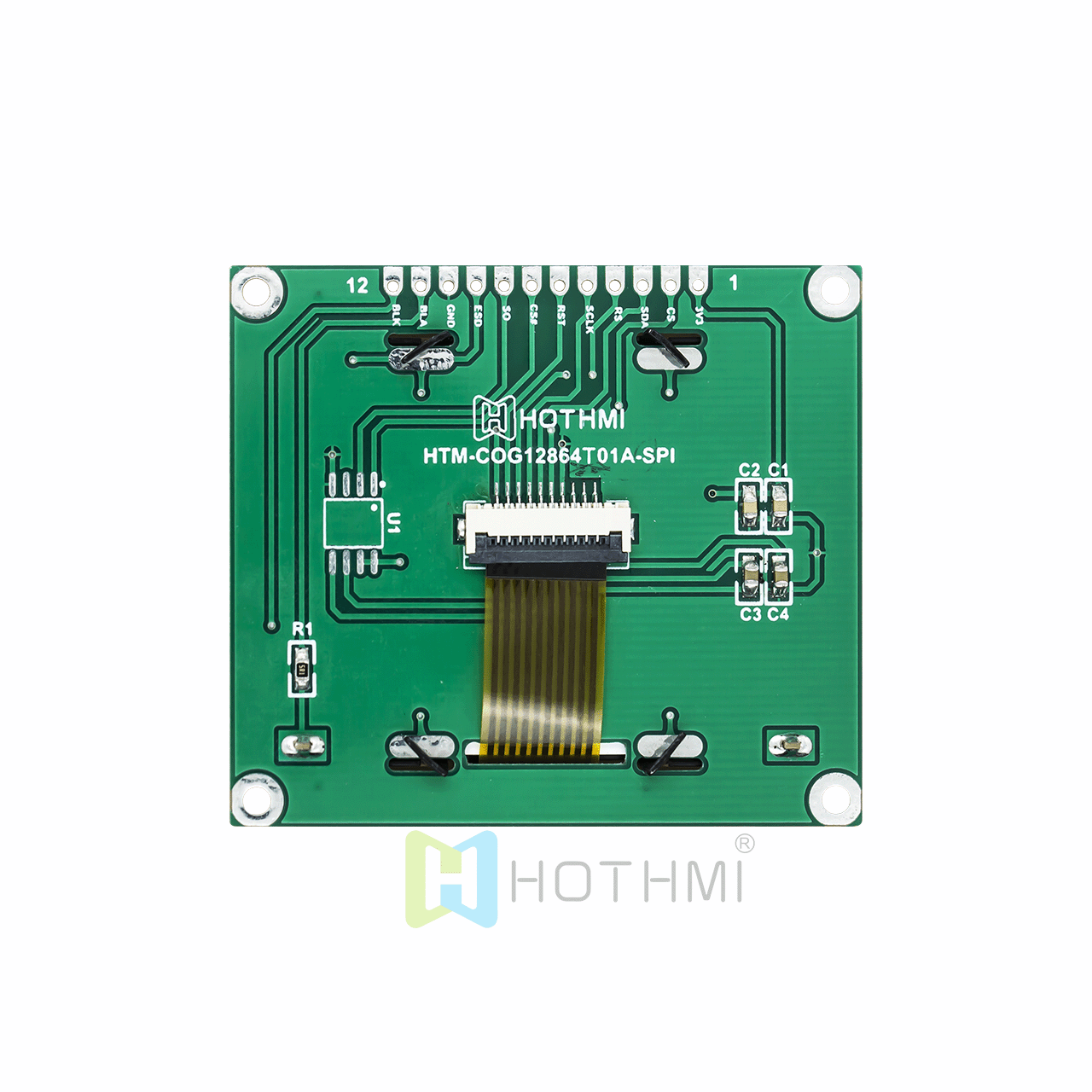

▶ Model: HTM12864T01A-11W-A5P

▶ Type: Standard COB LCD module
▶ Display pixels: 128x64

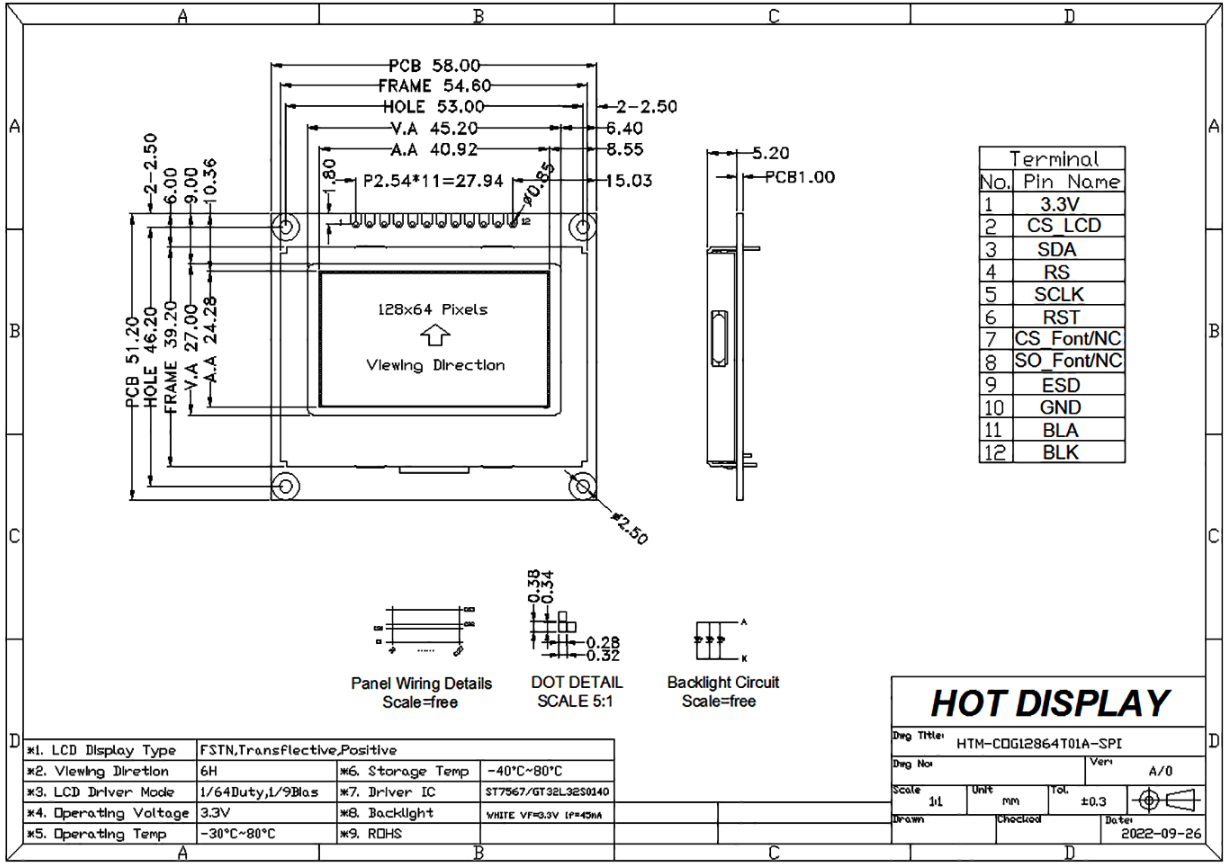

▶ Overall dimensions (mm): 58.0x51.2
▶ VA size (mm): 45.2x27.0
▶ AA size (mm): 40.92x24.28
▶ Viewing angle: 6H
▶ Backlight/brightness: white light
▶ Pin: 12PIN
▶ Interface mode: SPI
▶ Special instructions: Chinese font library can be brought
▶ Working temperature: -20~70℃
▶ Supply voltage: 3.3V
▶ Driver chip: ST7567
