1.7-inch graphic dot matrix module/128x64 resolution/white text on blue background/ST7565R control chip/MCU

1.7-inch graphic dot matrix module/128x64 resolution/white text on blue background/ST7565R control chip/MCU

▶ Model: HTM12864C02-25W-A5P

▶ Type: COG LCD module with board
▶ Display pixels: 128x64

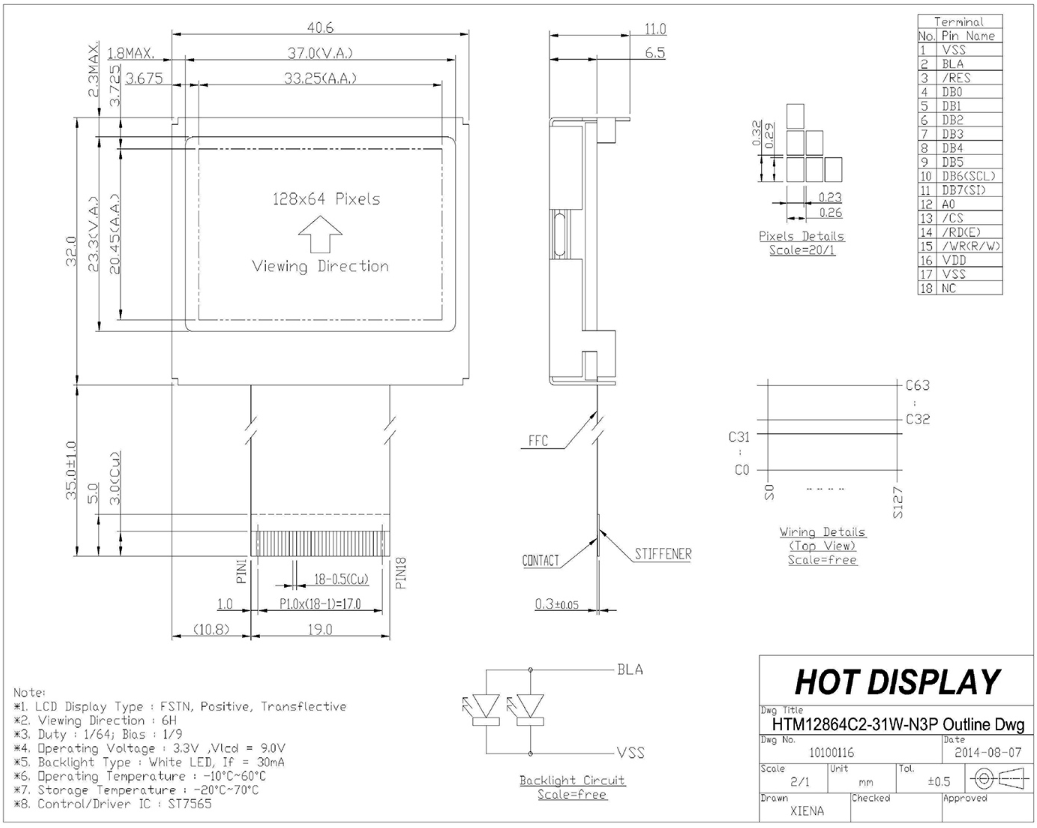

▶ Overall dimensions (mm): 40.6x32.2x11.0
▶ VA size (mm): 37.0x23.3
▶ AA size (mm): 33.26x20.48
▶ Point spacing (mm): 0.26x0.32
▶ Application:Handheld instrument
▶ Viewing angle: 6H
▶ Backlight/brightness: white light
▶ Pin: FFC-18PIN
▶ Interface mode: MCU
▶ Special instructions: MCU/8BIT
▶ Working temperature: -20~70℃
▶ Supply voltage: 3.3V
▶ Driver chip: ST7565R

Product Consultation Datasheets Download Demo Code
- Transportation
- Payment
- Taxes
- Ensure
- Return
- Discontinued
Transportation

Our company cooperates with SF Express for domestic express delivery, and DHL for overseas express delivery. You can contact us to inquire about freight and weight to get the latest quotation.

Payment

Online payment is not supported. Transfers can be made through corporate accounts. If a VAT invoice is issued, please contact our sales staff to obtain a corporate account.

Taxes

All products sold on this website do not include tax. If you need a VAT invoice, please contact our sales staff to purchase offline.

Ensure

All products sold on this website have a one-year warranty. If the product is damaged due to improper use by the customer, it will be repaired free of charge. Material cost will be charged.

Return

Products within the warranty period can be returned for repair or replacement. Before returning, please contact our sales staff to confirm the reason for return.

Discontinued

We are committed to long-term production of all products sold on this website. If the IC or panel is discontinued, we will try our best to replace it with compatible materials.

Prev Back Next

Related Accessories

Arduino adapter board/suitable for Arduino development board COB/character/graphic dot matrix
Single Row Pin Header Connector
COB 20-pin cable base/character/graphic dot matrix

Product Description
Specification
Attributes
Download Related Materials

HTM12864C02-25W-A5P/1.7-inch graphic dot matrix module/128x64 resolution/white text on blue background/ST7565R control chip/MCU

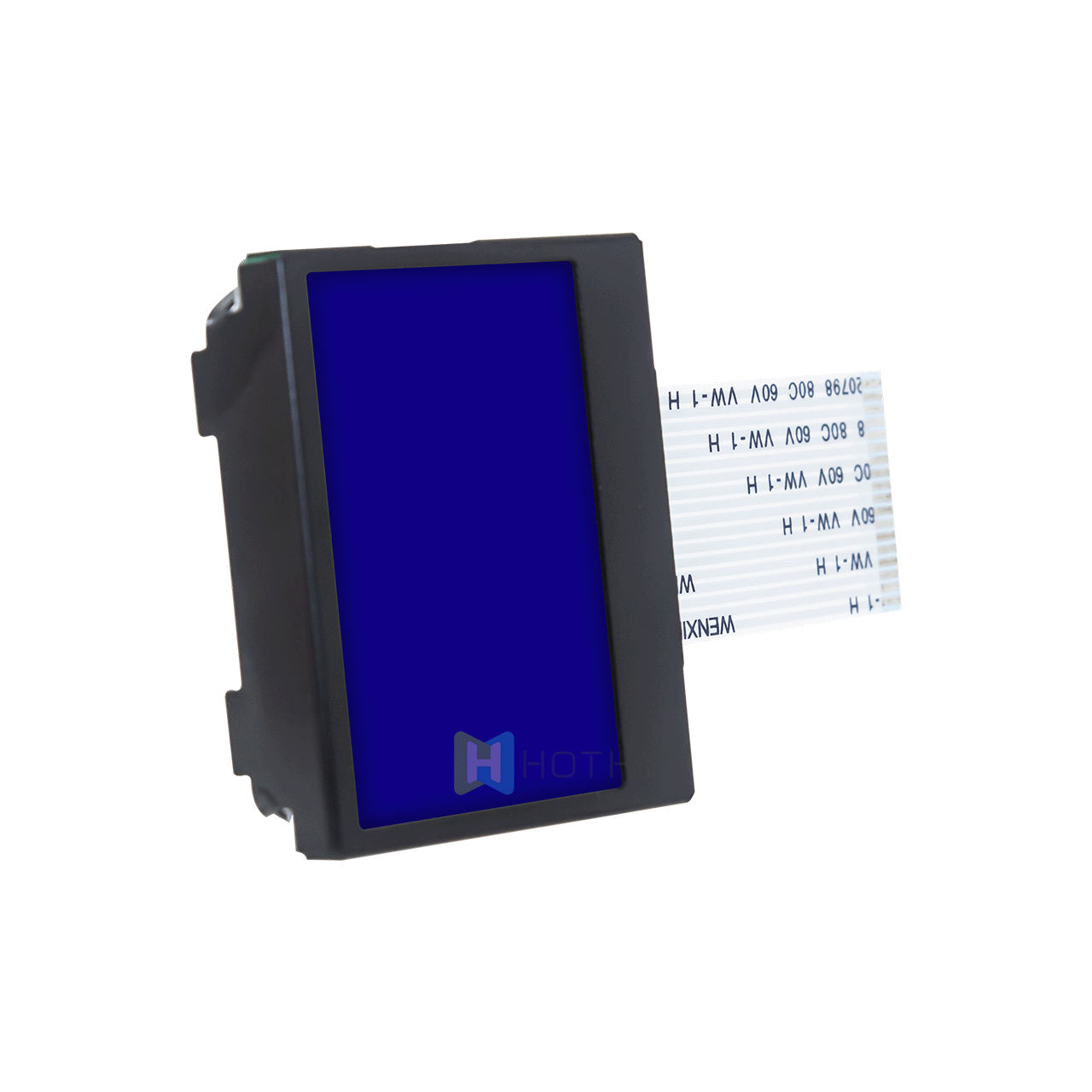

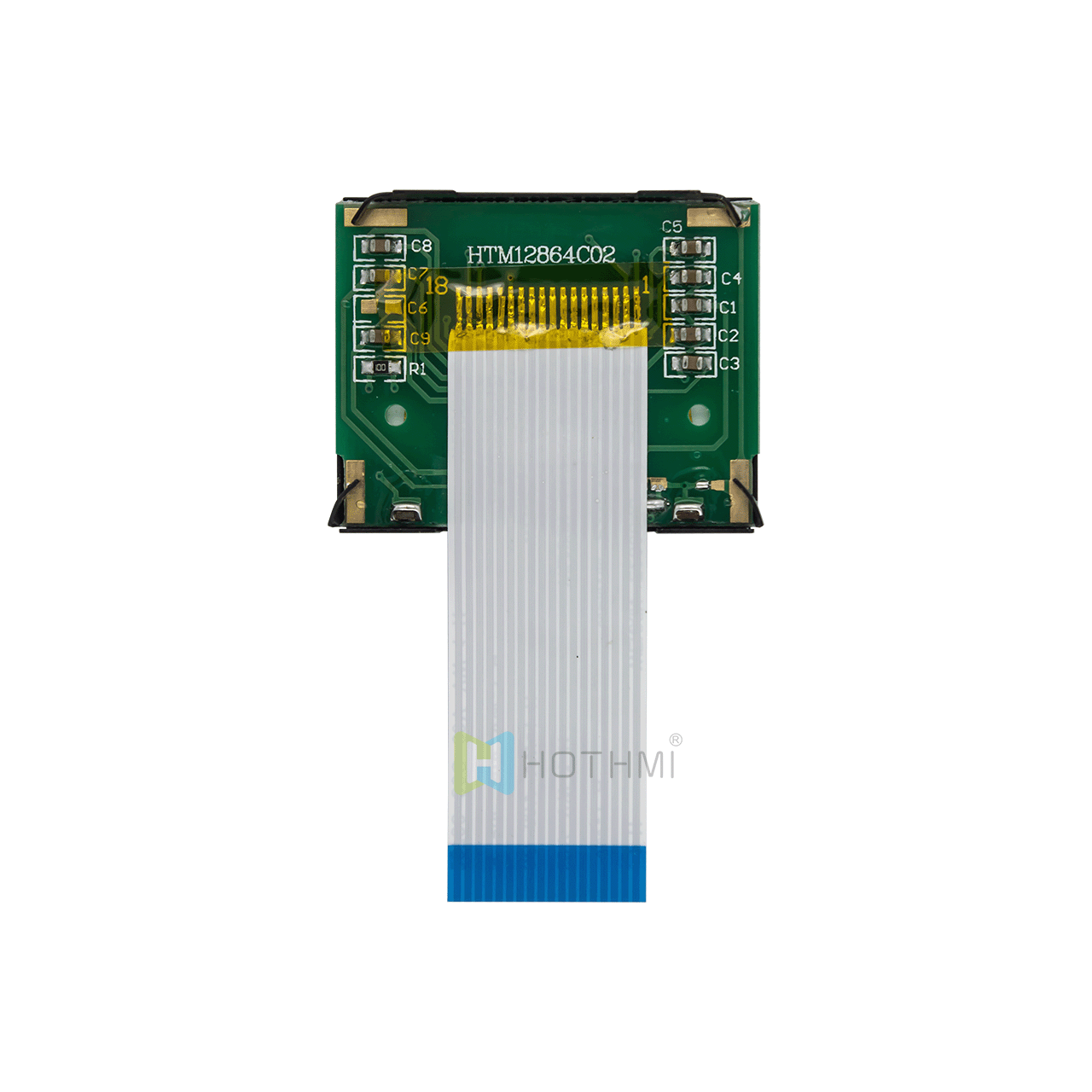

HTM12864C02-25W-A5P is a 1.7-inch 128x64 monochrome graphic dot matrix LCD display module, with white characters on a blue background, wide temperature, 3.3V voltage, ST7565R control IC, MCU interface, wide viewing angle and high contrast. All materials comply with environmental requirements RoHS standards. This module is widely used in various instruments, smart devices, etc., and is suitable for a variety of microcontroller development platforms such as 8051, PIC, AVR, ARDUINO, ARM and Raspberry Pi.

Connector Customization:

Easily modify any connectors on your display to meet your application’s requirements. Our engineers are able to perform soldering for pin headers, boxed headers, right angle headers, and any other connectors your display may require.

PCB Modifications:

Choose from a variety of changes to the PCB's shape, size, pinout, and component layout to make it perfect for your application.

Backlight color customization:

The module backlight has a variety of combinations to choose from, without backlight or with yellow-green/blue/white/amber/red/RGB backlight options. There are 48 effects. You can click on the customization page for reference.

Font library customization:

Provides a variety of font libraries, including English/Japanese, Western Europe, Eastern Europe, Scandinavian Europe, Cyrillic (Russian), Hebrew/Arabic, etc.

Cable Customization:

Adjust the length, position, and pinout of your cables or add additional connectors. Get a cable solution that’s precisely designed to make your connections streamlined and secure.

Parameter	Spacification content	Unit
name	HTM12864C02-25W-A5P
graphic display	128 column× 64 rows	dots
Dimensions	40.6 x 32.2 x 11.0 (MAX)	mm
VA size	37.0 x 23.3	mm
AA size	33.26 x 20.48	mm
Pixel pitch	0.26 x 0.32	mm
driver chip	ST7565R
Application voltage	5V	V
Backlighting	White
display mode	STN(-)
Drive mode	1/64 duty cycle
product type	Graphic LCD module
Polarizer type	Transmissive
