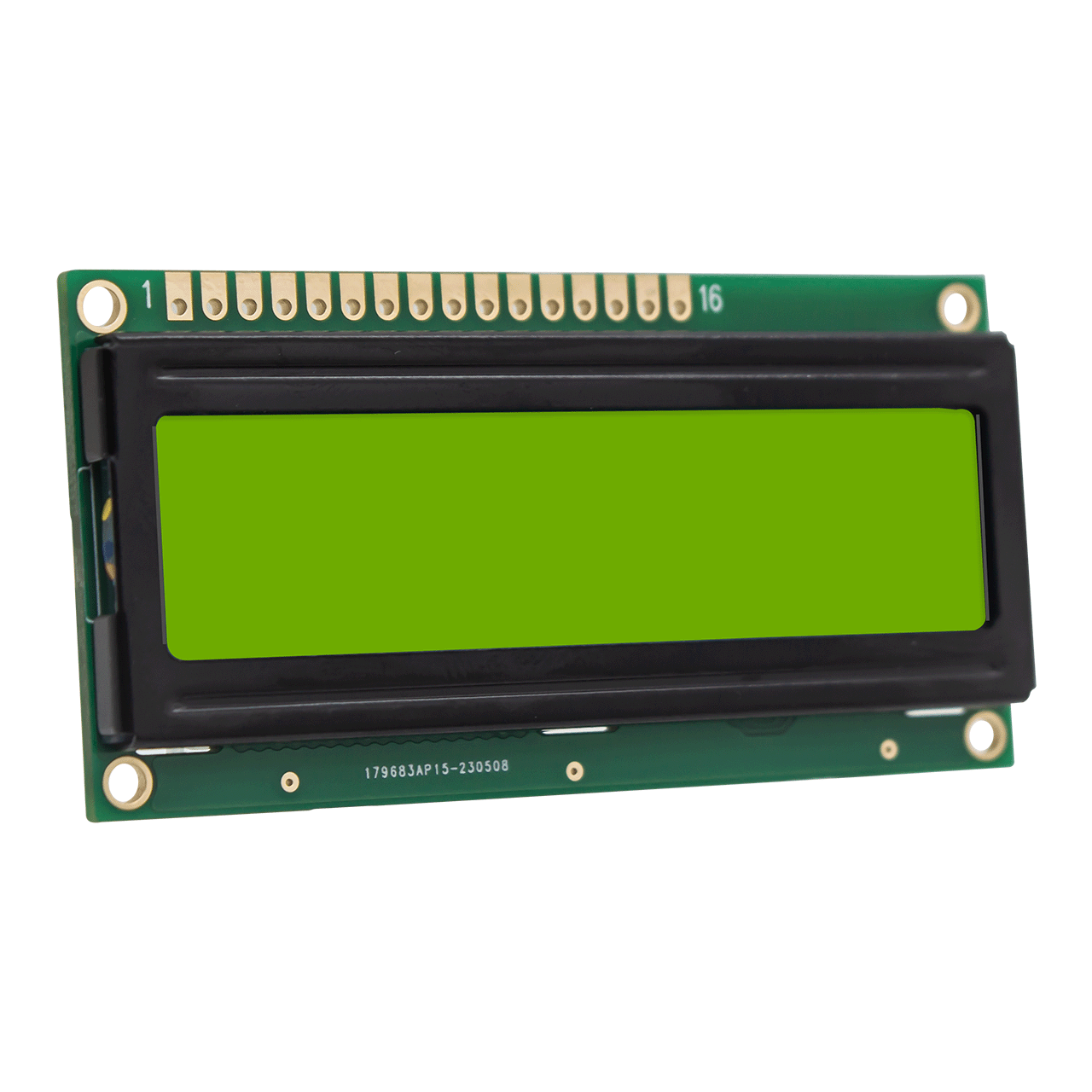

HTM-1602-12-01Y-A5P | 2x16 Character Display | Yellow/Green Backlight | STN (+) Positive Yellow/Green Display | Arduino display
While you turn on the power, the 2 x 16-character LCD photo display brings your data to life with black pixels contrasting against a vibrant yellow and green background. This transflective LCD screen has been specially designed to ensure optimal visibility in different lighting conditions. In bright sunlight, the display reflects the environmental light back to the viewer through its reflective layer to ensure the screen is easy to see. In a darker environment, the backlight of the screen turns on, providing additional illumination, ensuring that the display is always easy to read regardless of the lighting conditions.
What?
The wide operating temperature range from -20 to 70° Celsius makes this LCD monitor an ideal starting point for harsh conditions. The HTM1602-12 display offers an optimized viewing of 6.00pm and works seamlessly on a 5.0V supply voltage. This high quality single line LCD display is compatible with Arduino C8051 and other development boards, is RoHS compliant and has passed strict quality tests.
Connector Customization: Easily modify any connectors on your display to meet your application’s requirements. Our engineers are able to perform soldering for pin headers, boxed headers, right angle headers, and any other connectors your display may require. |

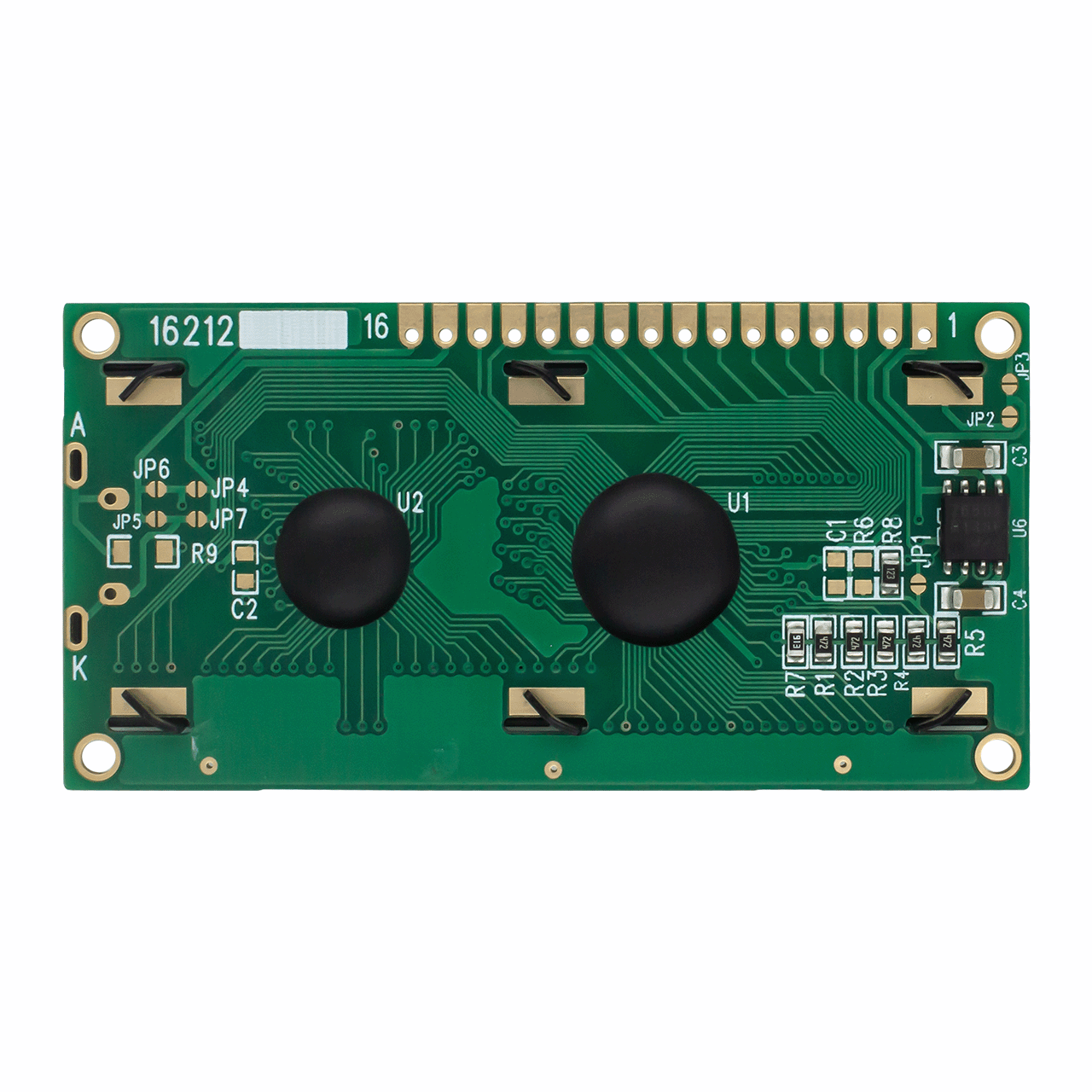

PCB Modifications: Choose from a variety of changes to the PCB's shape, size, pinout, and component layout to make it perfect for your application. |
Backlight color customization: The module backlight has a variety of combinations to choose from, without backlight or with yellow-green/blue/white/amber/red/RGB backlight options. There are 48 effects. You can click on the customization page for reference. |
Font library customization: Provides a variety of font libraries, including English/Japanese, Western Europe, Eastern Europe, Scandinavian Europe, Cyrillic (Russian), Hebrew/Arabic, etc. |
Cable Customization: Adjust the length, position, and pinout of your cables or add additional connectors. Get a cable solution that’s precisely designed to make your connections streamlined and secure. |
